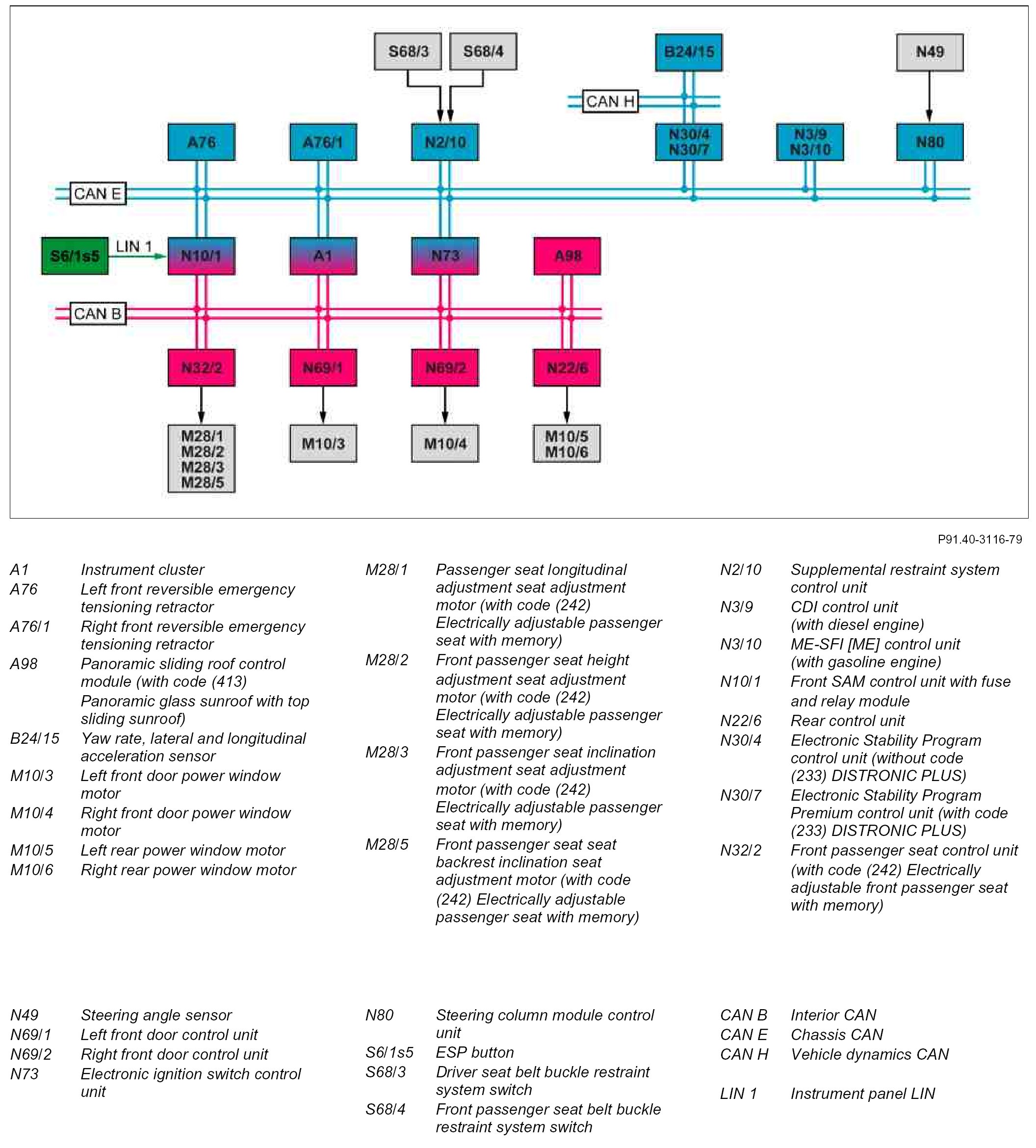

GF91.40-P-0001-03CA Pre-Safe, Block Diagram
GF91.40-P-0001-03CA Pre-Safe, Block Diagram
GF91.40-P-0001-03CA PRE-SAFE, Block Diagram
Component Identification:
