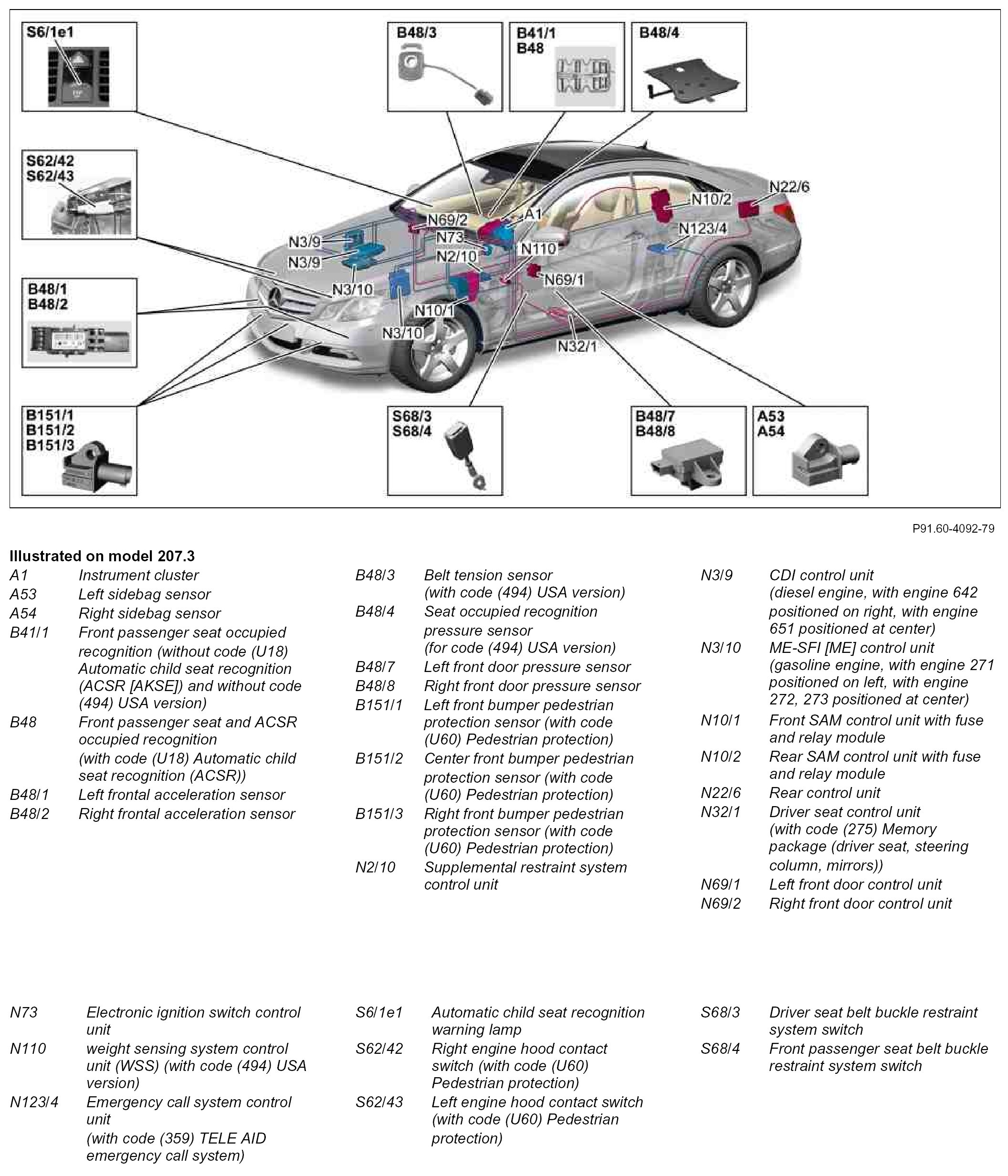

GF91.60-P-0002-01CA Supplemental Restraint System (SRS), Location of Components

GF91.60-P-0002-01CA Supplemental Restraint System (SRS), Location Of Components

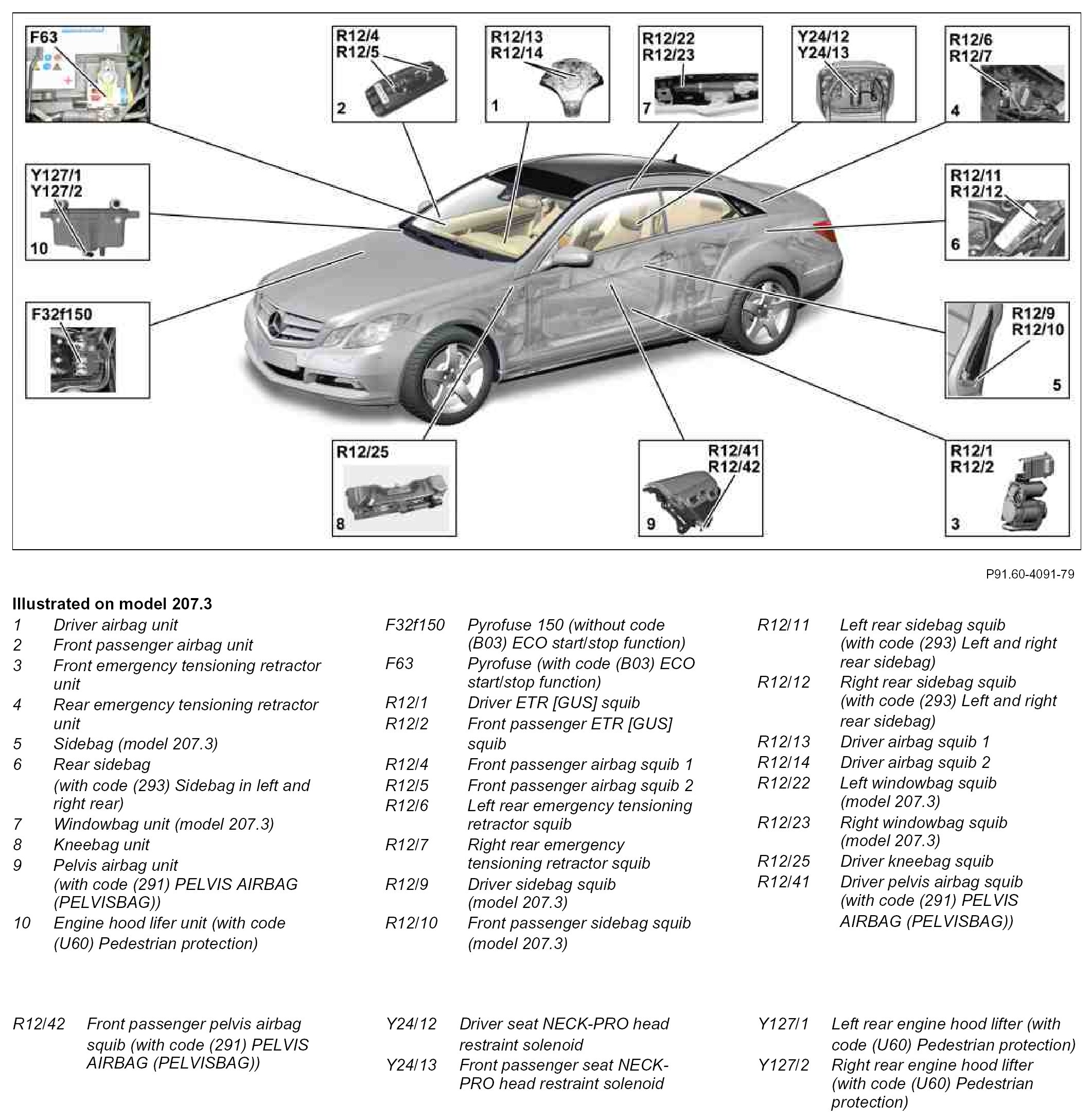

Component Identification:

For model 207.4 the Head/Thorax bag units with the left Head/Thorax bag squib (R12/39) and the right Head/Thorax bag squib (R12/40) are installed instead of the sidebag units and the windowbag units

In model 207.4, roll bars are integrated into the rear head restraints. These are extended by the ignition of the left roll bar airbag squib (R12/45) and right roll bar airbag squib (R12/46).
