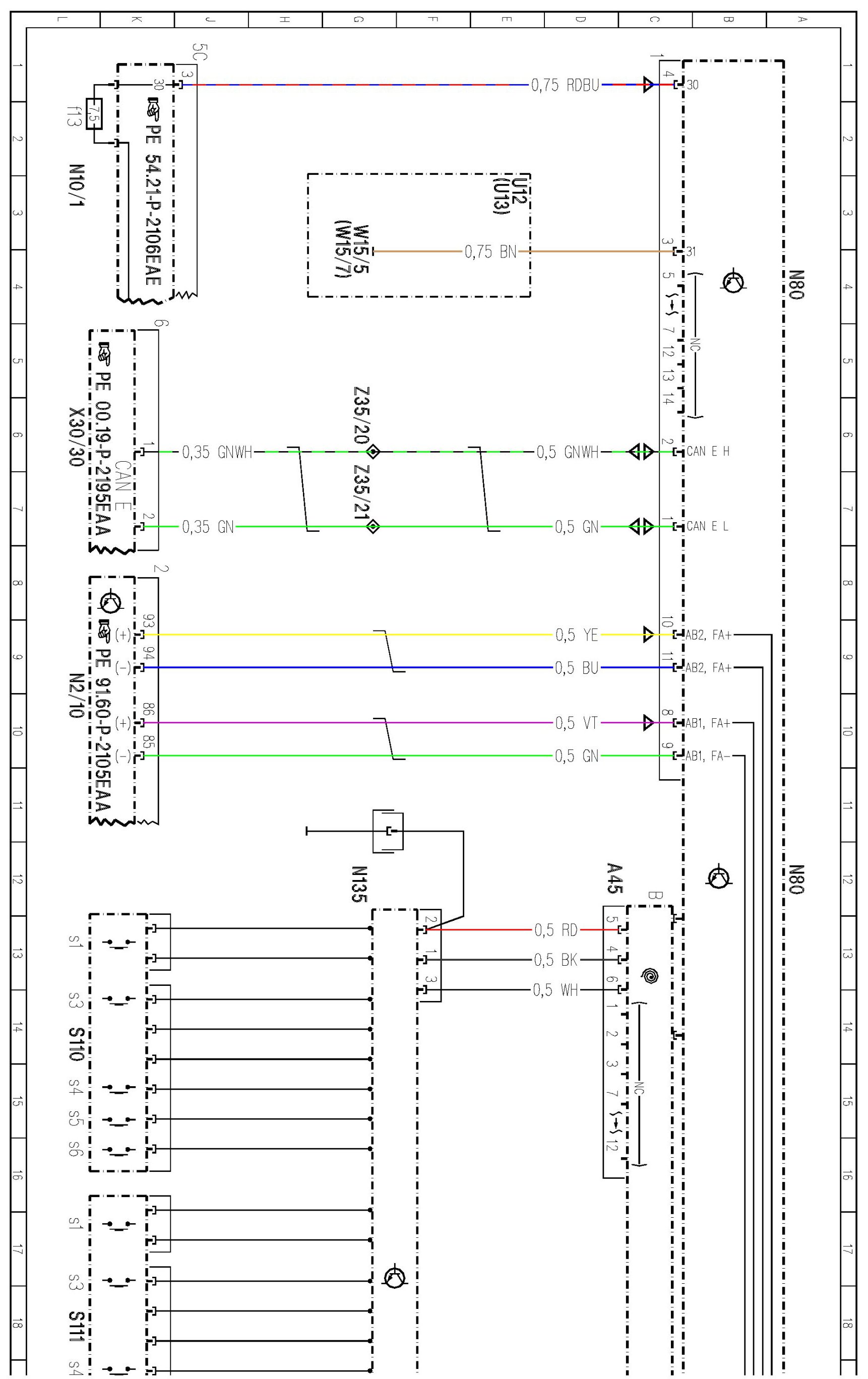

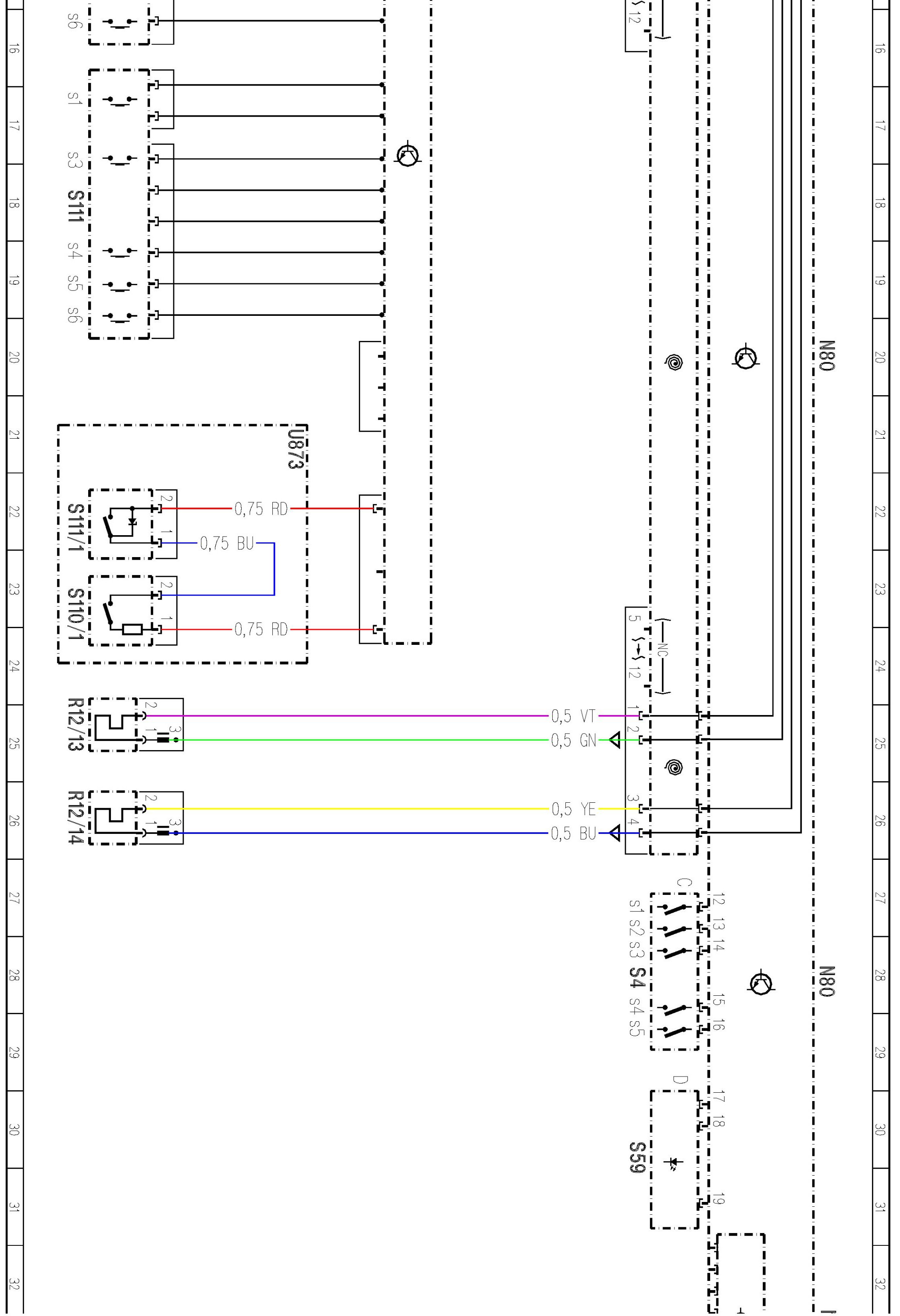

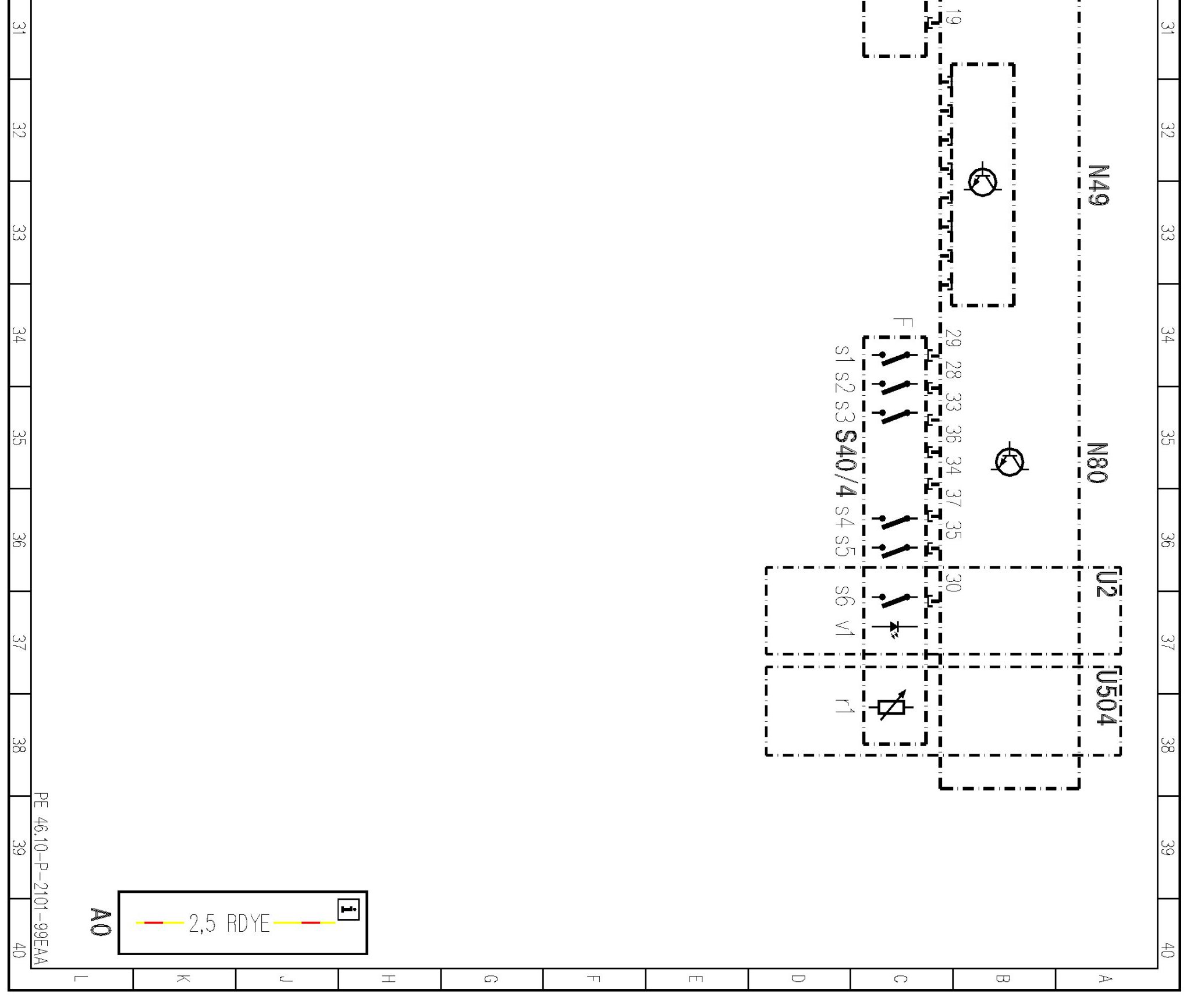

Steering Column Control Module: Diagrams

PE46.10-P-2101EAA Steering Column Module Control Unit

MODEL 207

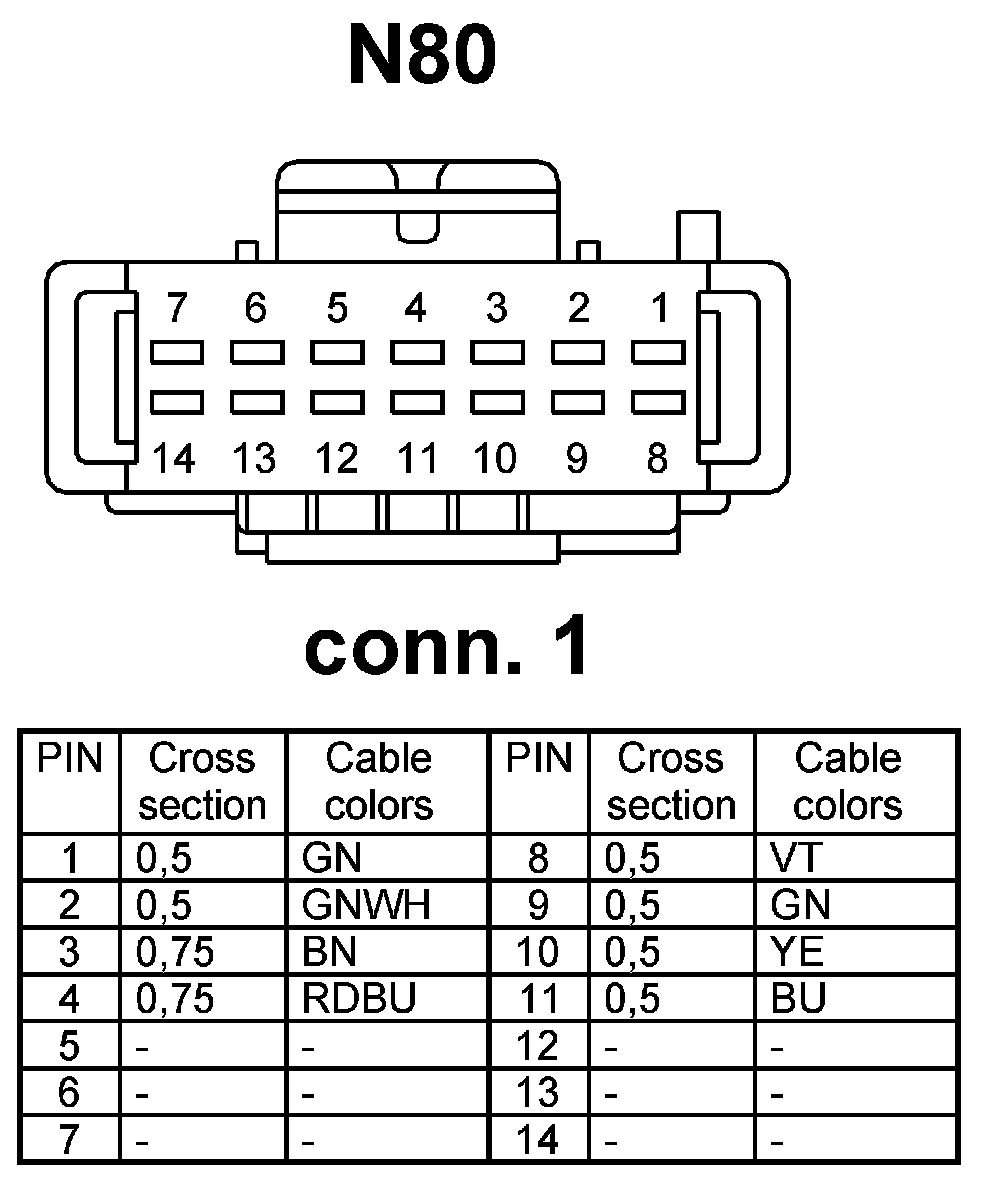

- Control unit N80






































Component Locations: Component Location photographs can be found via their component names at the vehicle level. Component Locations
