Sunroof / Moonroof Module: Description and Operation

GF77.20-P-4106CA Panoramic Sliding Roof Control Module, Component Description
- with CODE (413) Panoramic glass roof with top sliding roof

Component Identification:

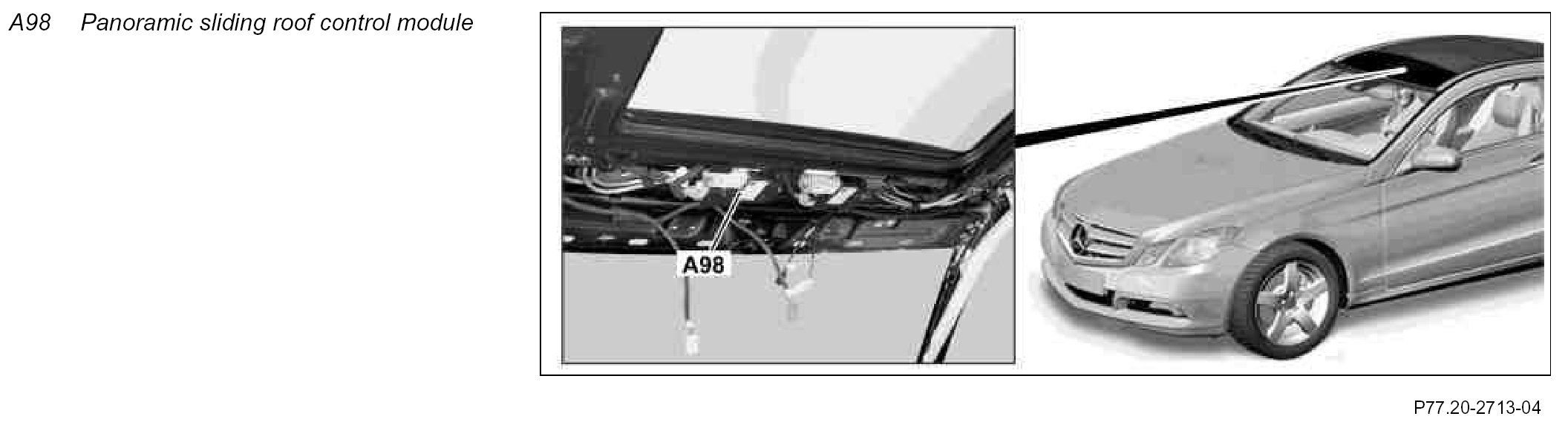

Location
The panoramic sliding roof control unit is located at the front left on the frame of the panoramic sliding roof.

Task
The panoramic sliding roof control unit has the following purposes:
^ Reading in of sensors and signals
^ Evaluation of input factors
^ Actuation of components

Reading in of sensors and signals
The input factors are read in with the following connections:
^ Direct line
^ Interior CAN (CAN B)

Direct line
The signals from the following components are read via a direct line:
- Panoramic sliding roof switch (N70/3s1)
- Hall sensor 1, panoramic sliding roof roller sun blind (M12/5b1)
- Hall sensor 2, panoramic sliding roof roller sun blind (M12/5b2)

Interior CAN
The signals from the rain/light sensor (B38/2) are provided by the front SaM control unit with fuse and relay module (N10/1) via the interior CaN.

Evaluation of input factors
The input factors that have been read in are evaluated by the integrated microprocessor and the relevant components are then actuated.

Actuation of components
Components are actuated with the following line:
^ Direct line

Direct line
The following components are actuated via a direct line:
- Panoramic sliding roof roller sun blind drive unit (M12/5)
- Panoramic sliding roof motor (A98m1)

Design
The panoramic sliding roof control module includes the following components:
- Hall sensor 1, panoramic sliding roof (A98b1)
- Hall sensor 2, panoramic sliding sunroof (A98b2)
- Panoramic sliding roof motor
- Panoramic sliding roof control unit (A98n1)
