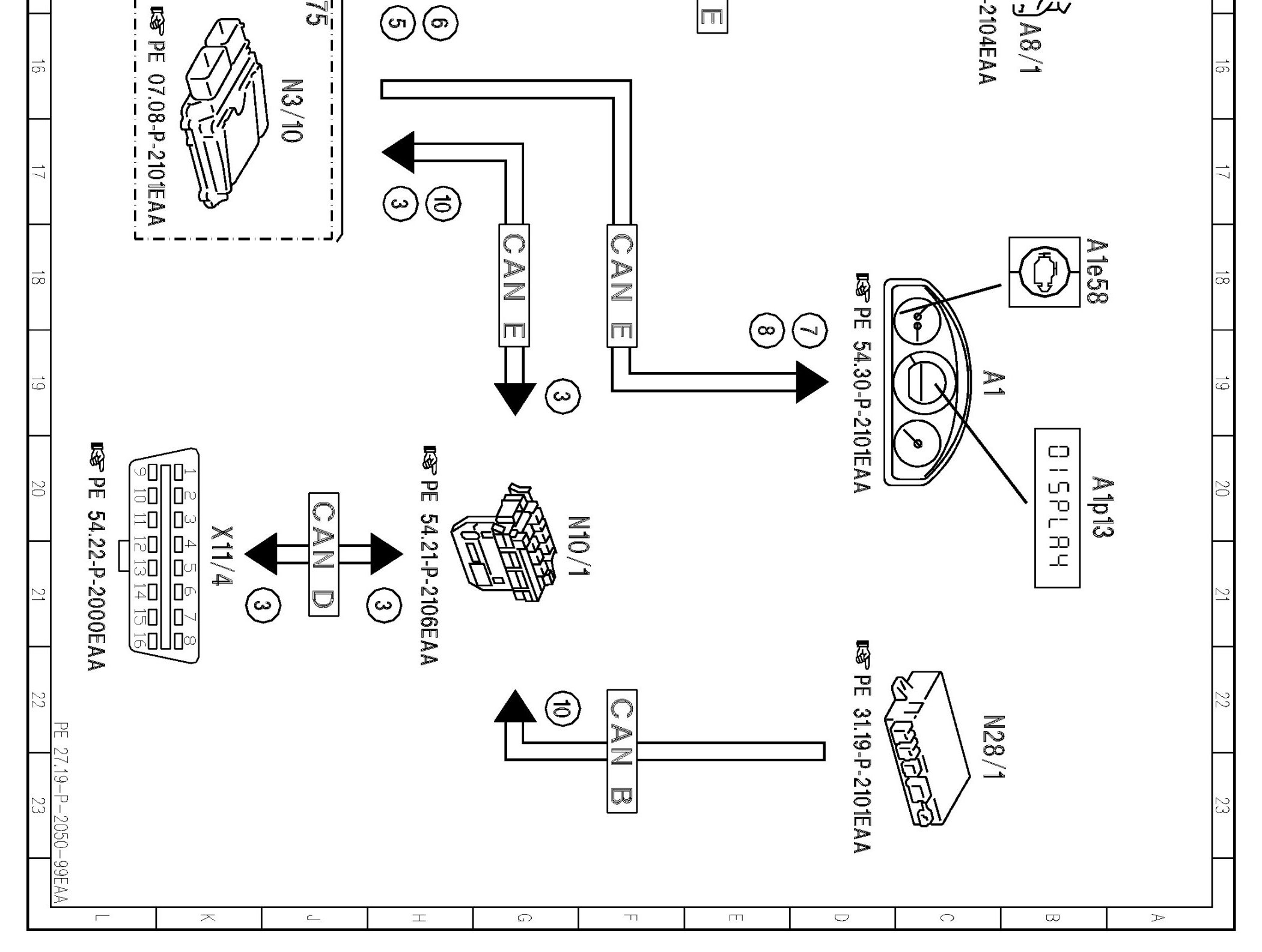

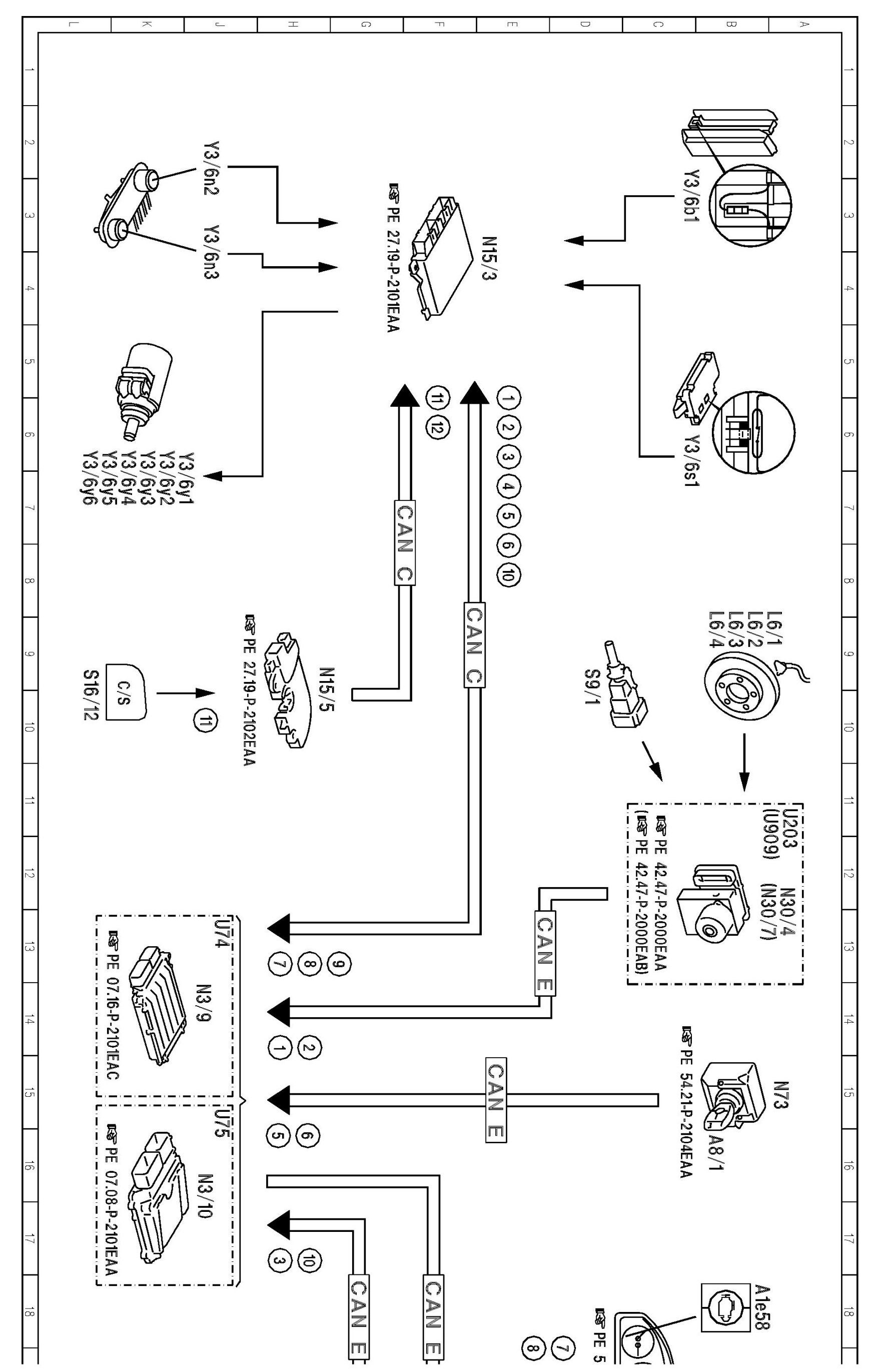

PE27.19-P-2050EAA Function Schematic Of Electrical System Of Electronic Transmission Control (ETC)

PE27.19-P-2050EAA Function Schematic Of Electrical System Of Electronic Transmission Control (ETC)

TRANSMISSION 722.6 in MODEL 207.3 /4
- up to model year 2012 /YoM 11


























































Component Locations: Component Location photographs can be found via their component names at the vehicle level. Component Locations
