Ignition Coil Pack: Service and Repair

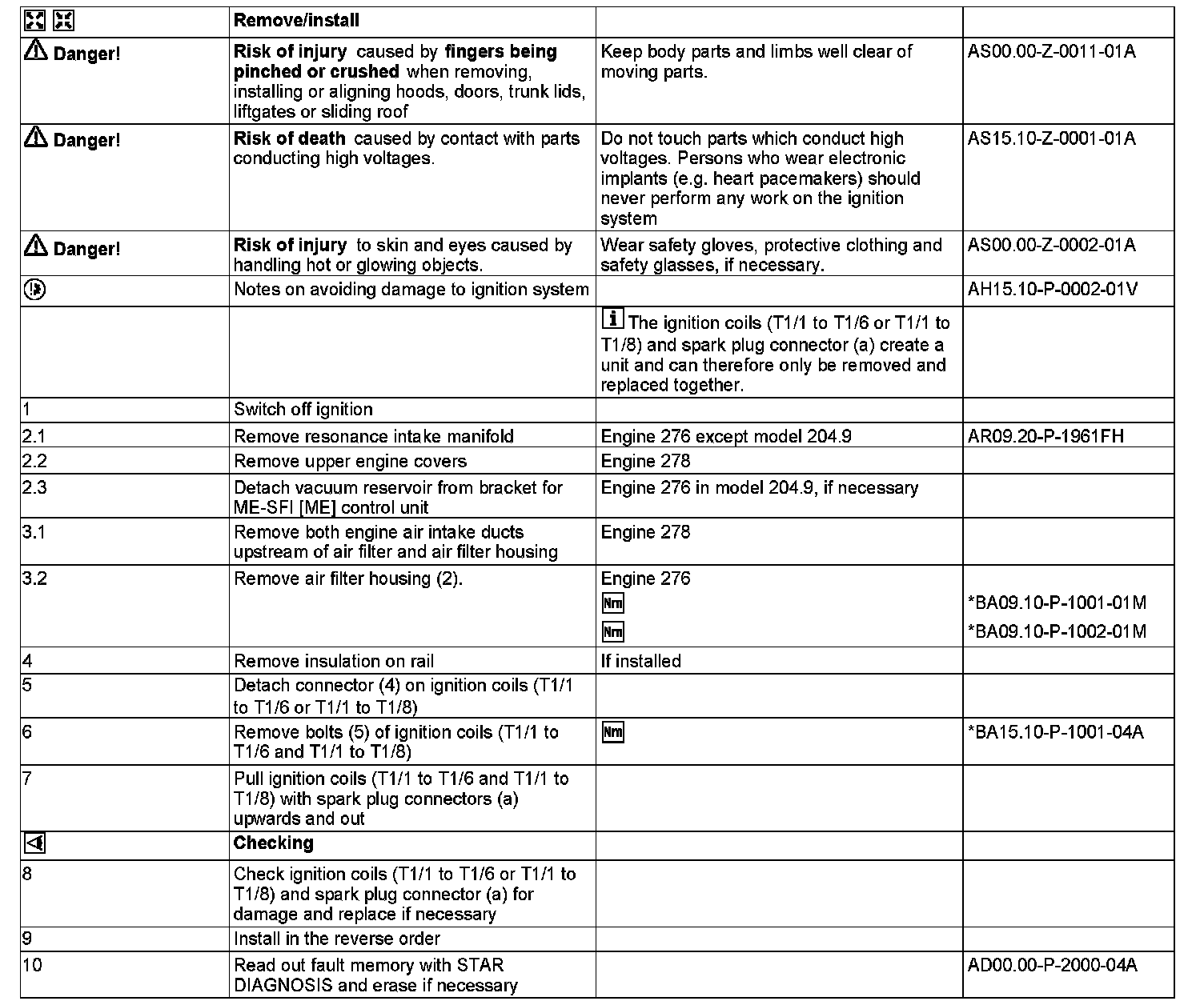

AR15.12-P-2003FH Remove/Install Ignition Coils
ENGINES 276 in MODEL 204
ENGINES 276, 278 in MODEL 207





Shown on model 204.057

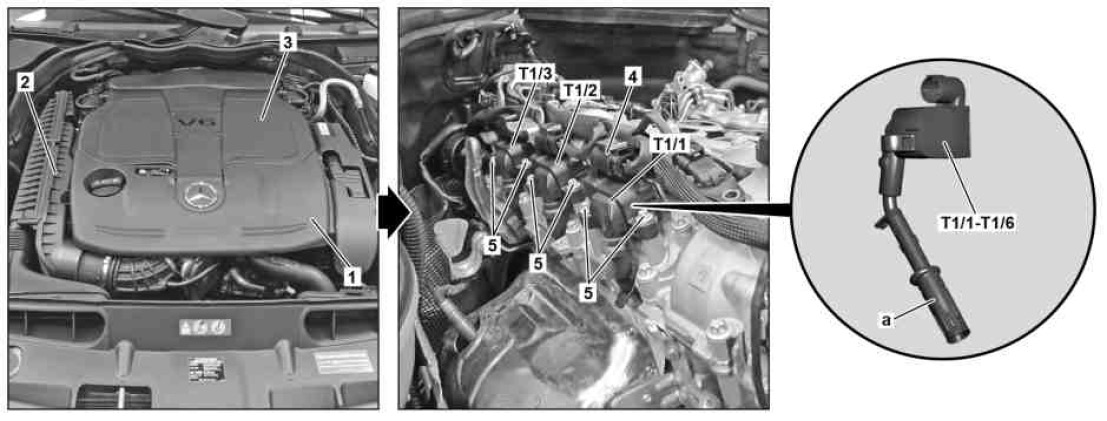

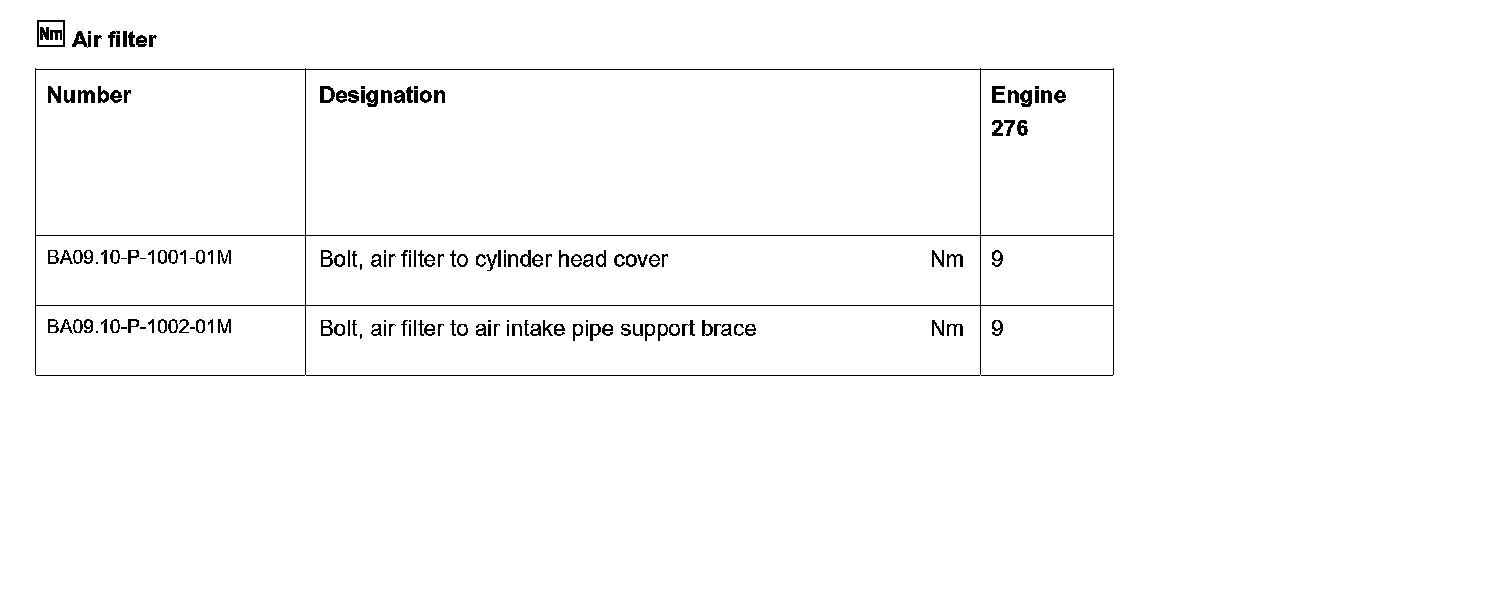

1 Front engine cover
2 Air cleaner housing
3 Resonance intake manifold
4 Connector
5 Screw/bolts

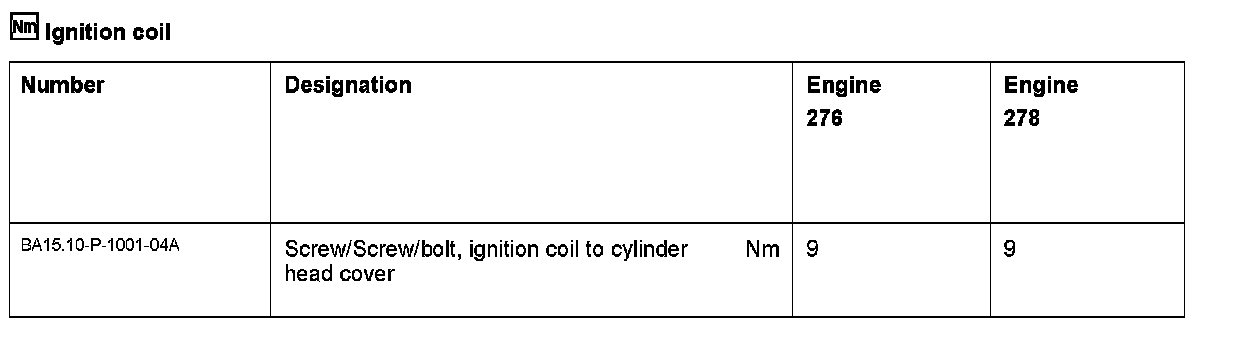

a Spark plug connector

T1/1 Cylinder 1 ignition coil
T1/2 Cylinder 2 ignition coil
T1/3 Cylinder 3 ignition coil
T1/4 Cylinder 4 ignition coil
T1/5 Cylinder 5 ignition coil
T1/6 Cylinder 6 ignition coil
