AR47.10-P-4100CW Remove/Install
Fuel Tank

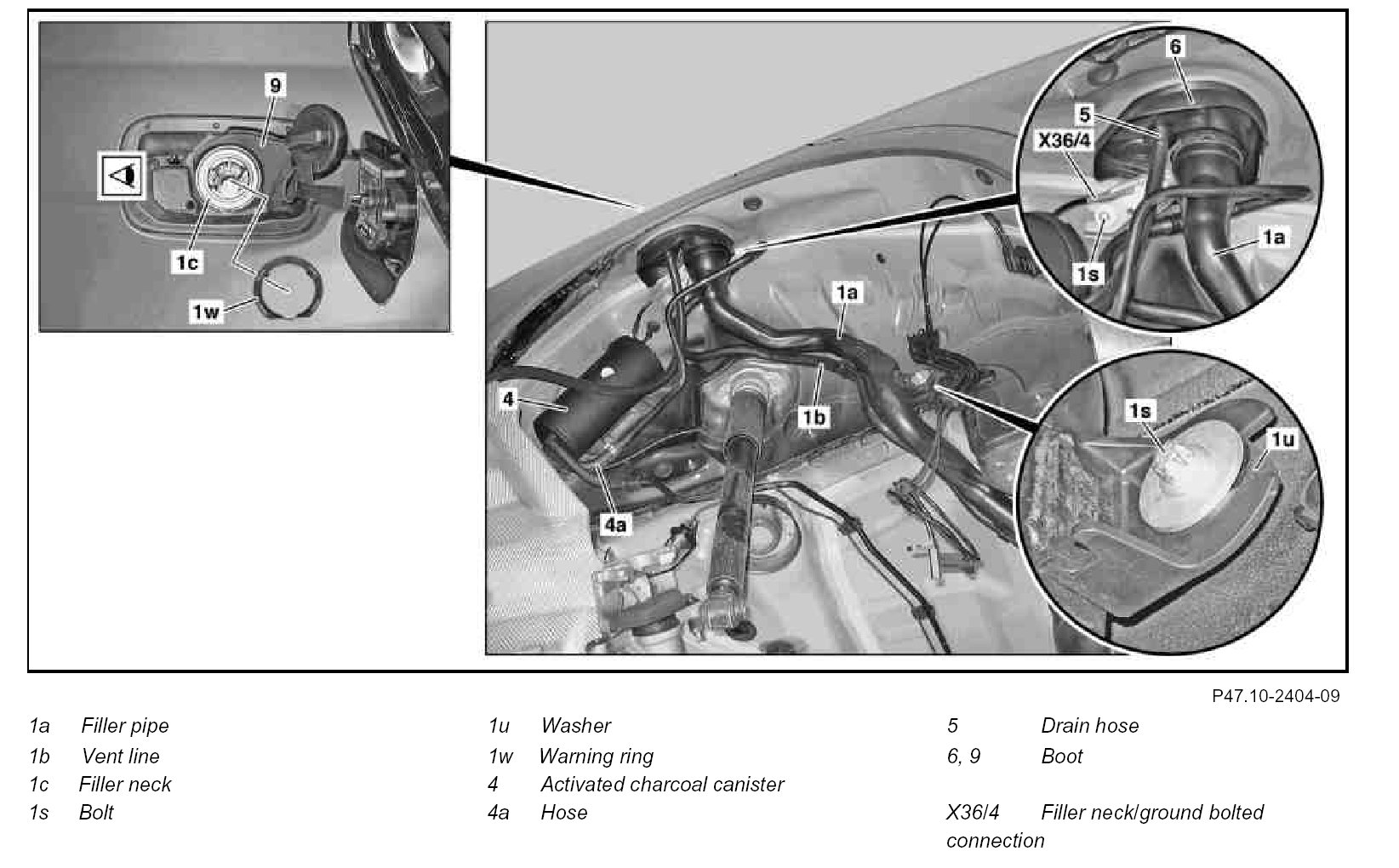

Component Identification:

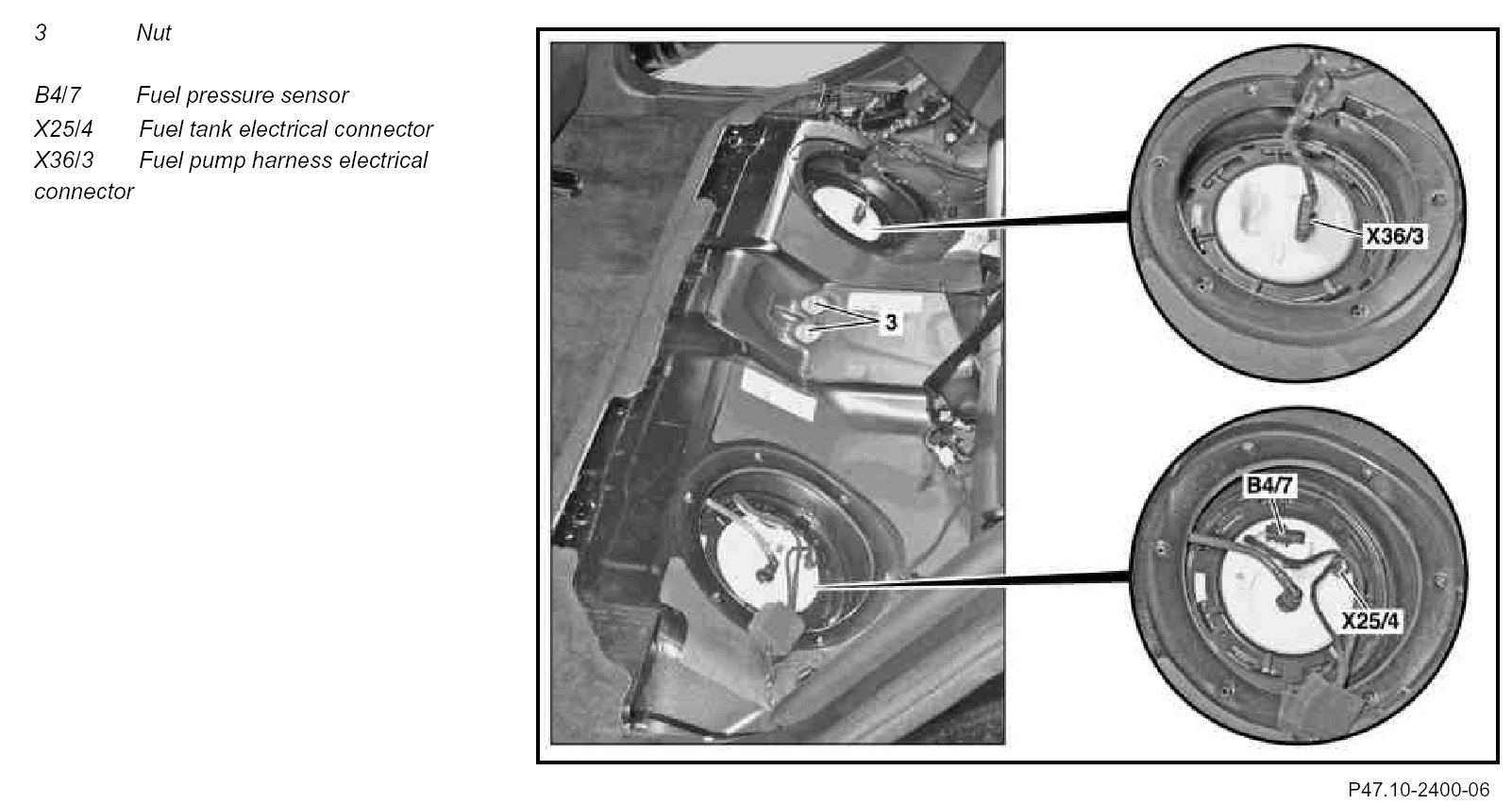

Component Identification:

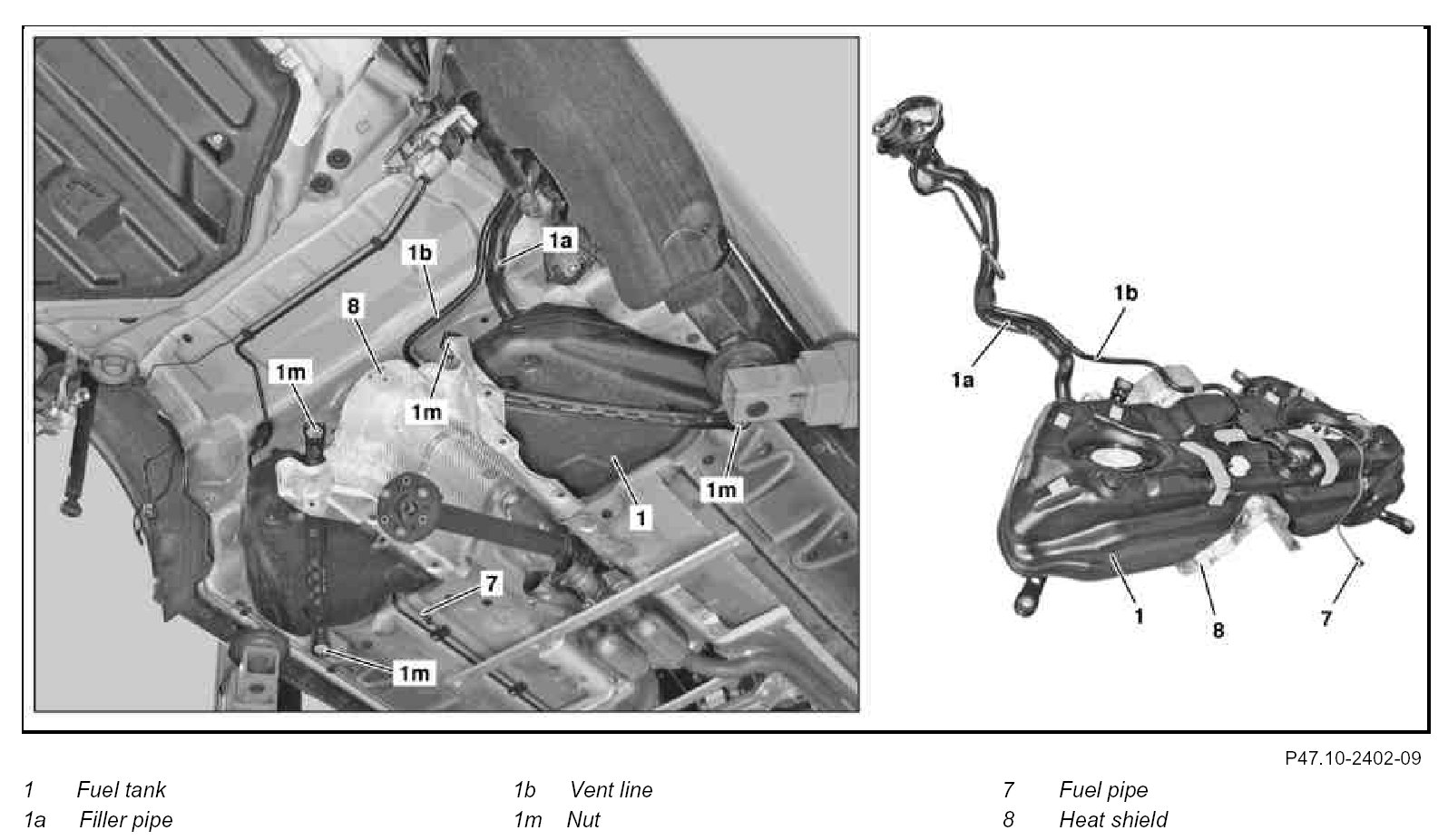

Component Identification:

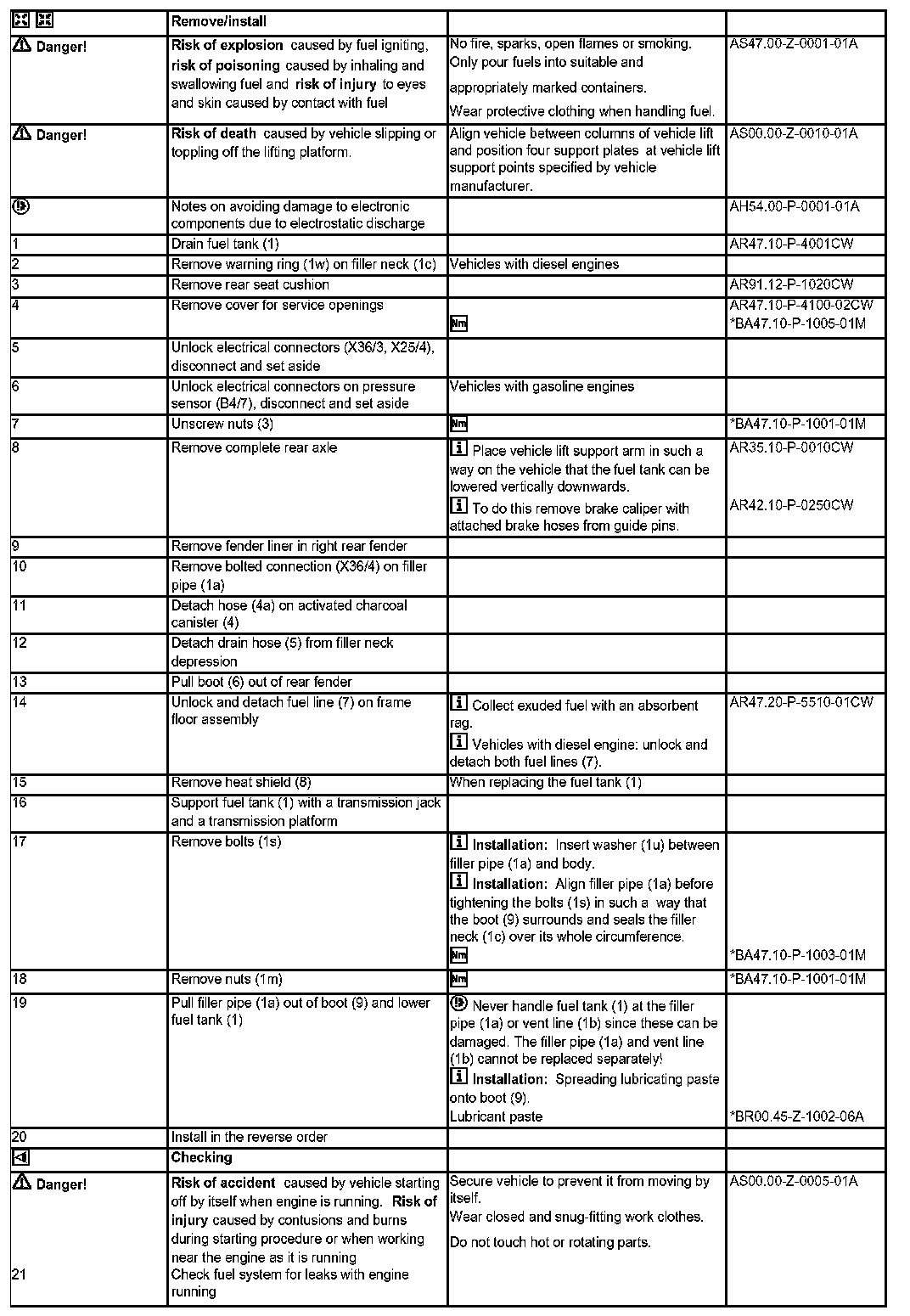

Steps 1 - 21:

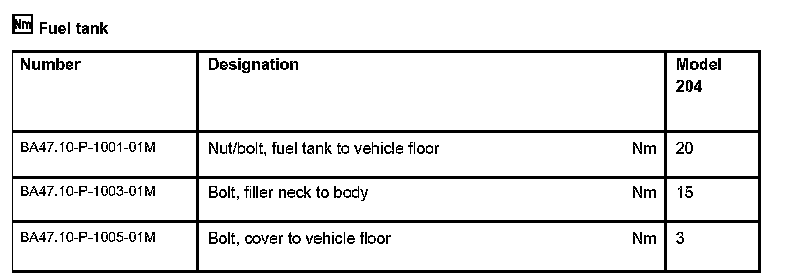

Fuel Tank:

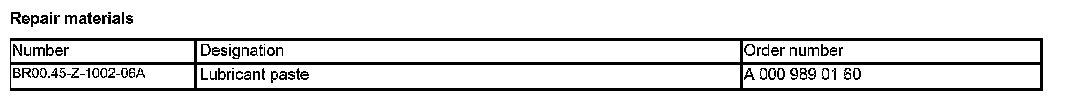

Repair Materials:
