Fuel Rail: Service and Repair

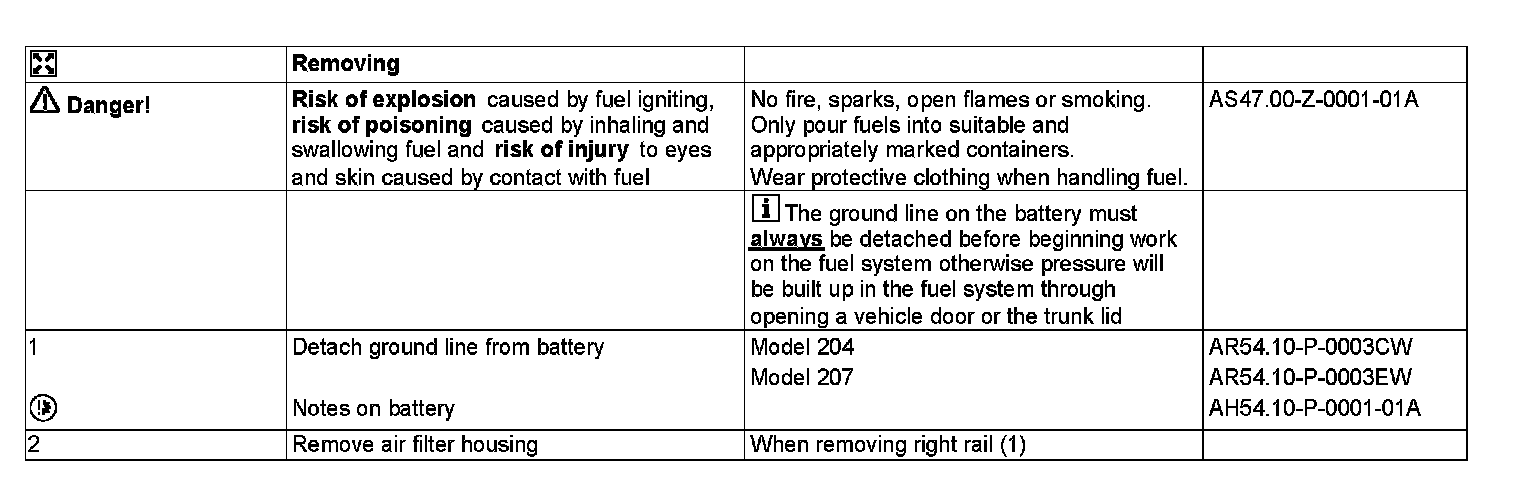

AR07.03-P-1010FH Remove/Install Rail
ENGINES 276 in MODEL 204, 207

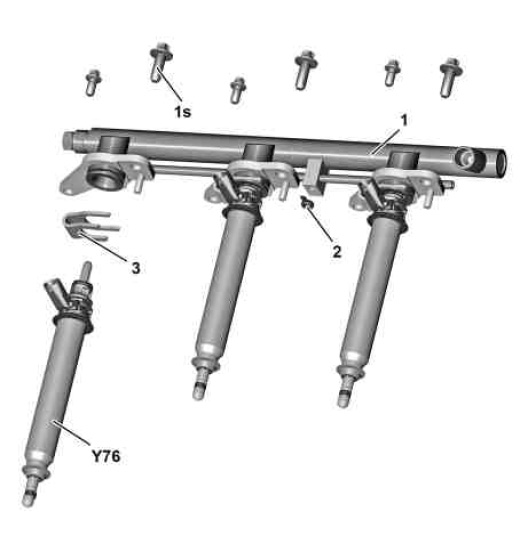

Shows model 204.057

1 Rail
1s Bolts
2 Gasket
3 Holddown device

Y76 Fuel injectors

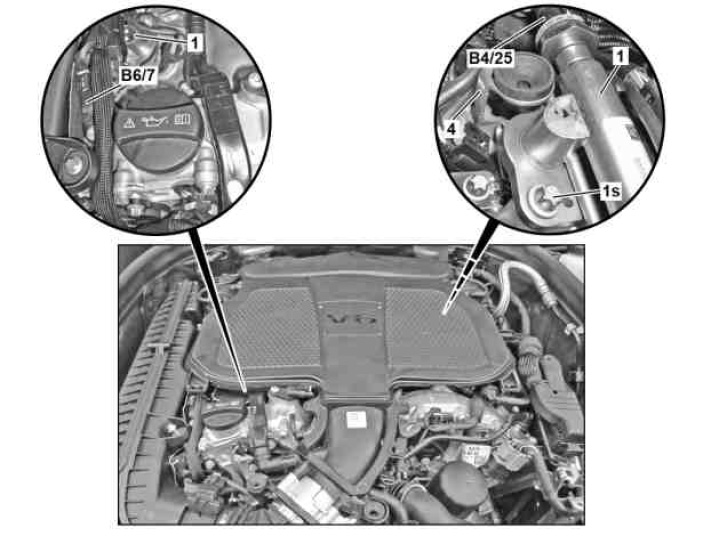

Shows model 204.057

1 Rail
1s Bolts
4 Support

B4/25 Fuel pressure and temperature sensor
B6/7 Right exhaust camshaft Hall sensor























278 589 00 15 00
Drift





119 589 04 63 00
Pressure hose





272 589 00 43 00
Assembly tool
