Data Link Connector: Diagrams

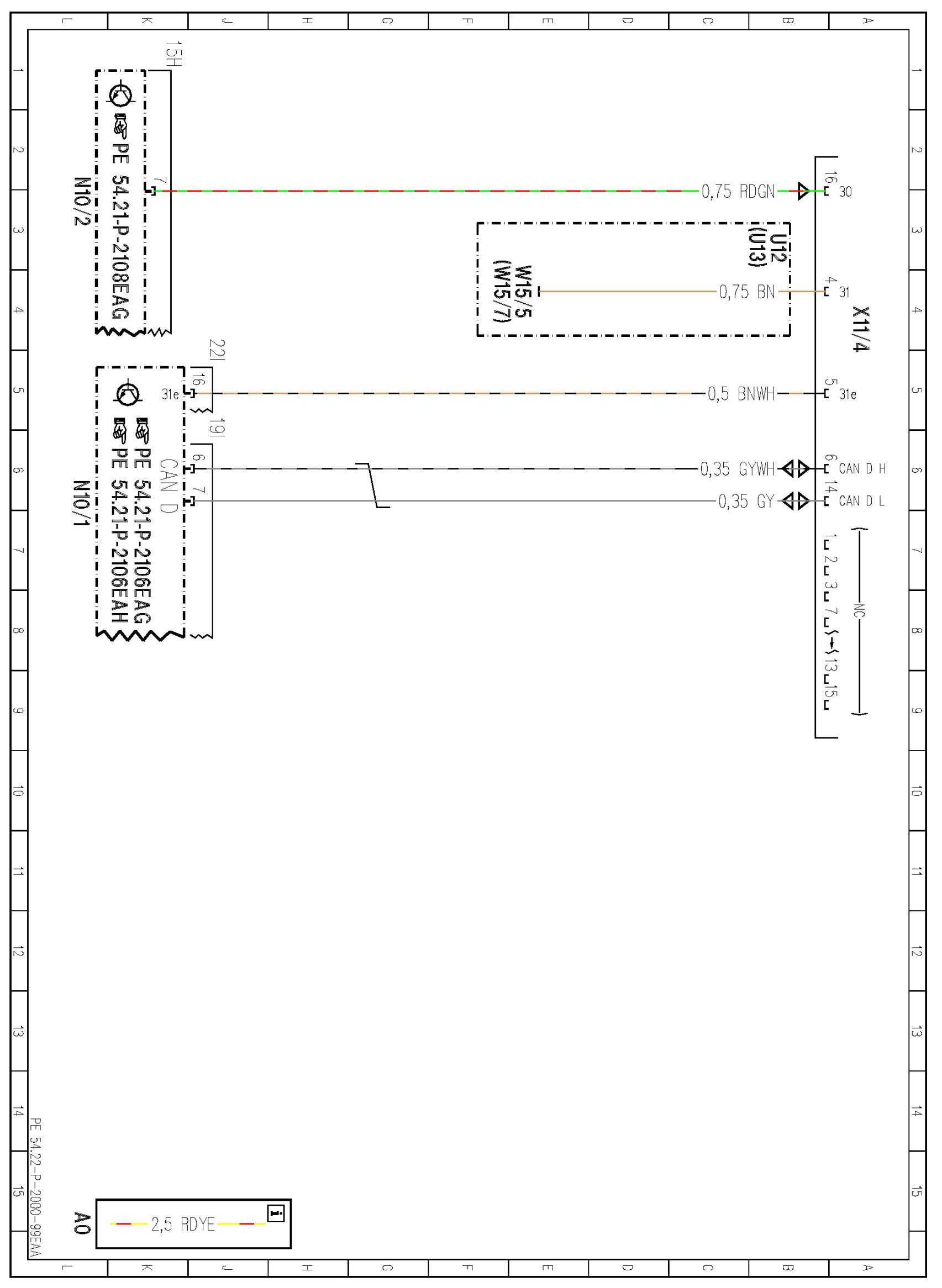

PE54.22-P-2000EAA Data Link Connector/Diagnostic Socket

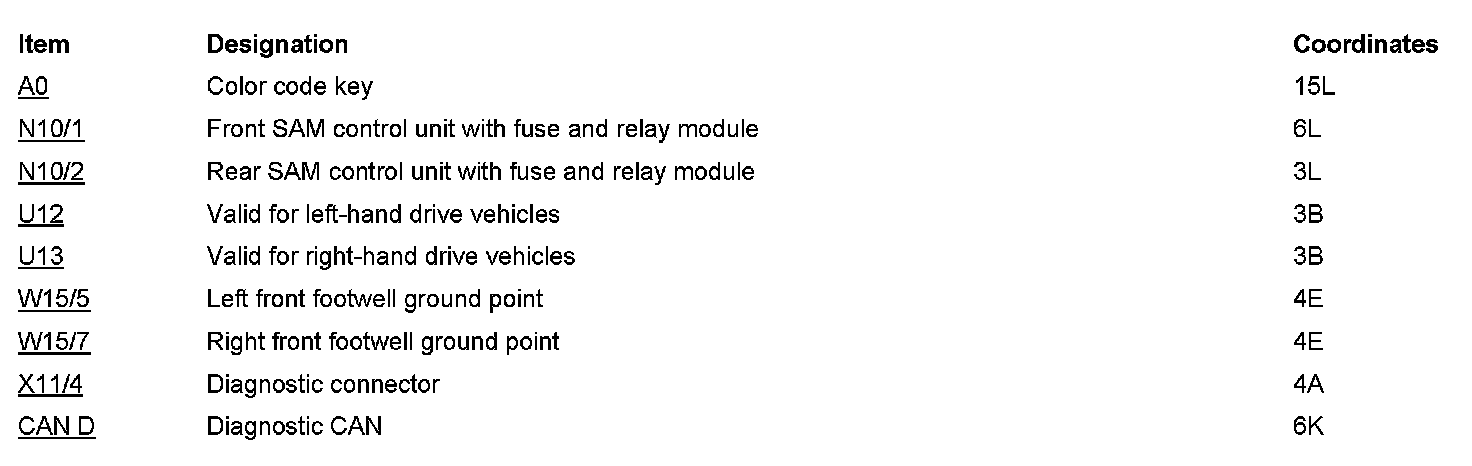

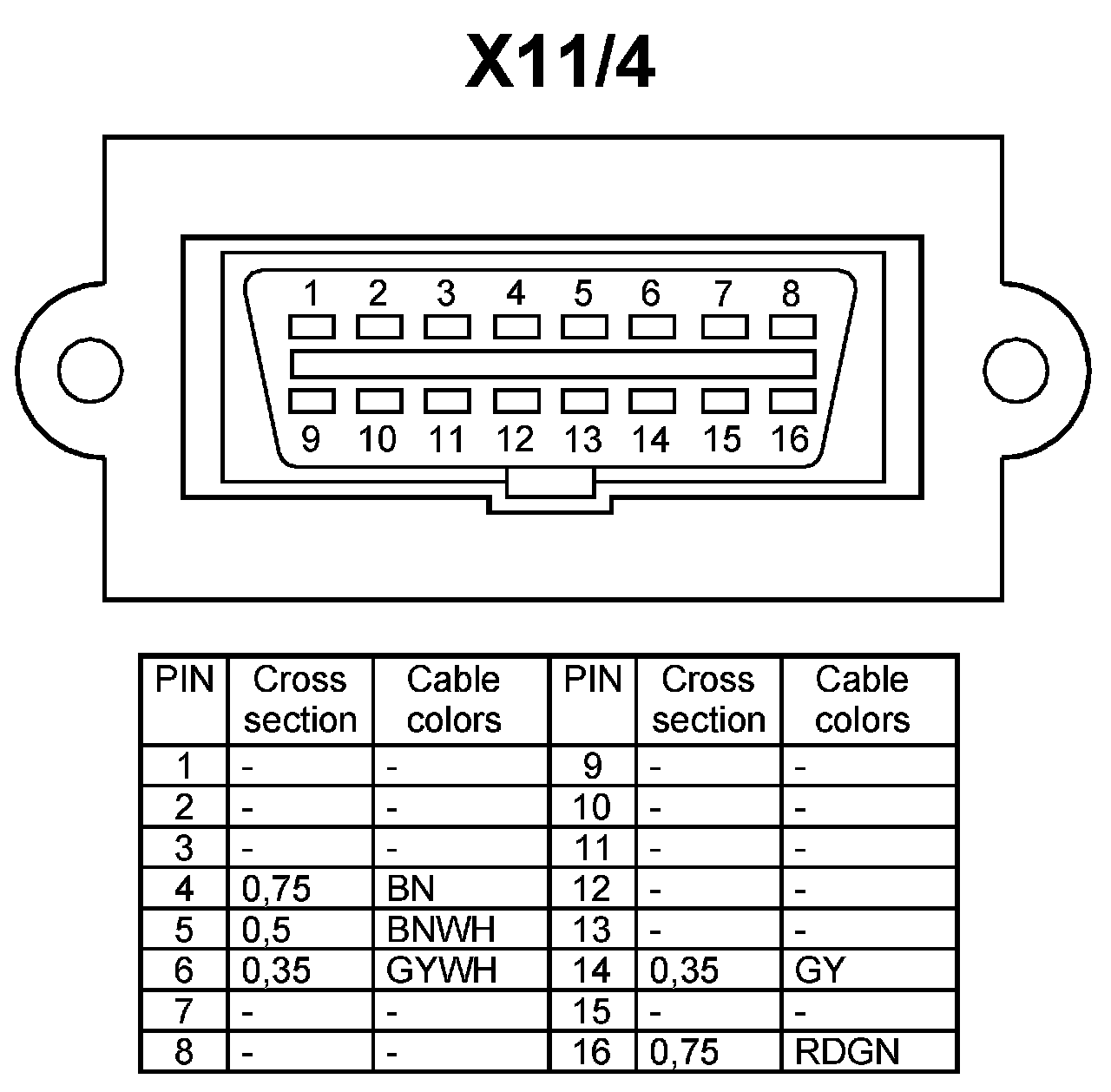

MODEL 207 test connector X11/4






















Component Locations: Component Location photographs can be found via their component names at the vehicle level. Component Locations
