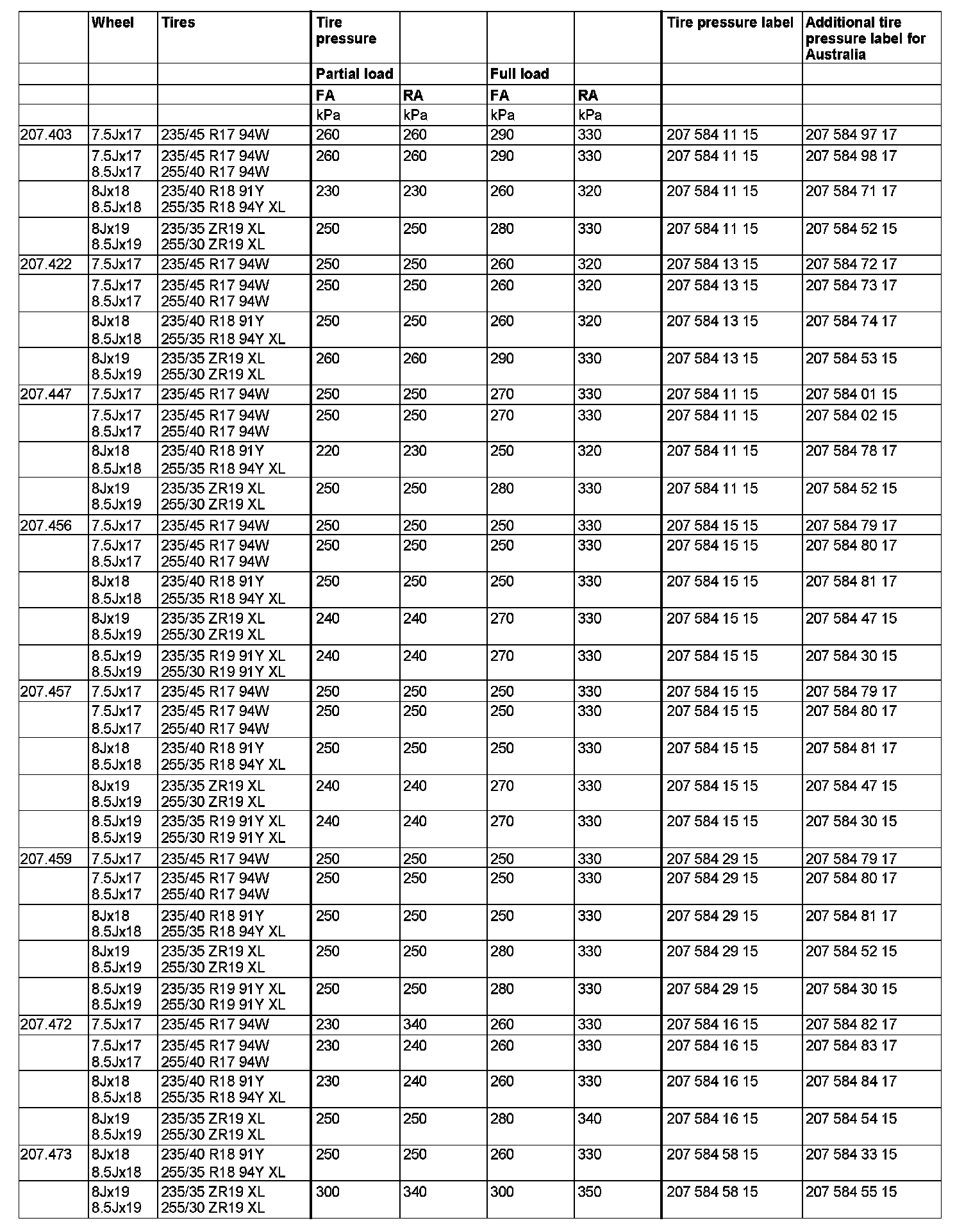

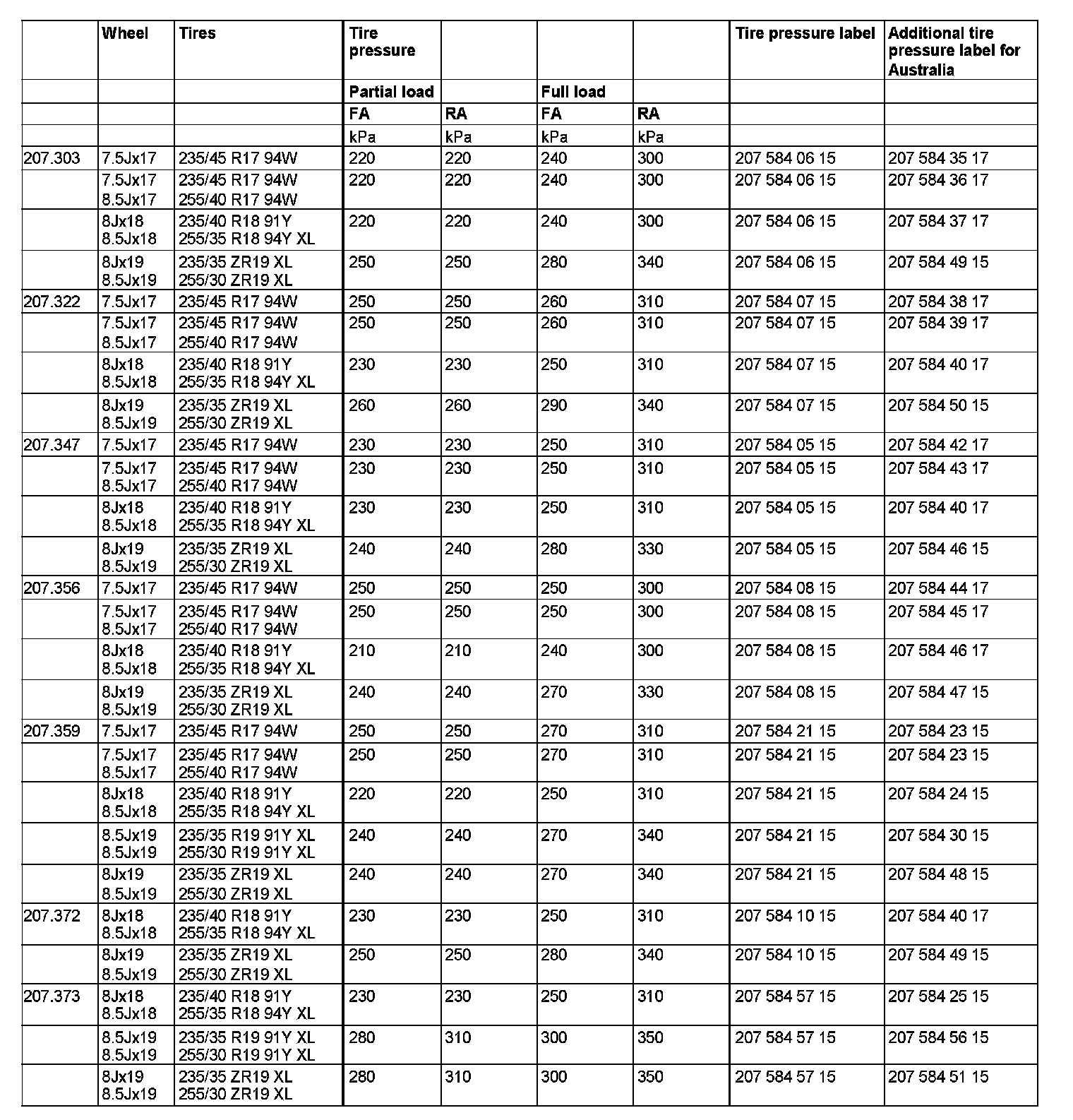

GF40.10-P-1009GB Overview of Tire Air Pressure Labels
GF40.10-P-1009GB Overview of Tire Air Pressure Labels
GF40.10-P-1009GB Overview Of Tire Air Pressure Labels
MODEL 207
-
with CODE (625) Australia version
Conversion from kilopascal (kPa) into bar (bar):
100 kPa = 1.0 bar
Example: 230 kPa = 2.3 bar
