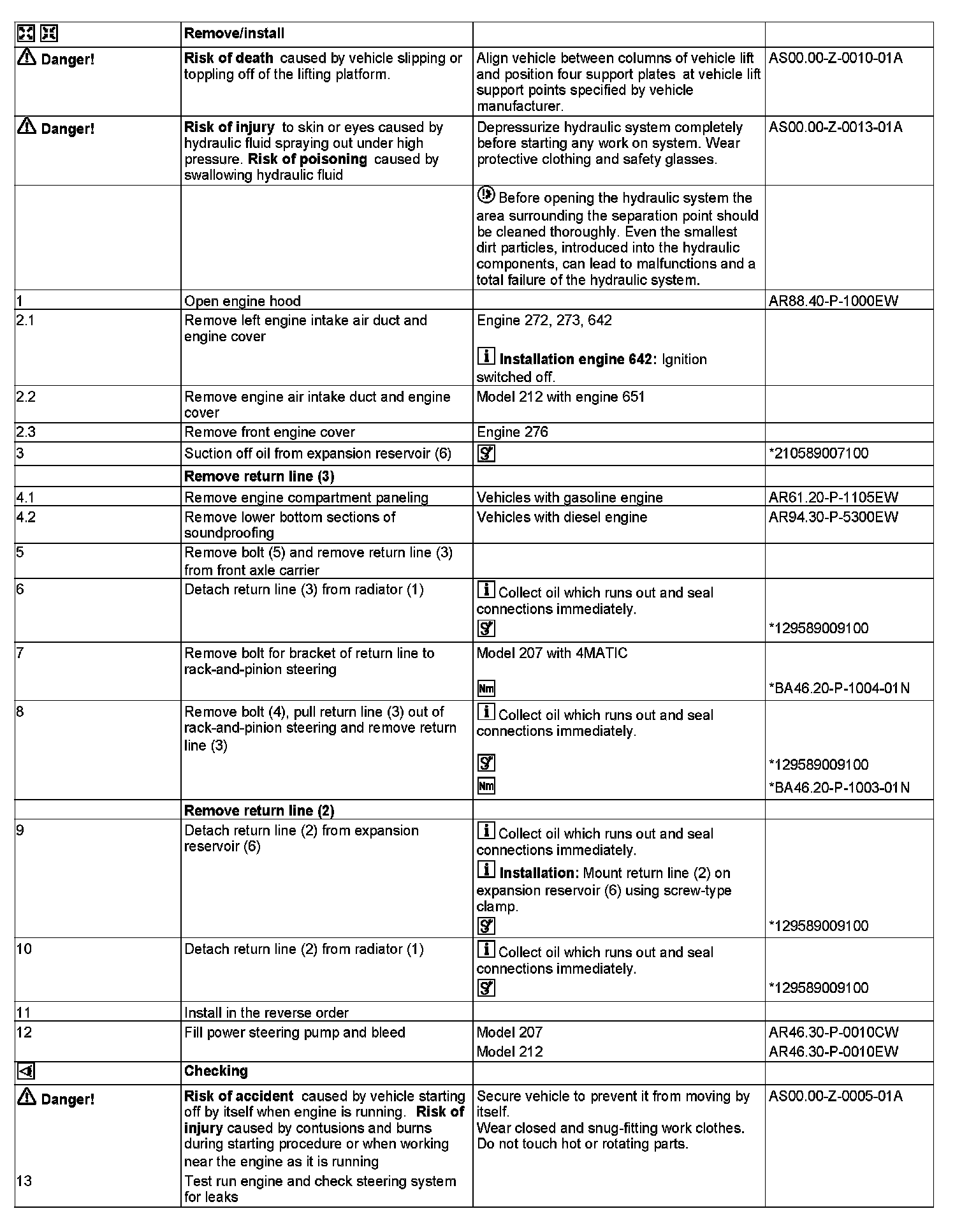

AR46.25-P-3015EV Remove/Install Hydraulic Line of Power Steering

AR46.25-P-3015EV Remove/Install Hydraulic Line Of Power Steering
MODEL 207, 212 with ENGINE 272, 273, 642, 651, 276

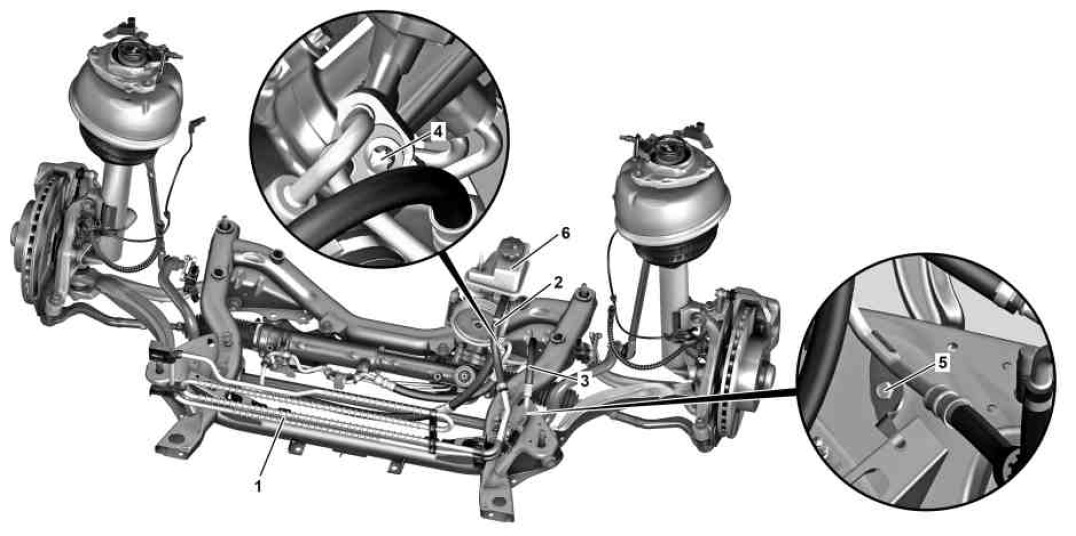

Return lines of power steering





Shown on ENGINE 651

1 Power steering radiator
2 Return flow pipe
3 Return flow pipe
4 Screw
5 Screw
6 Power steering expansion reservoir














129 589 00 91 00
Set of stop plugs





210 589 00 71 00
Hand pump
