AR46.25-P-3015CX Remove/Install Hydraulic Line of Power Steering

AR46.25-P-3015CX Remove/Install Hydraulic Line Of Power Steering
MODEL 204 with ENGINE 272, 642, 646, 276

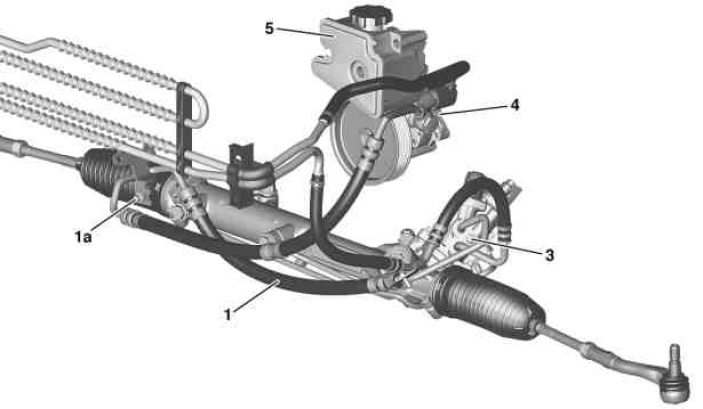

Pressure line of power steering
MODEL 204 with ENGINE 651 pressure line of power steering, without electrohydraulic power steering (EHPS)
MODEL 207 with ENGINE 272, 273, 642, 651, 276
Pressure line of power steering





1 Pressure line
1a Screw
3 Screw
4 Power steering pump
5 Power steering expansion reservoir














129 589 00 91 00
Set of stop plugs





210 589 00 71 00
Hand pump
