AR40.30-P-0402-02CW Carry Out Distance and Comparison Measurements on Rear Axle

AR40.30-P-0402-02CW Carry out distance and comparison measurements on rear axle

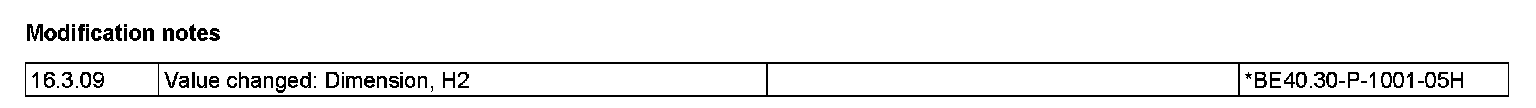

Modification notes:

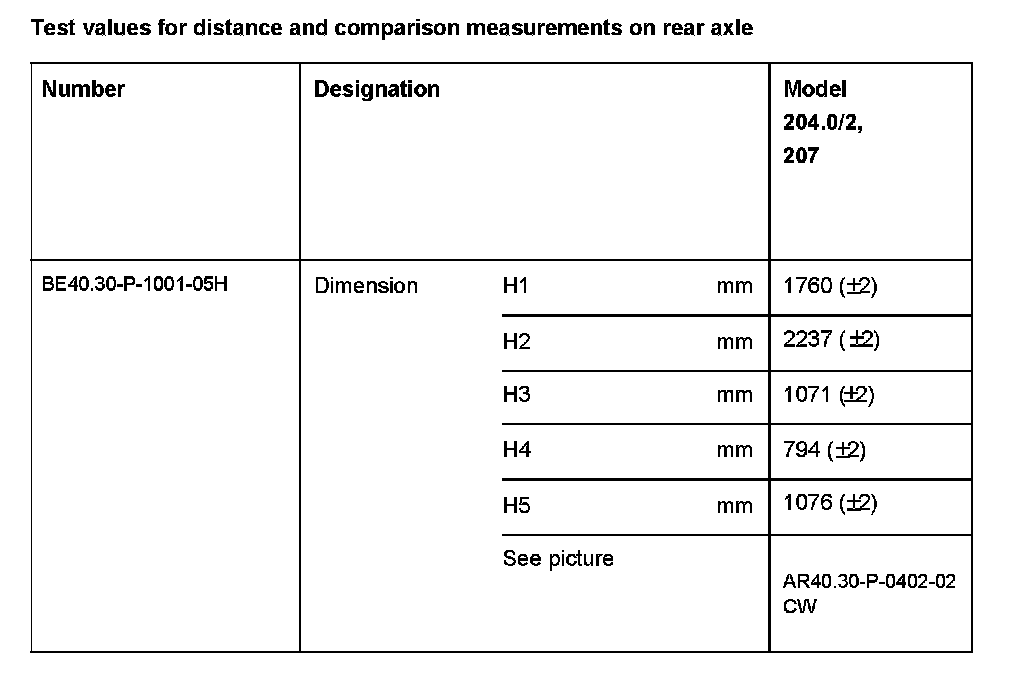

Test values for distance and comparison measurements on rear axle:

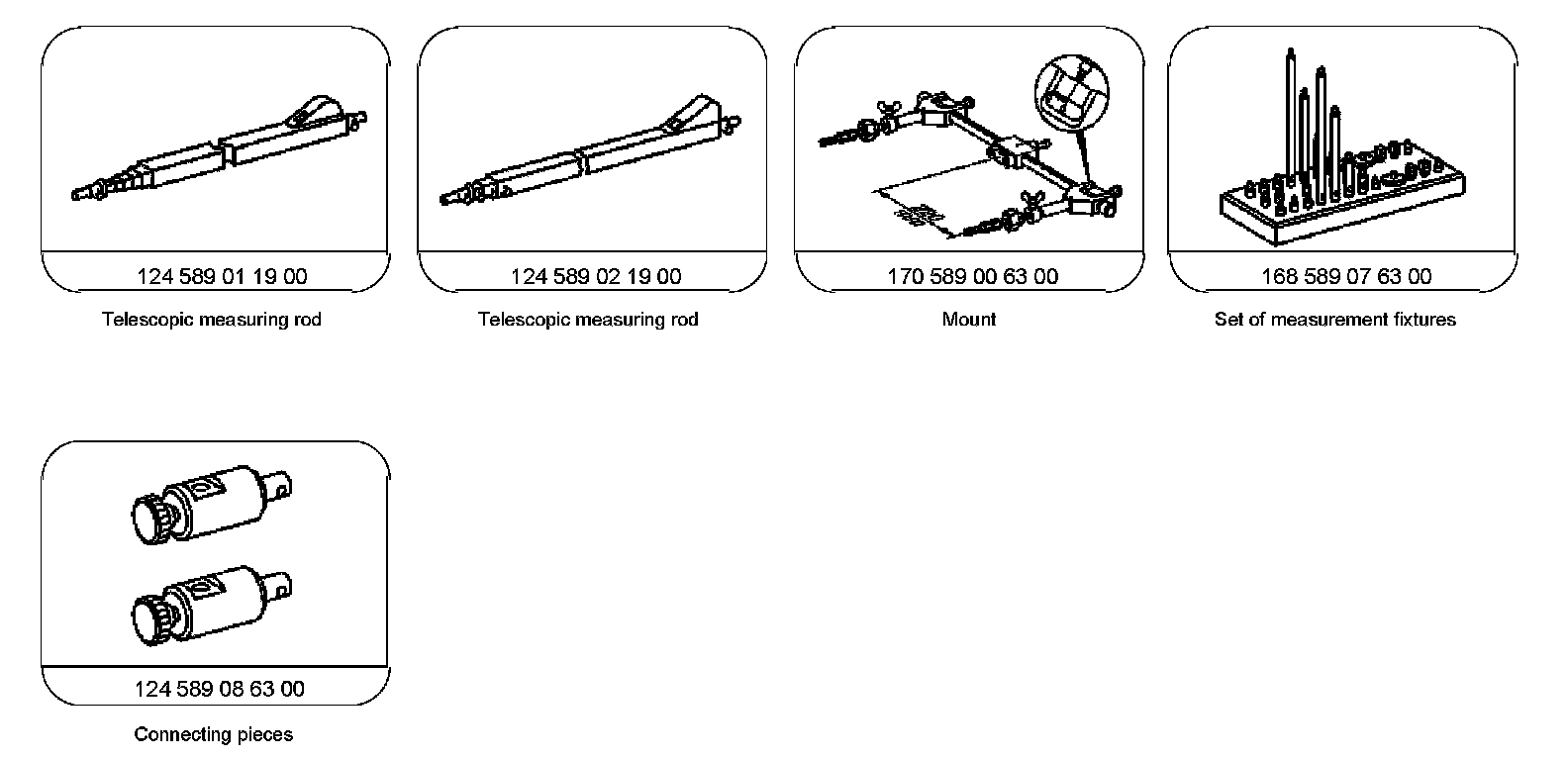

Special Tools:

The measuring set is designed in such a way, that the measuring bolts, according to the measuring points at the vehicle, can be screwed together out of mounting bolts, extensions and measuring tips/bolts.

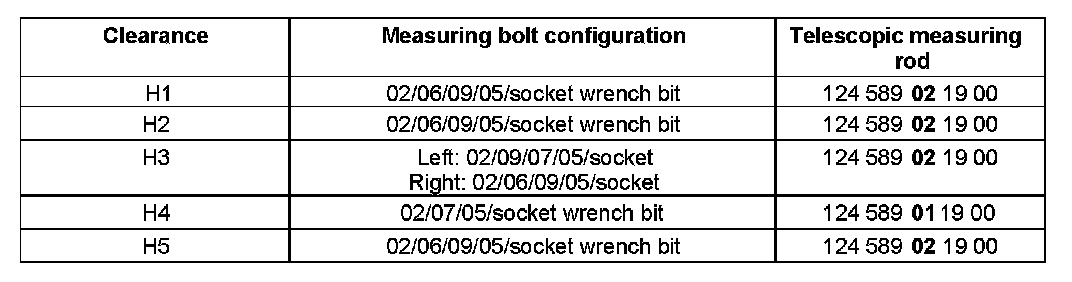

The configuration of the measuring bolts is shown in the table, where the digits in the column headed "Measuring bolt configuration" are the special tool end numbers.
For example: 02/07/10 =
168 589 07 63 02 (support stud)
168 589 07 63 07 (extension)
168 589 07 63 10 (measuring tip)

Component Identification:

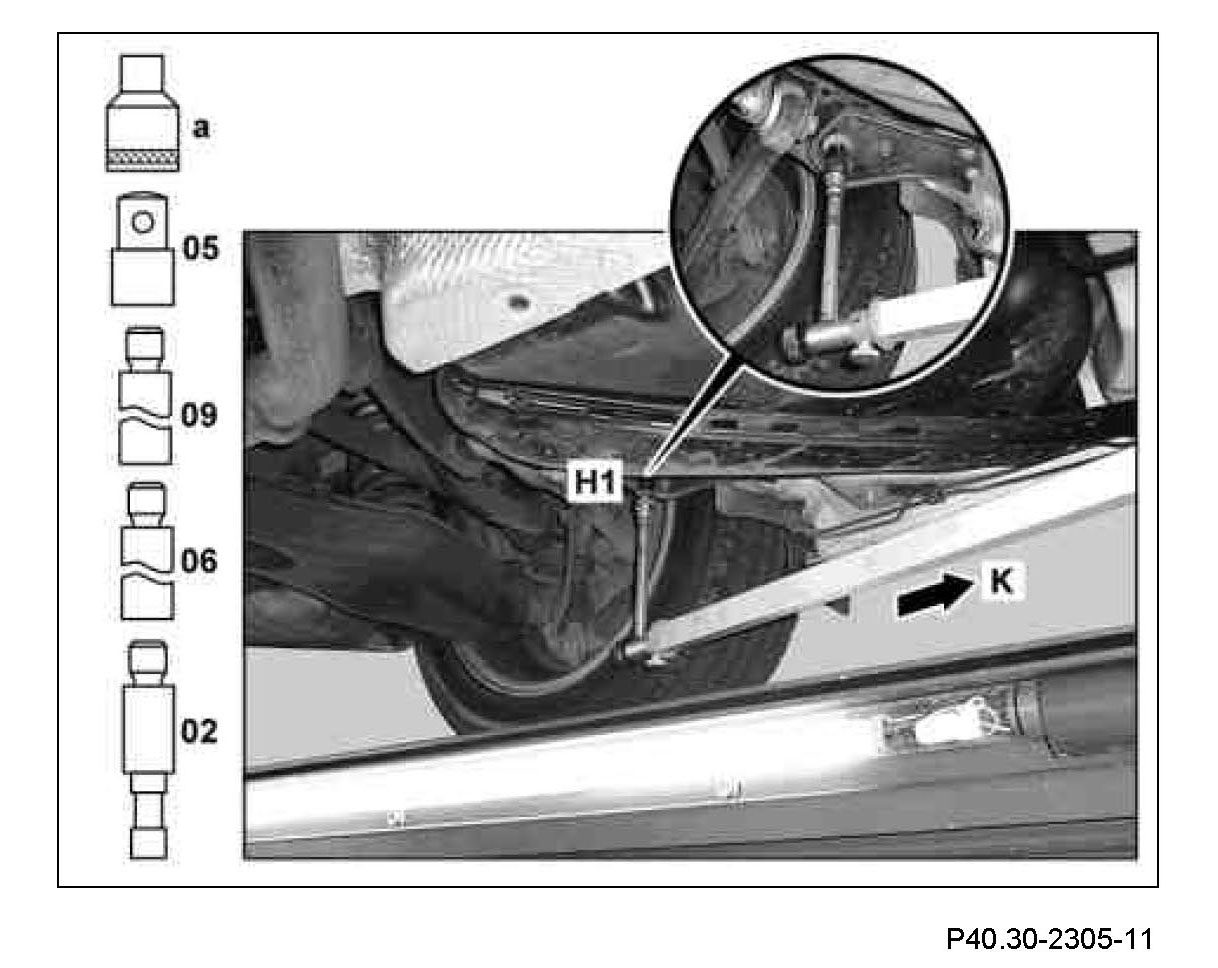

1 Measure distance dimension (H1) from check point (K) to center of Torx bolt head of front mount of rear axle carrier. Measure on the left and right side in each case.
If necessary, unscrew and screw in Torx bolts and check for deformation.

Shows model 204.0

Component Identification:

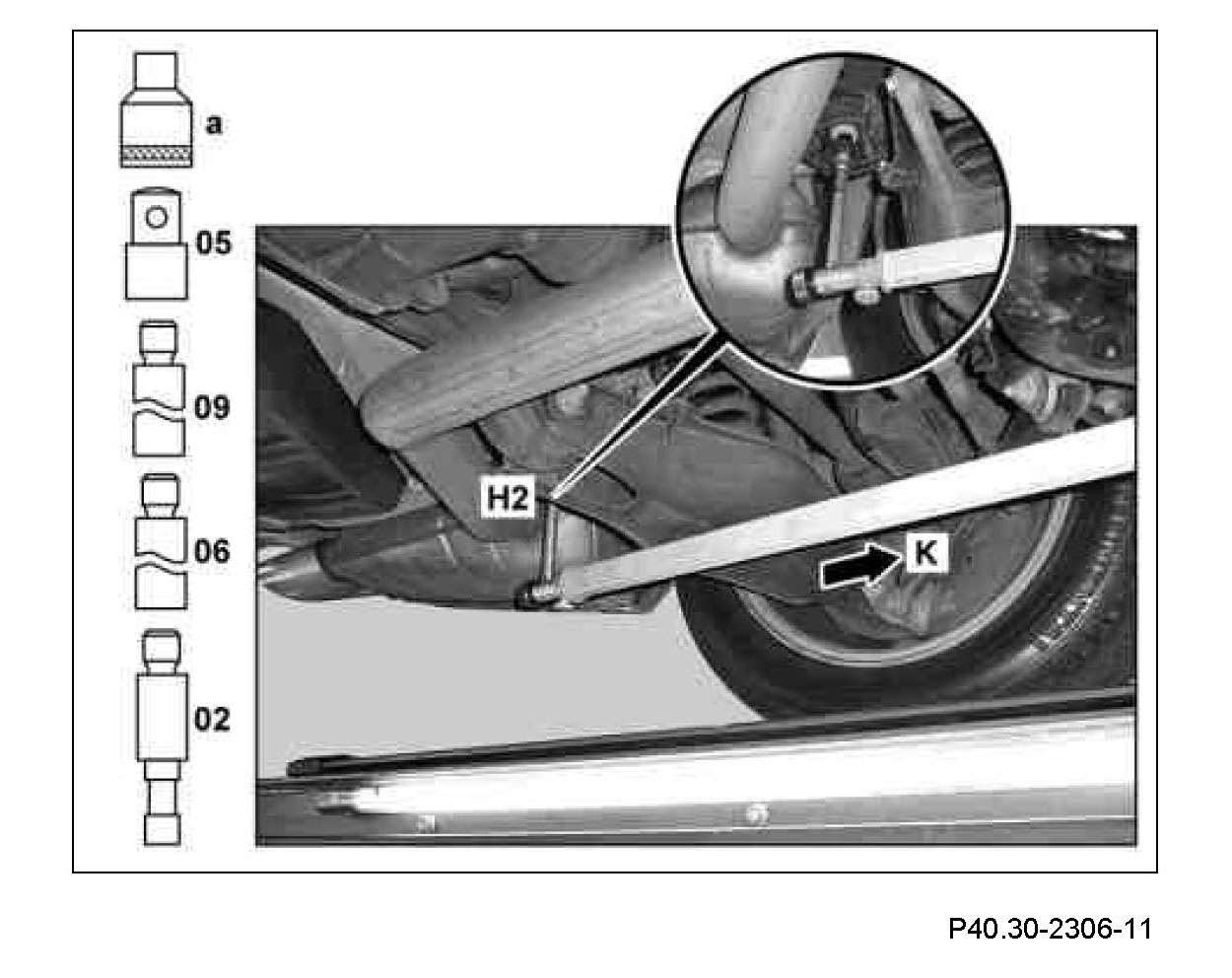

2 Measure distance dimension (H2) from check point (K) to center of Torx bolt head of rear mount of rear axle carrier. Measure on the left and right side in each case.
If necessary, unscrew and screw in Torx bolts and check for deformation.

Shows model 204.0

Component Identification:

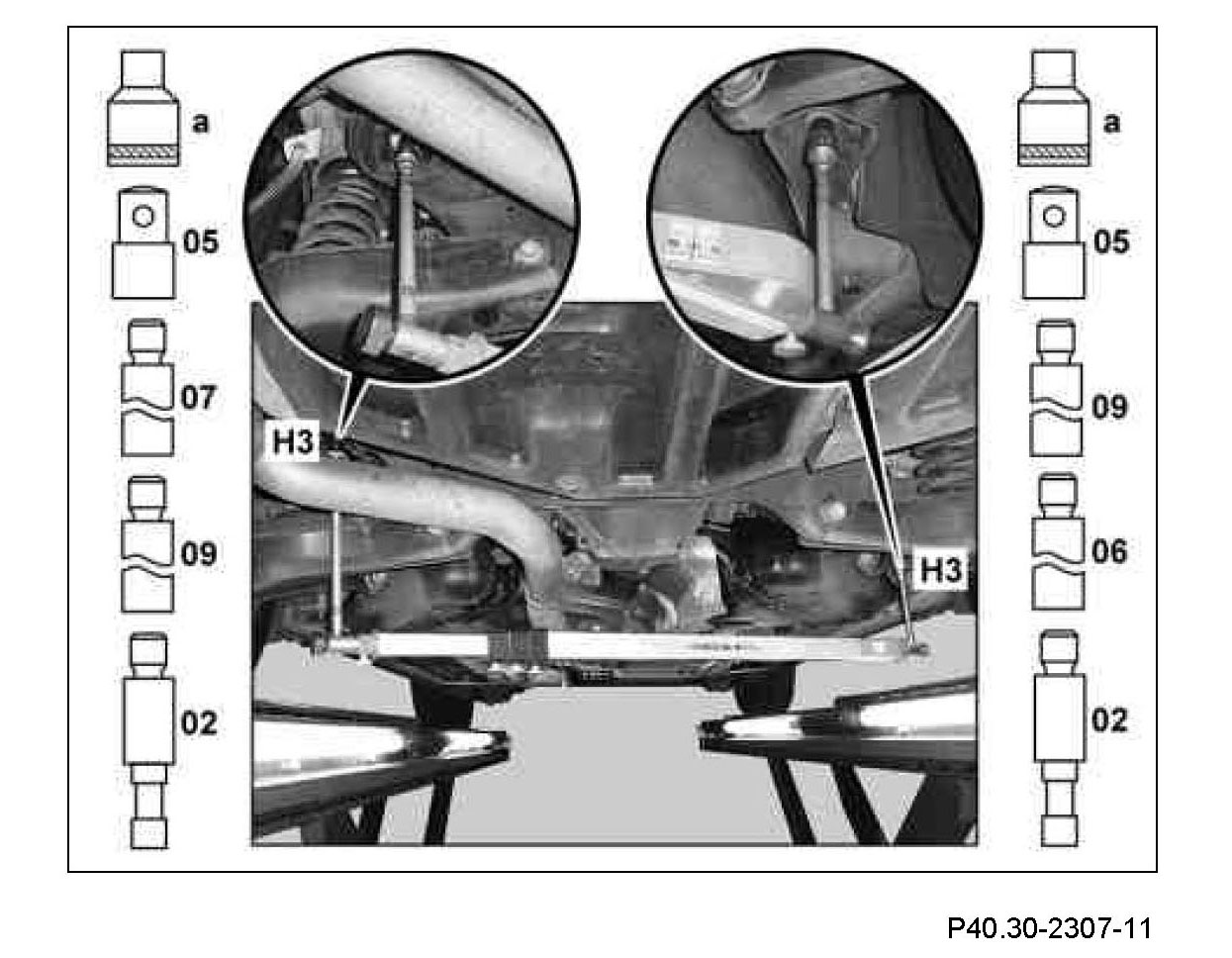

3 Measure distance dimension (H3) diagonally from between the centering point of the Torx bolt heads and the rear axle carrier's front and rear bearing.

Shows model 204.0

Component Identification:

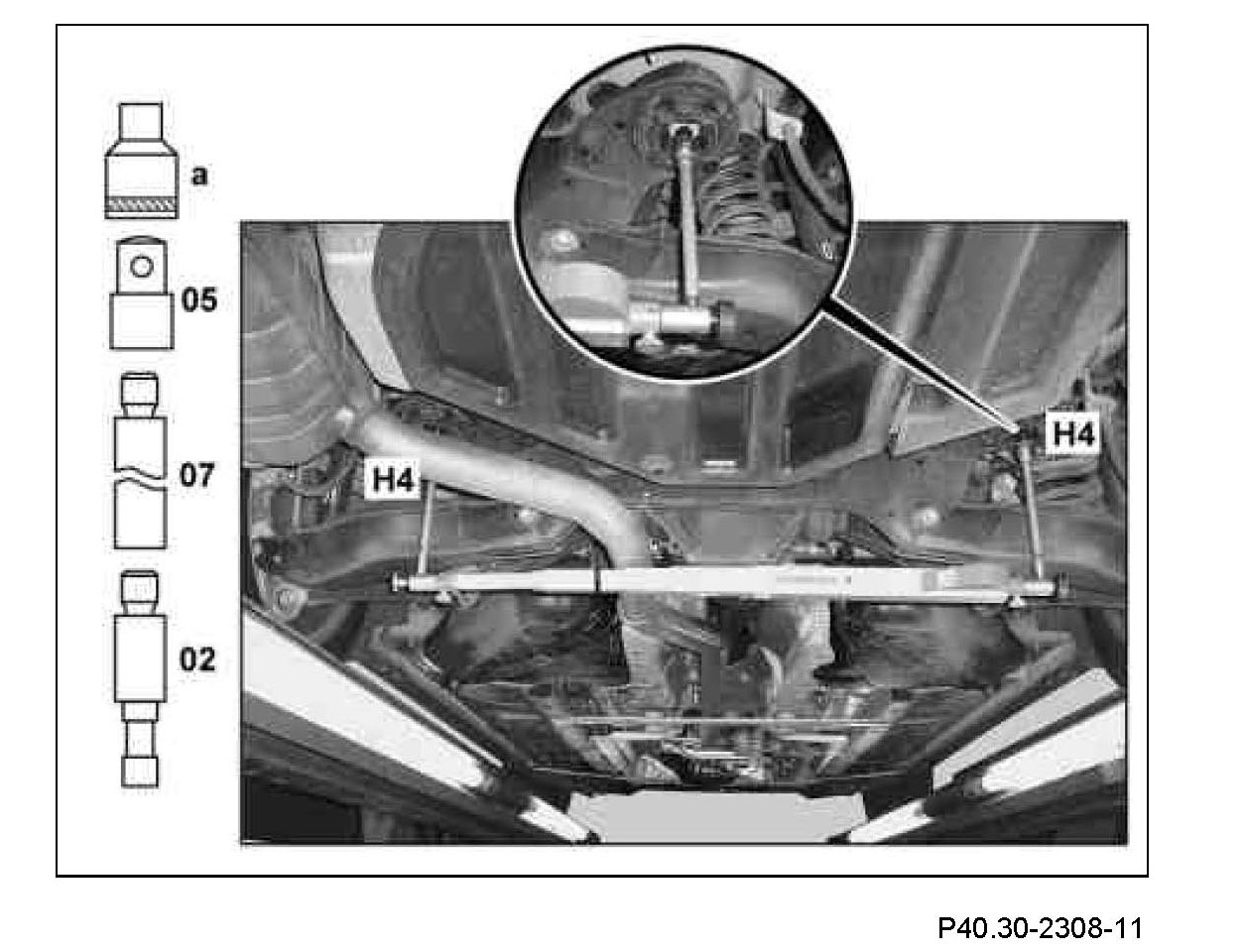

4 Measure distance dimension (H4) from the centering point of the Torx bolt heads between the rear bearings of the rear axle carrier.

Shows model 204.0

Component Identification:

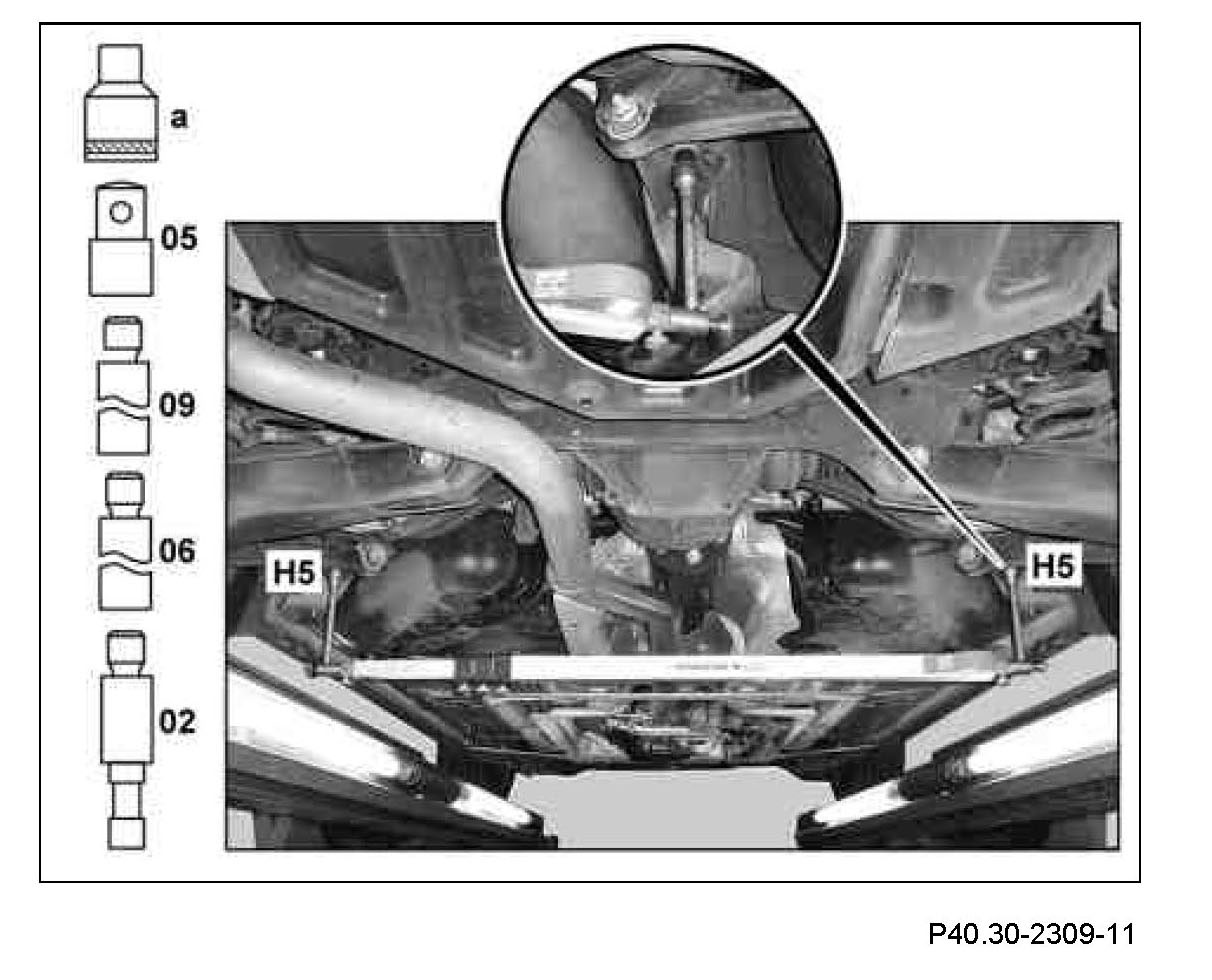

5 Measure distance dimension (H5) from the centering point of the Torx bolt heads between the front bearings of the rear axle carrier.

Shows model 204.0
