AR40.30-P-0401CW Preparations For Distance and Comparison Measurements

AR40.30-P-0401CW Preparations For Distance And Comparison Measurements
MODEL 204, 207





Shown on model 204.9

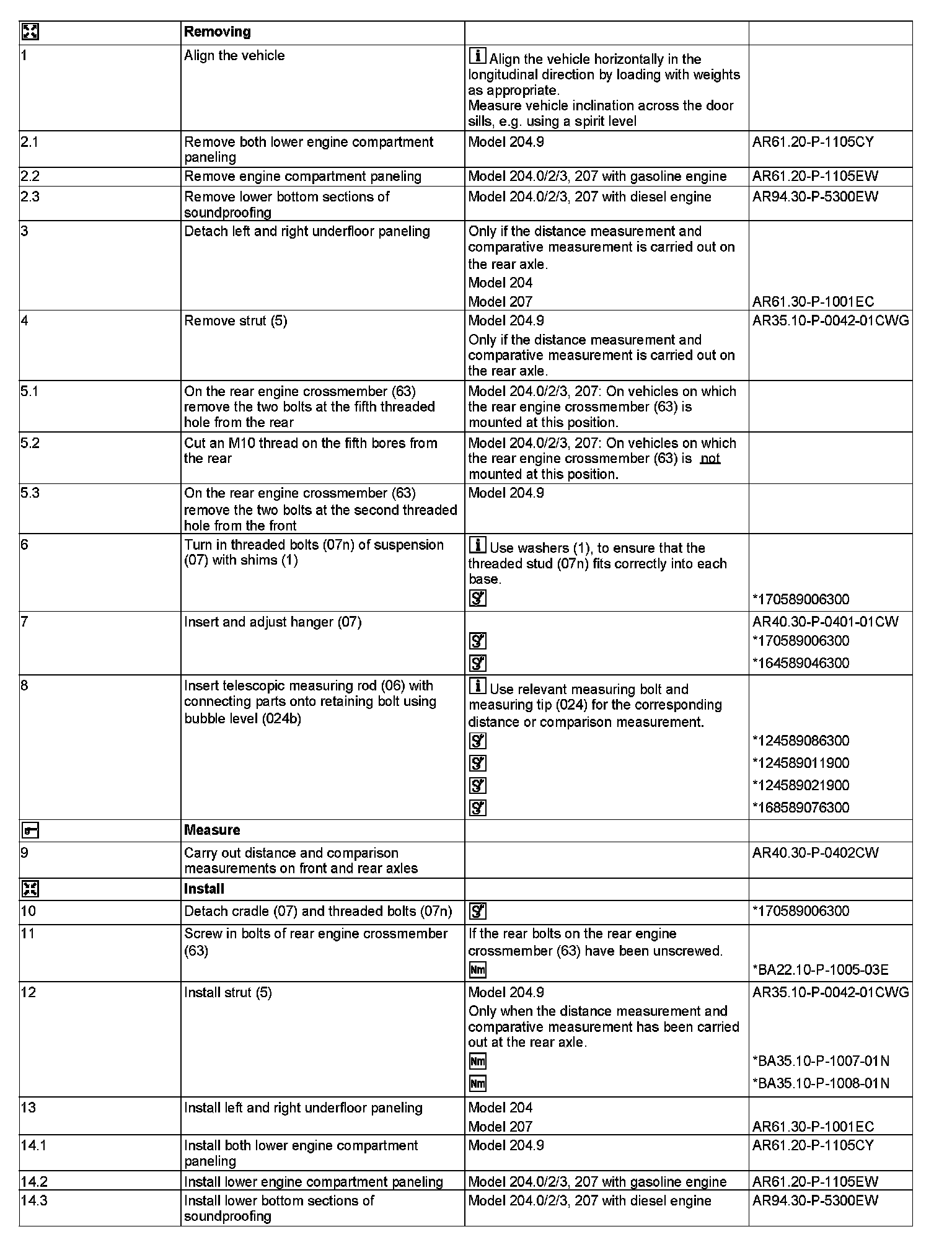

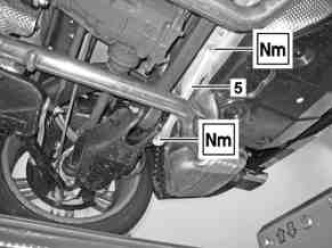

5 Strut (between rear axle and body)

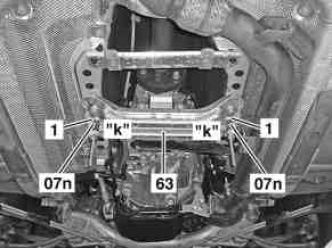

Shows model 204.9

07 Mount
07n Threaded stud
07r Left support
07s Right support
024b Retaining bolt with bubble level
1 Shims
63 Rear engine crossmember

K Reference point (centered)
"k" Check bores for the suspension (second threaded hole from front, of the two bolts on the rear engine crossmember)

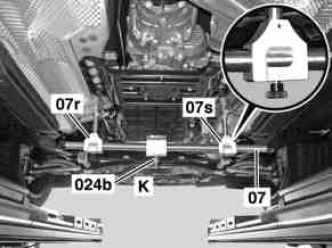

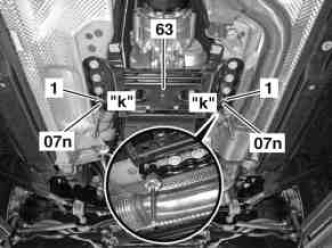

Shown on model 204.0 without 4MATIC

07 Mount
07n Threaded stud
07r Left support
07s Right support
024b Retaining bolt with bubble level
1 Shims
63 Rear engine crossmember

K Reference point (centered)
"k" Check bores for suspension (fifth threaded hole from rear)





Shown here is holding pipe 170 589 00 63 01

06 Telescopic measuring rod
07n Threaded stud
07r Left support
07s Right support
024 Measuring tip
024b Retaining bolt with bubble level

a Specified adjustment dimension for left-side support
b Specified adjustment dimension for right-side support

















170 589 00 63 00
Mount





124 589 01 19 00
Telescopic measuring rod





124 589 02 19 00
Telescopic measuring rod





168 589 07 63 00
Set of measurement fixtures





124 589 08 63 00
Connecting pieces





164 589 04 63 00
Retaining tube
