AR40.20-P-0325CW Check Toe-Out On Turns
AR40.20-P-0325CW Check Toe-Out On Turns
AR40.20-P-0325CW Check toe-out on turns

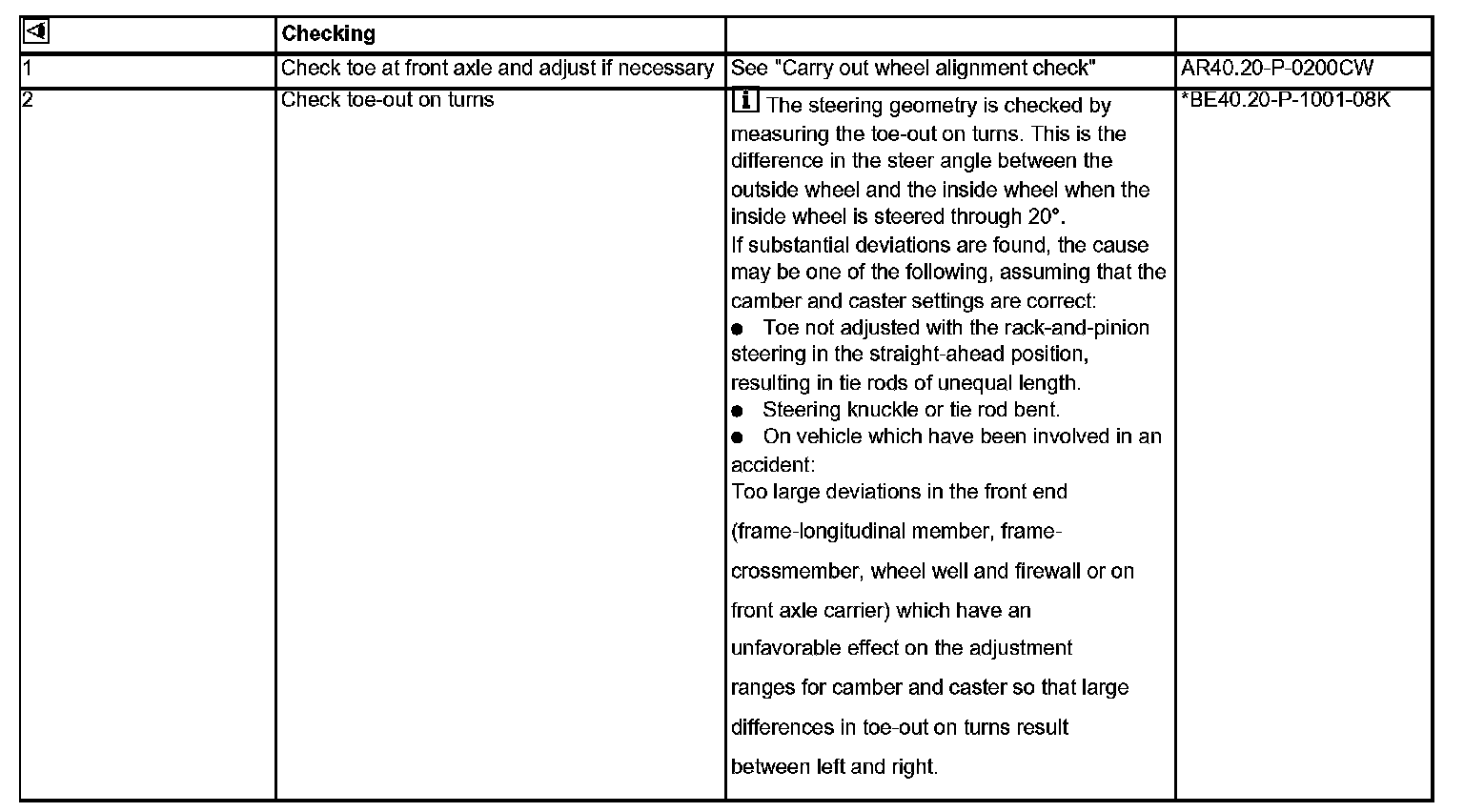

Steps 1-2:

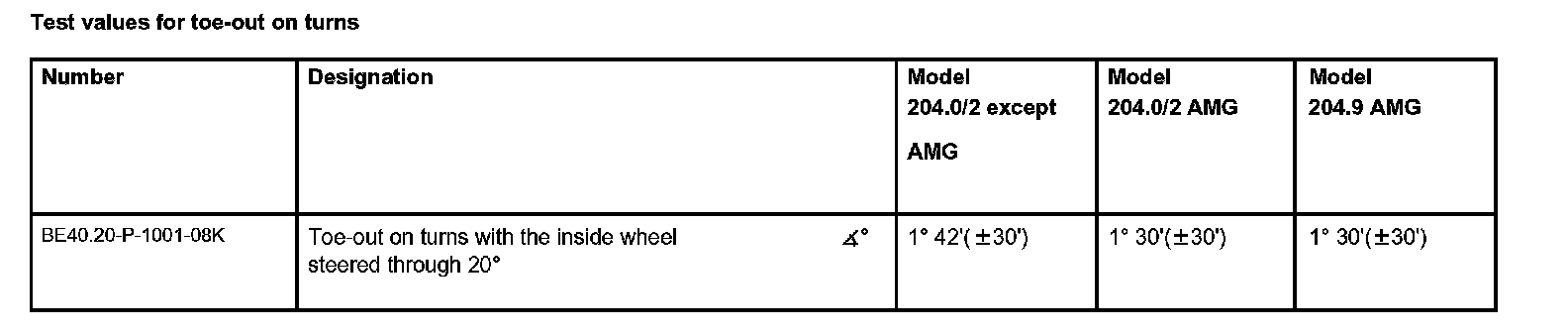

Test values for toe-out on turns:
