AR40.20-P-0322-03ED Check Caster, Match With Value In Table

AR40.20-P-0322-03ED Check Caster, Match With Value In Table








Tolerance for caster ± 30'
The level values are displayed by the electronic inclinometer in decimal degrees [°].

RA Rear axle level value
FA Front axle level value

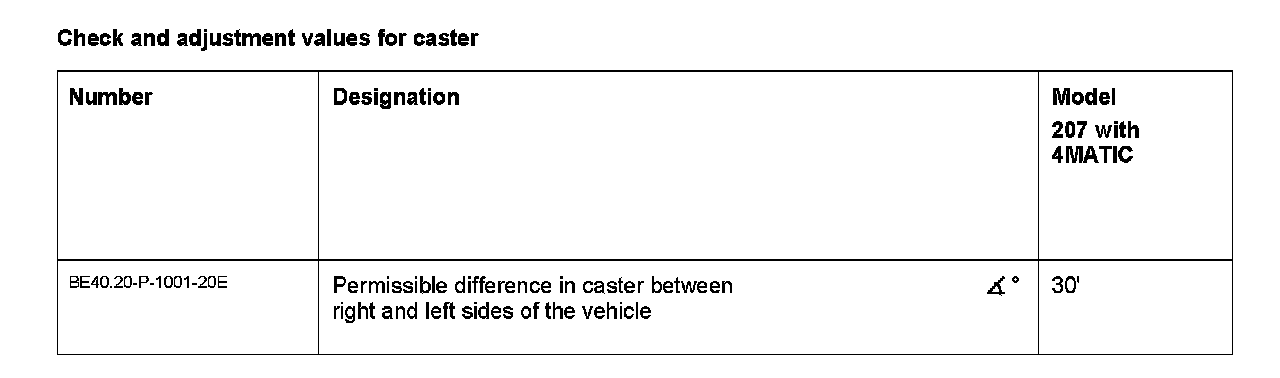

1 Obtain the caster value from the table taking into account the front axle (FA) level values and rear axle (RA) level values measured previously.

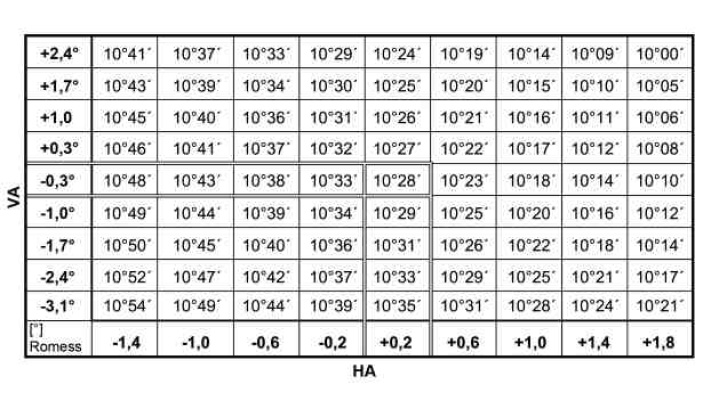

Example, see table:

Front-axle level value (FA): -0.3°
Rear-axle level value (RA): +0.2°
= Castor angle value 10° 28' (± 30')
