AR82.10-P-4905ED Remove/Install Taillamp
AR82.10-P-4905ED Remove/Install Taillamp
AR82.10-P-4905ED Remove/Install Taillamp

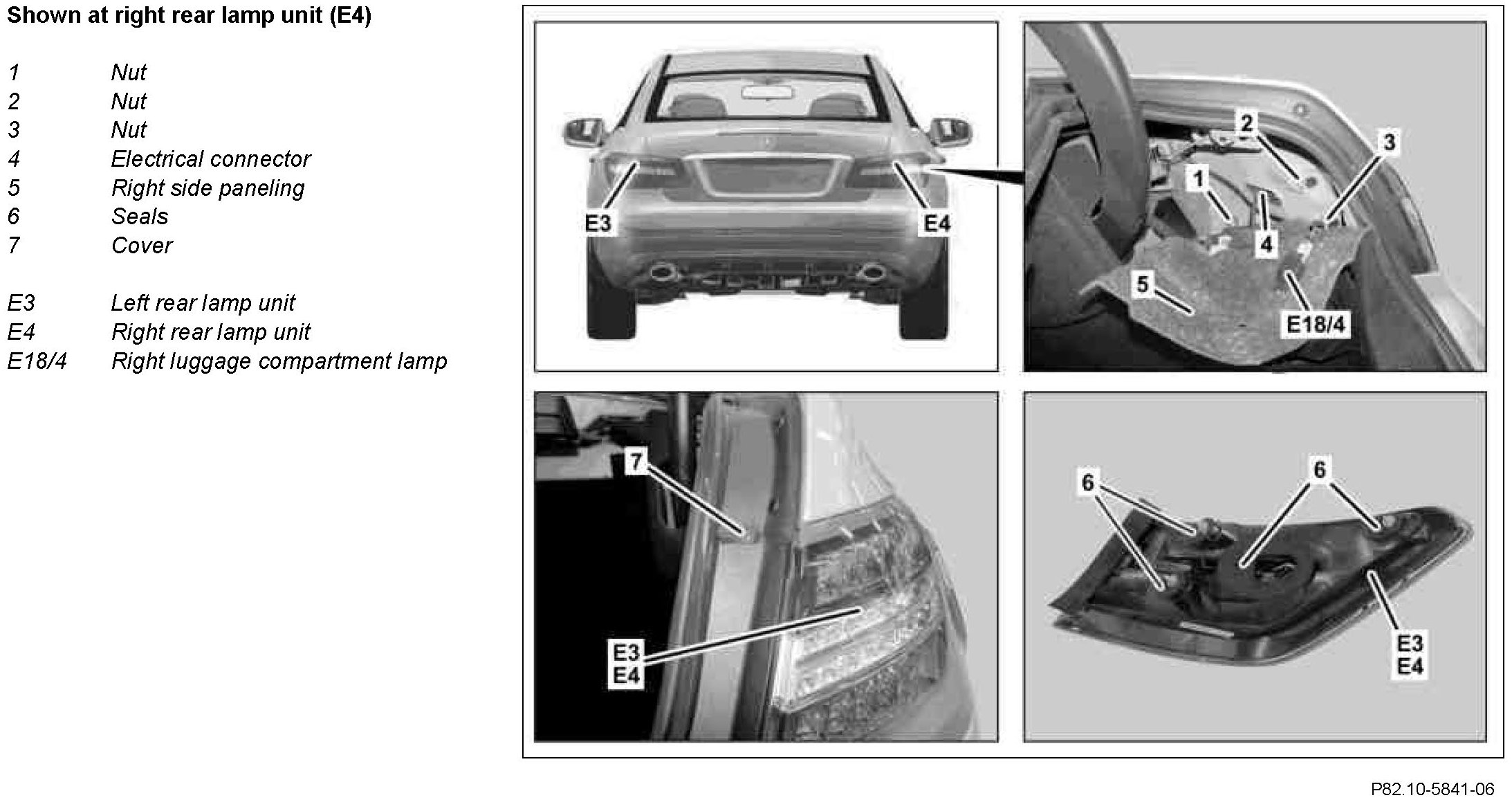

Component Identification:

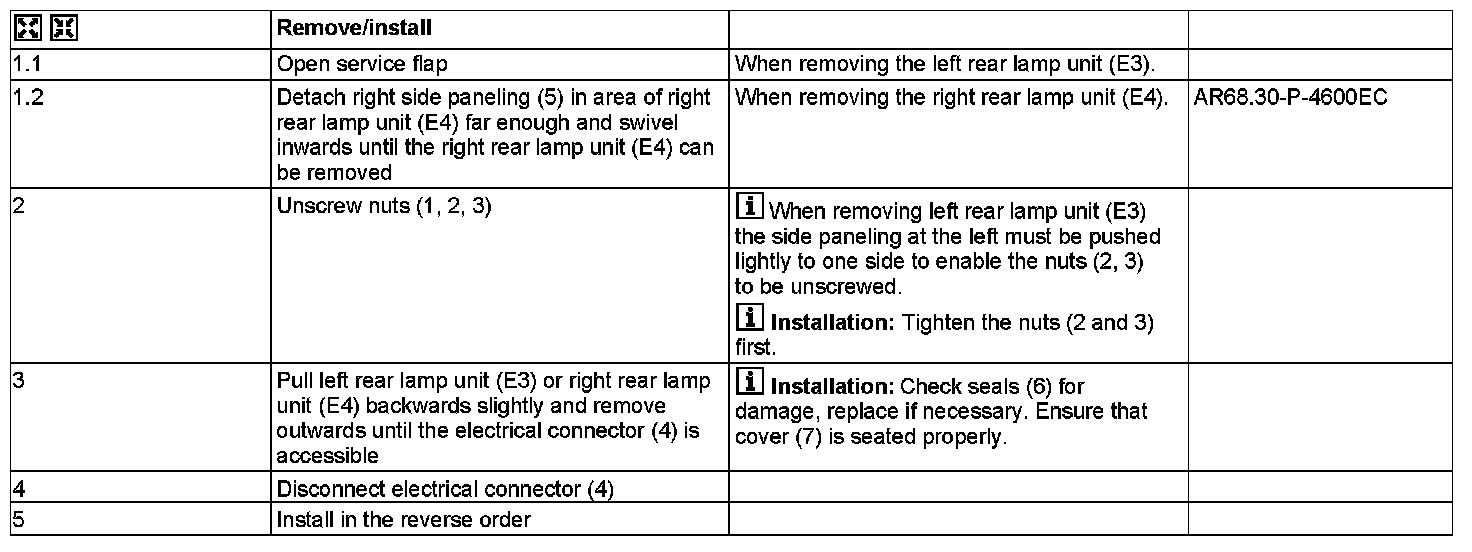

Steps 1.1 - 5:
