Horn: Service and Repair
AR54.35-P-1555EF Remove/install Fanfare Horns

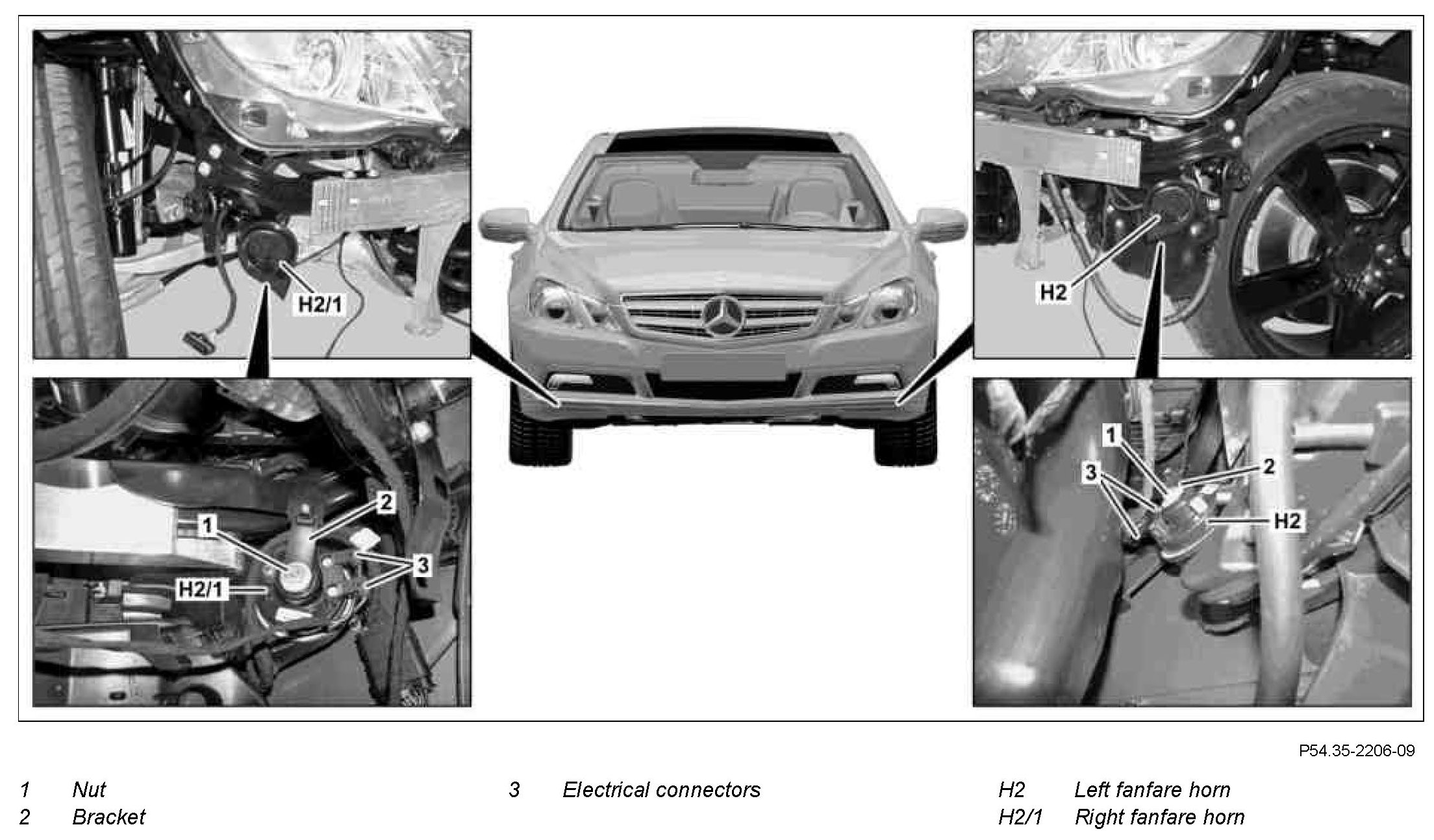

Component Identification:

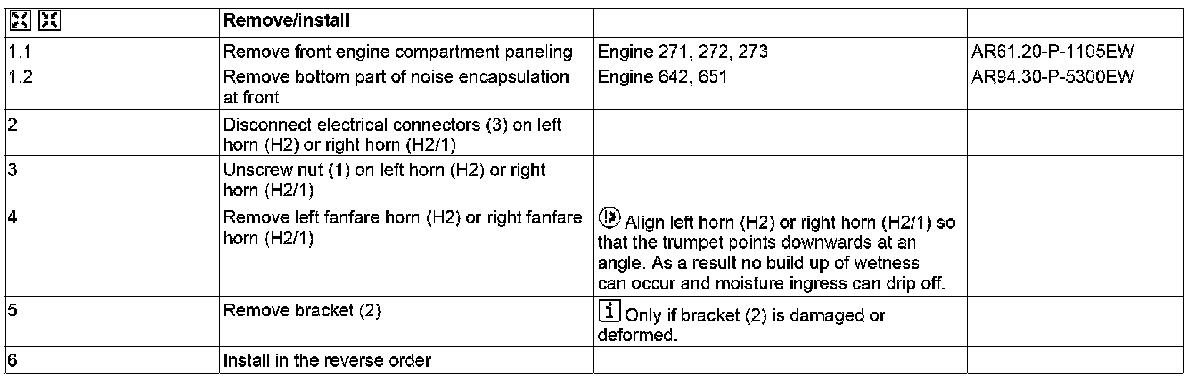

Steps 1.1-6:
