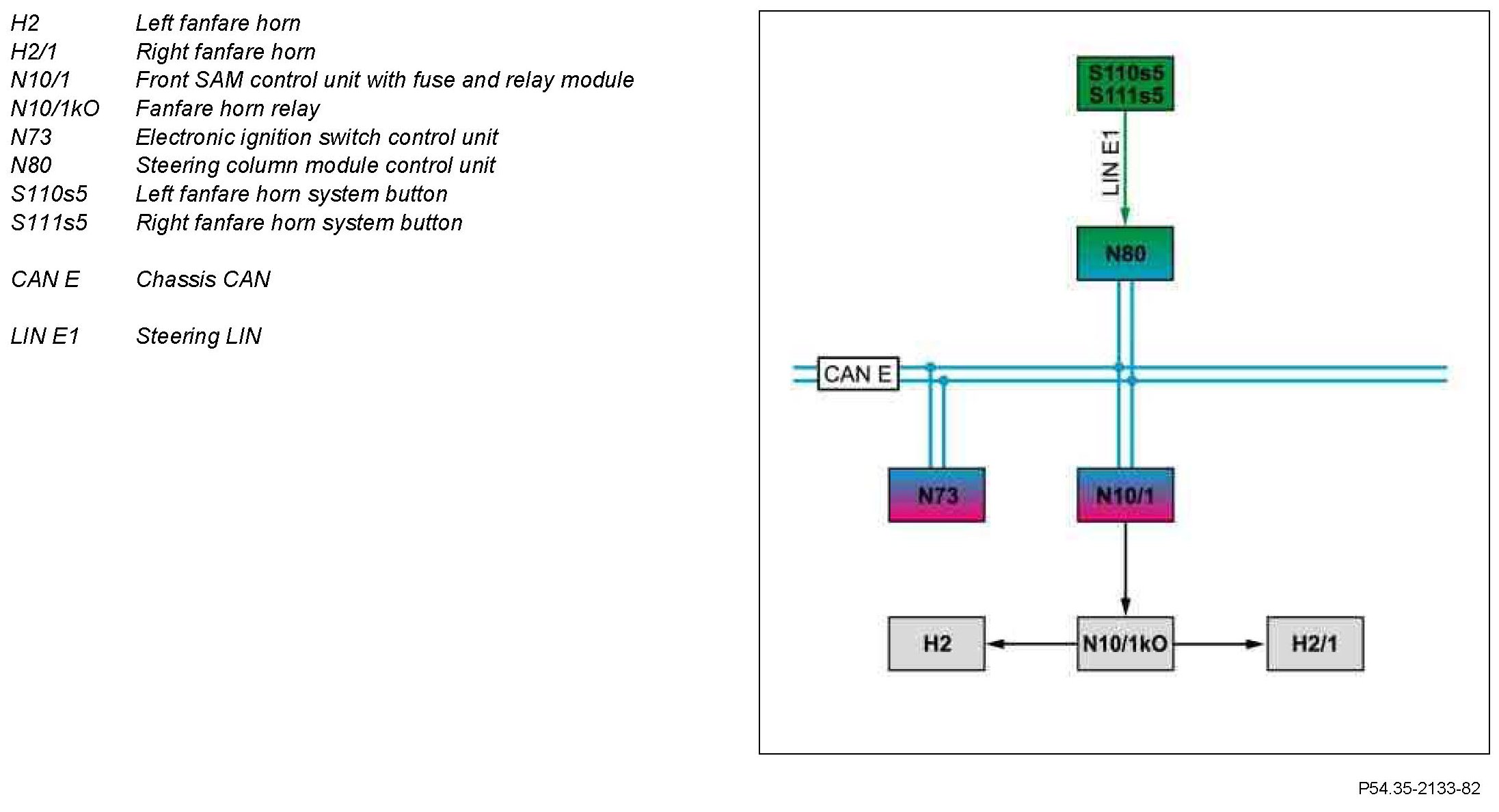

GF54.35-P-0001-03CA Fanfare Horns Block Diagram
GF54.35-P-0001-03CA Fanfare Horns Block Diagram
GF54.35-P-0001-03CA Fanfare Horns Block Diagram
Component Identification:
