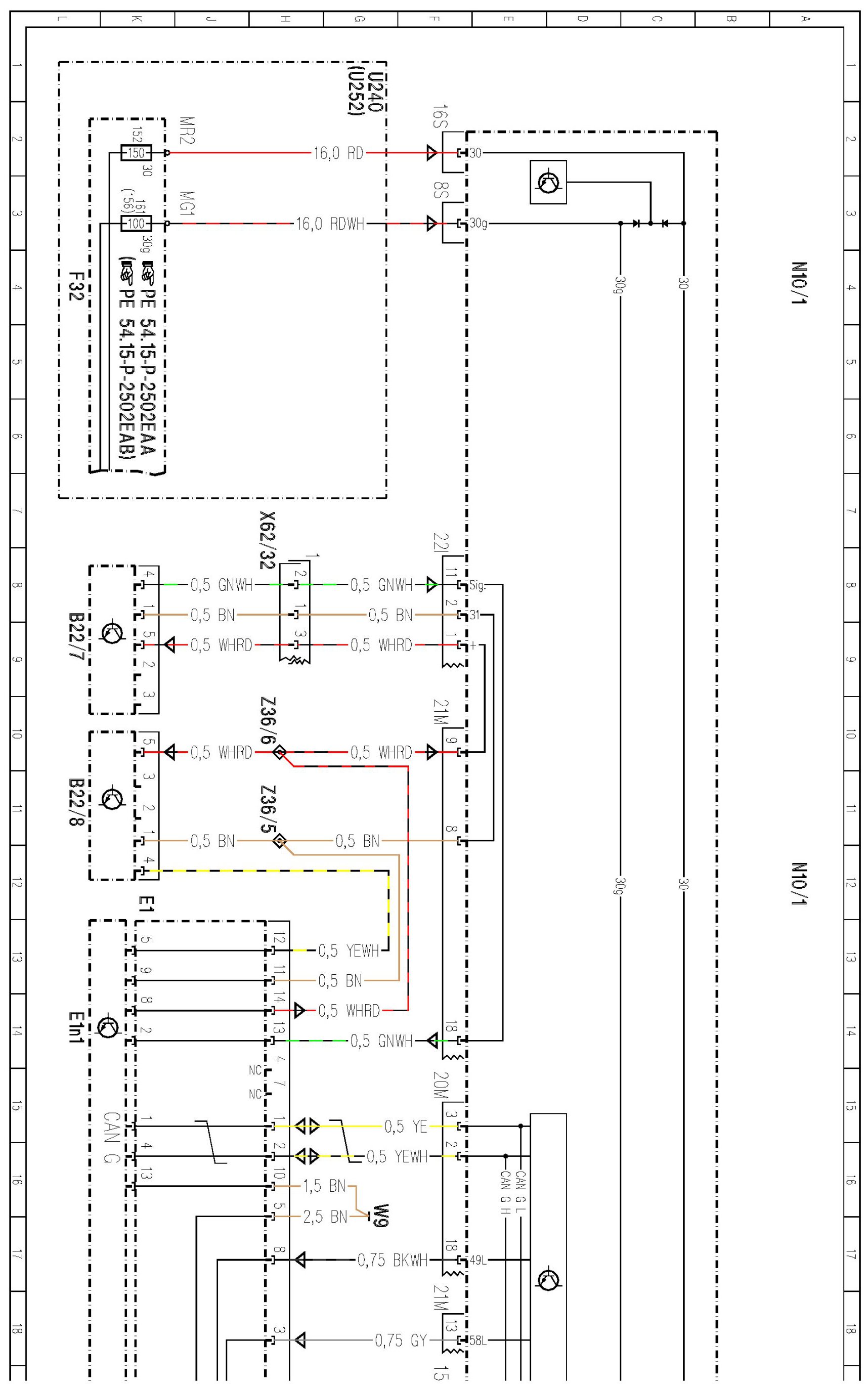

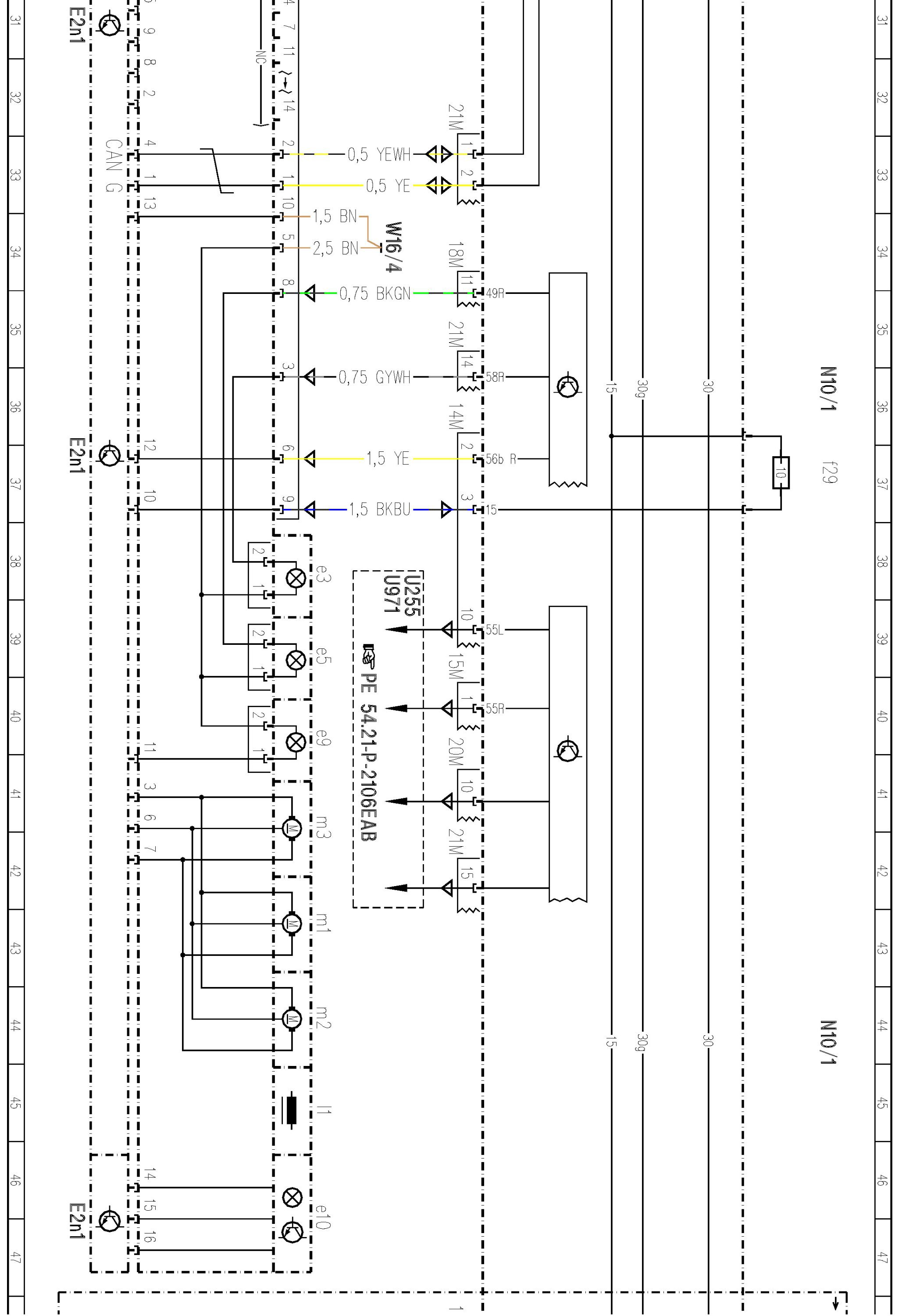

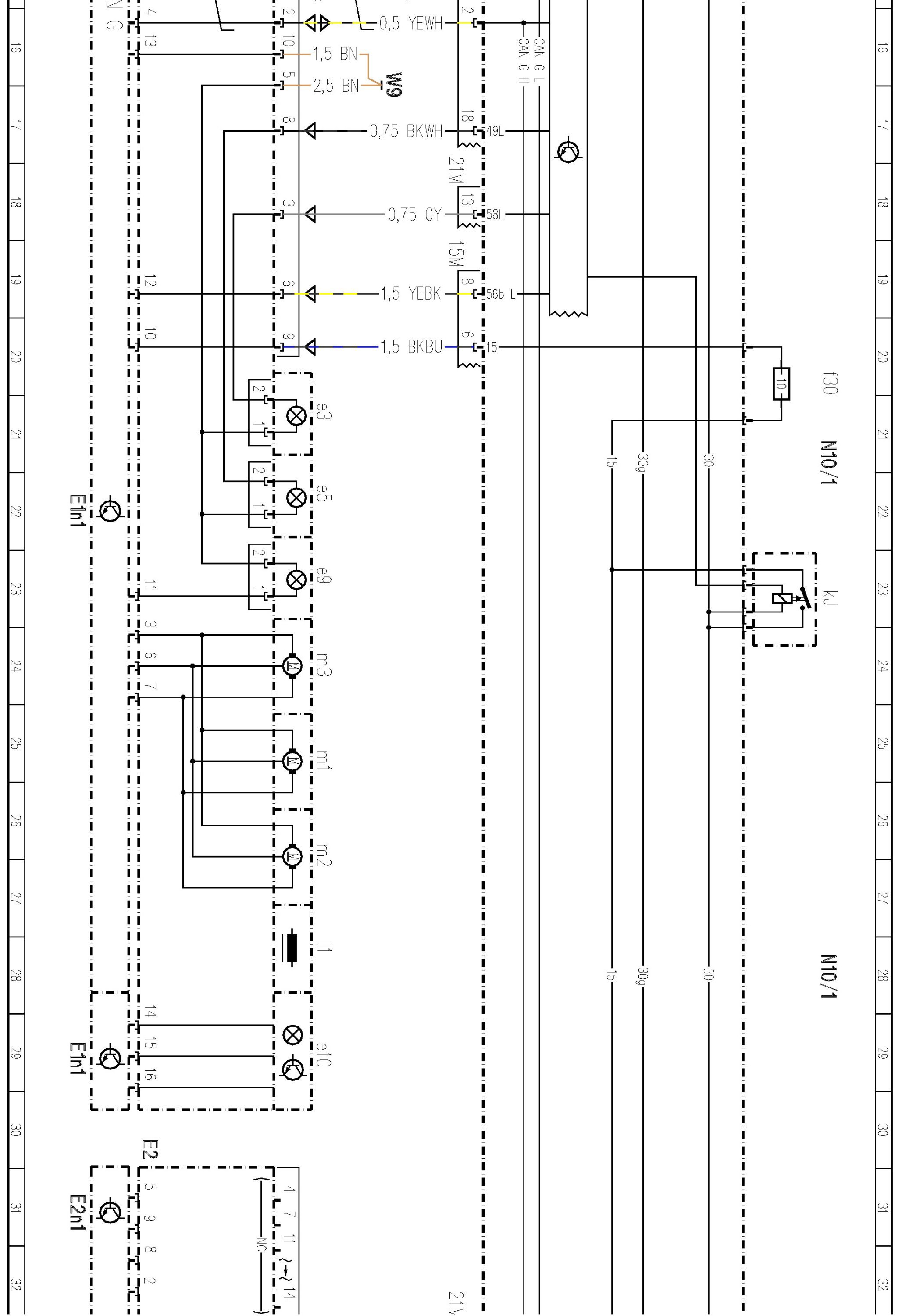

PE82.10-P-2000EAA Exterior Lights Wiring Diagram

PE82.10-P-2000EAA Exterior Lights Wiring Diagram

MODEL 207
- with CODE (615) Bi-xenon headlamp unit with integrated curve illumination
- with CODE (616) Bi-xenon headlamp unit with integrated asymmetric curve illumination
- with CODE (621) Intelligent Light System (left-hand traffic)
- with CODE (622) Intelligent Light System (right-hand traffic)






































































Component Locations: Component Location photographs can be found via their component names at the vehicle level. Component Locations
