Brake Lamp: Service and Repair
AR82.10-P-5375EG Remove/Install Center High-mounted Stop Lamp

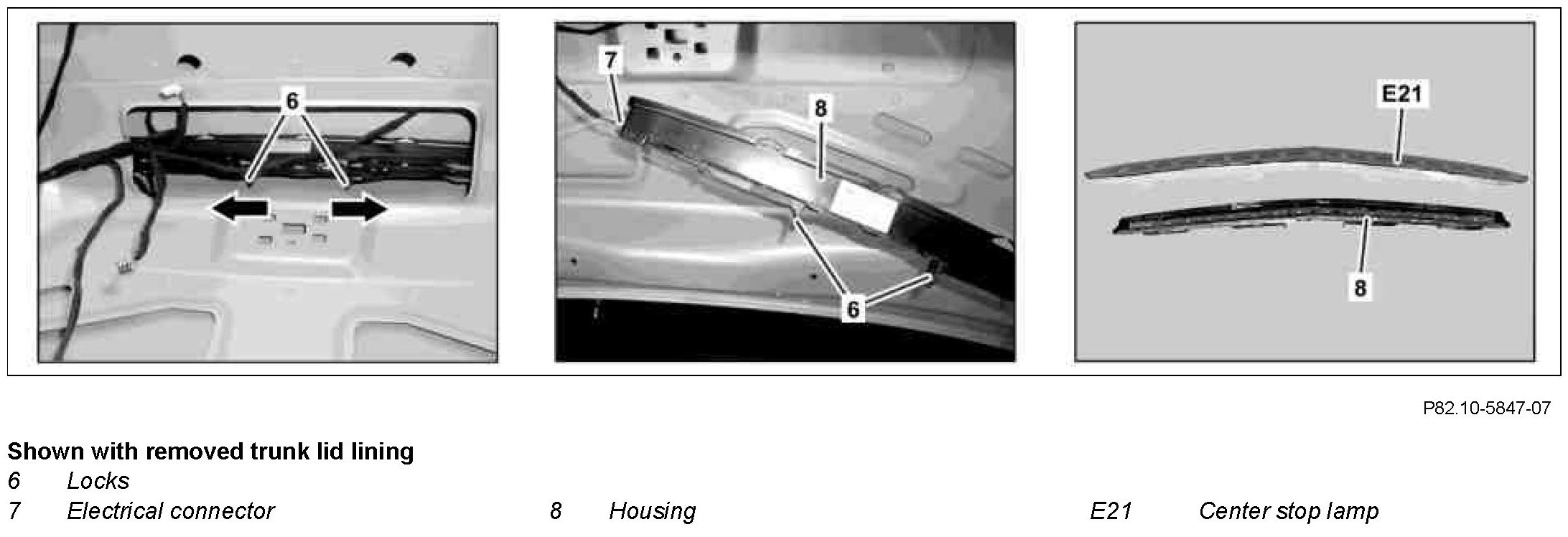

Component Identification:

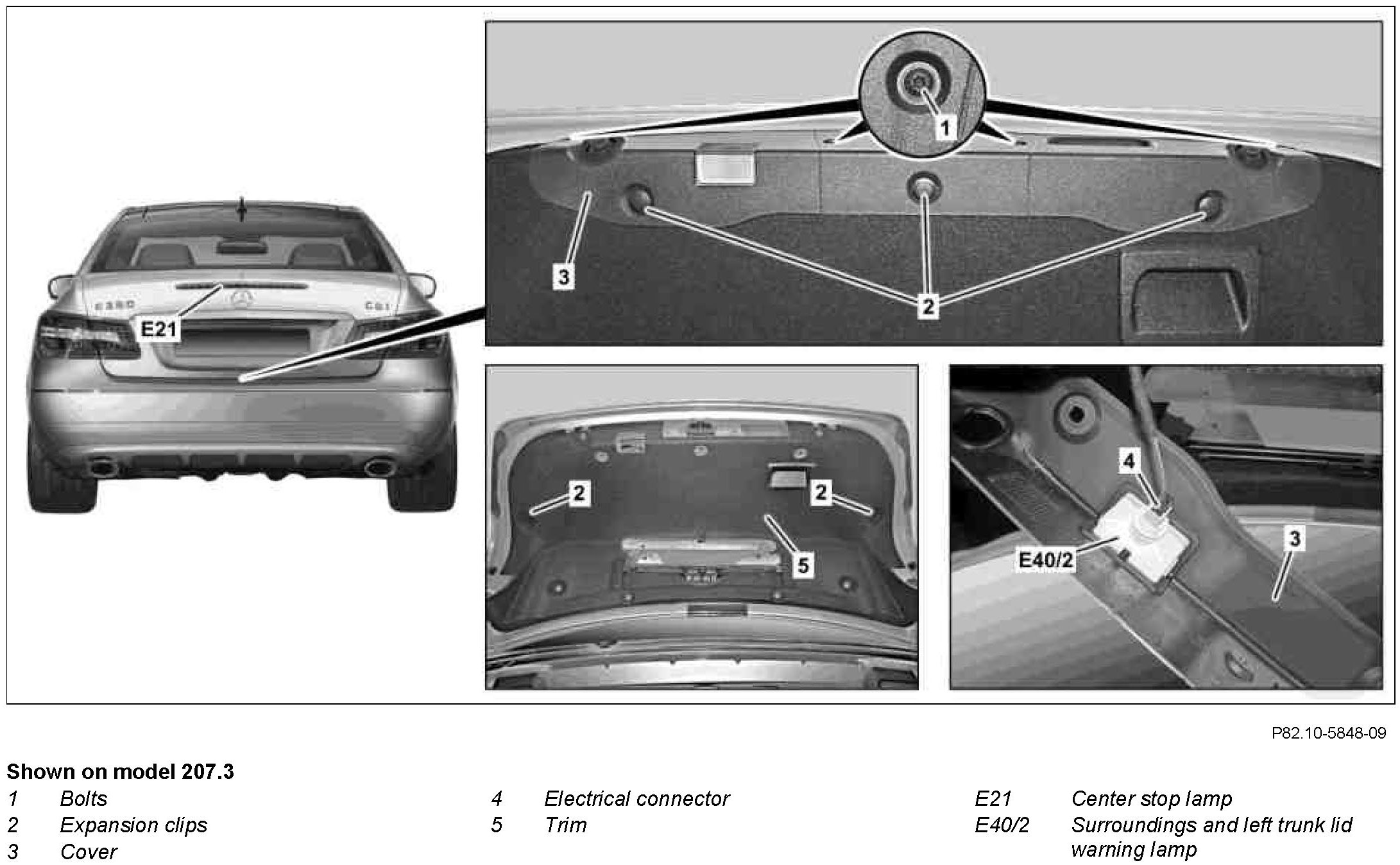

Component Identification:
Modification Notes:

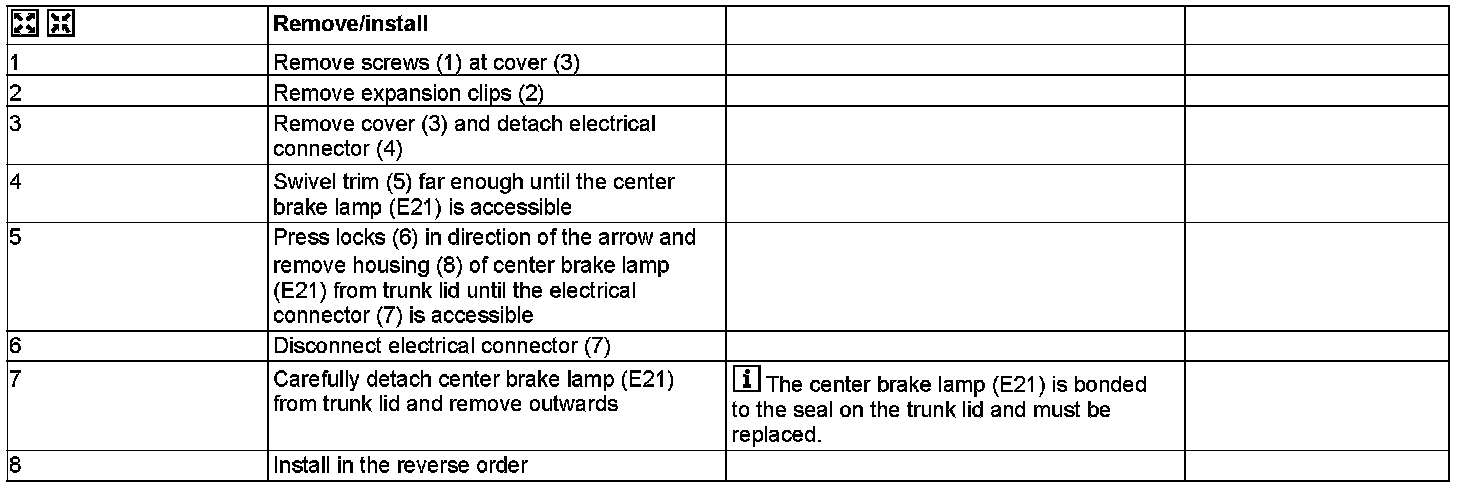

Steps 1 - 8:
