Condenser HVAC: Service and Repair




AR83.30-P-6540W Remove/Install Condenser
MODEL 172.4 with ENGINE 271, 276
- with CODE (580) Automatic air conditioning
- with CODE (581) Comfort automatic air conditioning
MODEL 207 with ENGINE 276
- with CODE (580) Automatic air conditioning
- with CODE (581) Comfort automatic air conditioning

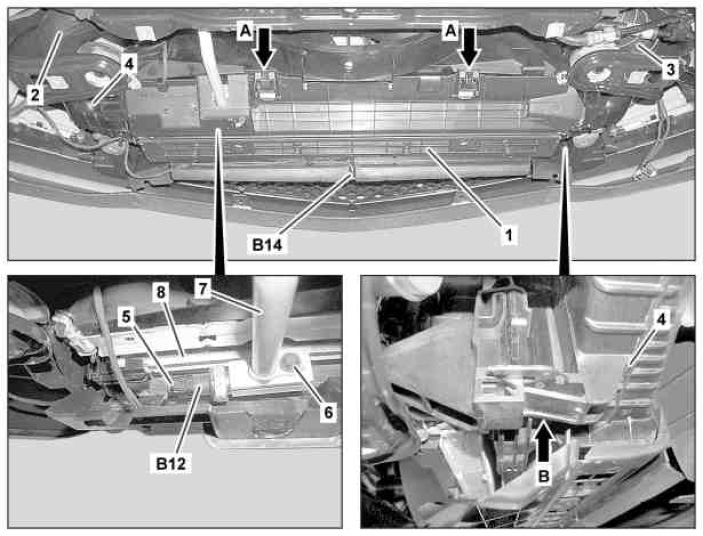

Shown on vehicle with engine 271.861
1 Lower air ducting
2 Charge air hose
3 Charge air hose
4 Charge air cooler
5 Electrical connector
6 Screw
7 Refrigerant line
8 Capacitor
B12 Refrigerant pressure sensor
B14 Outside temperature sensor

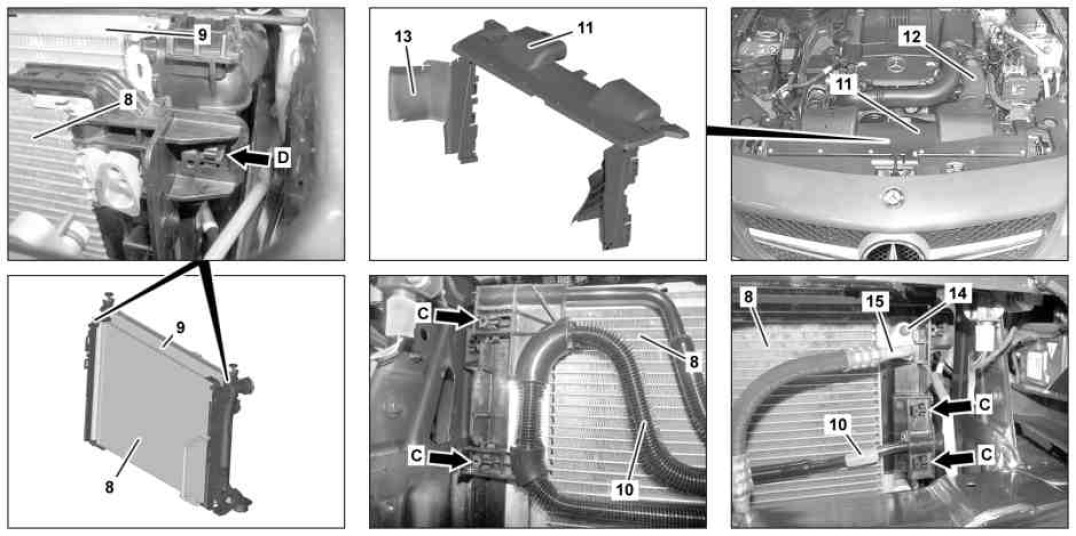

Shown on vehicle with engine 271.861
8 Capacitor
9 Radiator
10 Power steering oil cooler
11 Top radiator cover
12 Hose
13 Air duct
14 Screw
15 Refrigerant line
