Compressor HVAC: Service and Repair

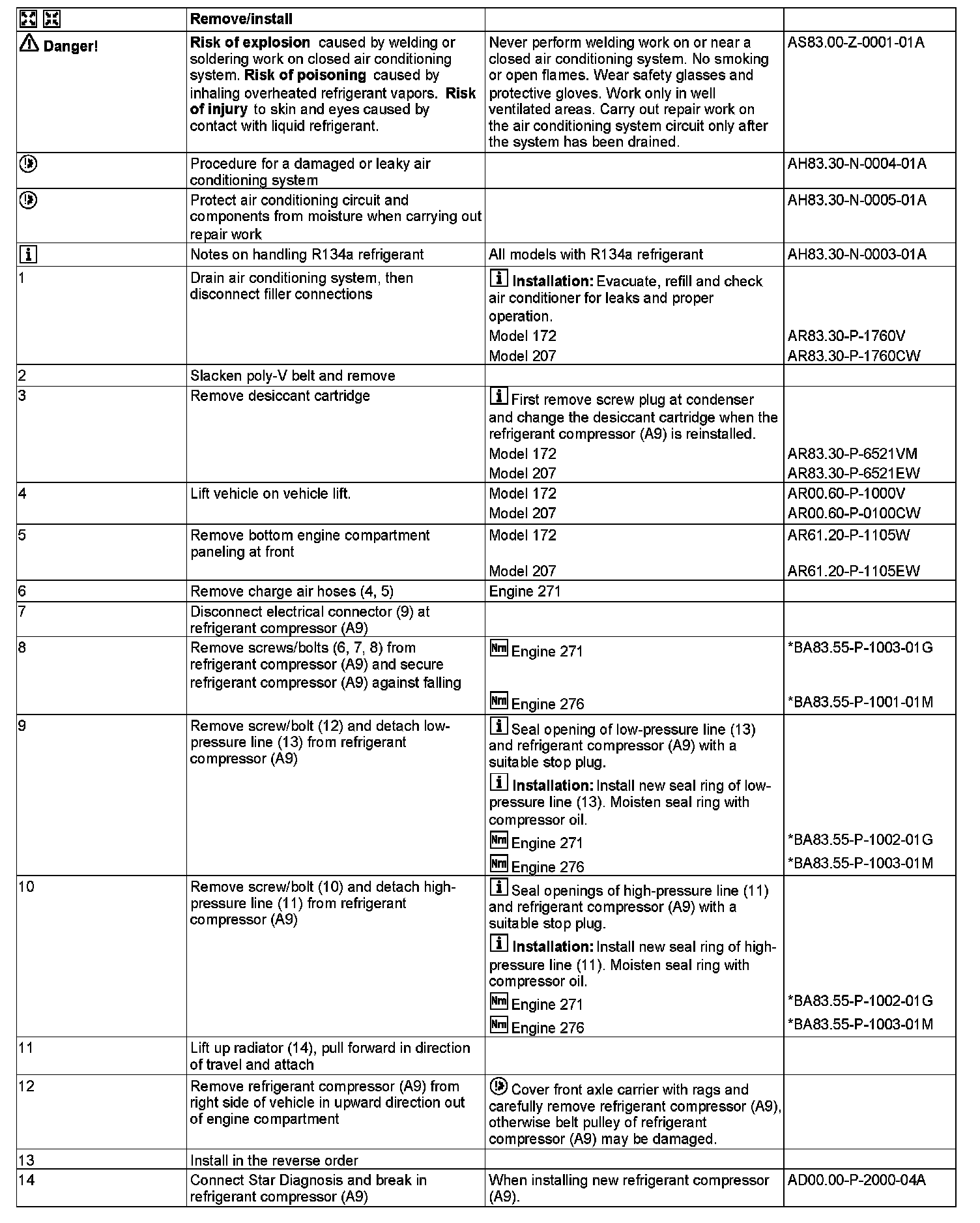

AR83.55-P-5300W Remove/Install Refrigerant Compressor
ENGINES 271, 276 in MODEL 172.4, 207
- with CODE (580) Automatic air conditioning
- with CODE (581) Comfort automatic air conditioning

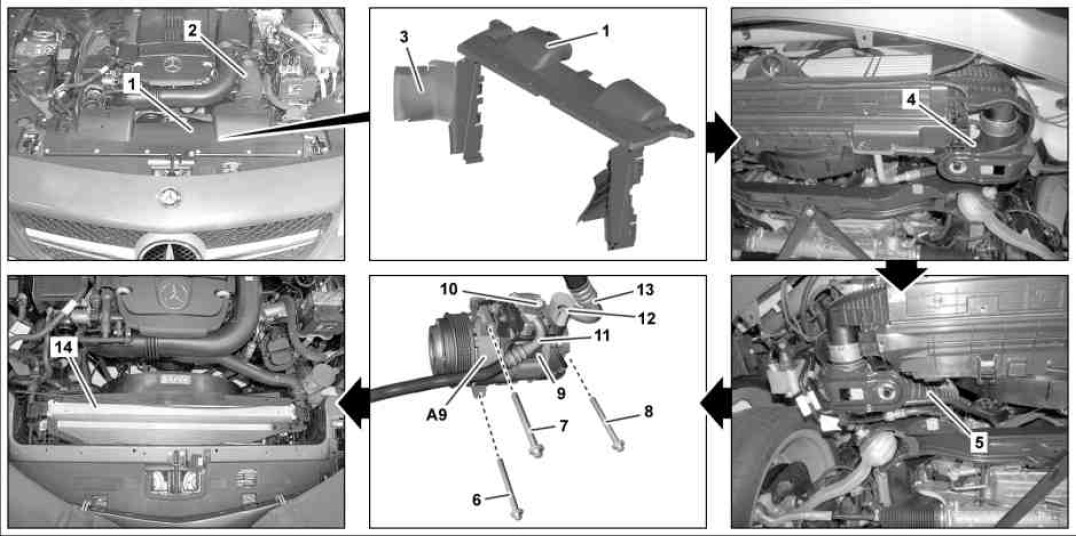

Shown on vehicle with engine 271.861
1 Top radiator cover
2 Hose
3 Air duct
4 Charge air hose (for engine 271)
5 Charge air hose (for engine 271)
6 Screw
7 Screw
8 Screw
9 Electrical connector
10 Screw
11 High pressure pipe
12 Screw
13 Low pressure pipe
14 Radiator
A9 AC compressor
