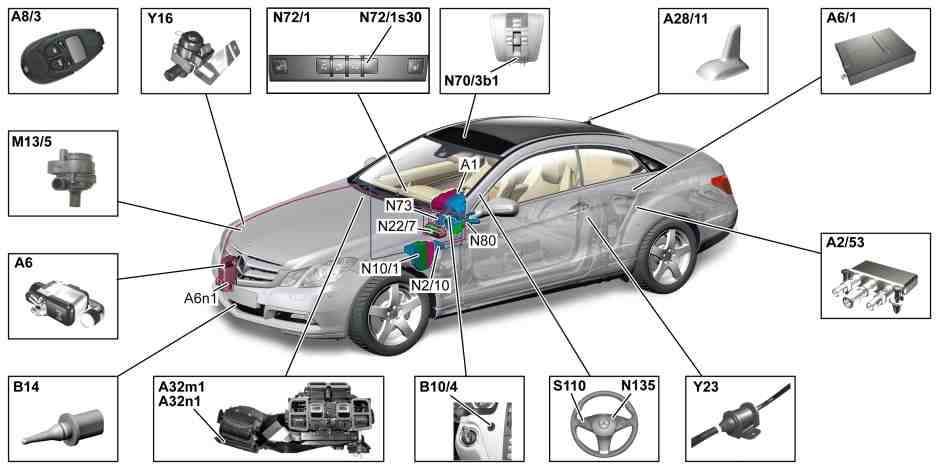

GF83.70-P-0006-01CA Stationary Heater (STH), Location of Components

GF83.70-P-0006-01CA Stationary Heater (STH), Location of Components
- with CODE (228) Stationary heater





A1 Instrument cluster
A2/53 Mobile phone antenna splitter and stationary heater radio remote control (with code (386) Comfort telephony)
A6 Stationary heater unit
A6n1 Stationary heater control unit
A6/1 Stationary heater radio remote control receiver
A8/3 Stationary heater radio remote control transmitter
A28/11 Multifunction antenna
A32m1 Blower motor
A32n1 Blower regulator
B10/4 Interior temperature sensor
B14 Outside temperature sensor
M13/5 Coolant circulation pump
N2/10 Supplemental restraint system control unit
N10/1 Front SAM control unit with fuse and relay module
N22/7 Automatic air conditioning control and operating unit
N70/3b1 Interior temperature sensor with integrated fan
N72/1 Upper control panel control unit
N72/1s30 Stationary heater button
N73 Electronic ignition switch control unit
N80 Steering column module control unit
N135 Steering wheel electronics
S110 Left multifunction steering wheel button group
Y16 Stationary heater switchover valve
Y23 Stationary heater fuel pump
