Timing Chain: Service and Repair

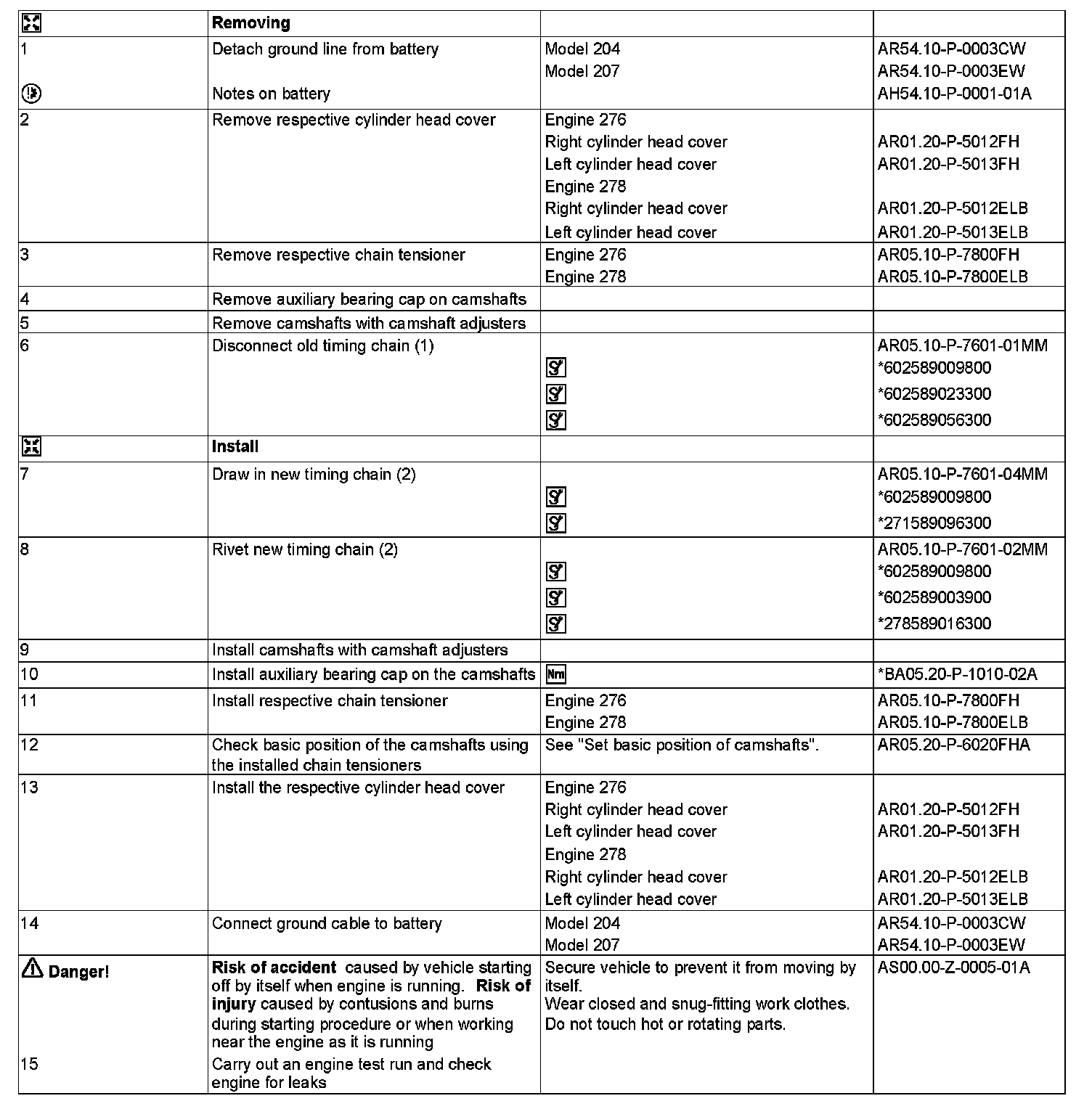

AR05.10-P-7601FH Replace Timing Chain
ENGINES 276 in MODEL 204, 207
ENGINES 278 in MODEL 207

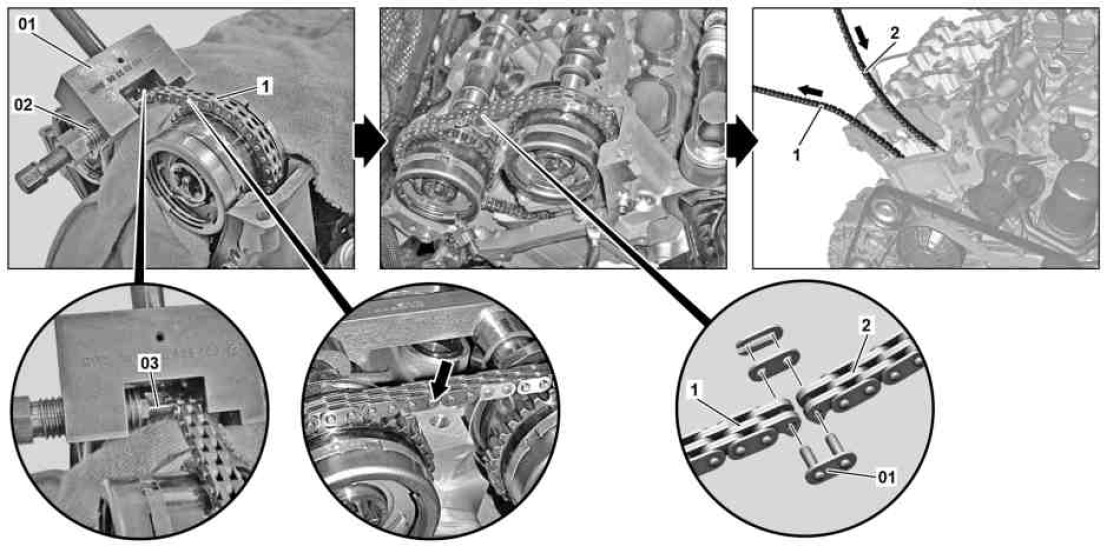

01 Riveting tool
02 Thrust spindle
03 Pressure pin
1 Old timing chain
2 New timing chain











602 589 00 98 00
Case





602 589 02 33 00
Chain separating tool





602 589 05 63 00
Thrust spindle





271 589 09 63 00
Assembly link





602 589 00 39 00
Riveting tool





278 589 01 63 00
Assembly insert
