Oil Pan: Service and Repair

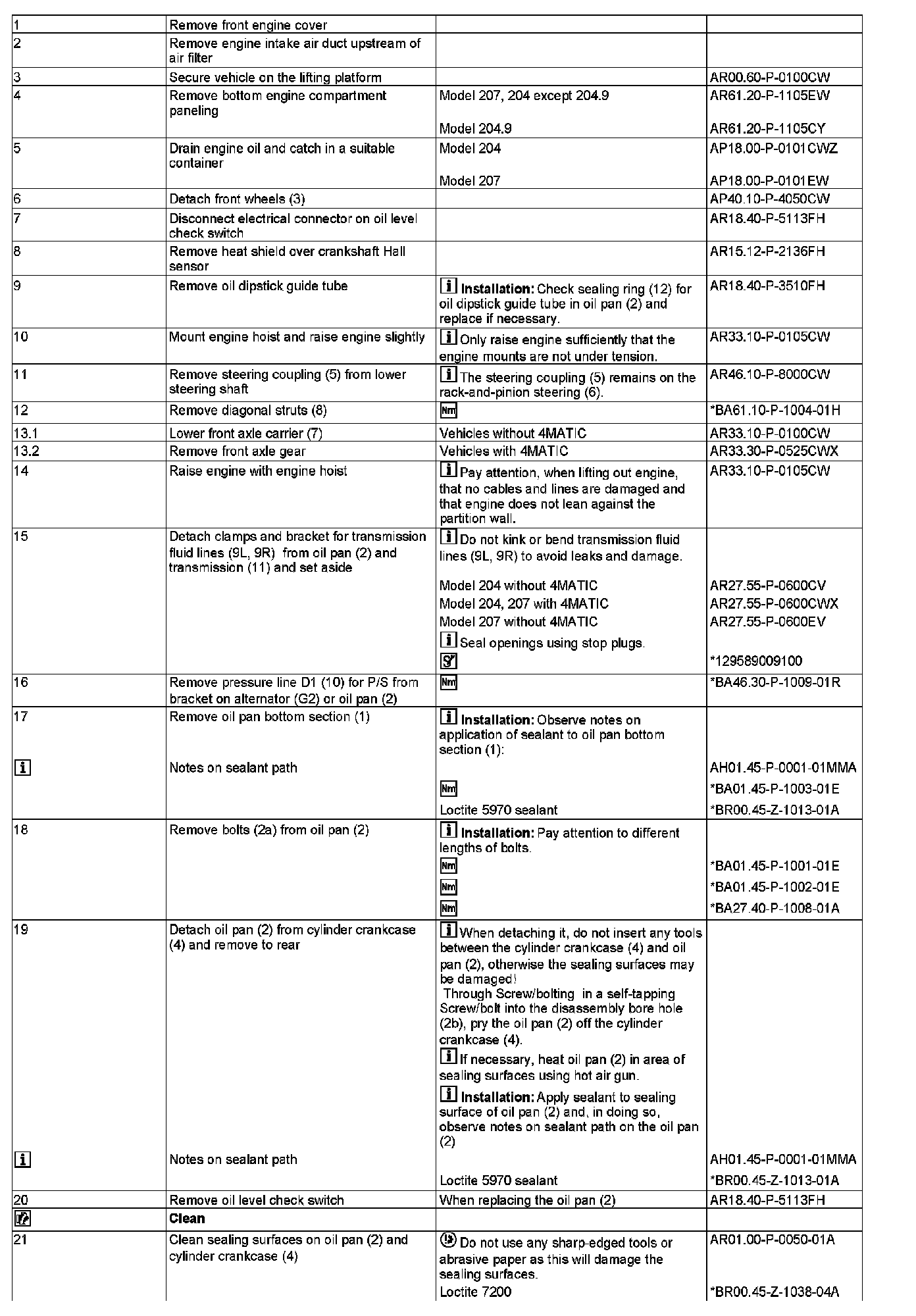

AR01.45-P-7500FHA Remove/Install Oil Pan
ENGINES 276 in MODEL 204, 207

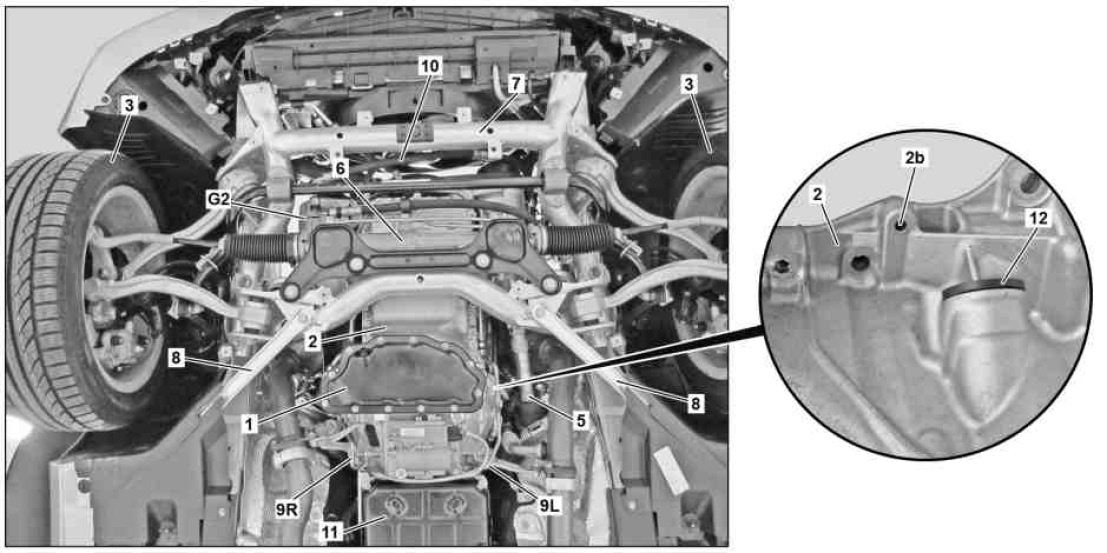

1 Oil pan bottom section
2 Oil pan
2b Disassembly bore hole
3 Wheels
5 Steering coupling
6 Rack-and-pinion steering
7 Front axle carrier
8 Diagonal struts
9L Transmission oil/fluid line
9R Transmission oil/fluid line
10 Pressure line D1
11 Transmission
12 Sealing ring

G2 Generator

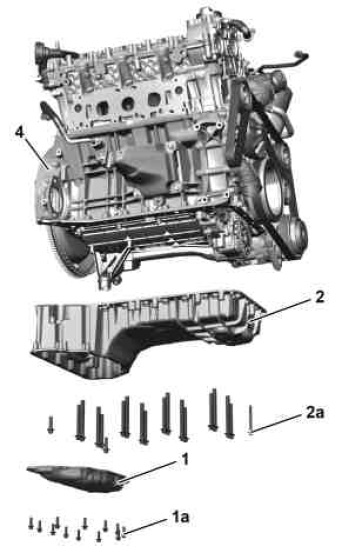

1 Oil pan bottom section
1a Screw
2 Oil pan
2a Screw
4 Cylinder crankcase


























129 589 00 91 00
Set of stop plugs
