Harmonic Balancer - Crankshaft Pulley: Service and Repair

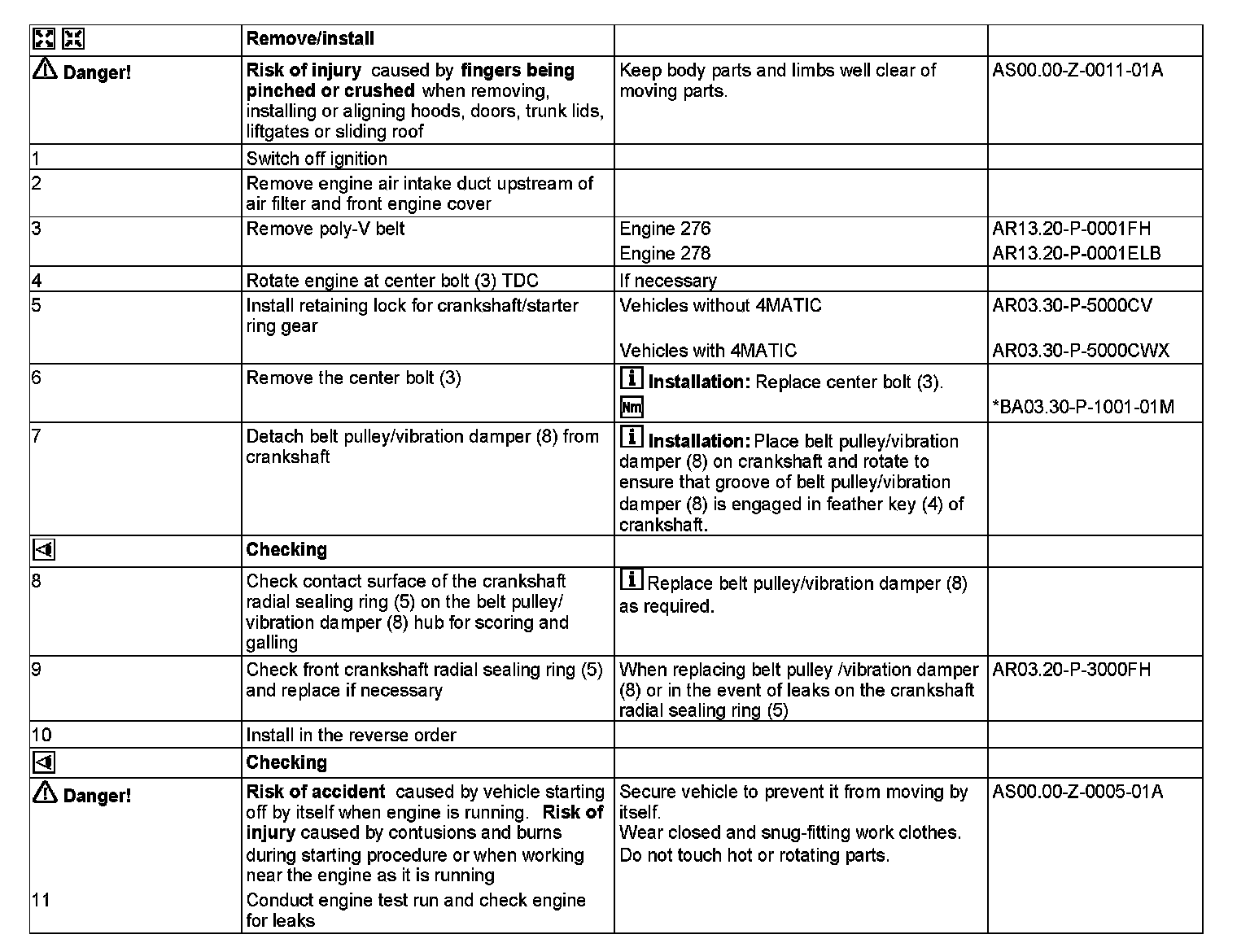

AR03.30-P-1600FH Remove/Install Belt Pulley/Vibration Damper
ENGINES 276 in MODEL 204
ENGINES 276, 278 in MODEL 207

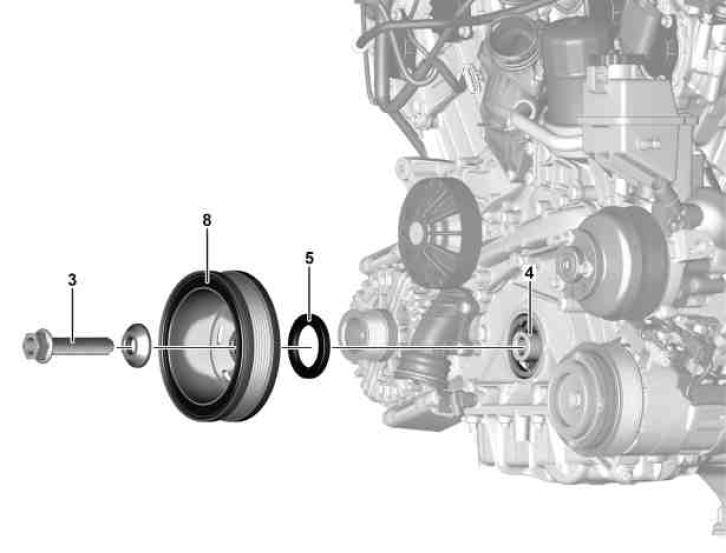

3 Crankshaft center bolt
4 Key
5 Crankshaft radial seal
8 Belt pulley/vibration damper
