Camshaft: Testing and Inspection

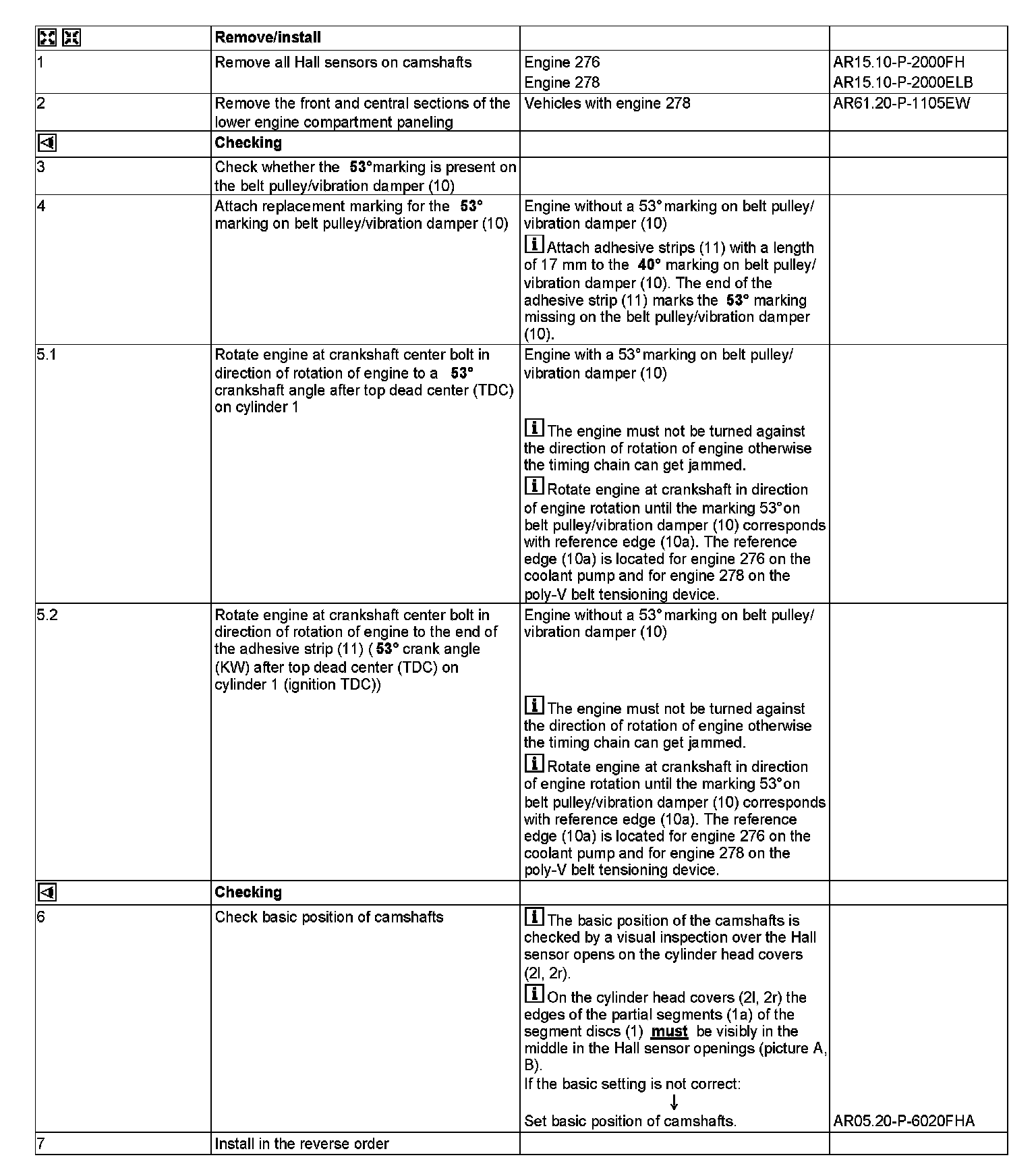

AR05.20-P-6010FHA Check Basic Position Of Camshafts
ENGINES 276 in MODEL 204
ENGINES 276, 278 in MODEL 207

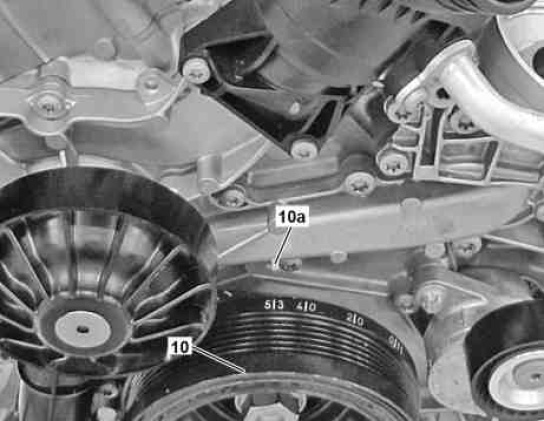

Engine 276 with a 53° marking

10 Belt pulley/vibration damper
10a Reference edge (coolant pump)

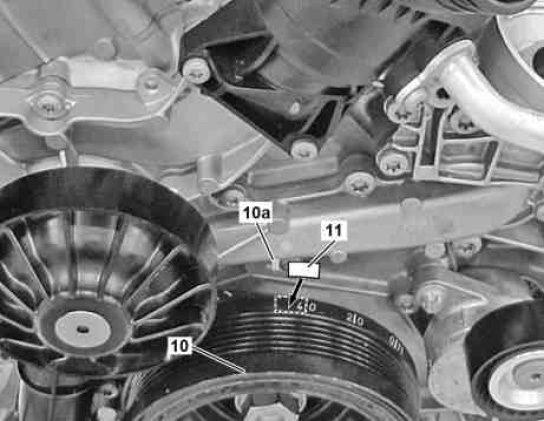

Engine 276 without a 53° marking

10 Belt pulley/vibration damper
10a Reference edge (coolant pump)
11 Adhesive strip (replacement marking)

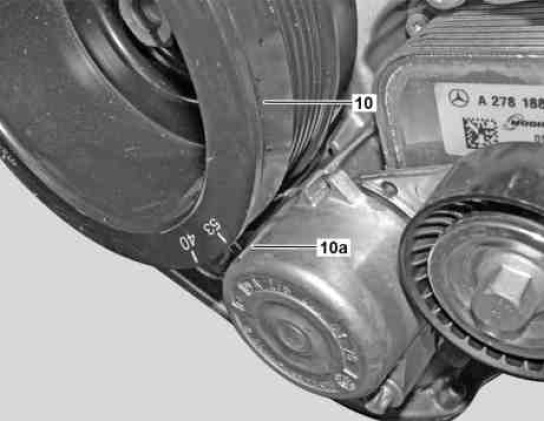

Engine 278 with a 53° marking

10 Belt pulley/vibration damper
10a Reference edge (poly-V belt tensioning device)

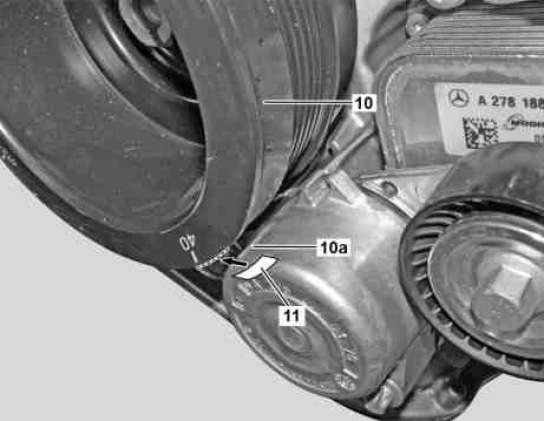

Engine 278 without a 53° marking

10 Belt pulley/vibration damper
10a Reference edge (coolant pump)
11 Adhesive strip (replacement marking)

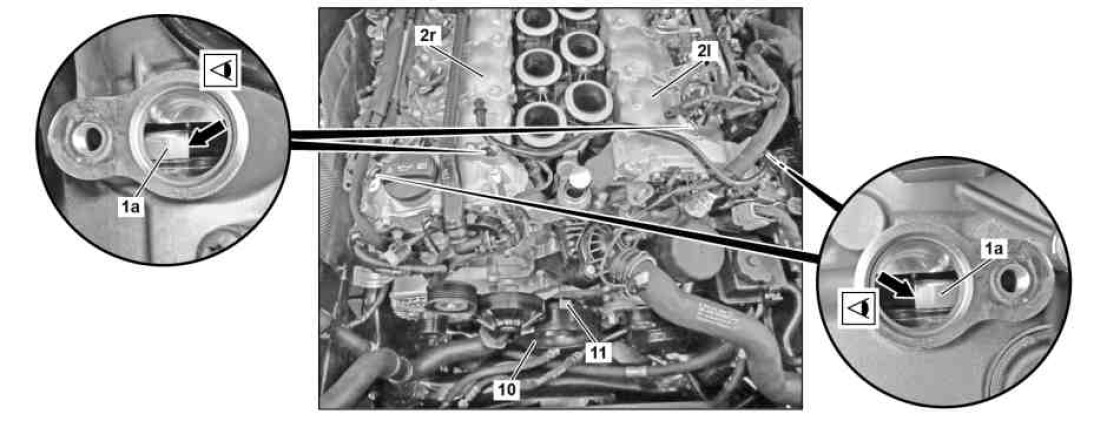

Shown on: engine 276 without a 53° marking

1a Partial segment
2l Left cylinder head cover
2r Right cylinder head cover
10 Belt pulley/vibration damper
11 Adhesive strip (replacement marking)

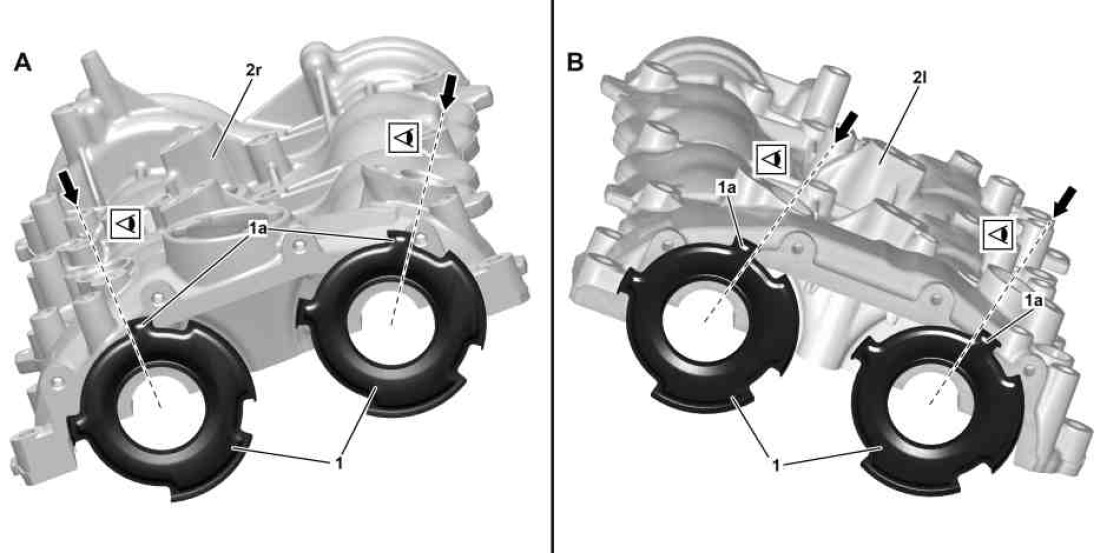

Right cylinder head (A)
1 Segment disc
1a Partial segment
2r Right cylinder head cover

Left cylinder head (B)
1 Segment disc
1a Partial segment
2l Left cylinder head cover
