Radiator: Service and Repair

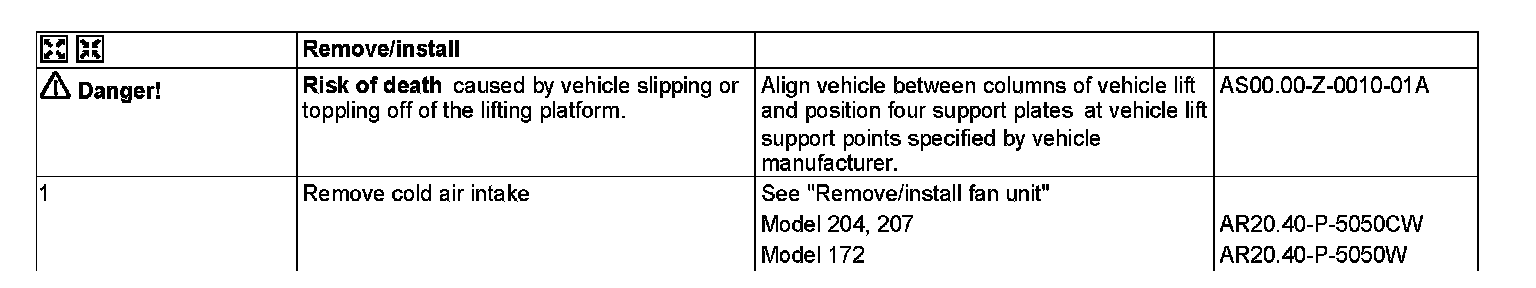

AR20.20-P-3865CW Remove/Install Radiator
ENGINES 271, 272, 276, 642, 646, 651 in MODEL 204
ENGINES 271, 272, 273, 276, 642, 651 in MODEL 207
ENGINES 271 in MODEL 212
ENGINES 271 in MODEL 172

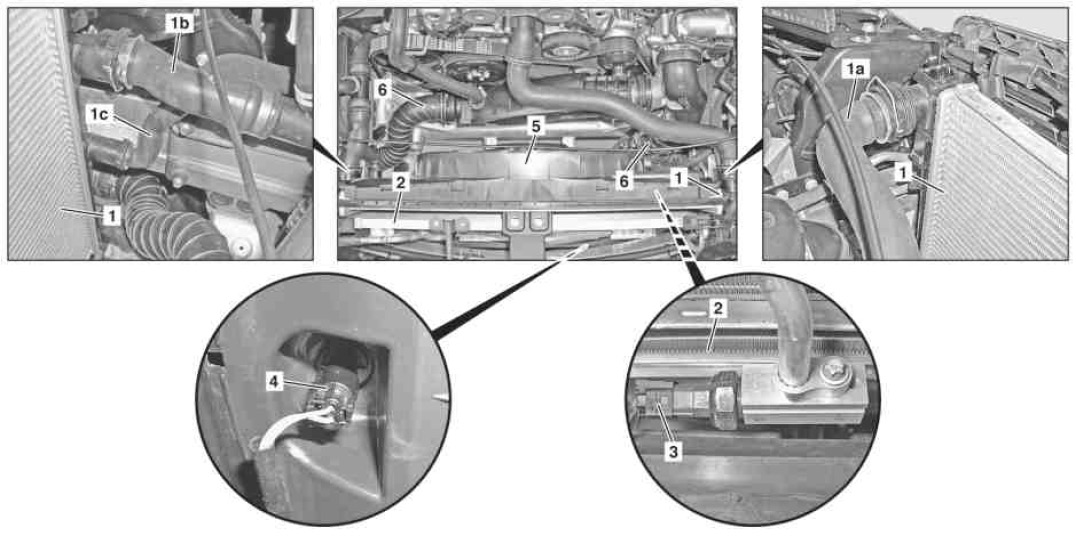

1 Radiator
1a Coolant hose
1b Coolant hose
1c Coolant hose
2 Capacitor
3,4 Electrical connector
5 Fan unit
6 Charge air hoses

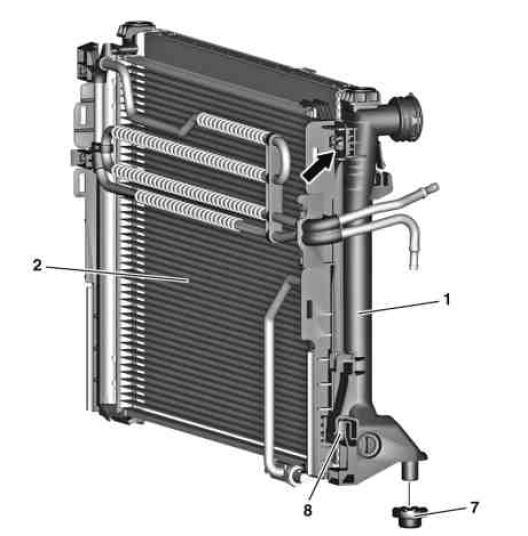

1 Radiator
2 Capacitor
7 Rubber bushing
8 Bracket
