Wiring Diagrams

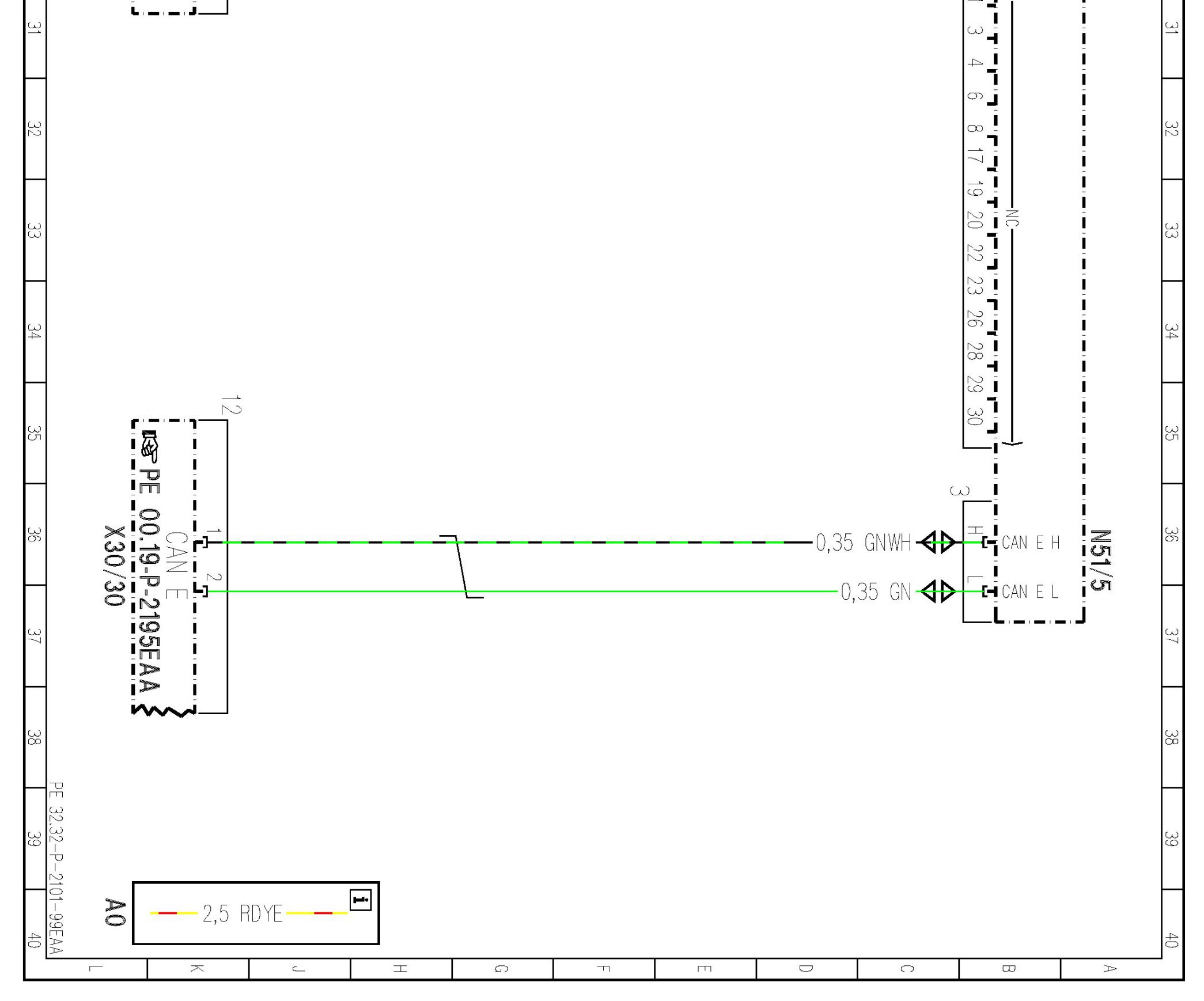

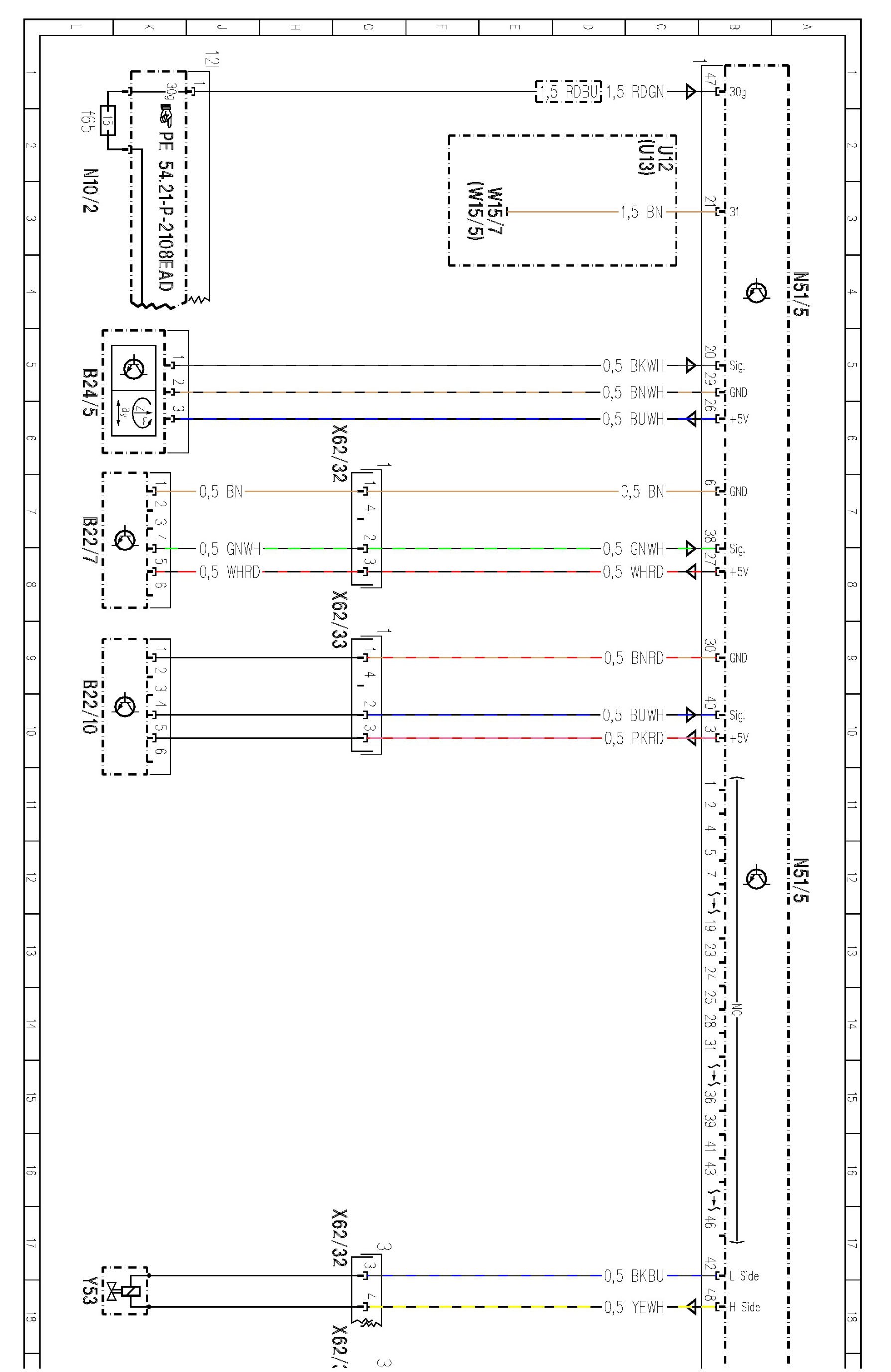

PE32.32-P-2101EAA Adaptive Damping System (ADS) Control Unit

Model 207
- with CODE (483) ADVANCED AGILITY package

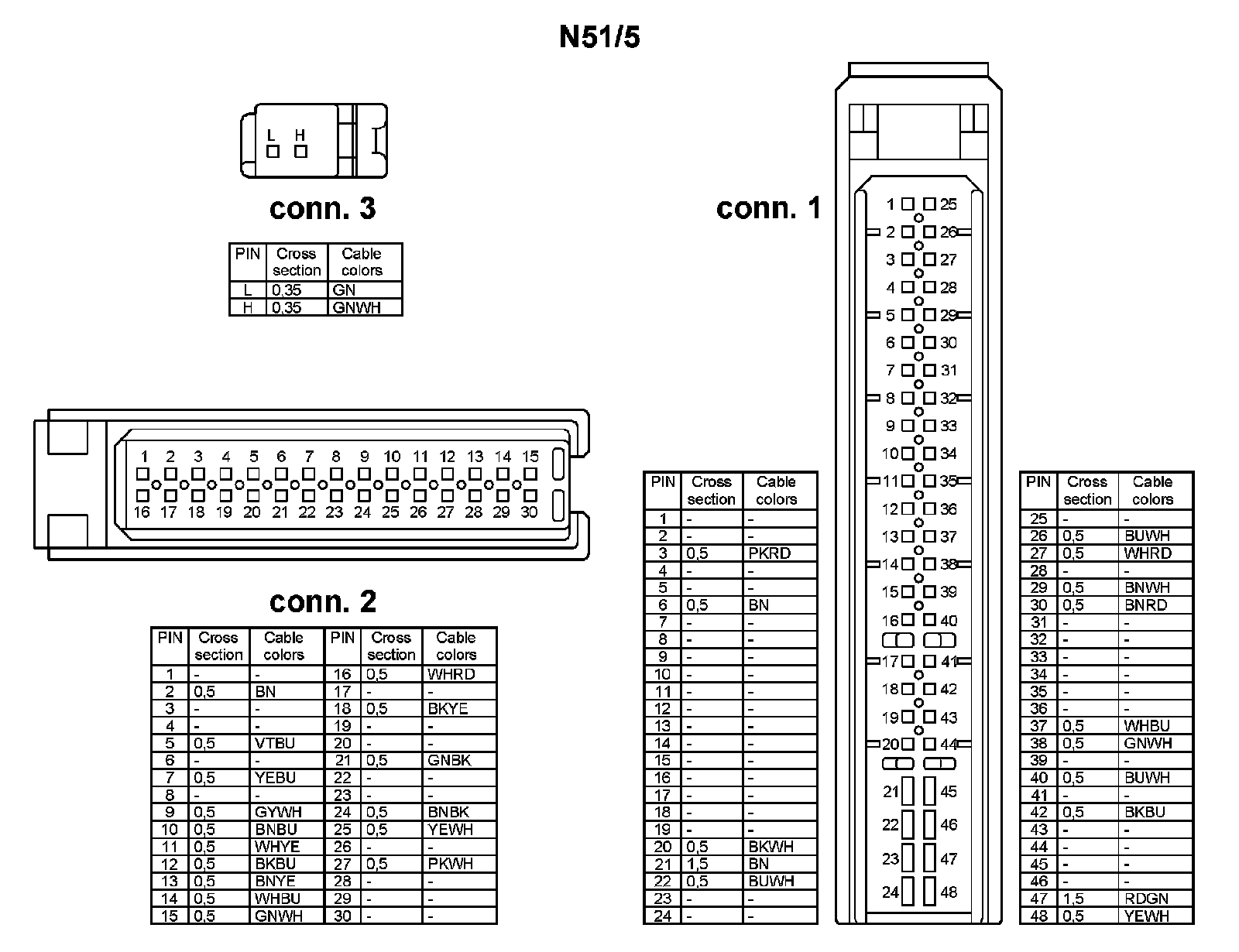

- control unit N51/5

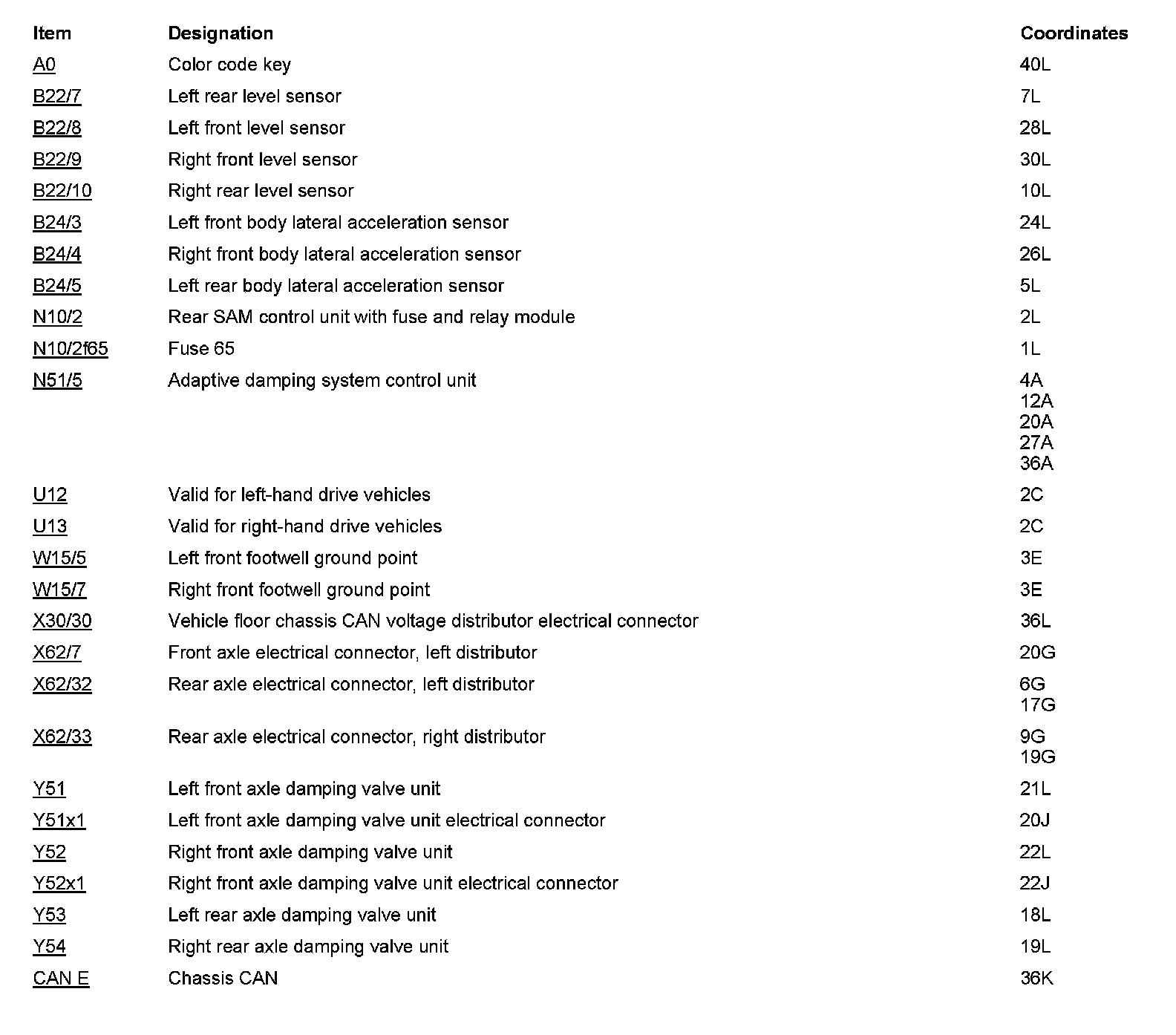

Component Locations: Component Location photographs can be found via their component names at the vehicle level. Component Locations
