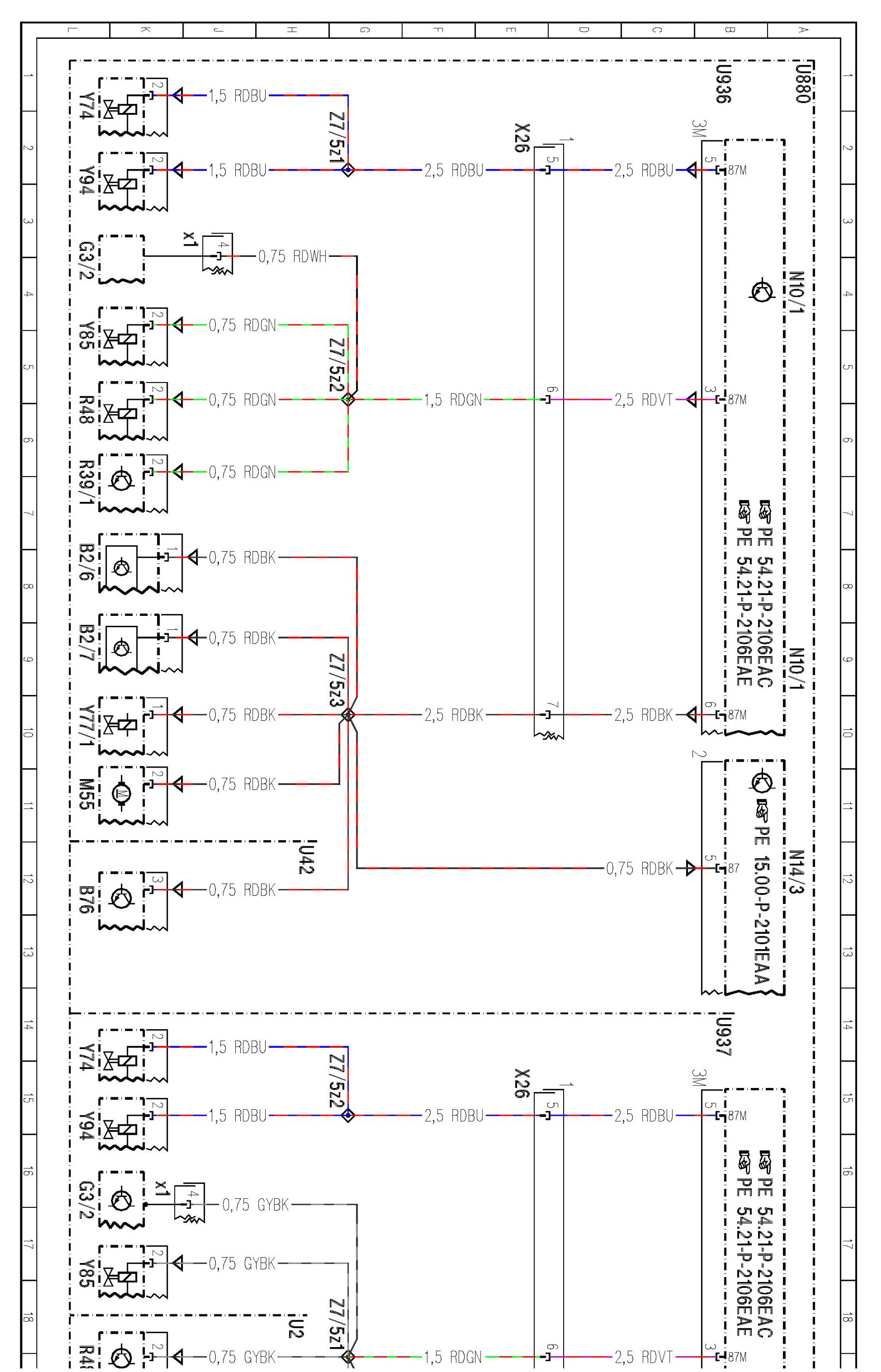

PE00.19-P-2600EAC Solder Points/Z-Connector Sleeves



PE00.19-P-2600EAC Solder Points/Z-Connector Sleeves

MODEL 207

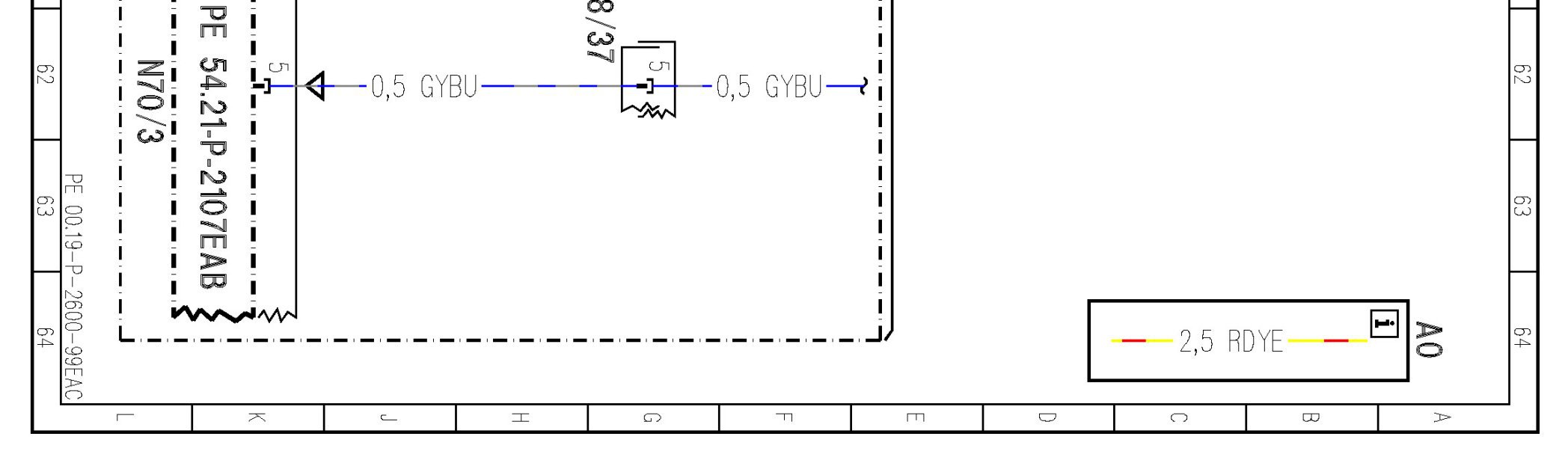

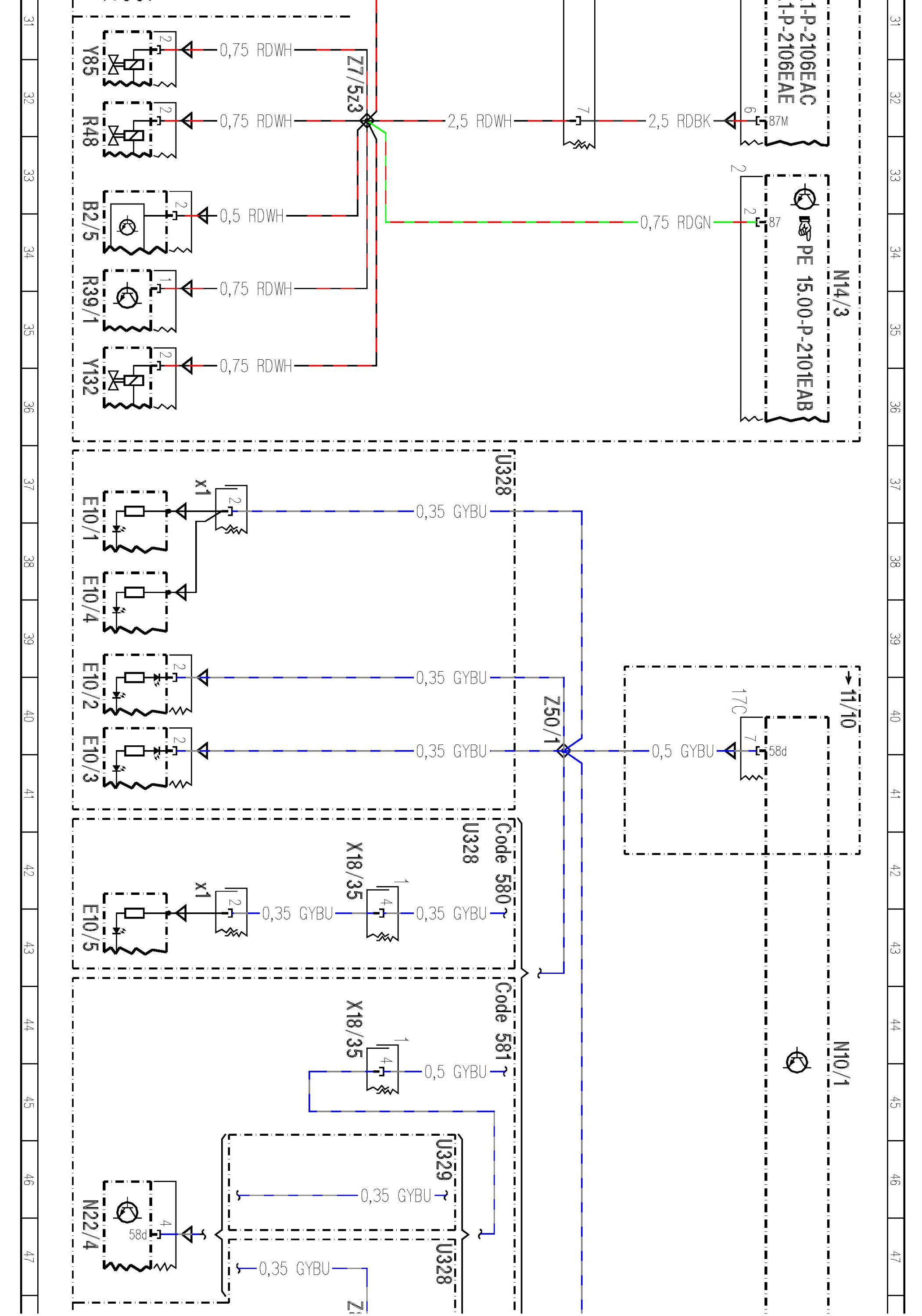

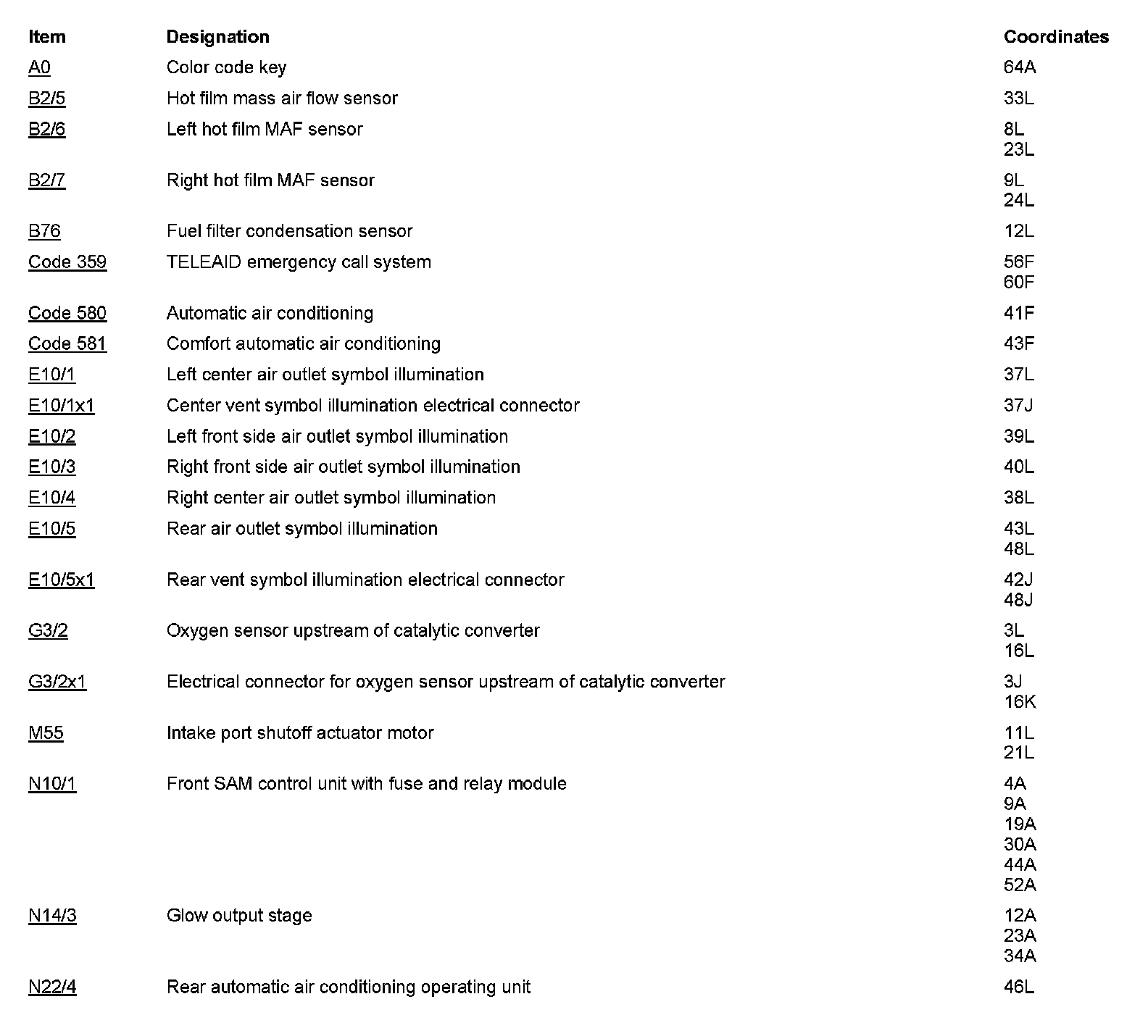

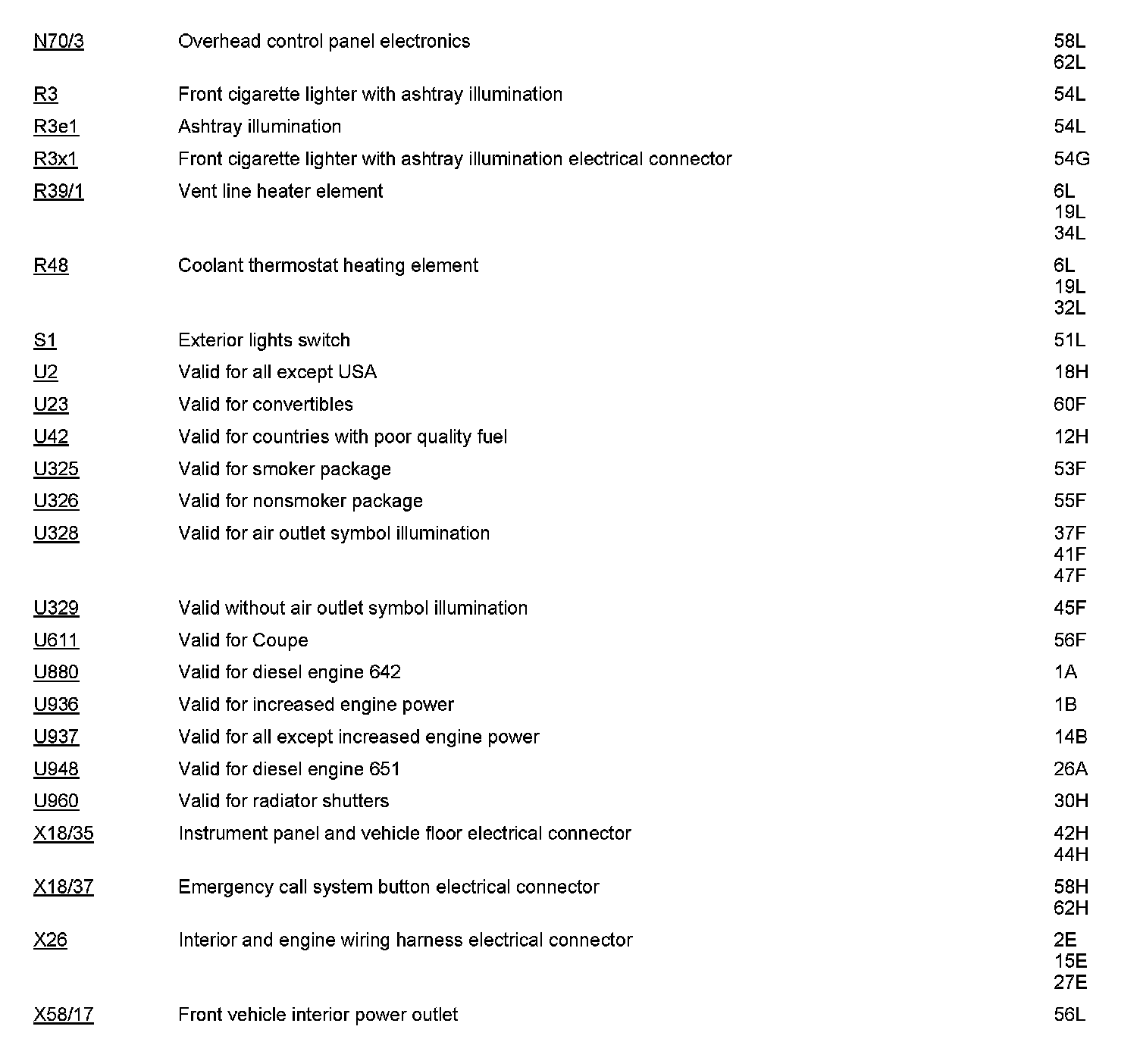

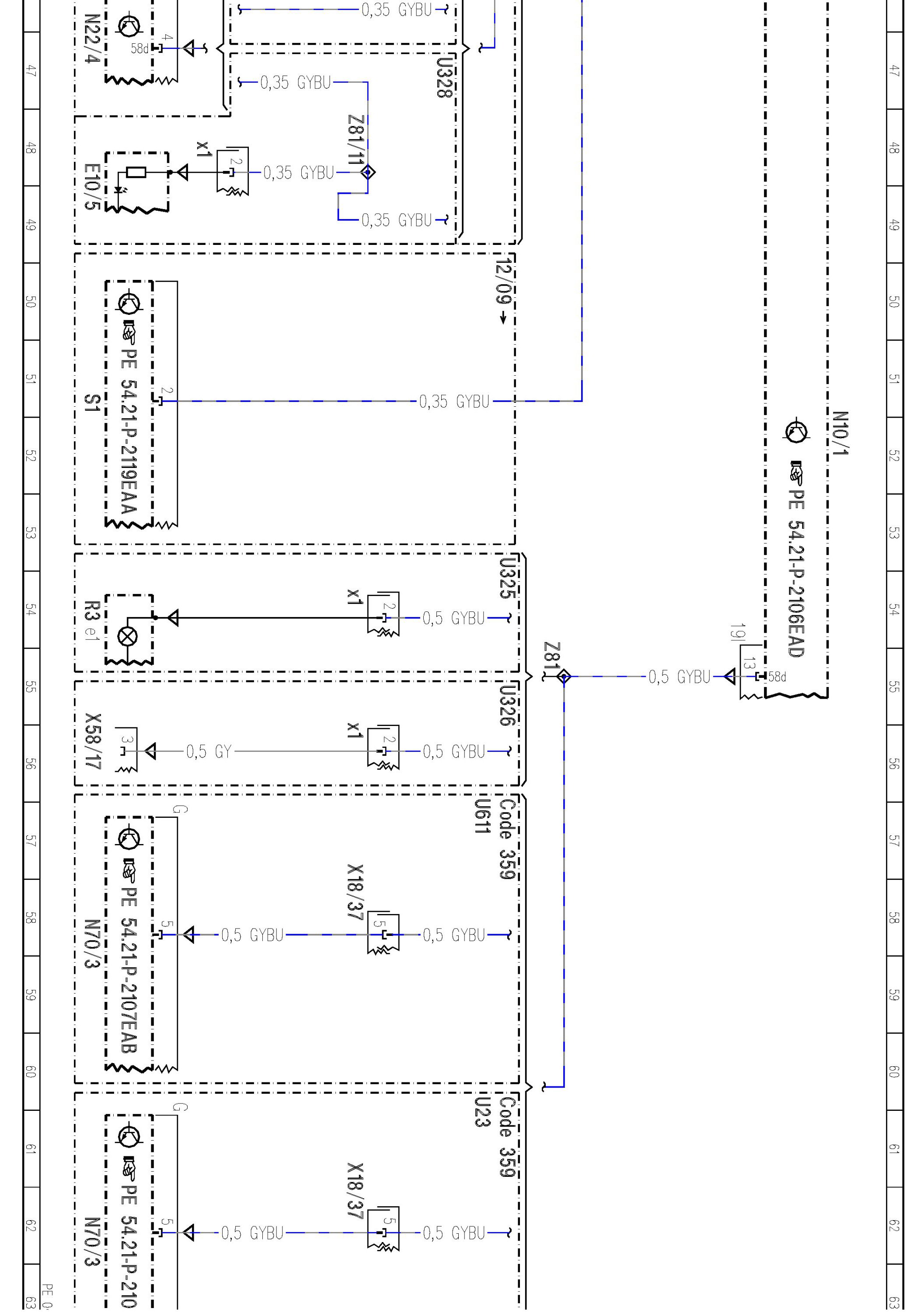

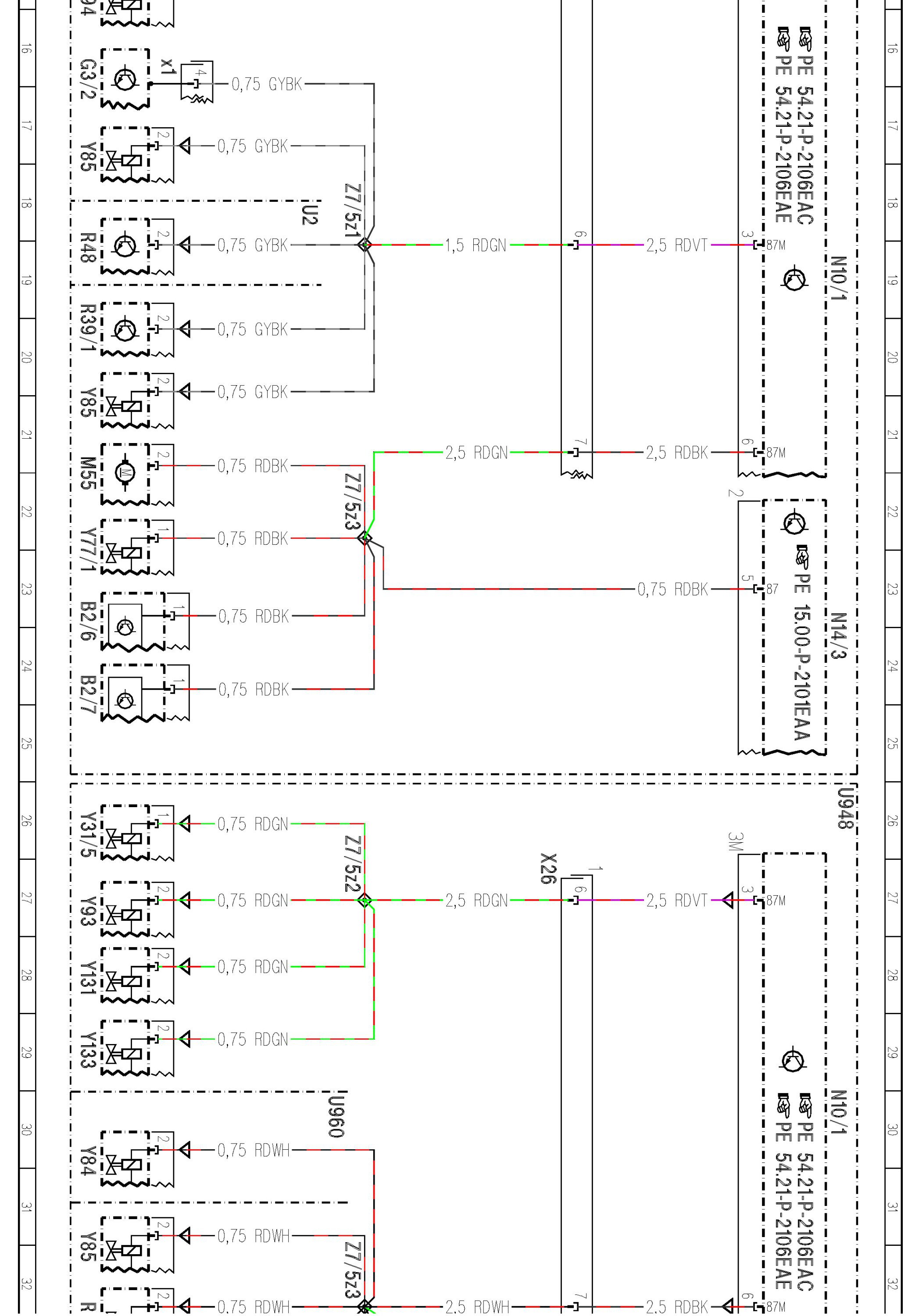

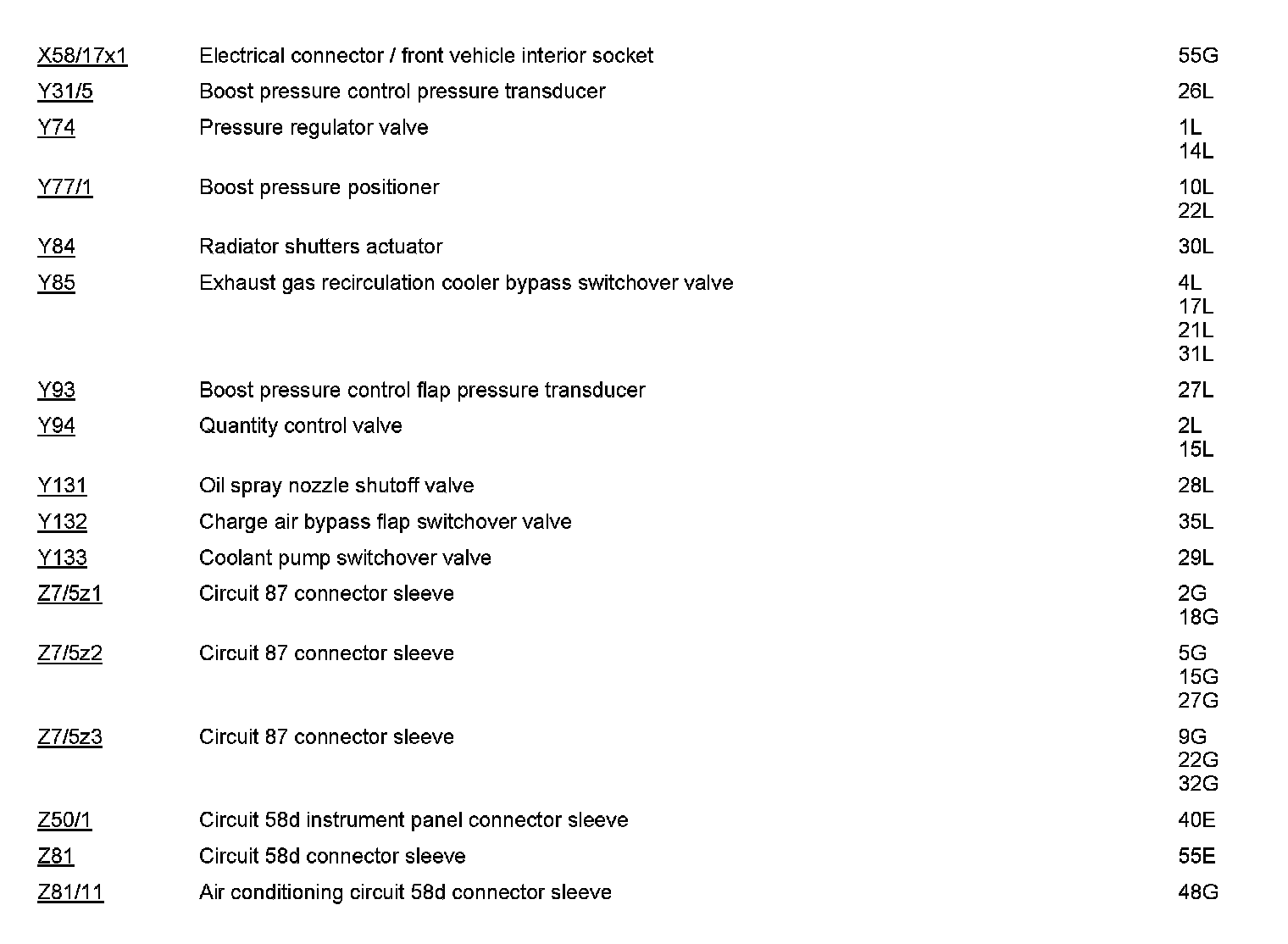

- Z7/5z1, Z7/5z2, Z7/5z3, Z81, Sheet 3














































































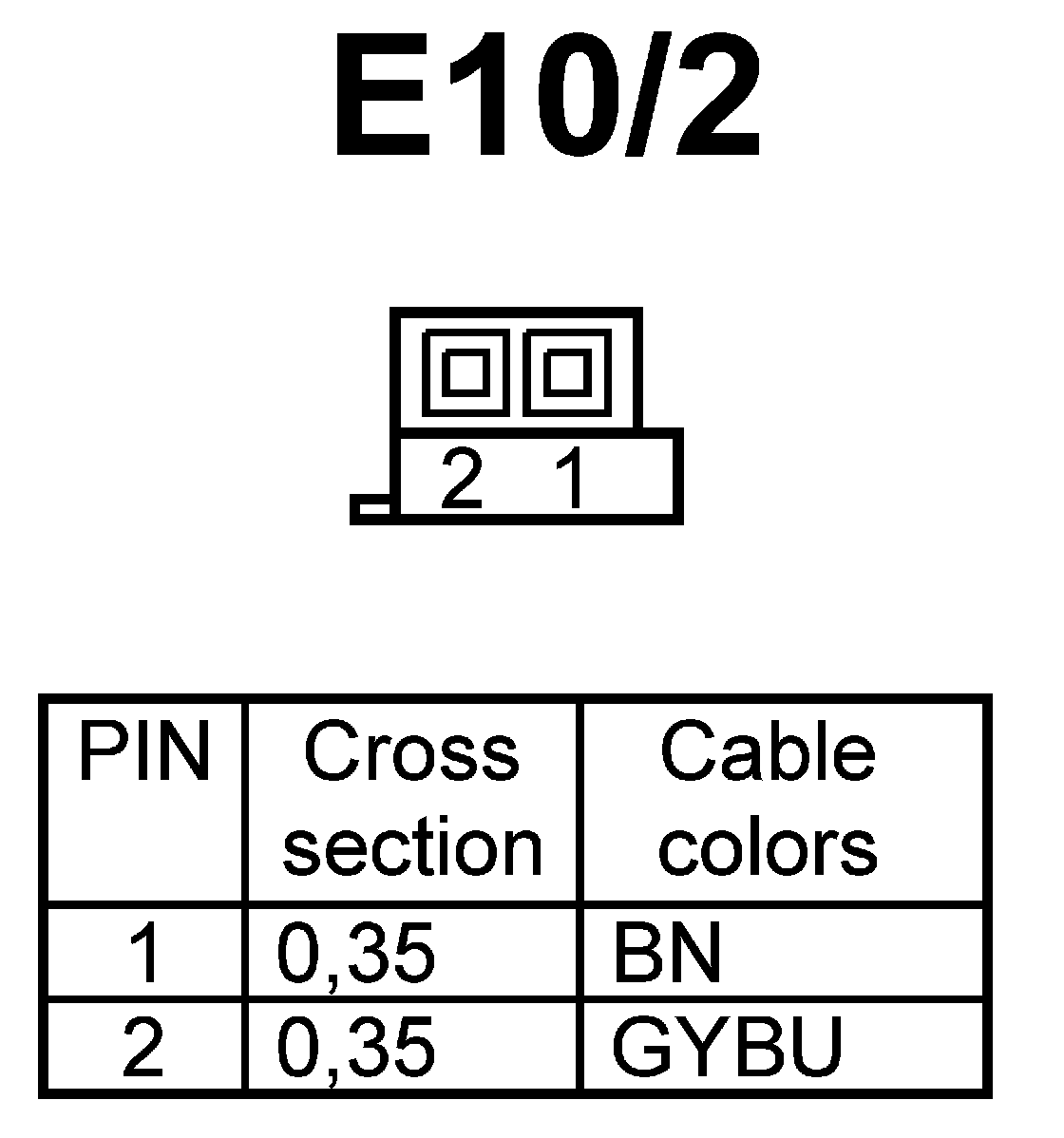

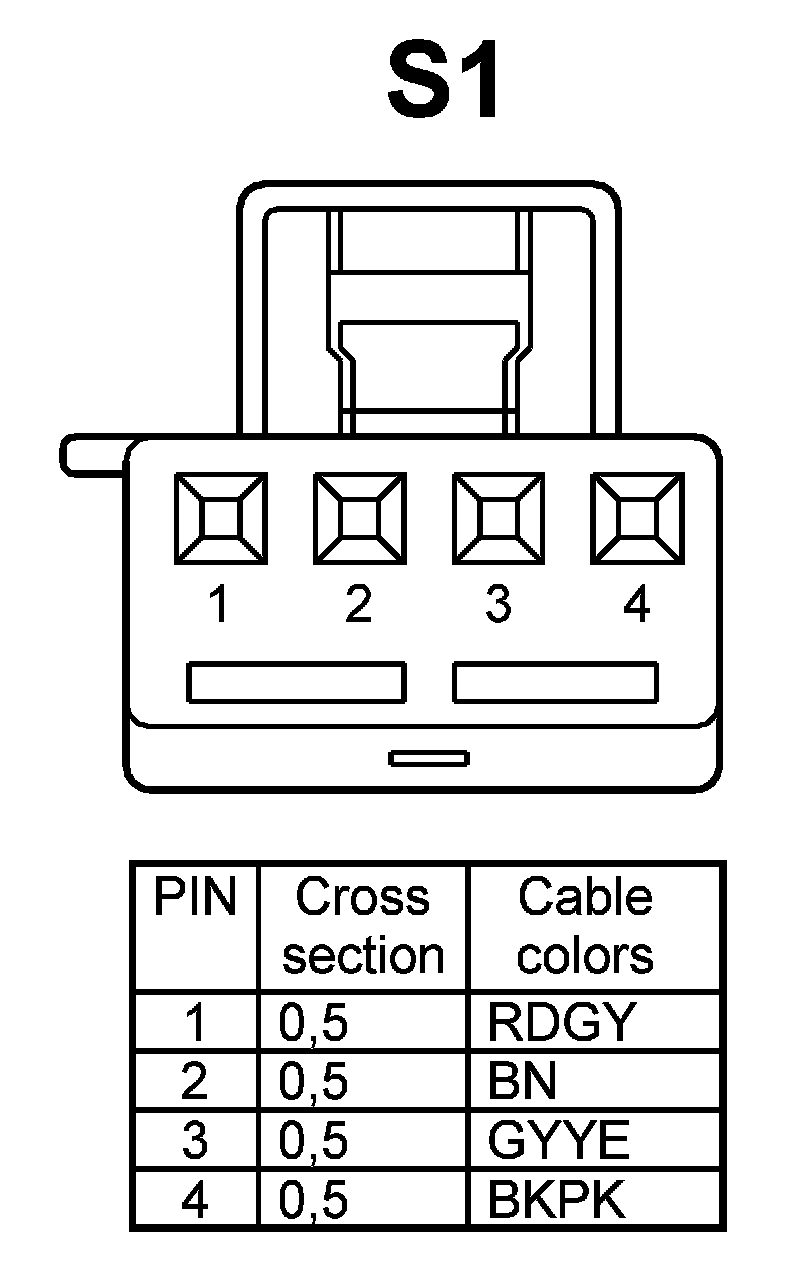

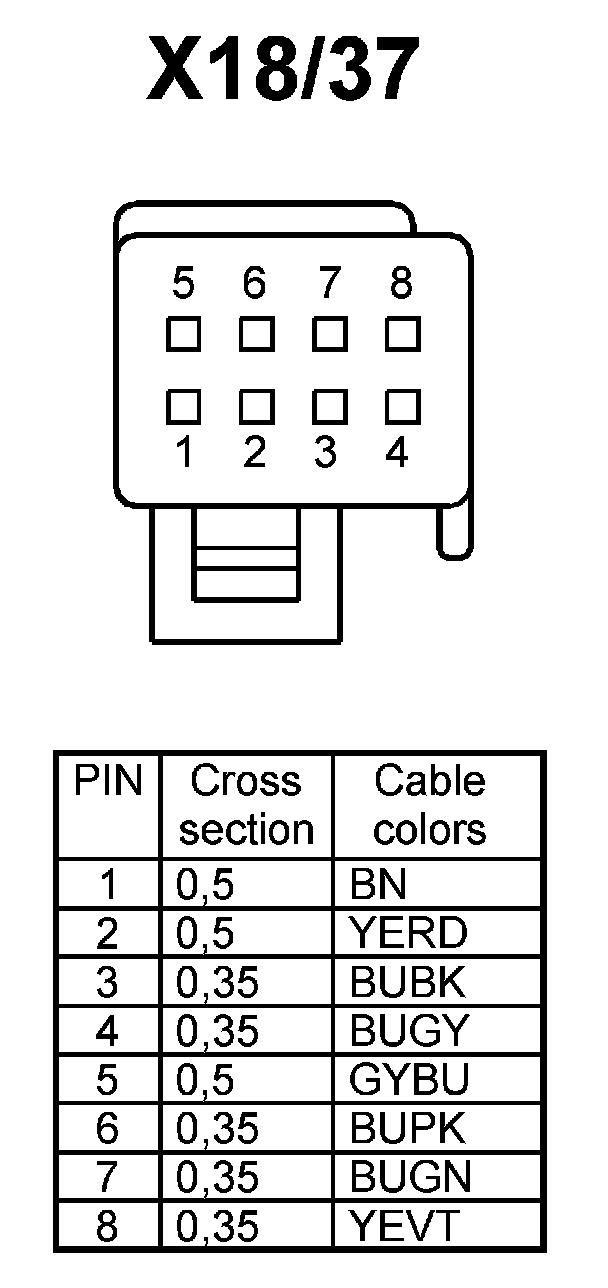

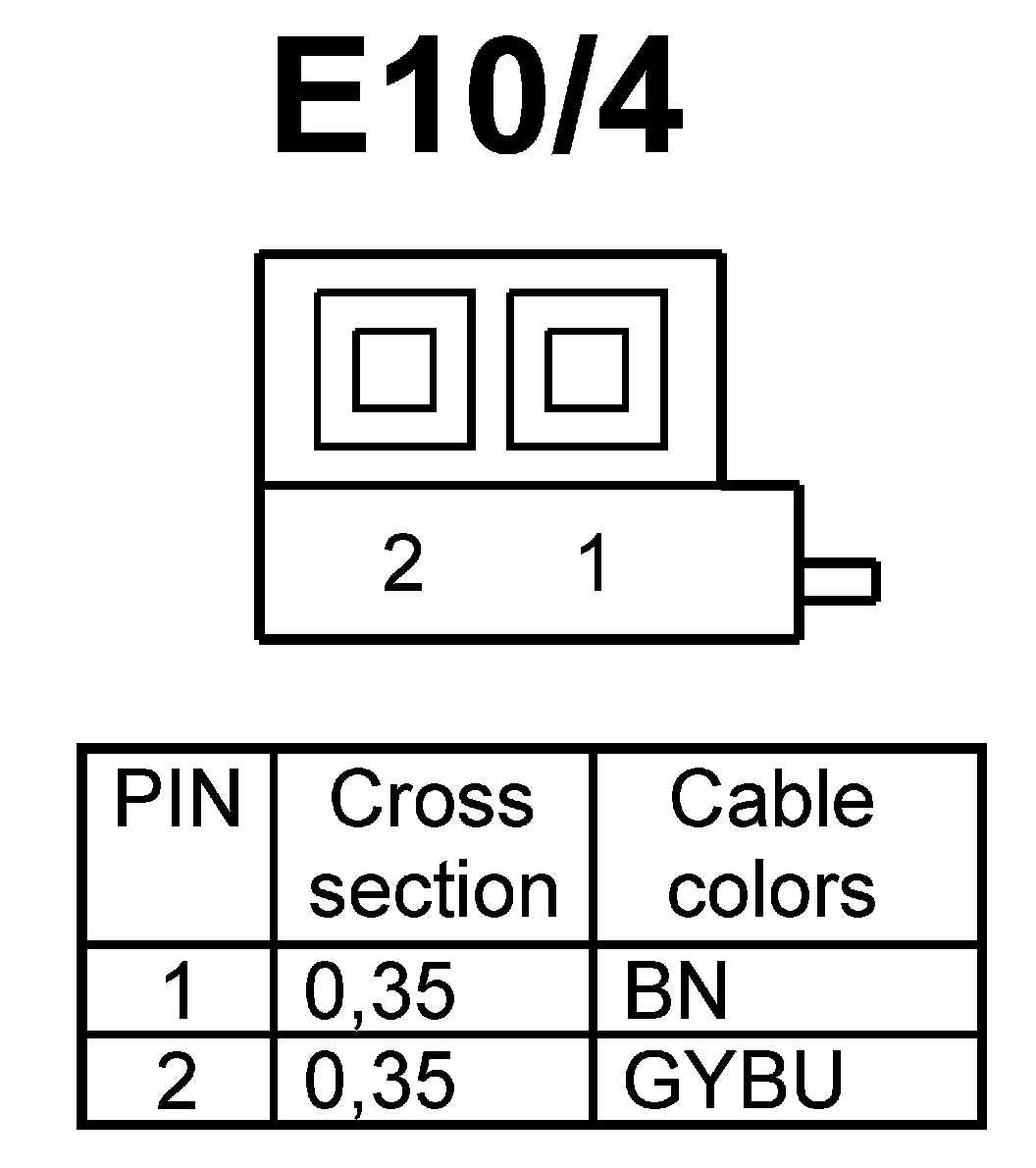

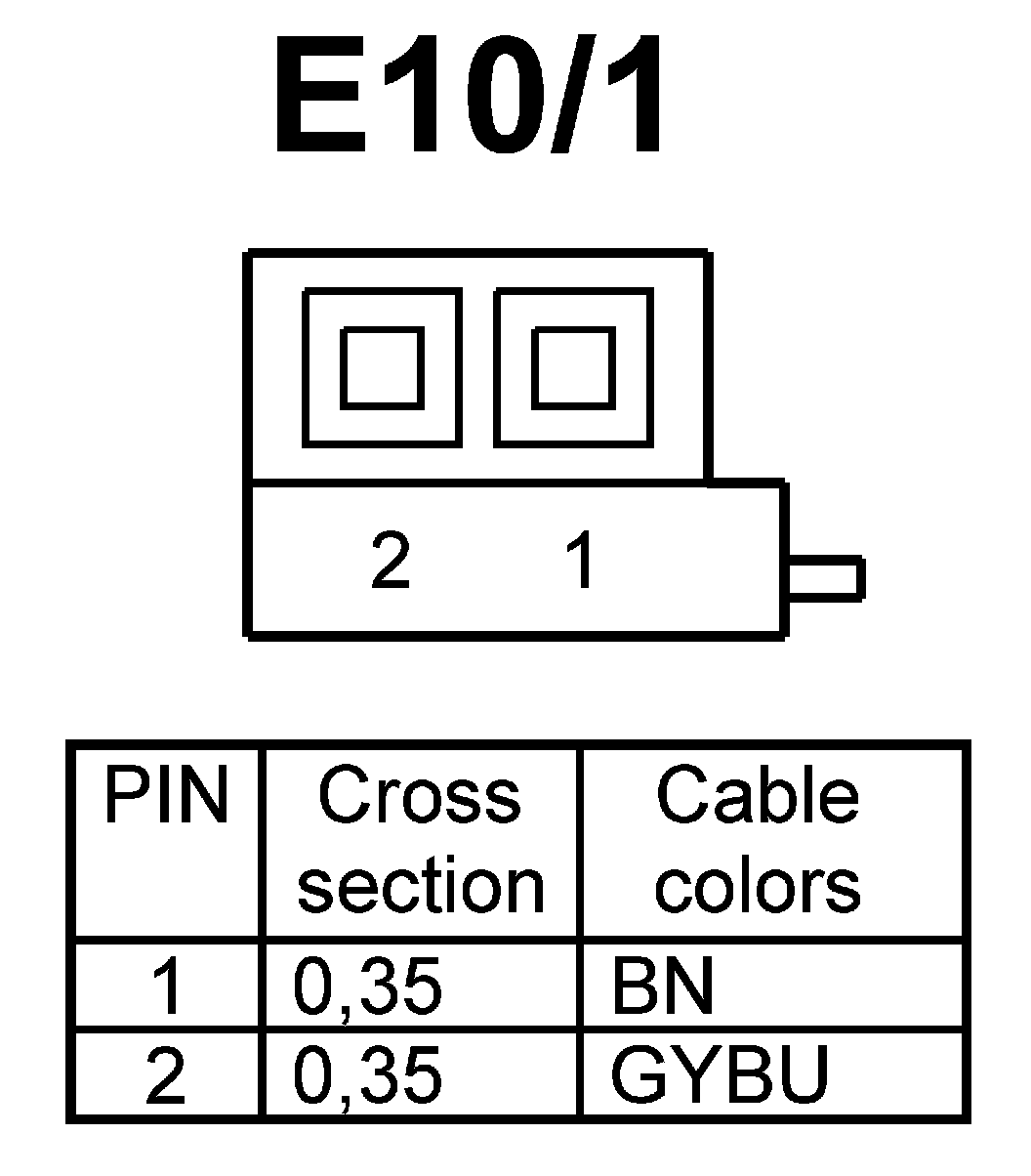

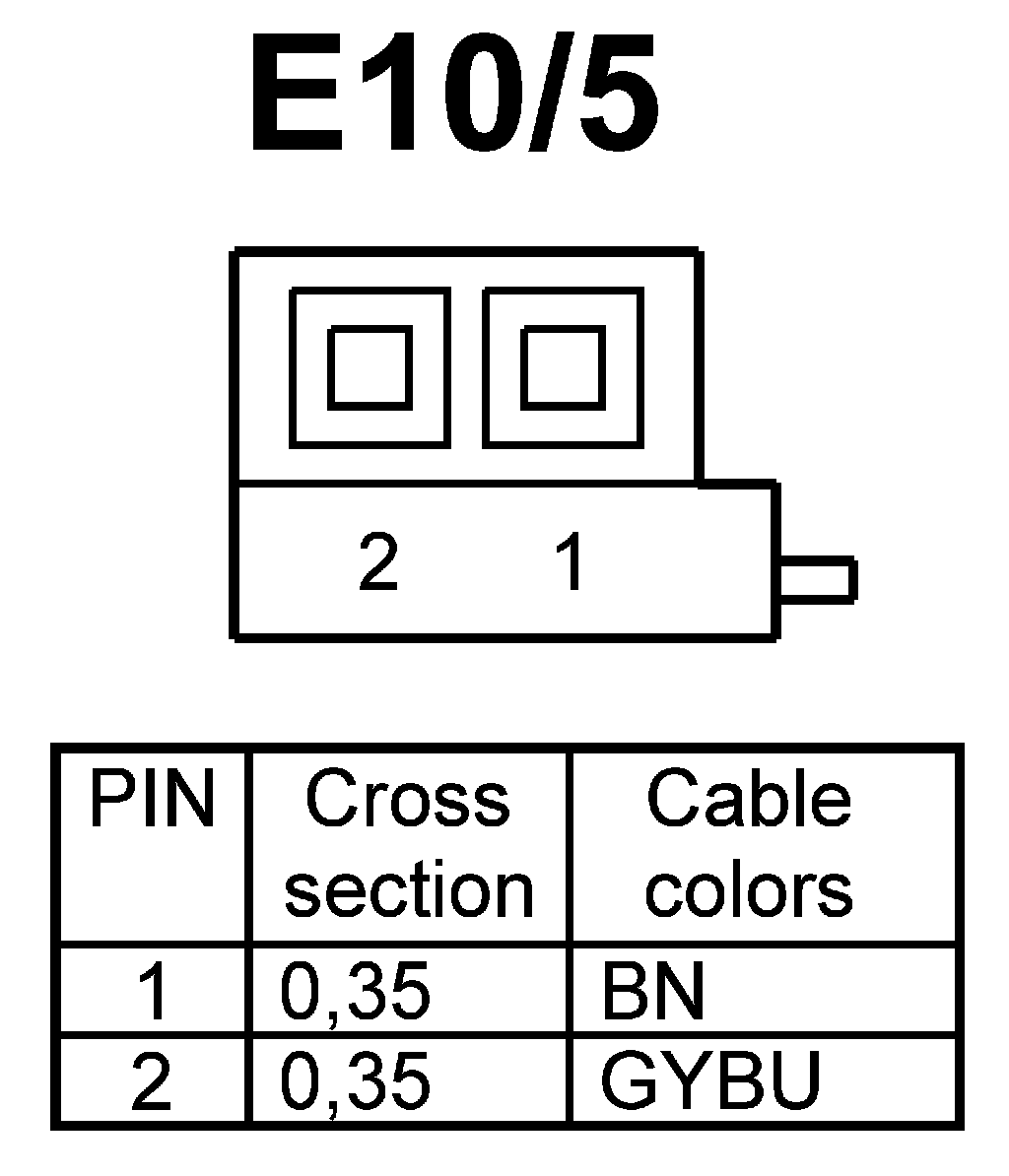

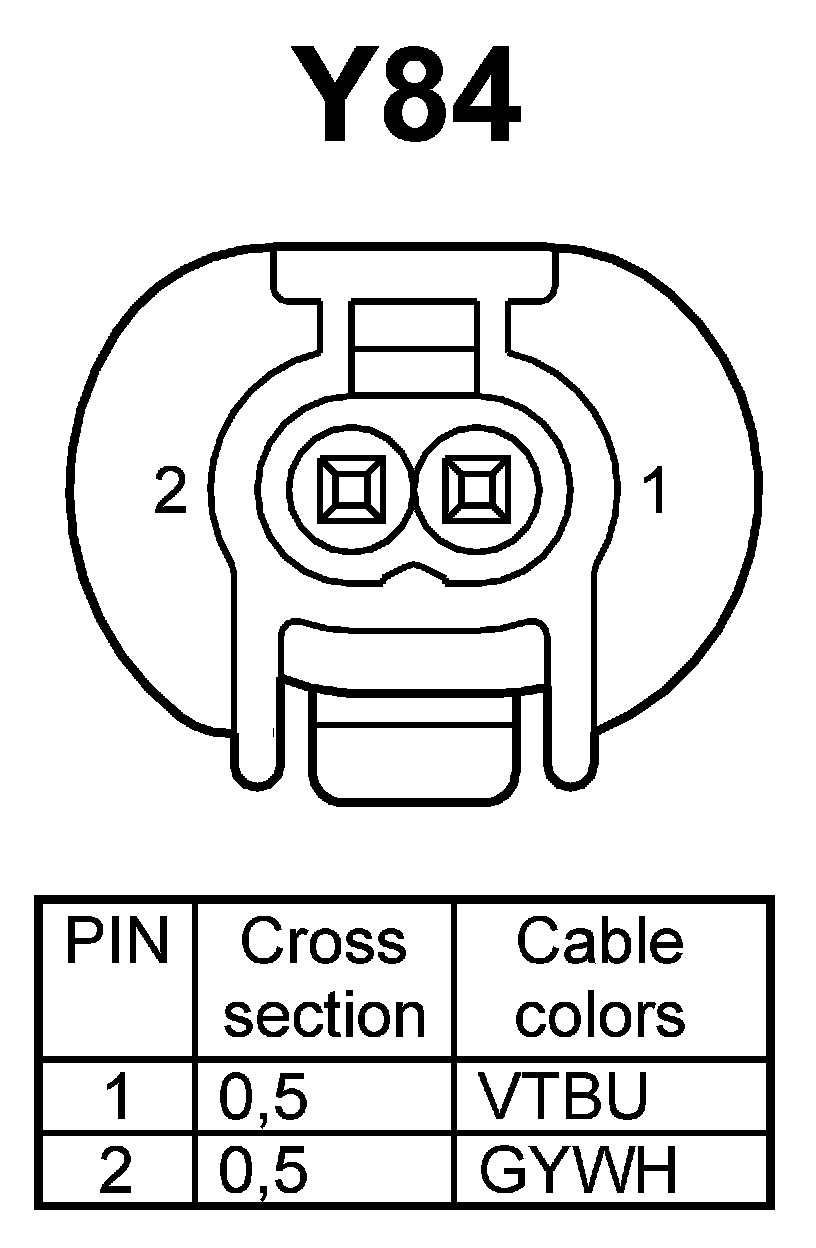

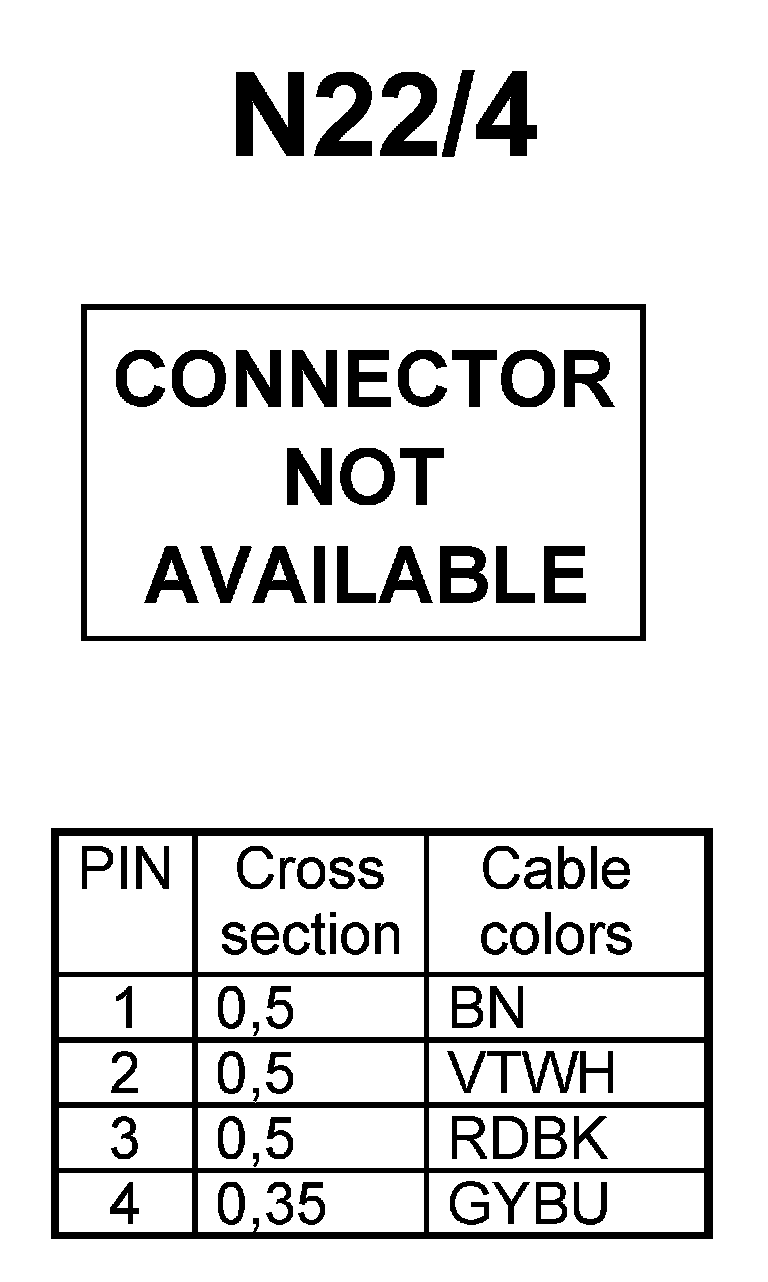

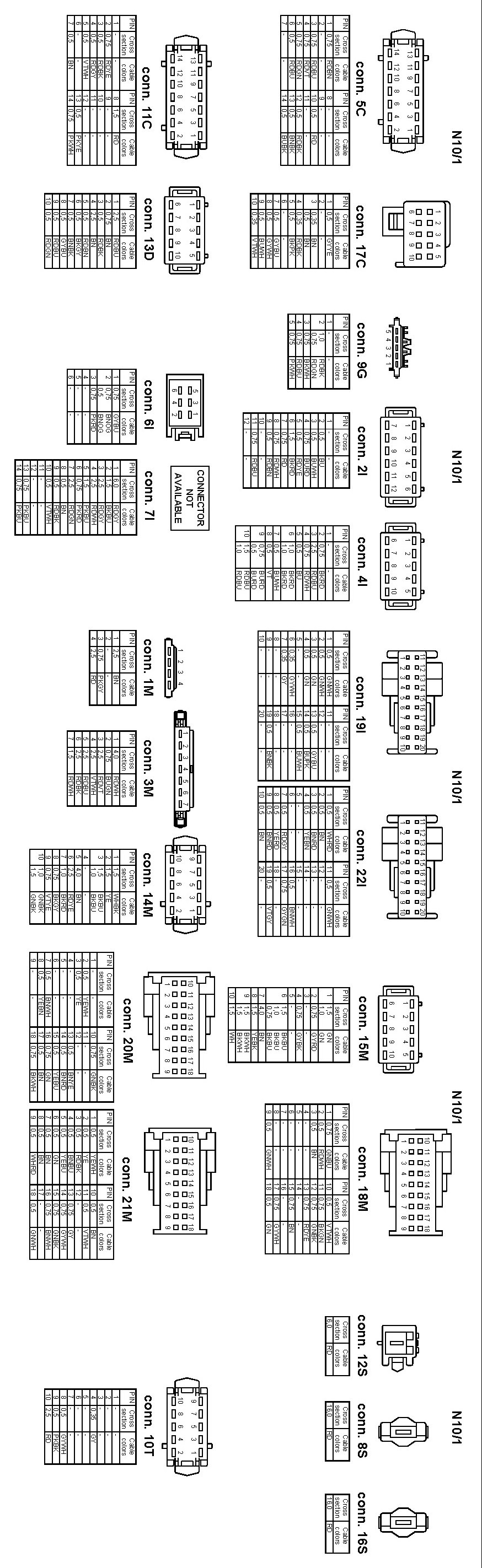

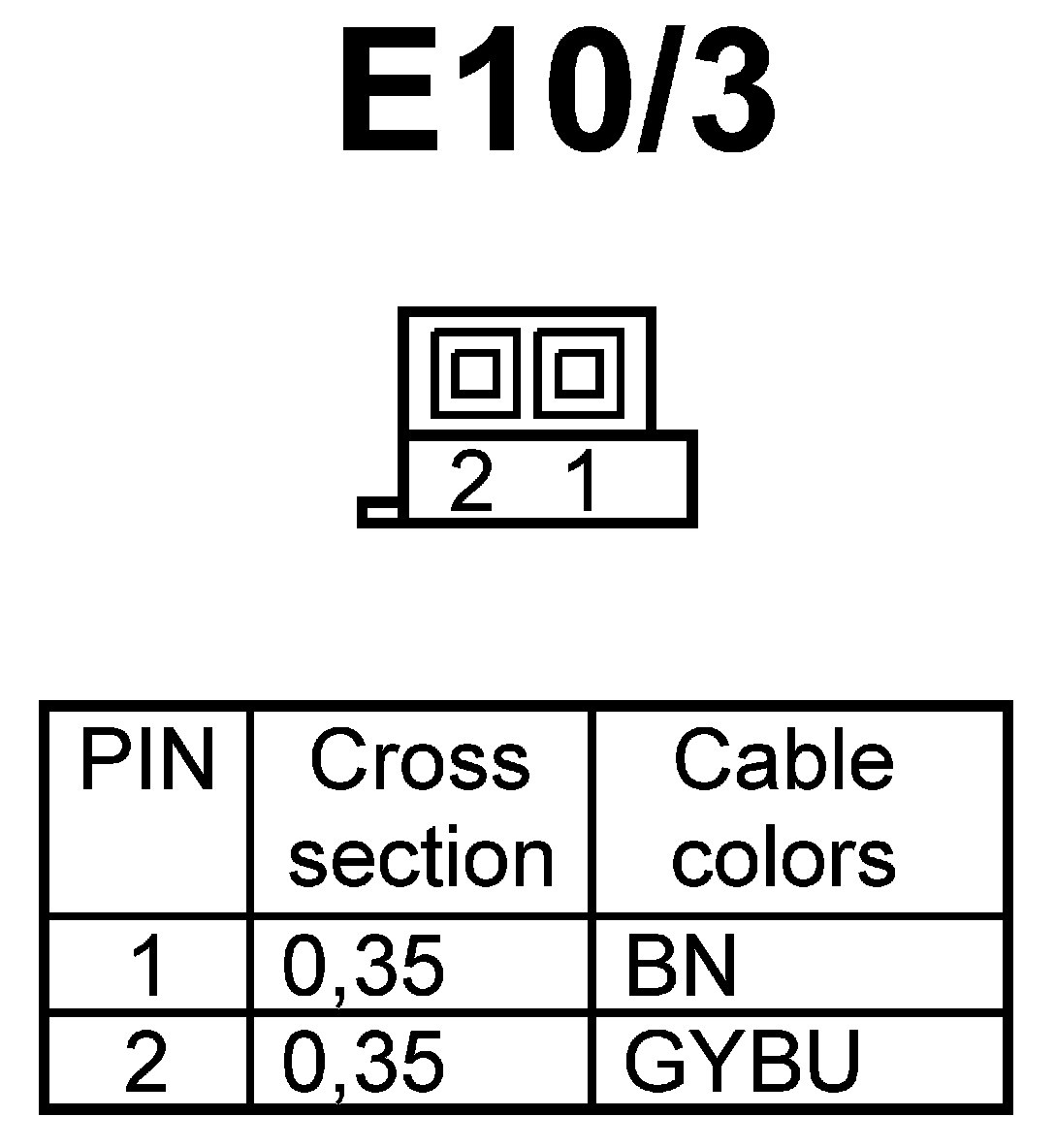

Component Locations: Component Location photographs can be found via their component names at the vehicle level. Component Locations
