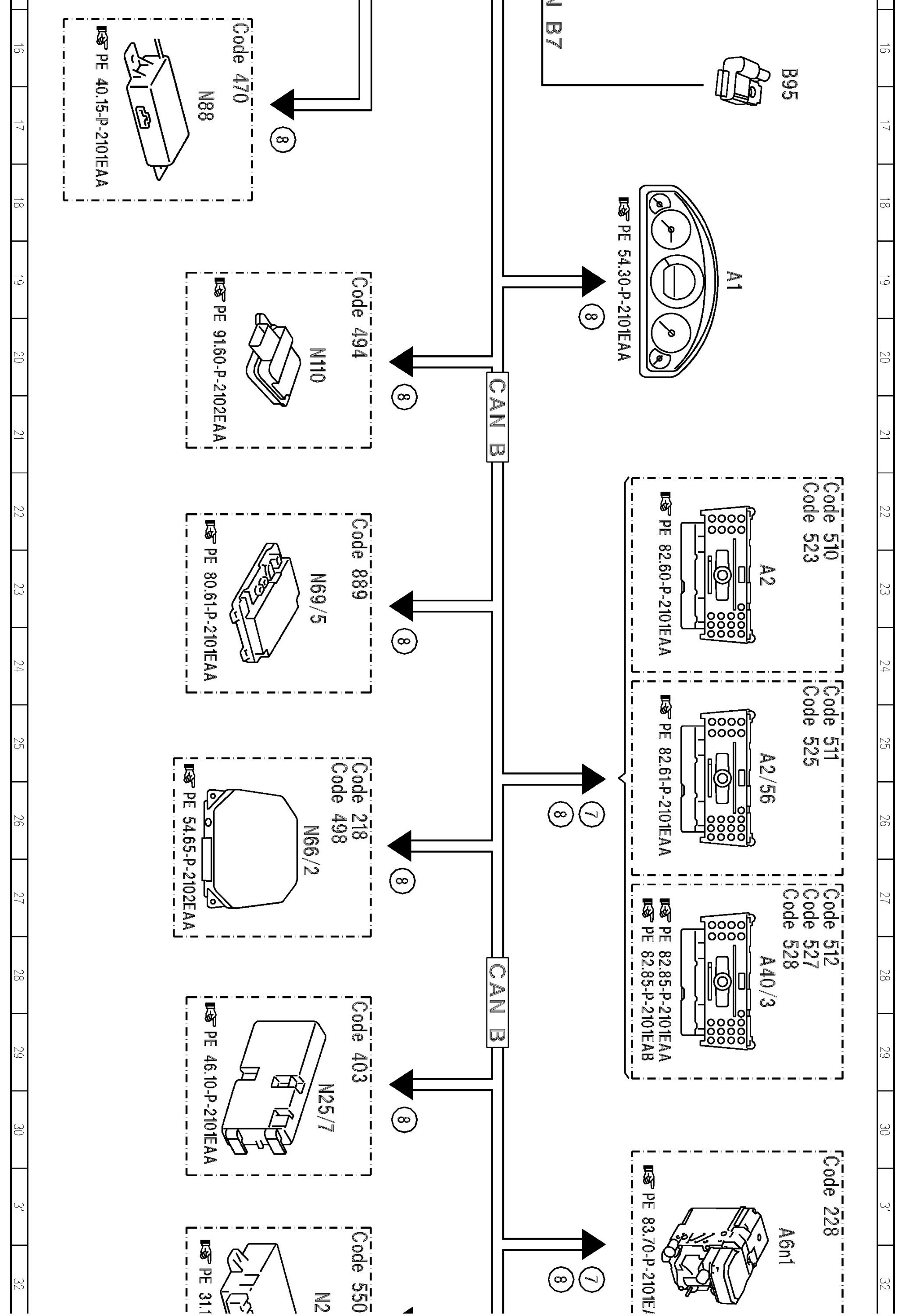

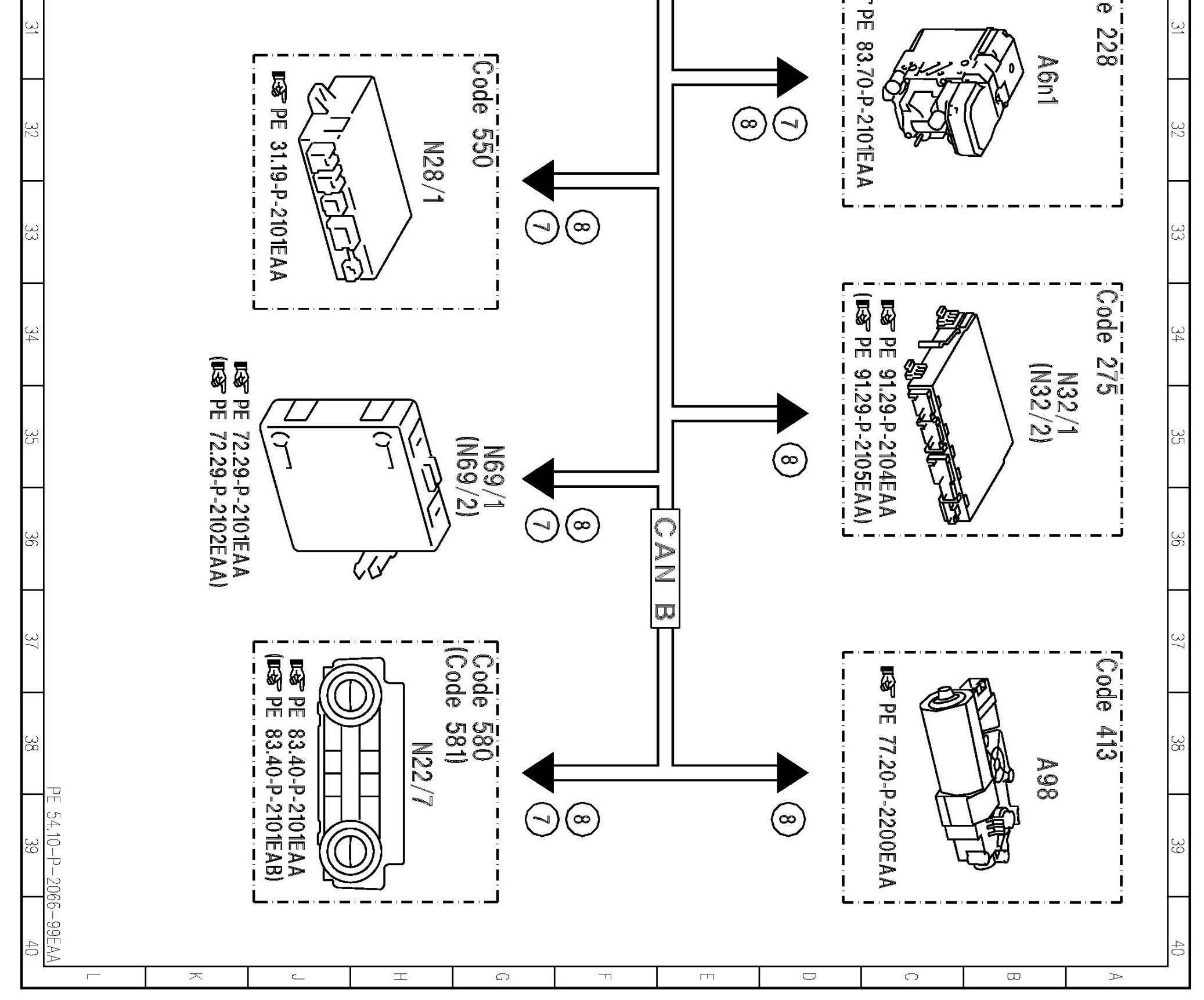

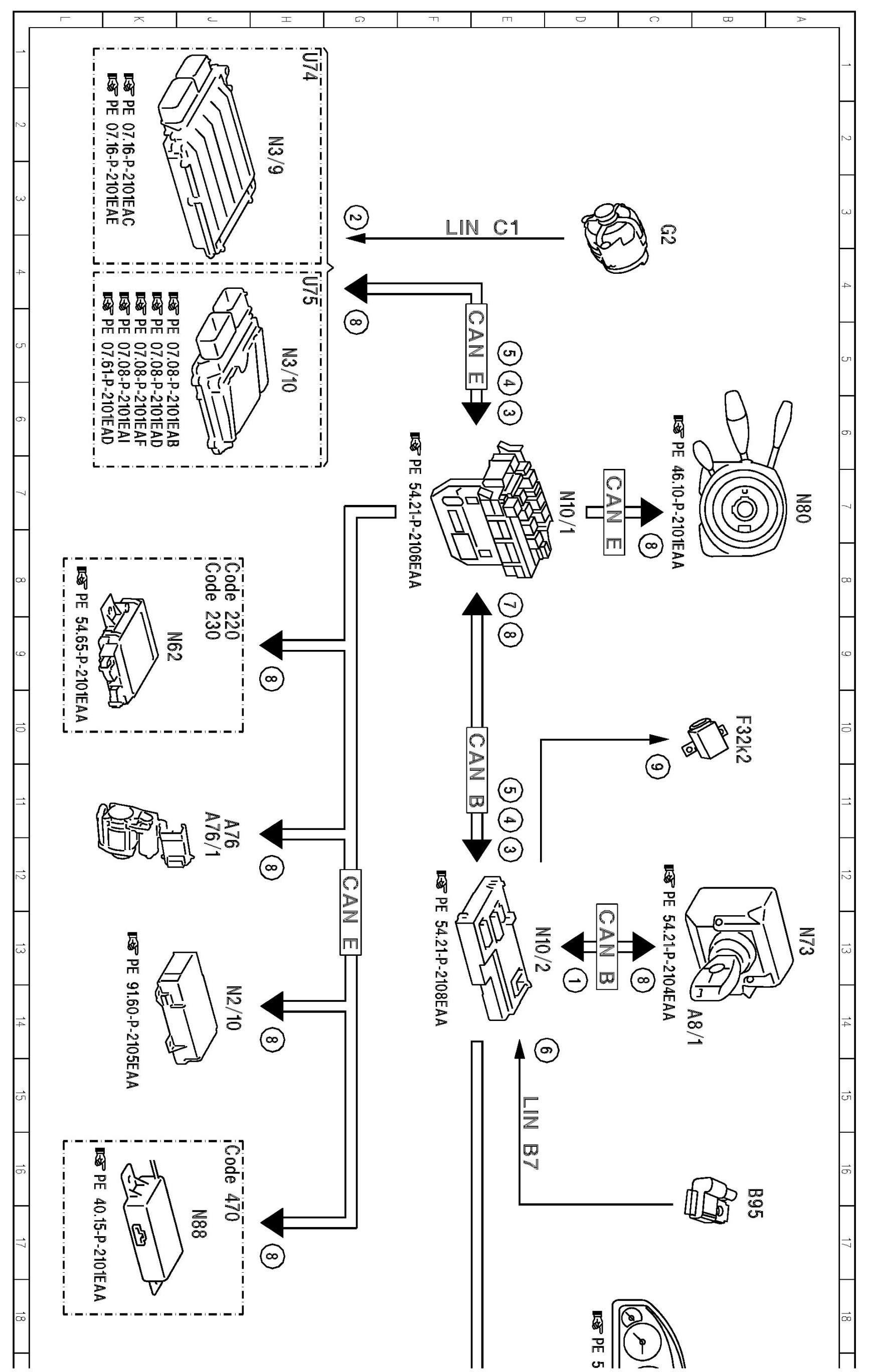

PE54.10-P-2066EAA Electrical Function Schematic For Consumer Shutoff

PE54.10-P-2066EAA Electrical Function Schematic For Consumer Shutoff

MODEL 207.3 /4

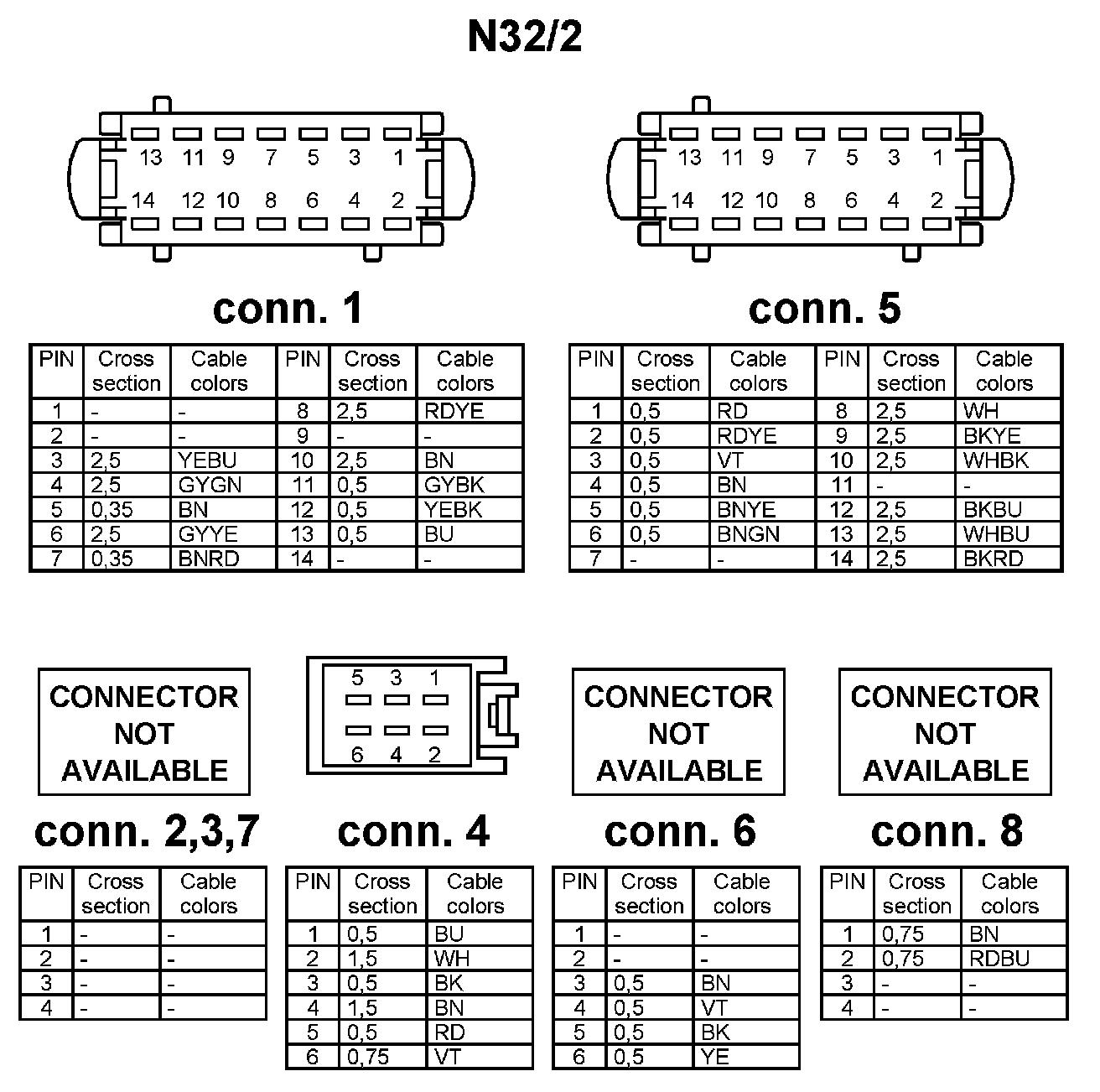

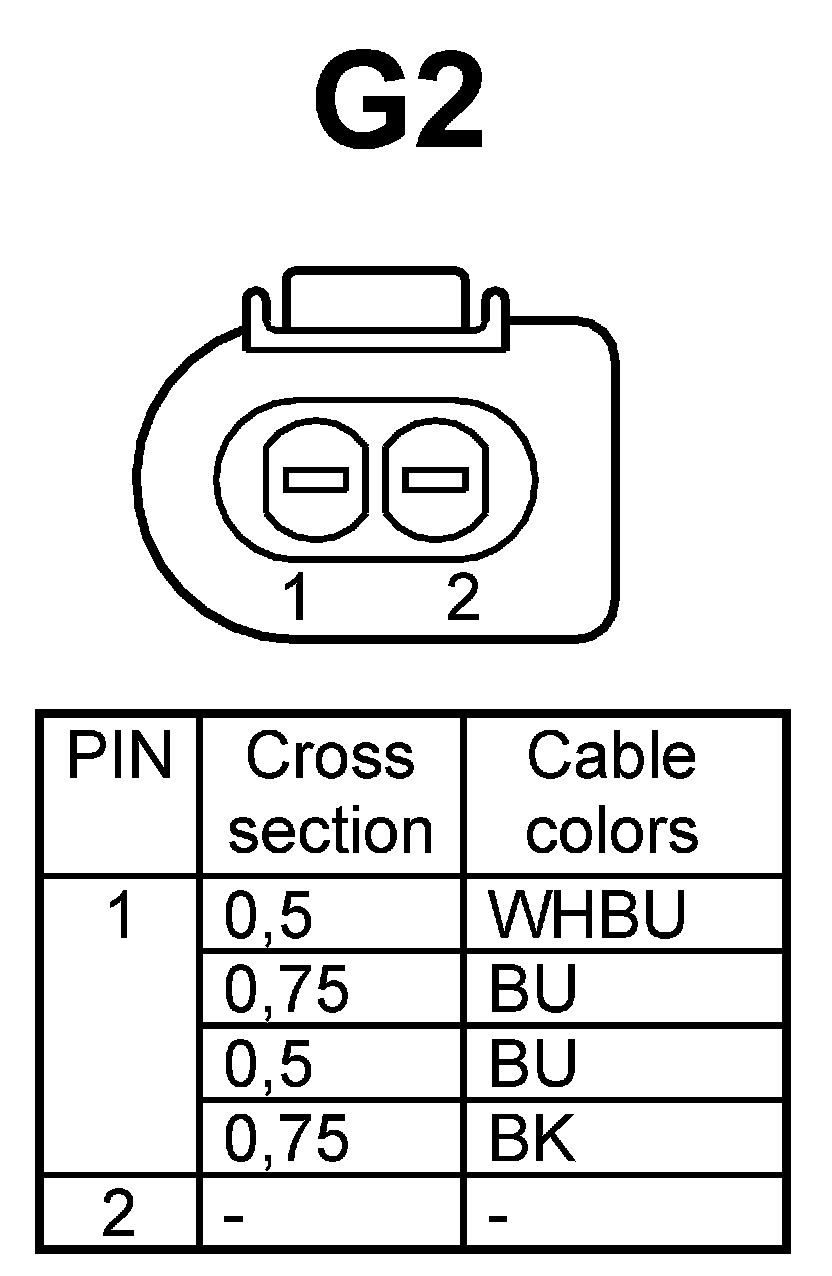

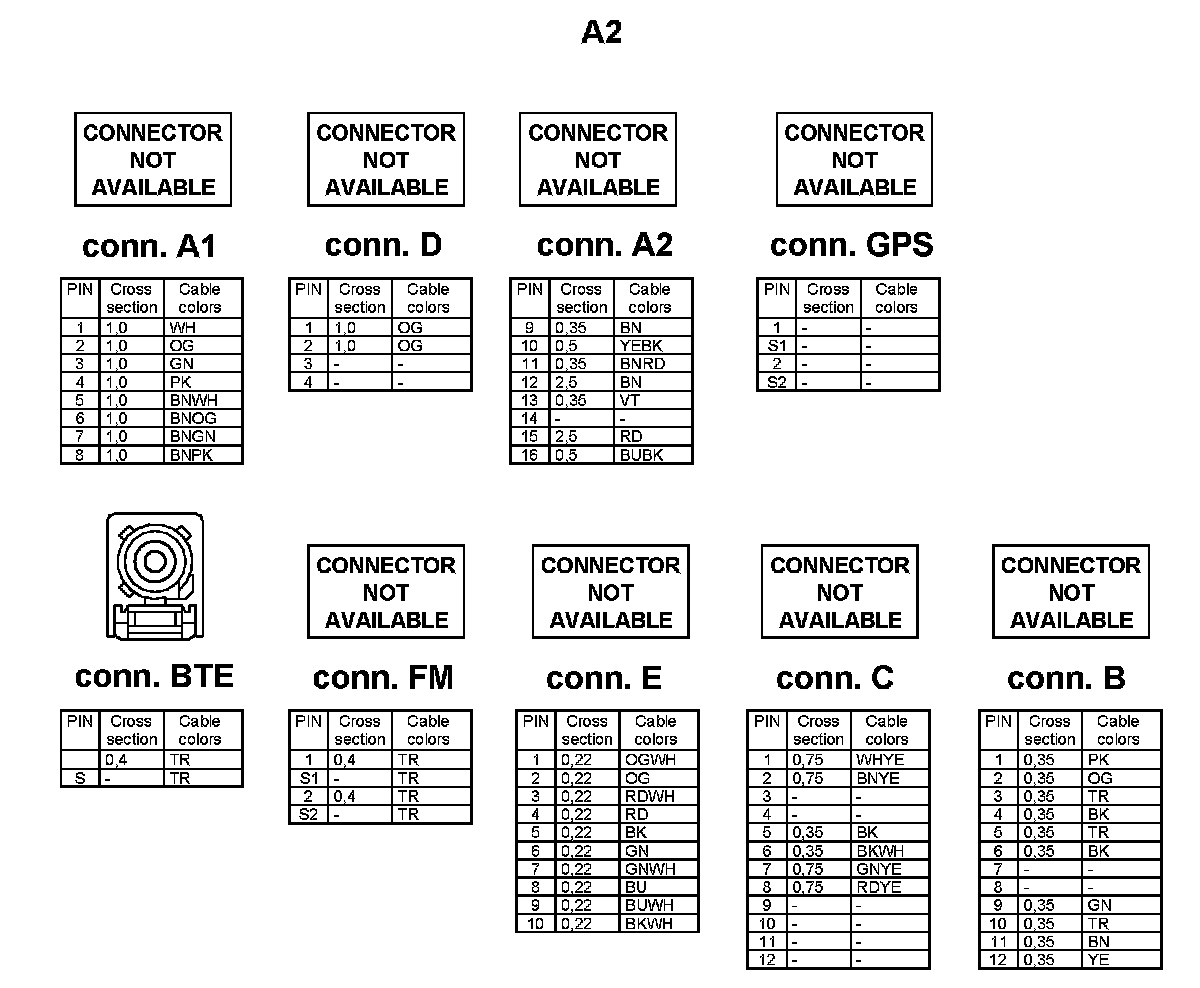

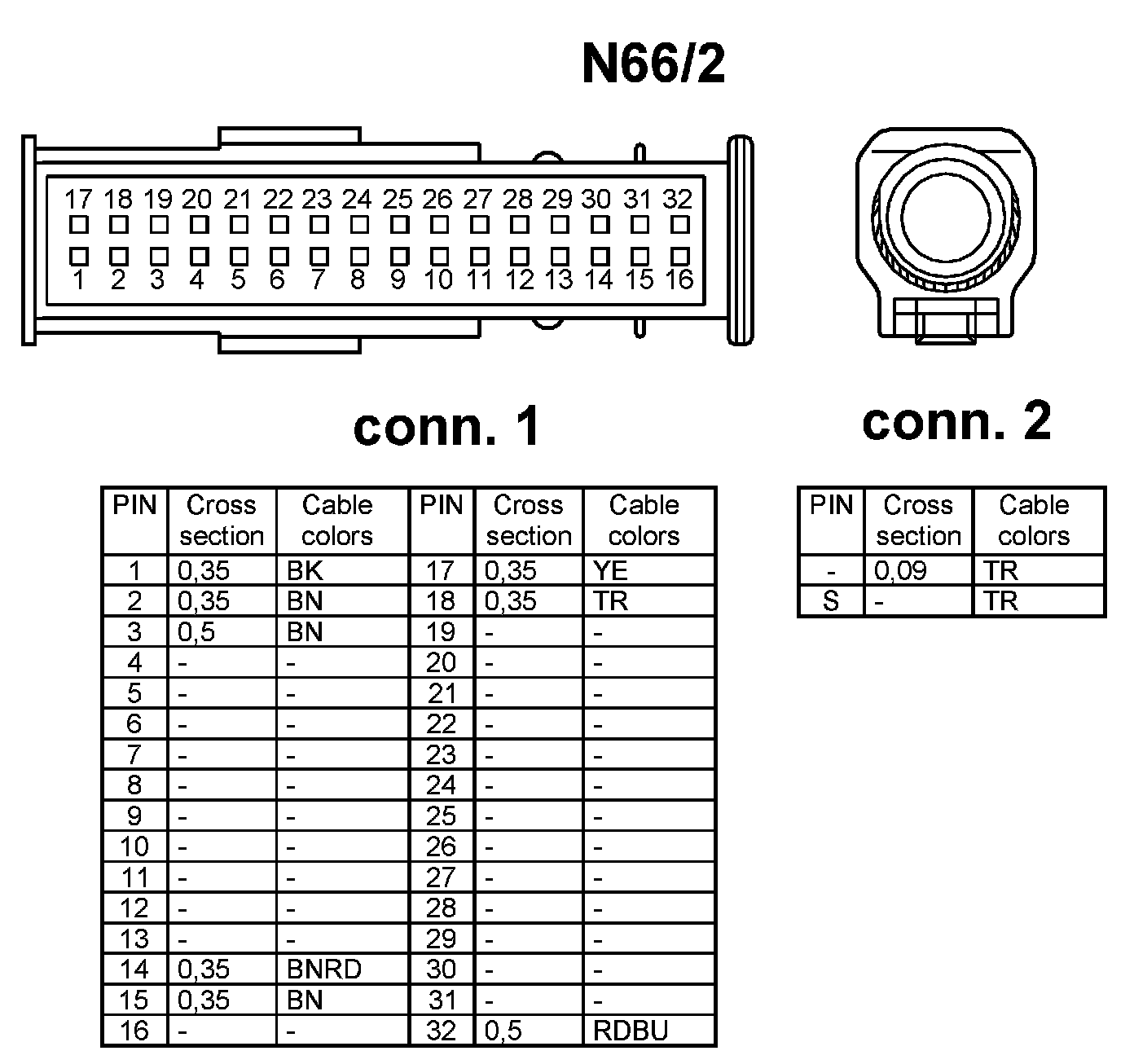

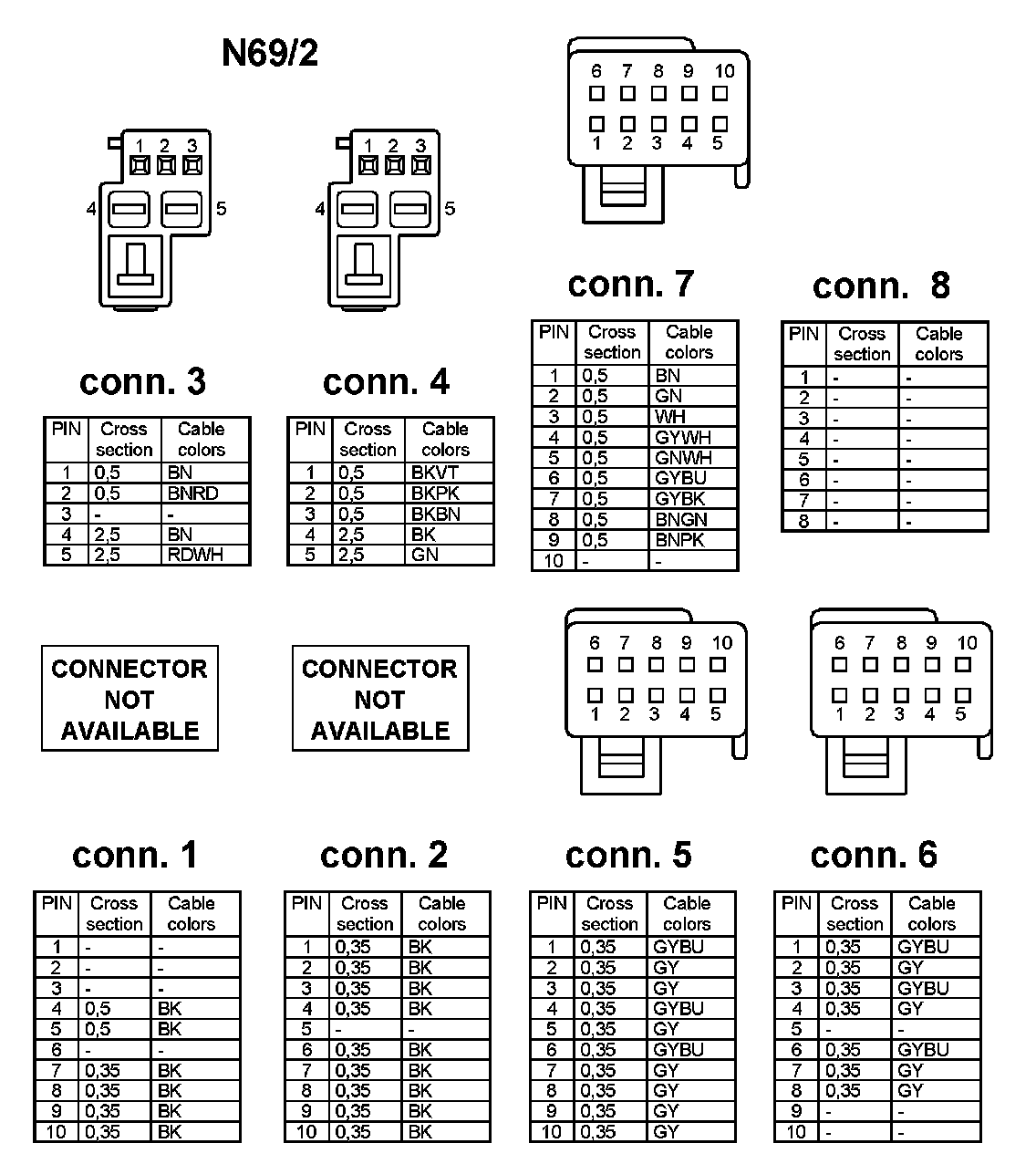

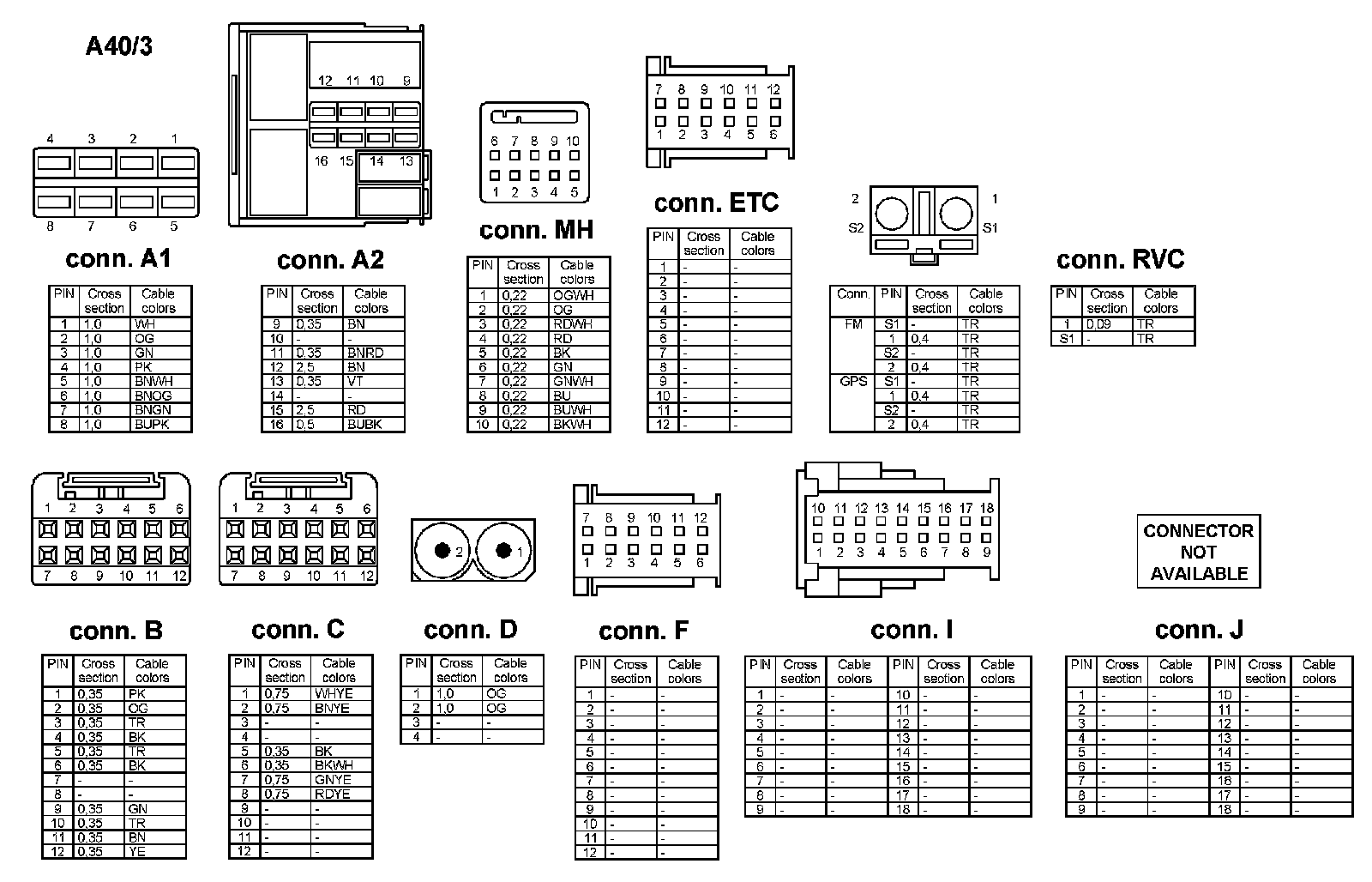

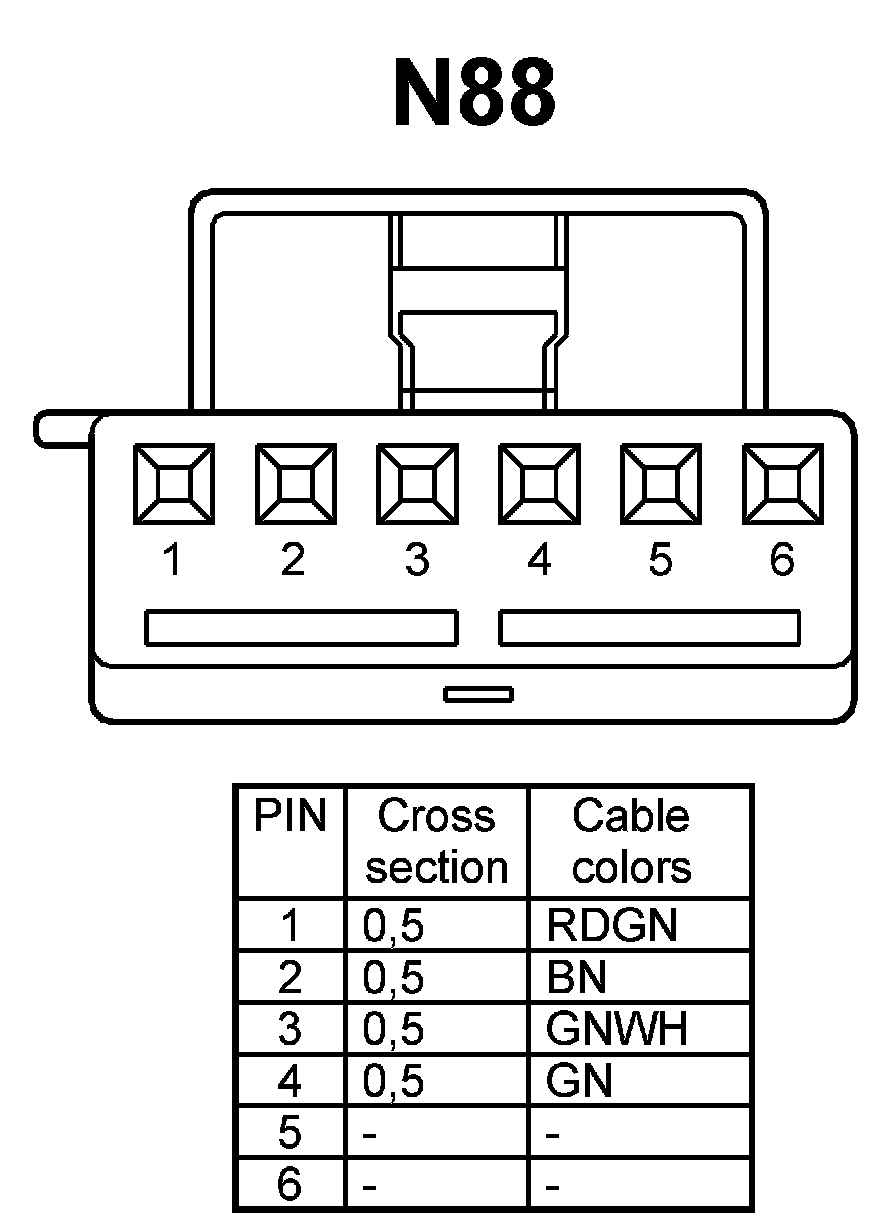

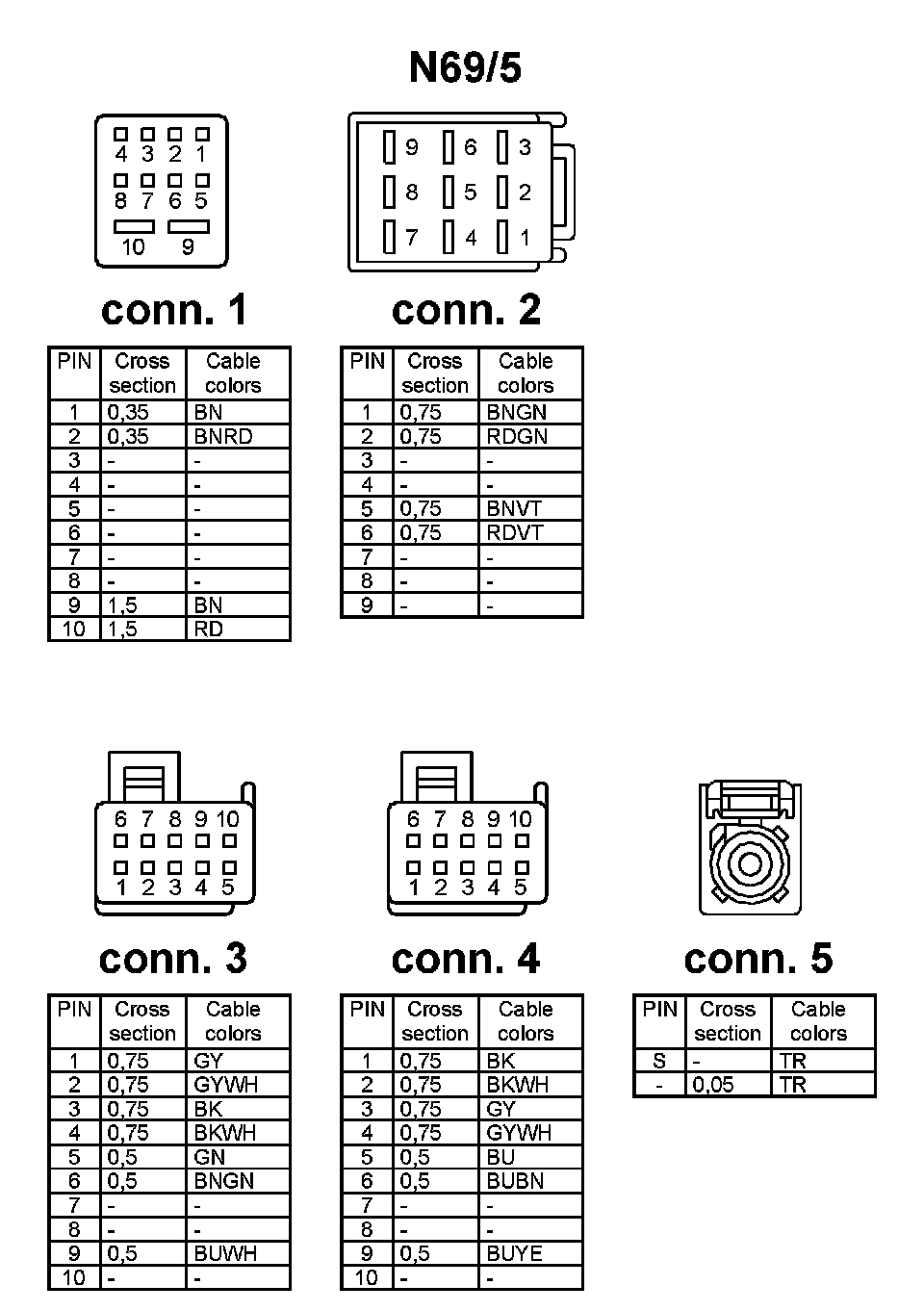

Component Locations: Component Location photographs can be found via their component names at the vehicle level. Component Locations
