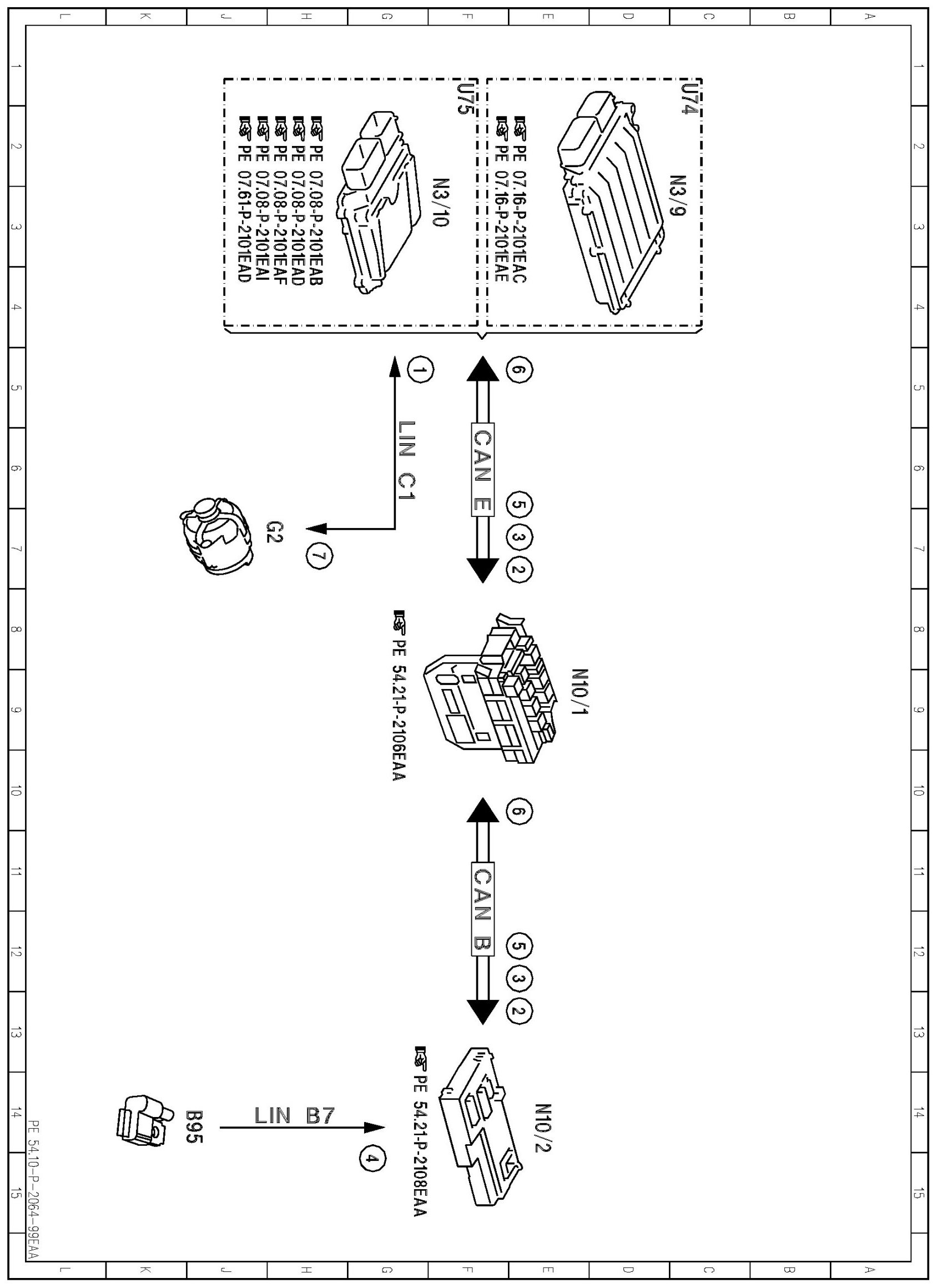

PE54.10-P-2064EAA Electrical Function Schematic For Alternator Management

PE54.10-P-2064EAA Electrical Function Schematic For Alternator Management

MODEL 207.3 /4






























Component Locations: Component Location photographs can be found via their component names at the vehicle level. Component Locations
