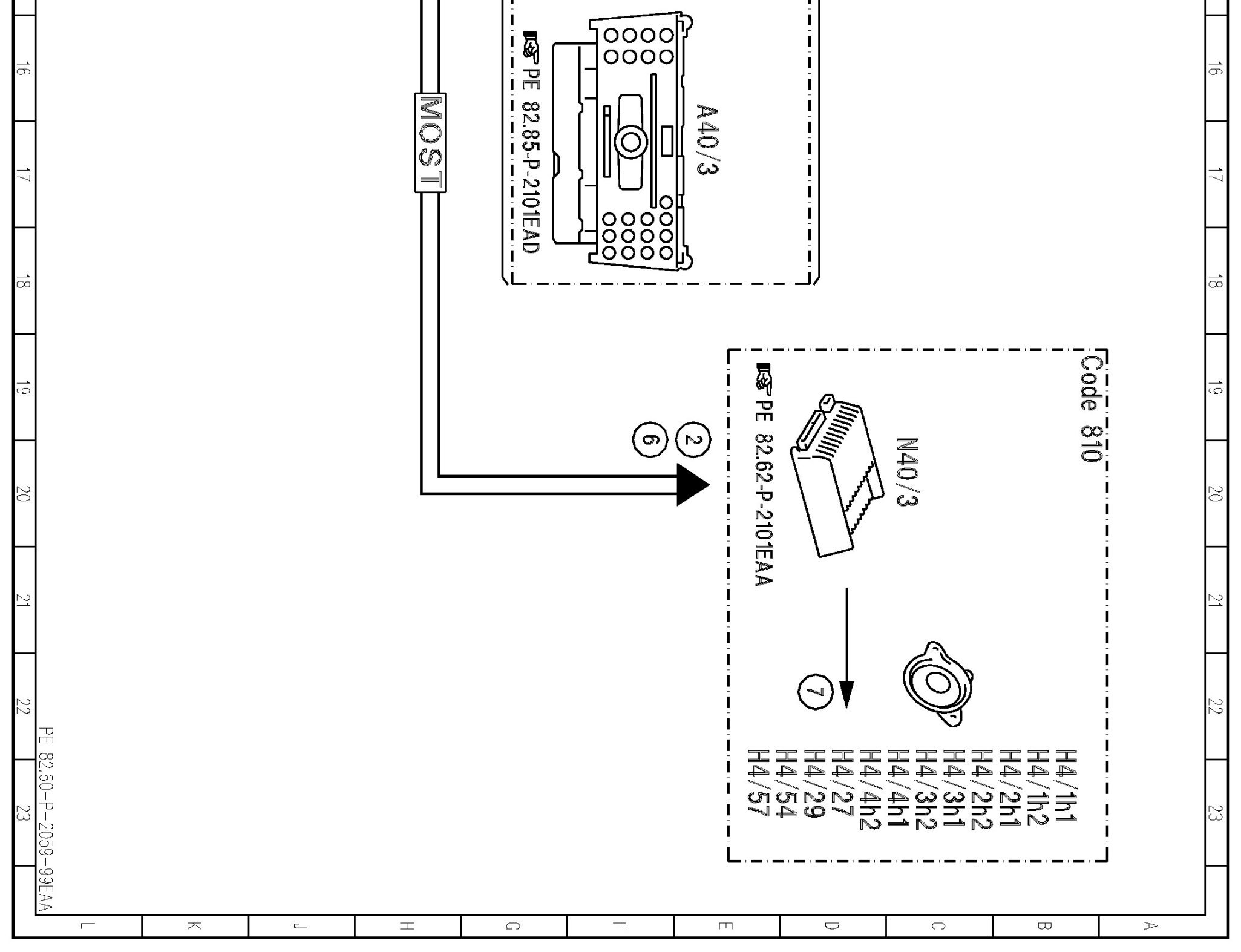

PE82.60-P-2059EAA Electrical Function Diagram For Volume/Sound Settings, Function

PE82.60-P-2059EAA Electrical Function Diagram For Volume/Sound Settings, Function

MODEL 207
- with CODE (510) Audio 20 with CD changer
- with CODE (525) MB Audio 50 APS radio


























































Component Locations: Component Location photographs can be found via their component names at the vehicle level. Component Locations
