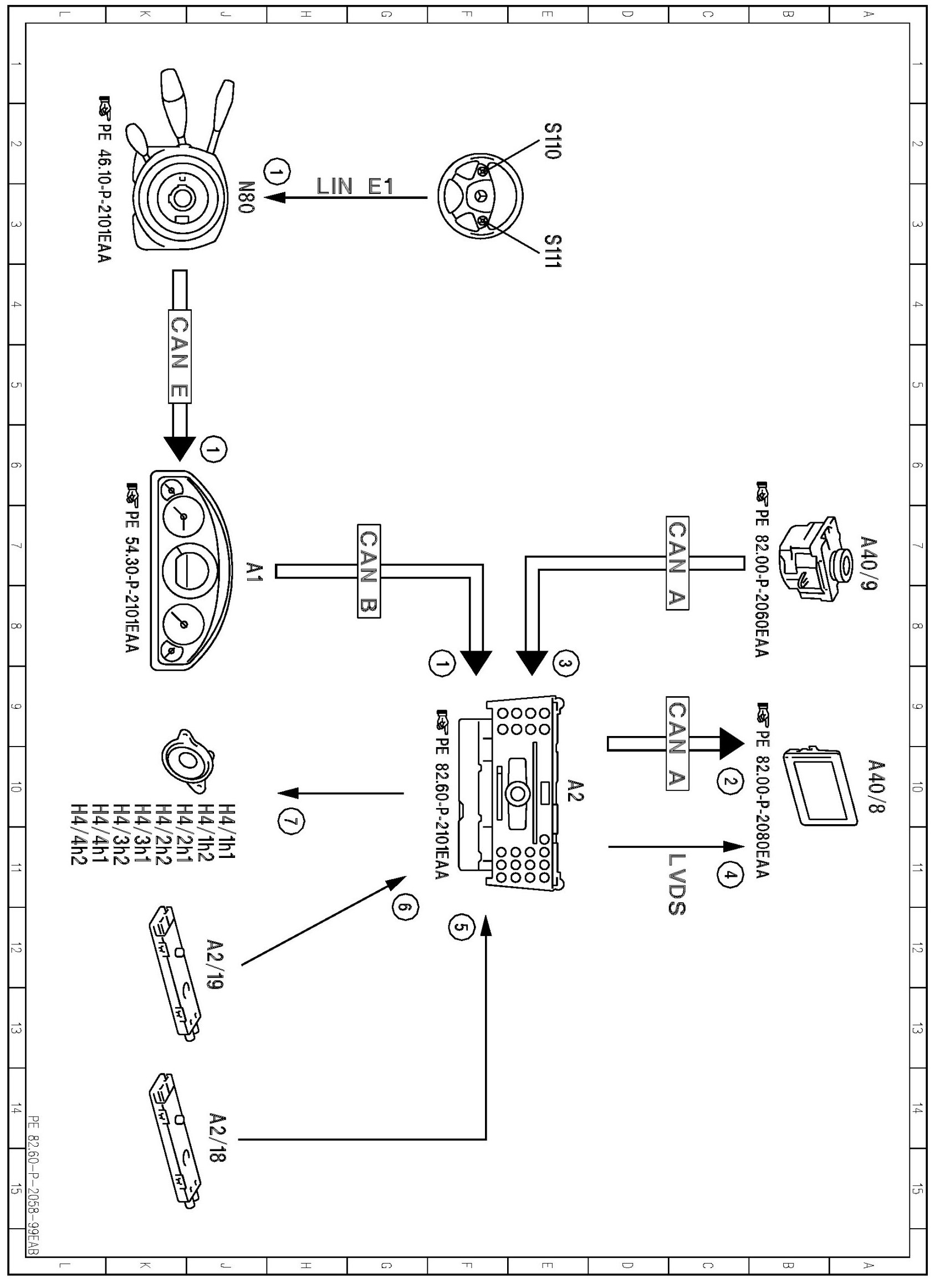

PE82.60-P-2058EAB Electrical Function Diagram For Audio Mode, Function

PE82.60-P-2058EAB Electrical Function Diagram For Audio Mode, Function

MODEL 207.3 /4
- with CODE (523) MB Audio 20 radio






































Component Locations: Component Location photographs can be found via their component names at the vehicle level. Component Locations
