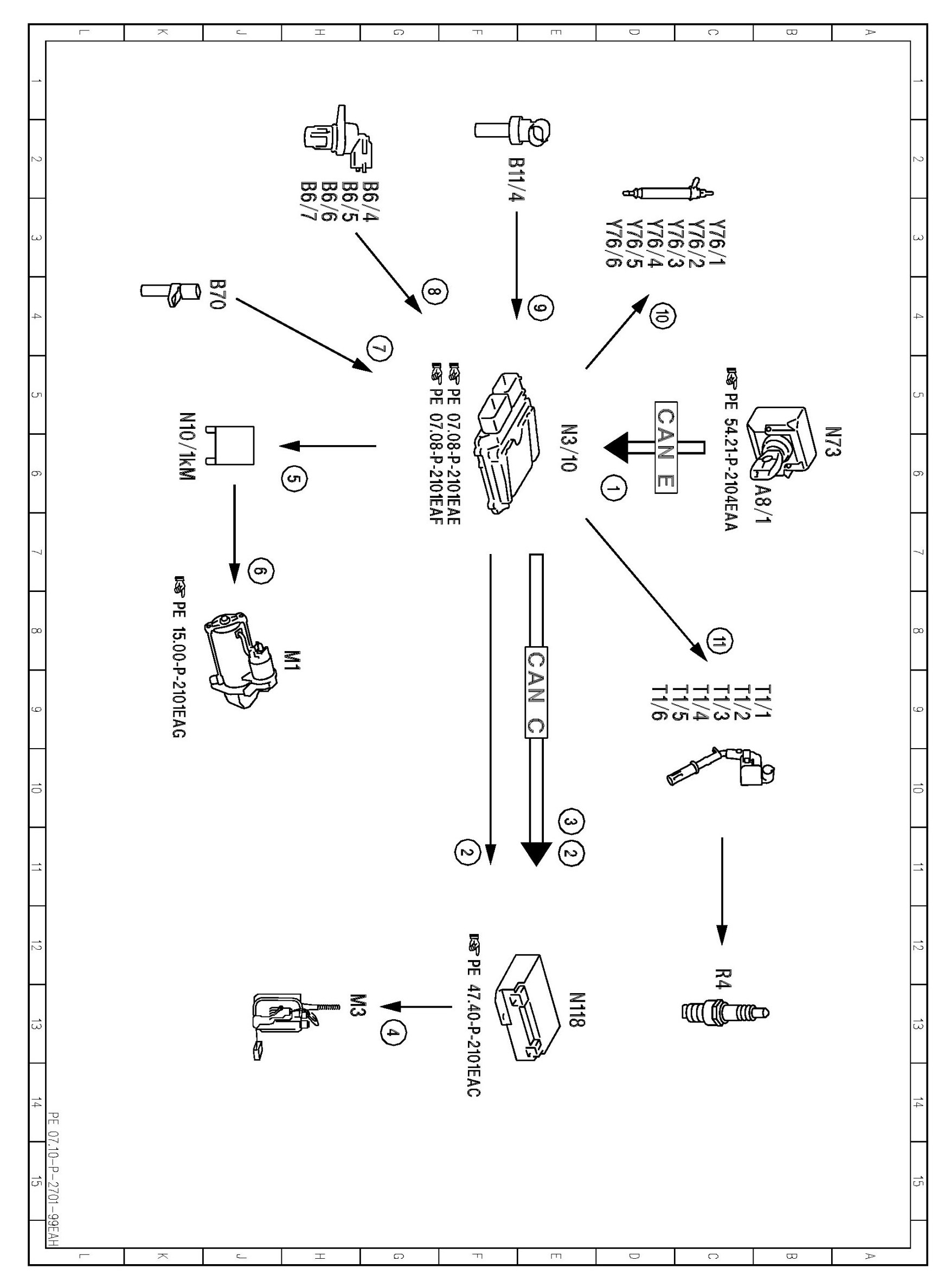

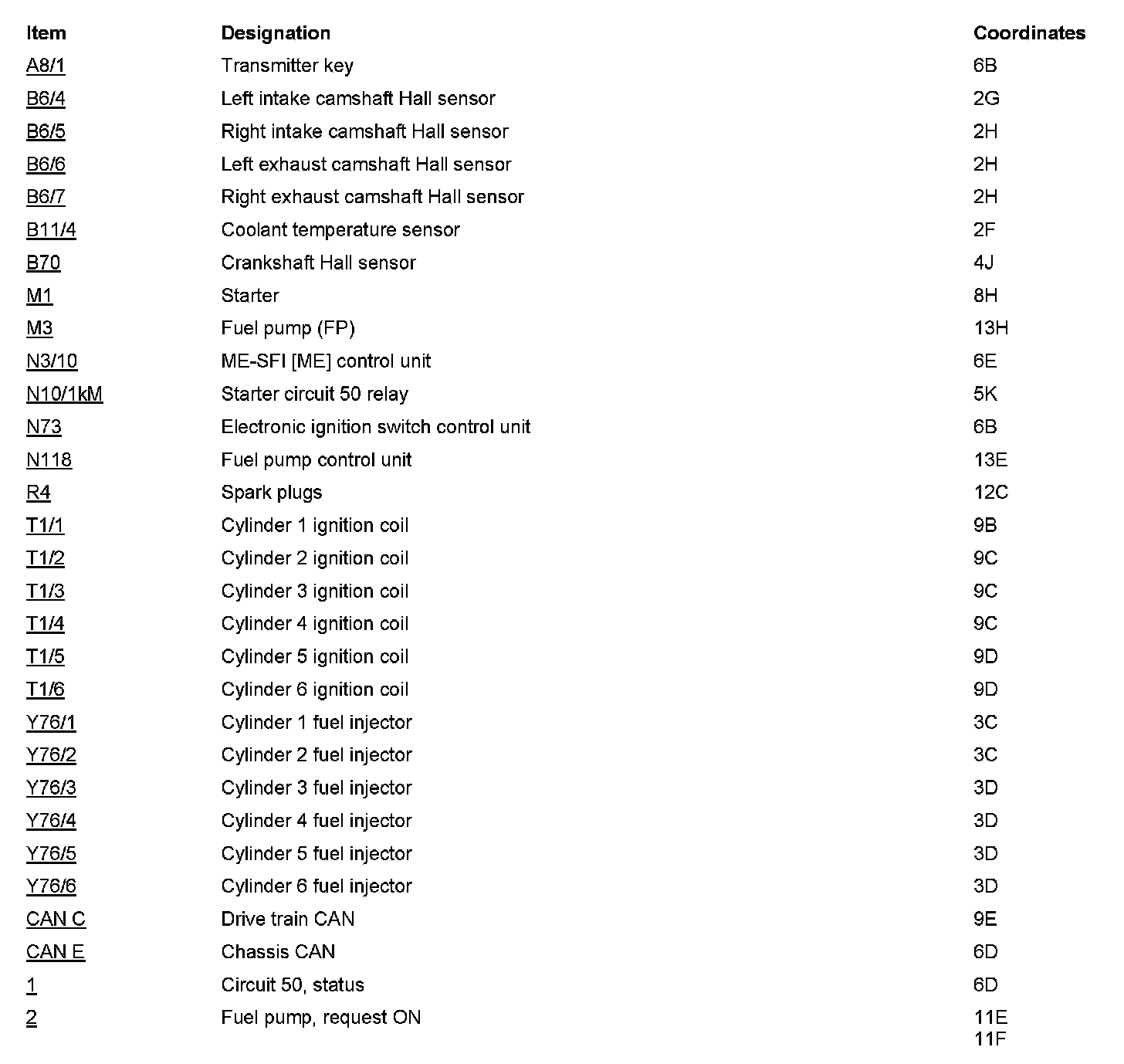

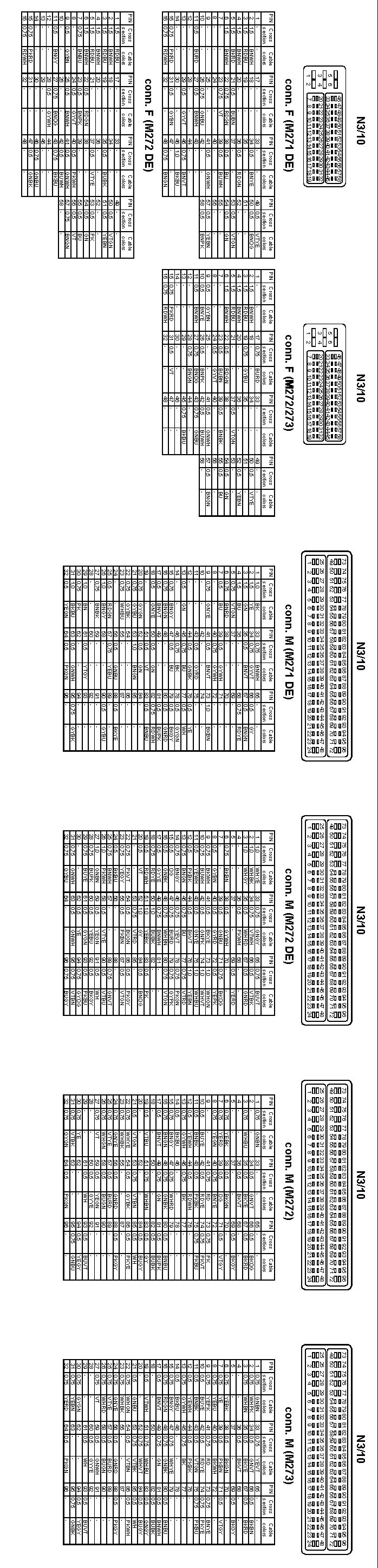

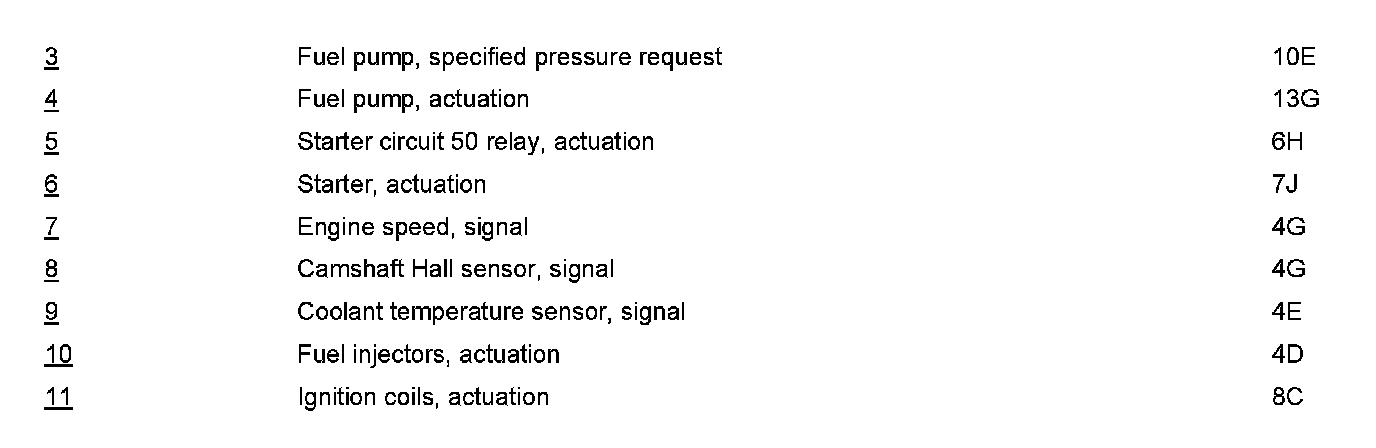

PE07.10-P-2701EAH Electrical Function Schematic For Starting

PE07.10-P-2701EAH Electrical Function Schematic For Starting

ENGINES 276 in MODEL 207






































































Component Locations: Component Location photographs can be found via their component names at the vehicle level. Component Locations
