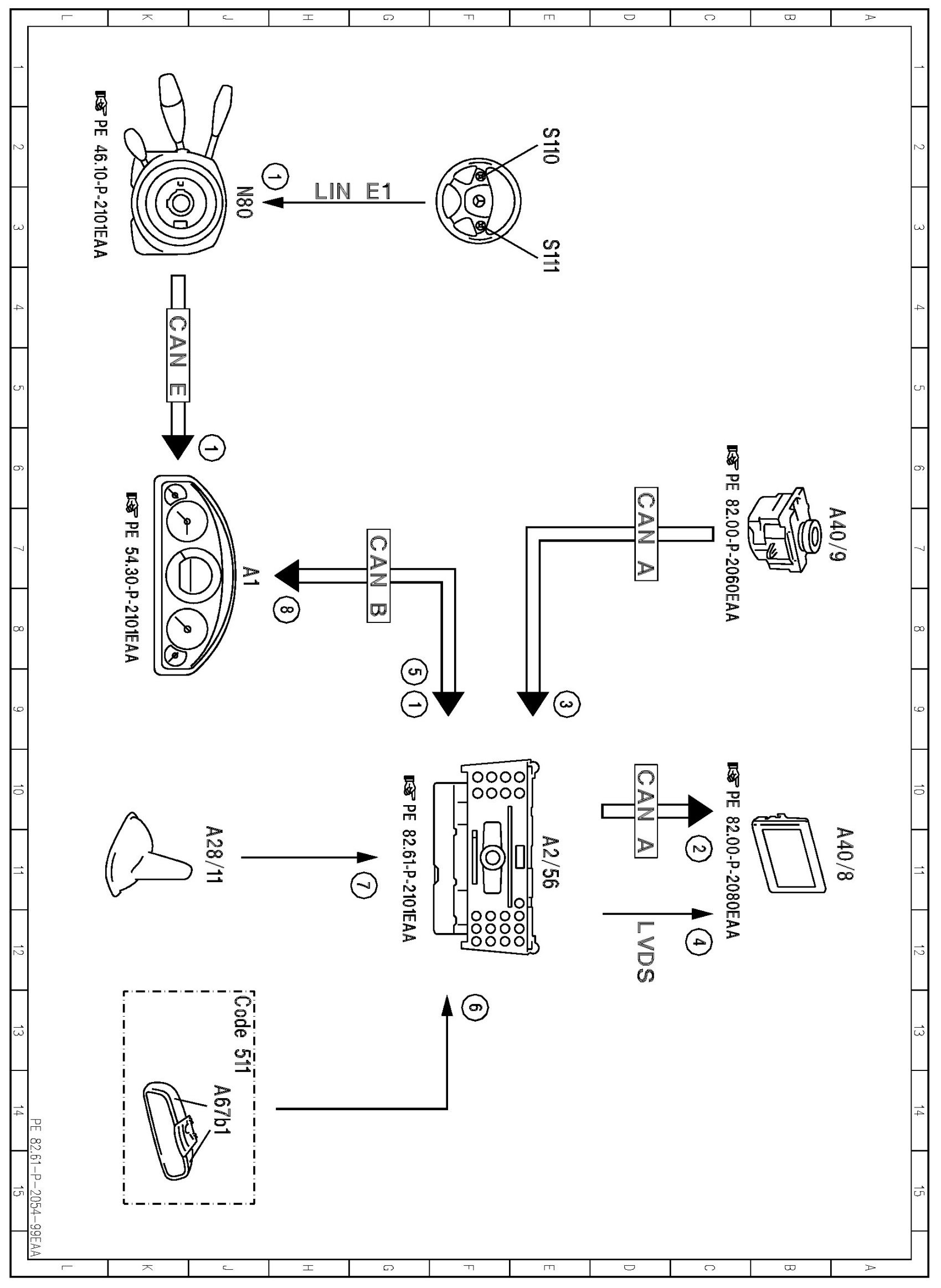

PE82.61-P-2054EAA Electrical Function Diagram For Navigation Mode (APS), Function

PE82.61-P-2054EAA Electrical Function Diagram For Navigation Mode (APS), Function

MODEL 207.3 /4
- with CODE (525) MB Audio 50 APS radio
- with CODE (511) Audio 50 APS with DVD changer


























Component Locations: Component Location photographs can be found via their component names at the vehicle level. Component Locations
