PE54.30-P-2057EAA Electrical Function Schematic, Instrument Cluster Trip Computer

PE54.30-P-2057EAA Electrical Function Schematic, Instrument Cluster Trip Computer

MODEL 207.3/ 4

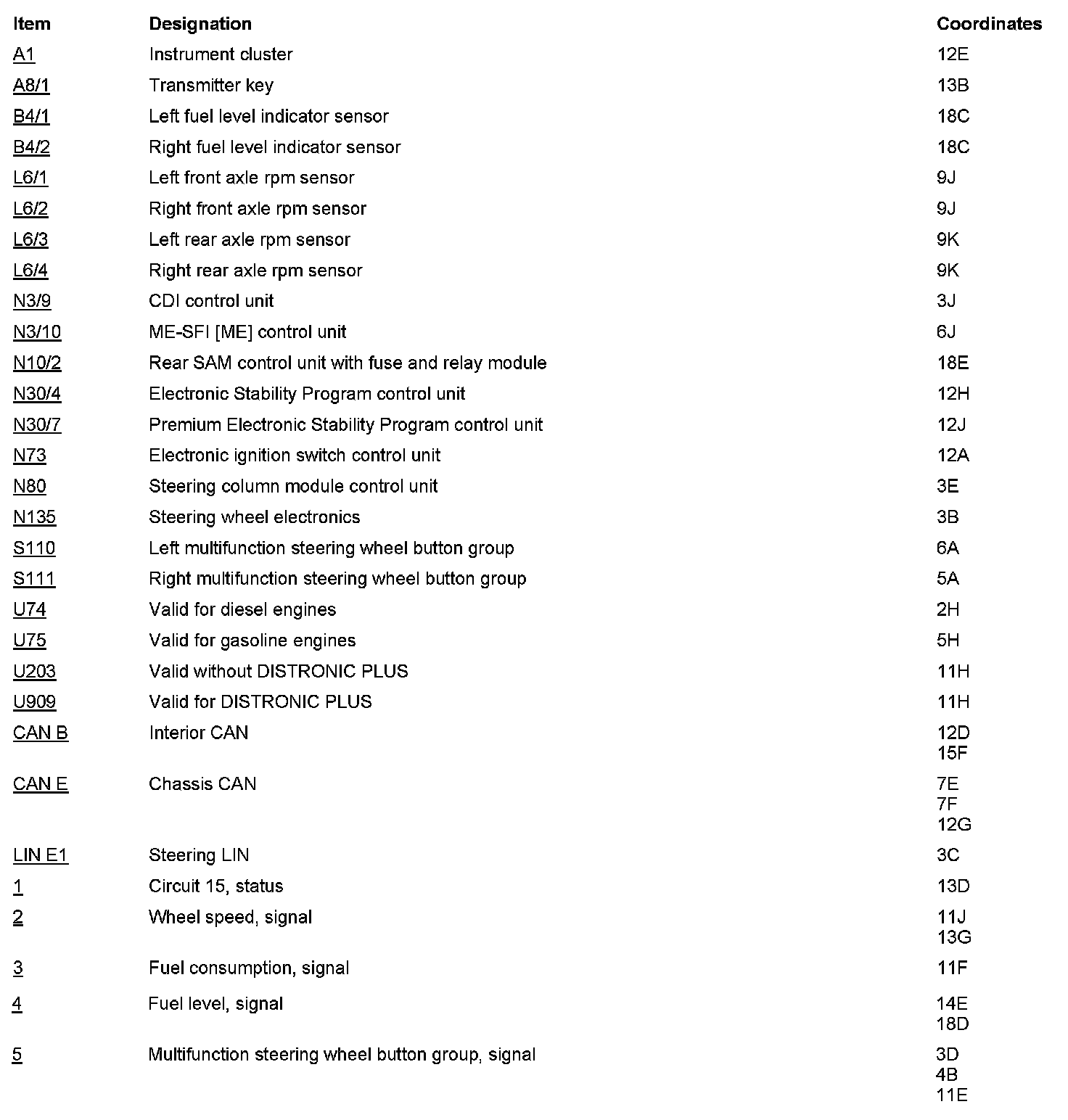

Component Locations: Component Location photographs can be found via their component names at the vehicle level. Component Locations
