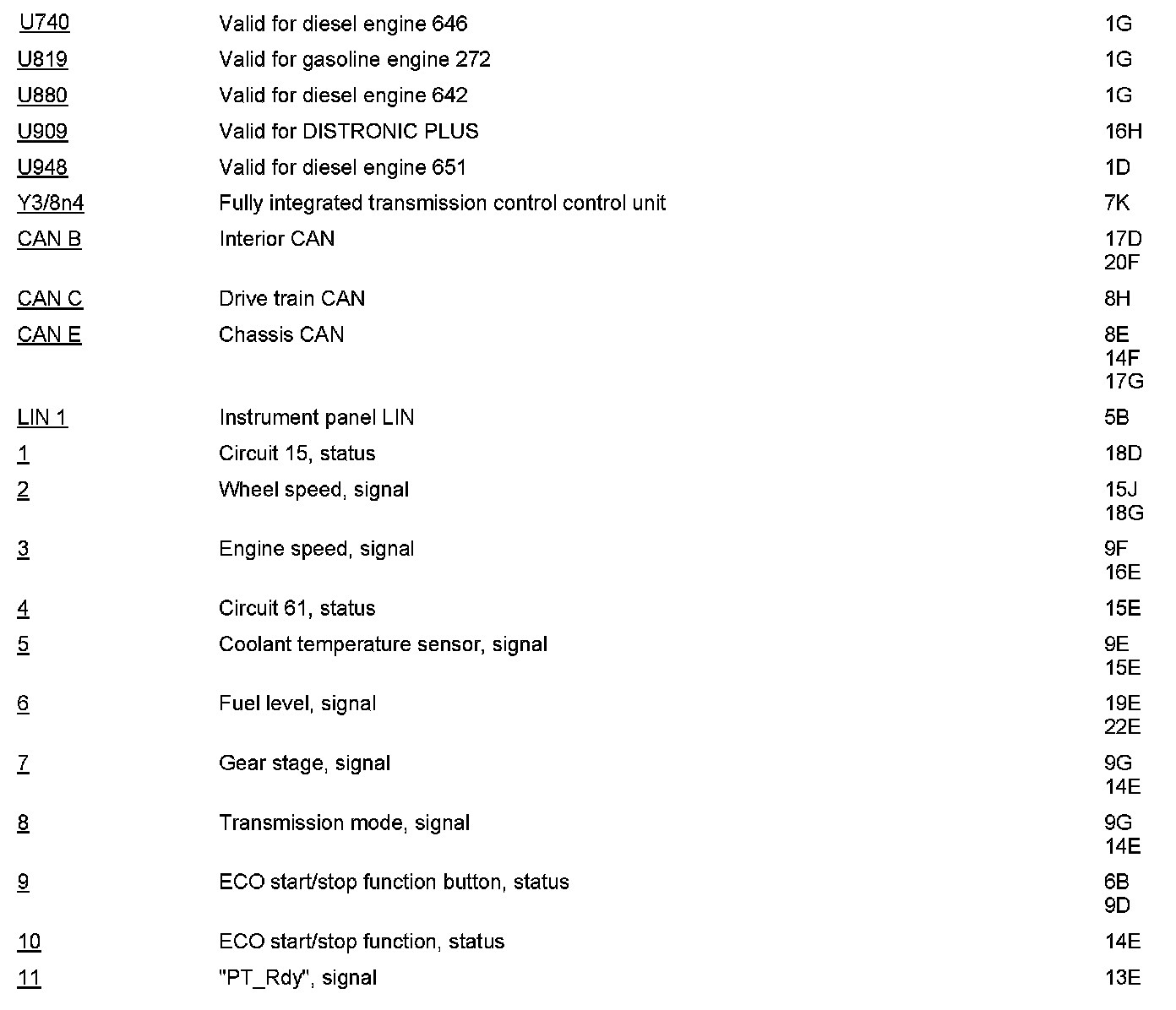

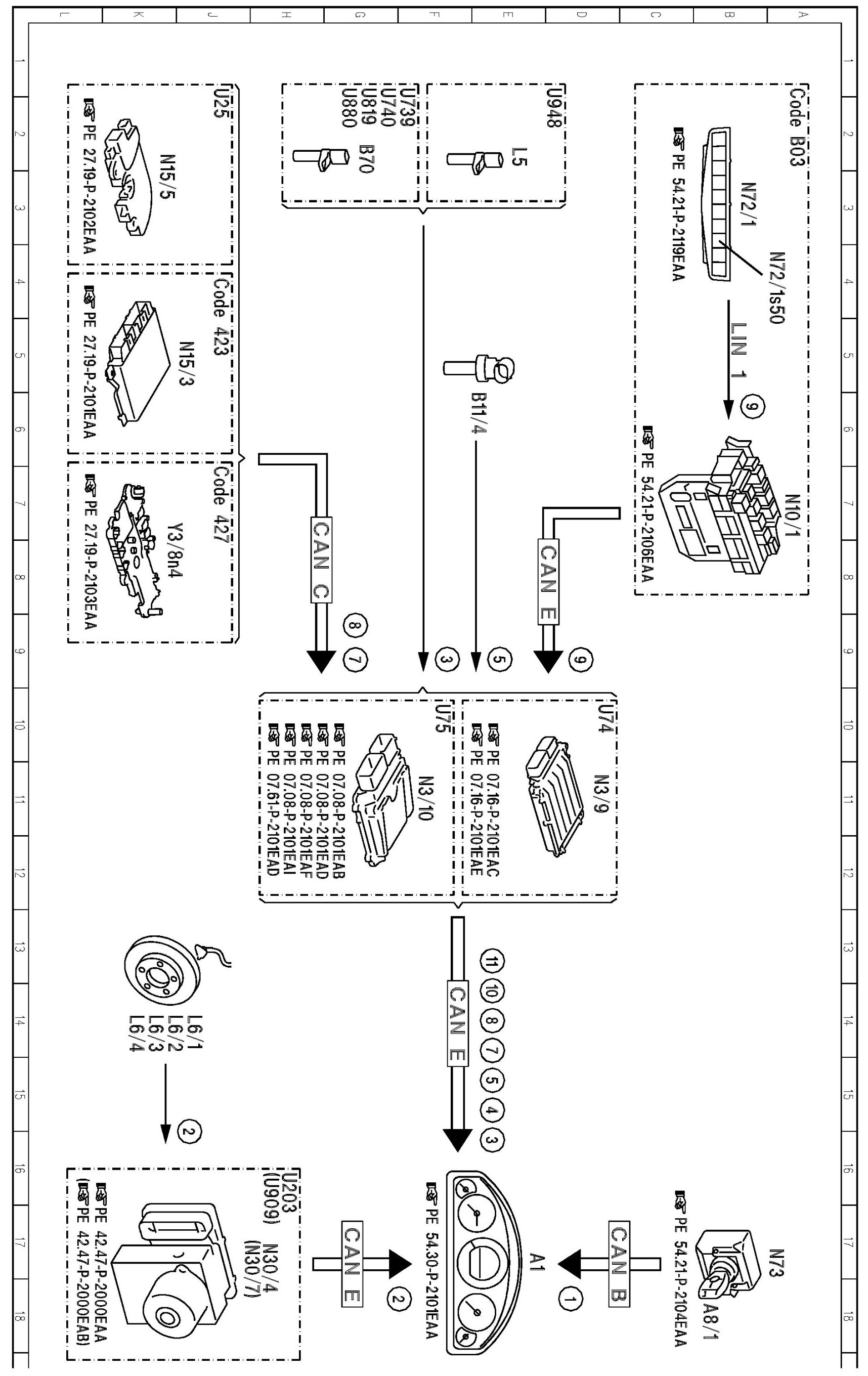

PE54.30-P-2055EAA Electrical Function Schematic Of Instrument Cluster, Operating Condition Display

PE54.30-P-2055EAA Electrical Function Schematic Of Instrument Cluster, Operating Condition Display

MODEL 207.3/ 4






















































Component Locations: Component Location photographs can be found via their component names at the vehicle level. Component Locations
