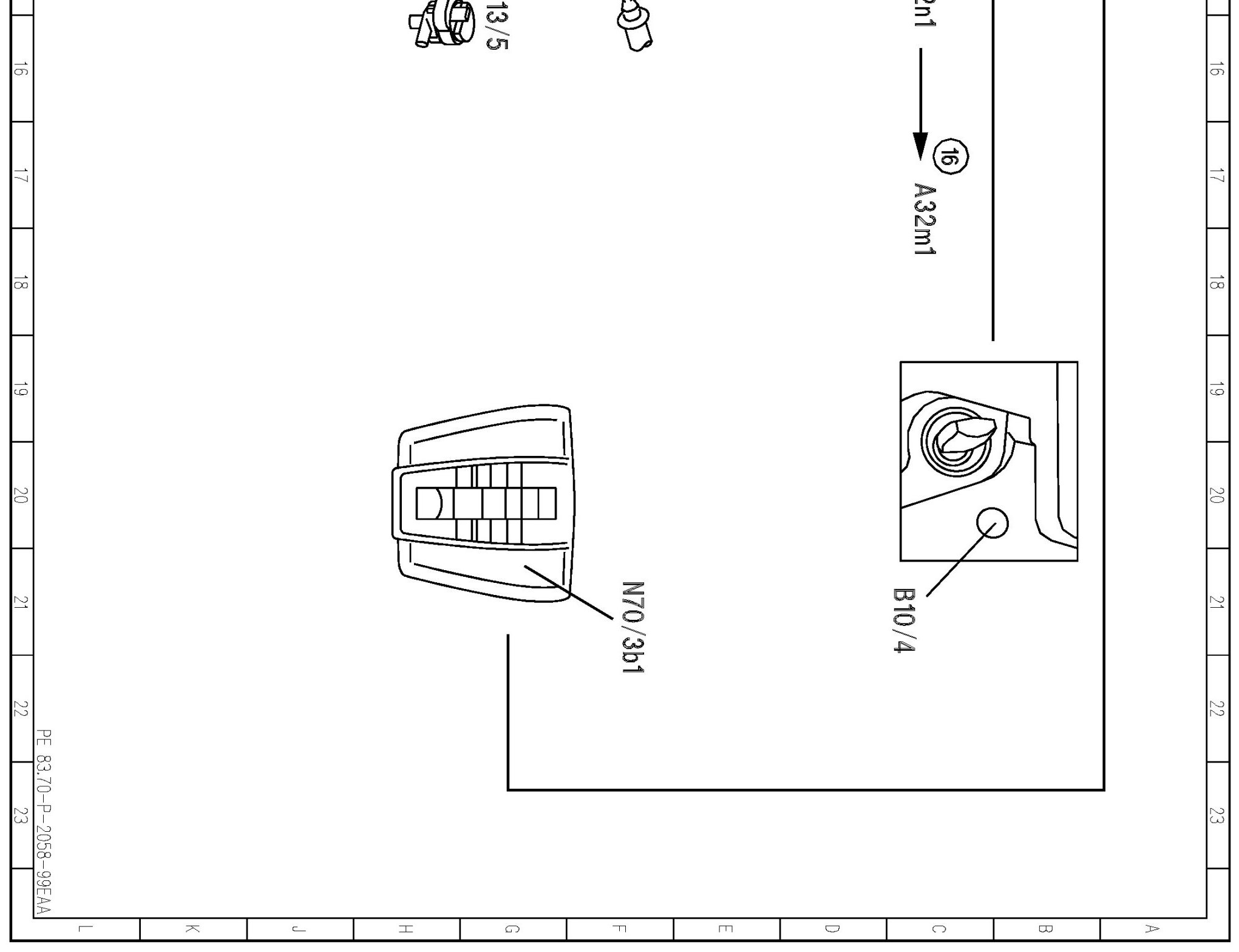

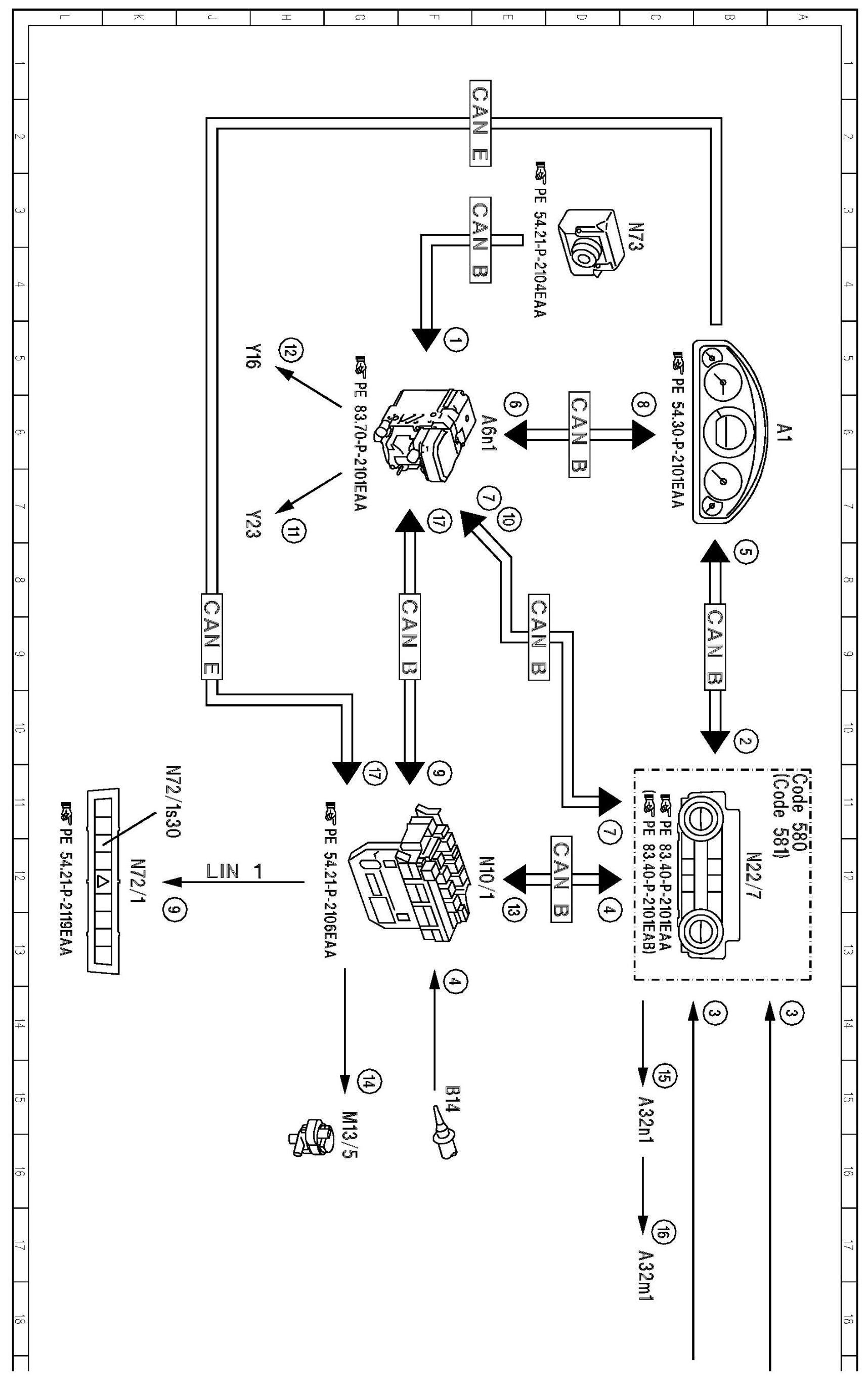

PE83.70-P-2058EAA Electrical Function Schematic, Trigger Heating Mode For Departure Time

PE83.70-P-2058EAA Electrical Function Schematic, Trigger Heating Mode For Departure Time

MODEL 207
- with CODE (228) Stationary heater

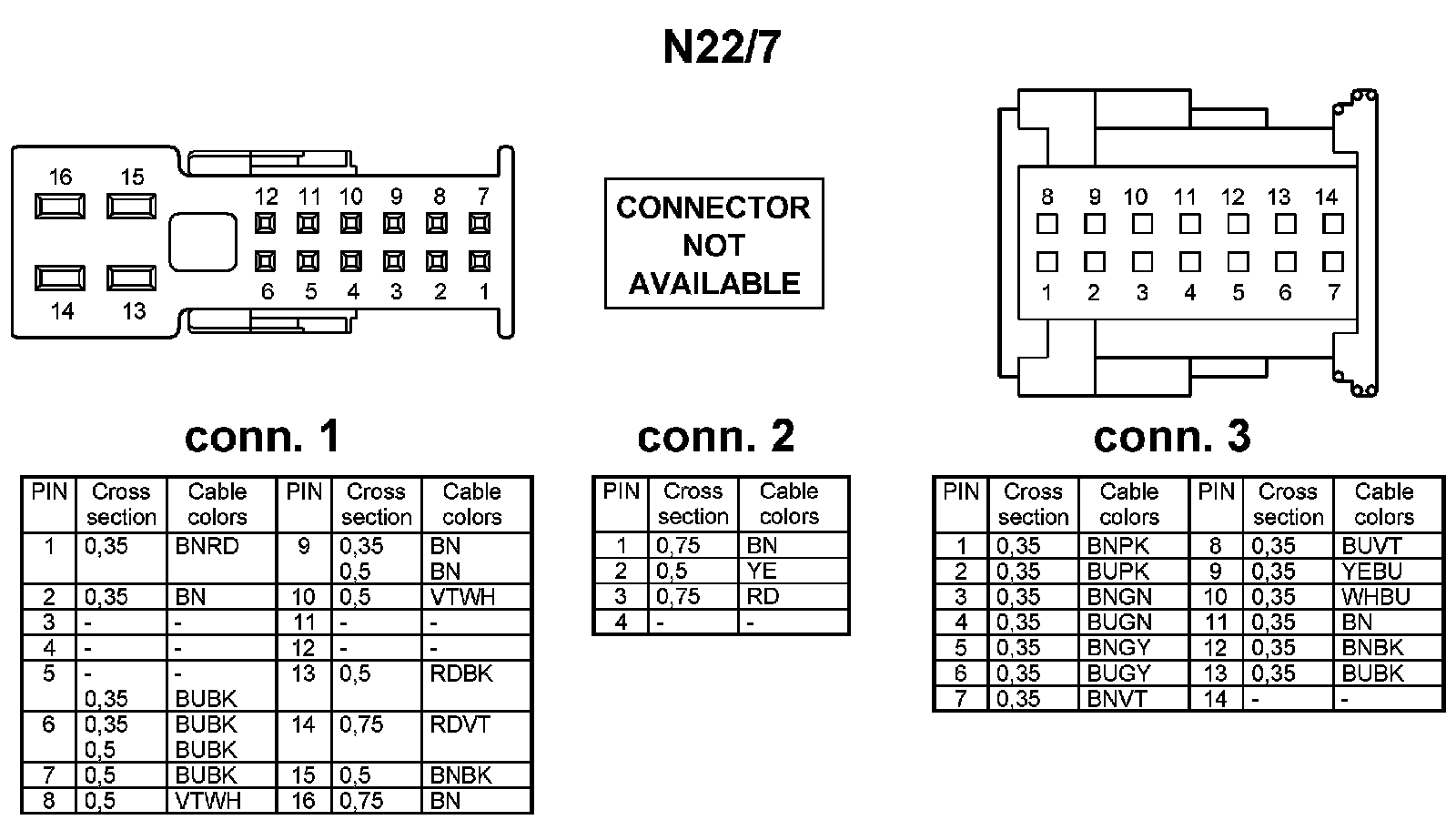

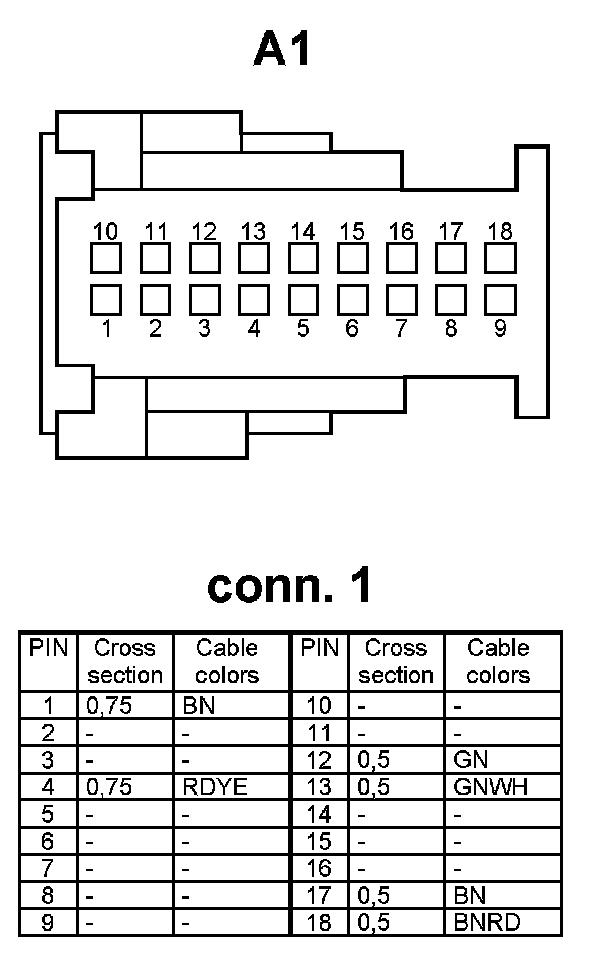

Component Locations: Component Location photographs can be found via their component names at the vehicle level. Component Locations
