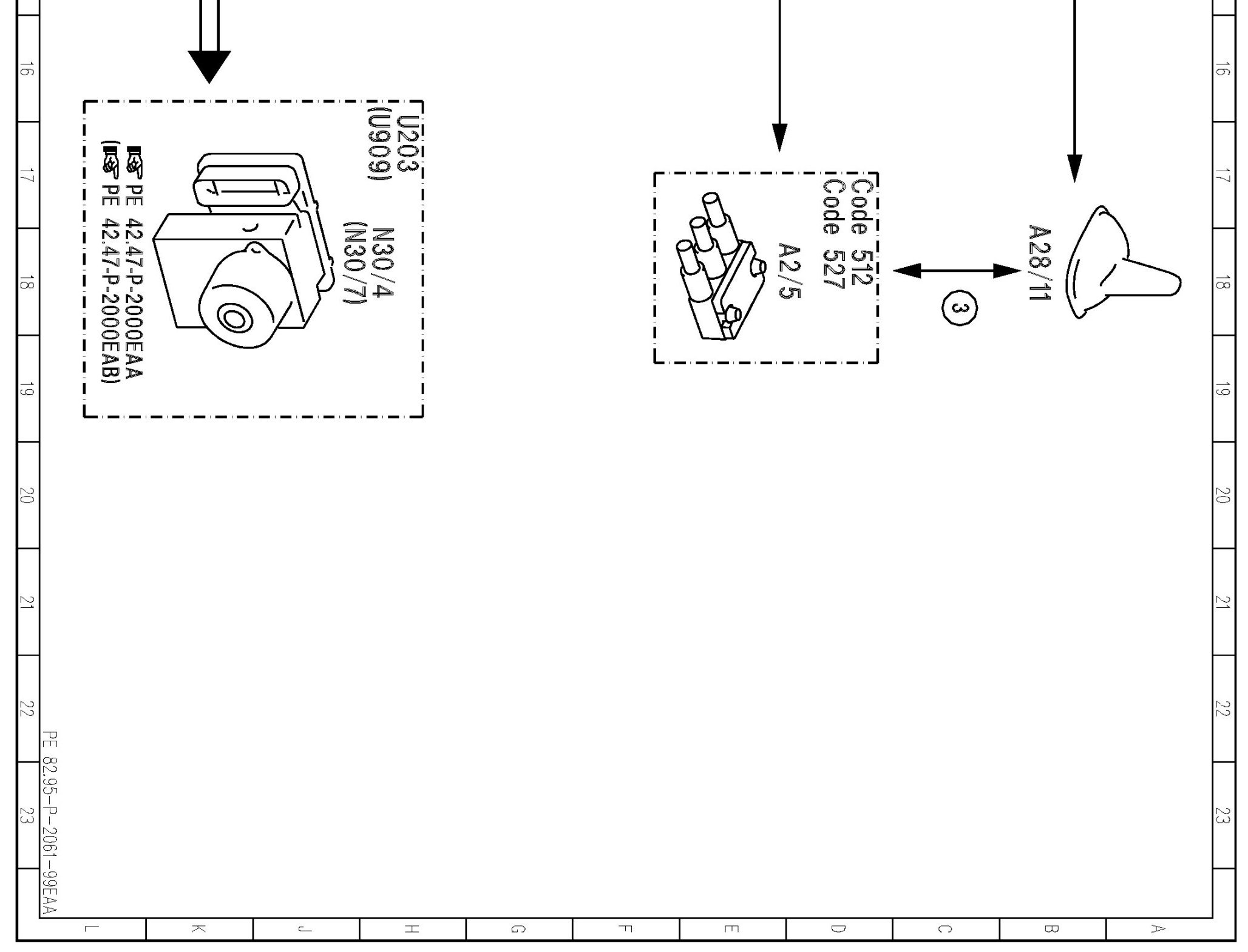

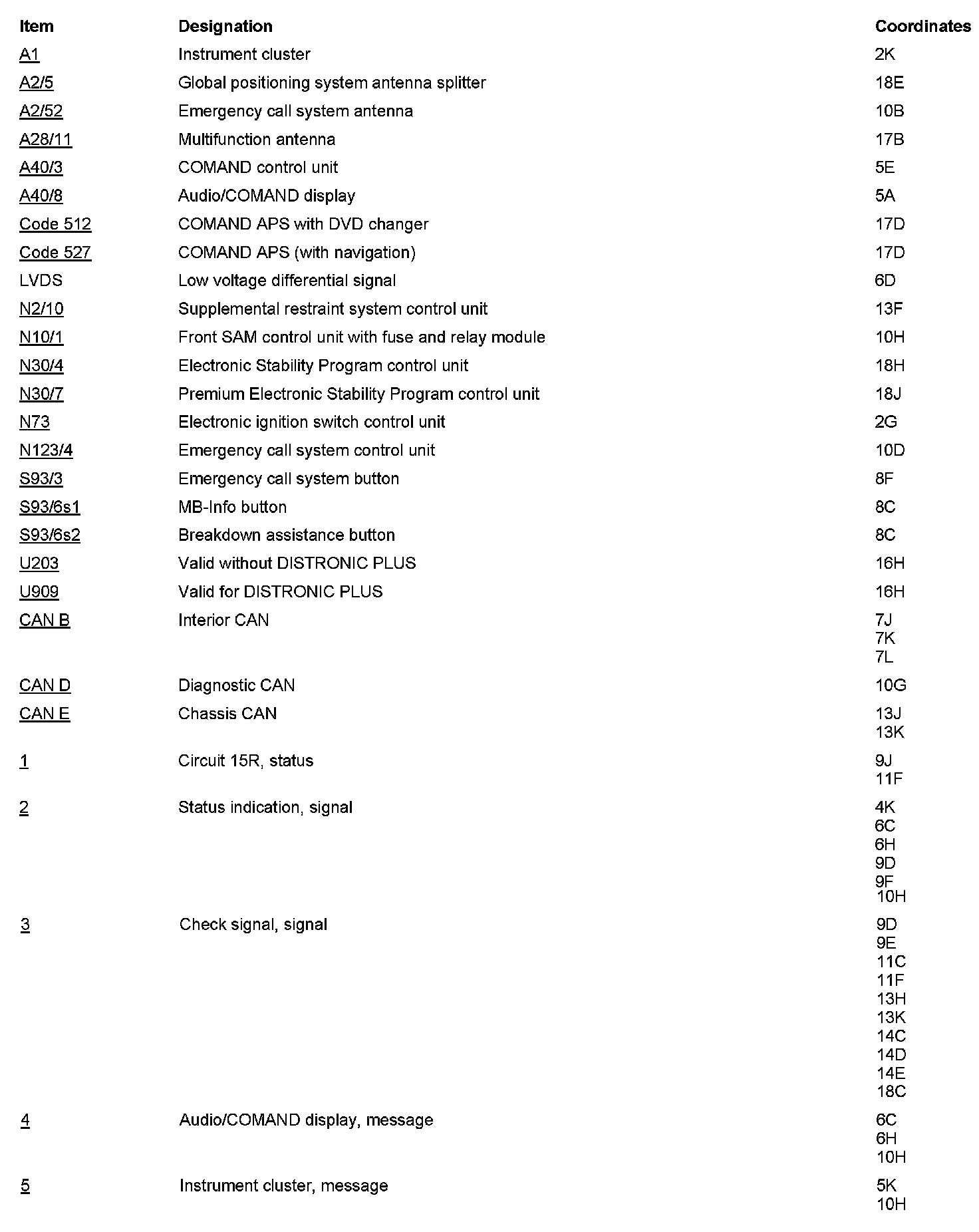

PE82.95-P-2061EAA Electrical Function Diagram For Status Display Of Emergency Call System, Function

PE82.95-P-2061EAA Electrical Function Diagram For Status Display Of Emergency Call System, Function

MODEL 207.3 /4
- with CODE (359) TELE AID emergency call system

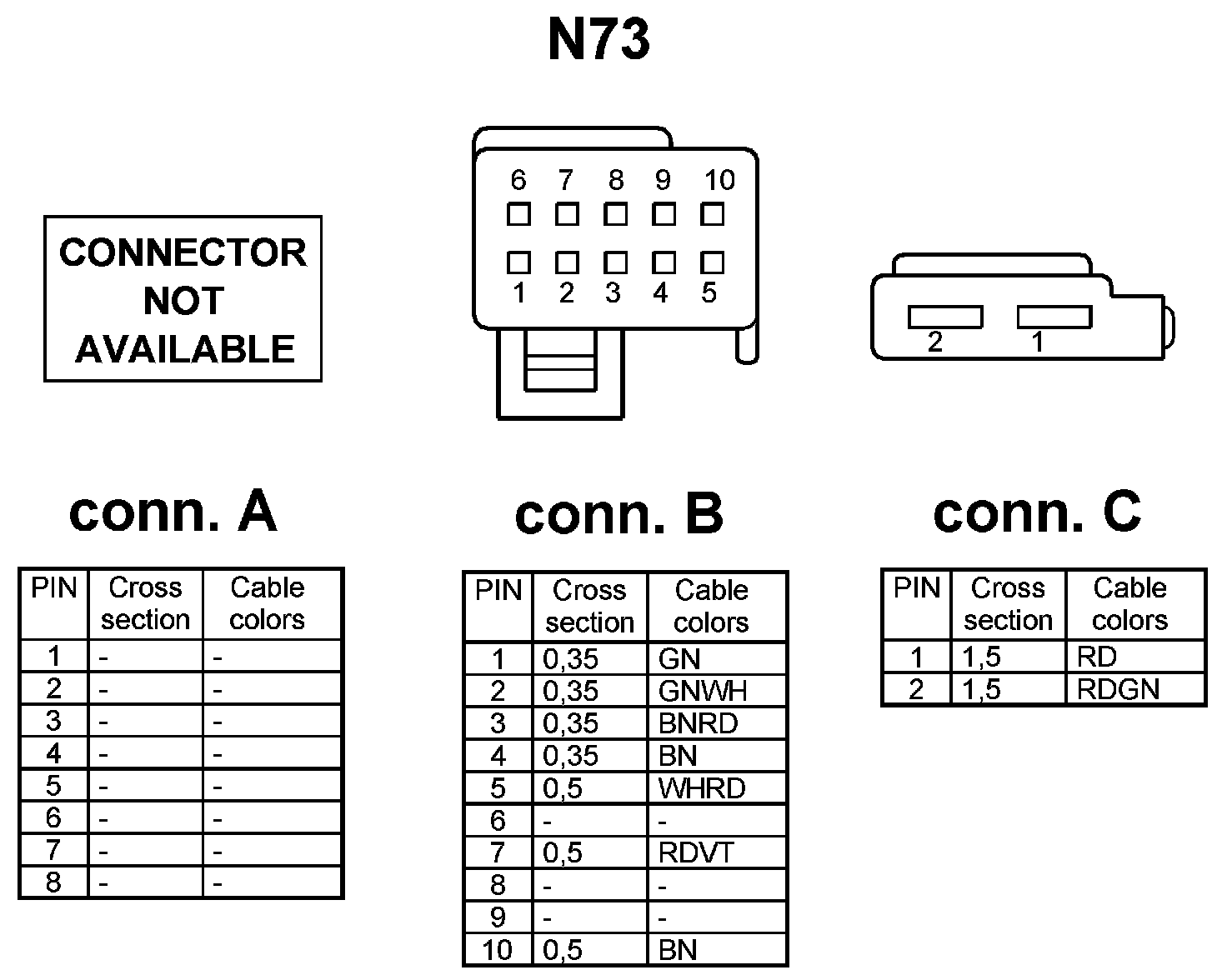

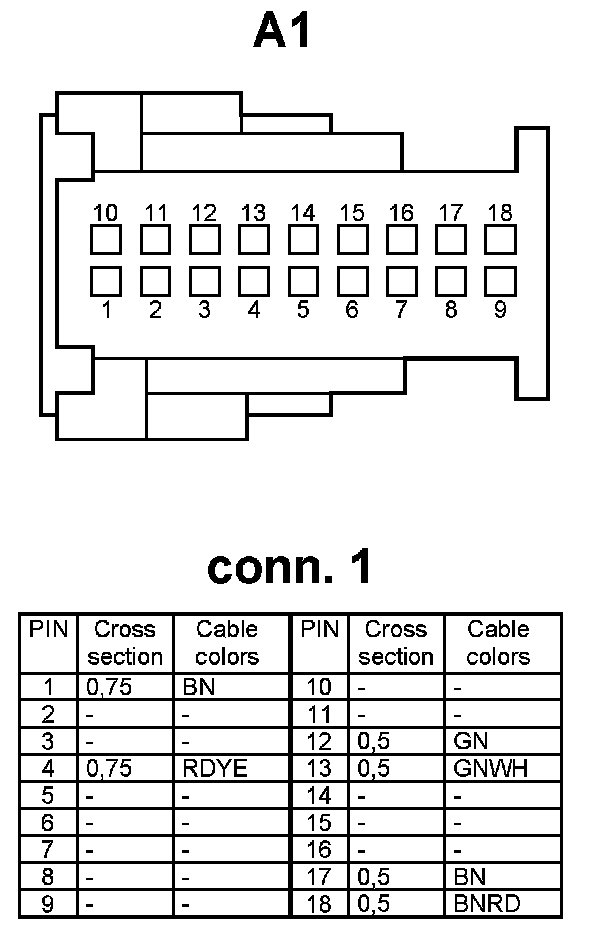

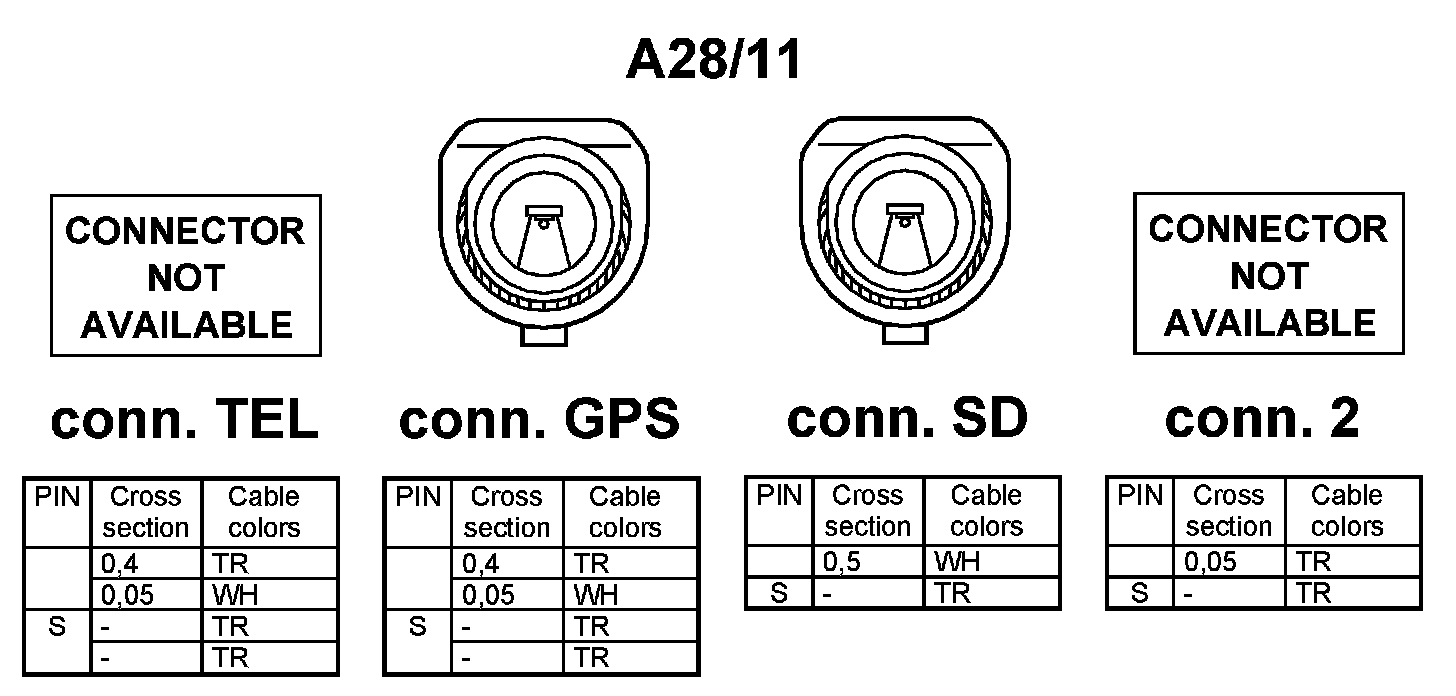

Component Locations: Component Location photographs can be found via their component names at the vehicle level. Component Locations
