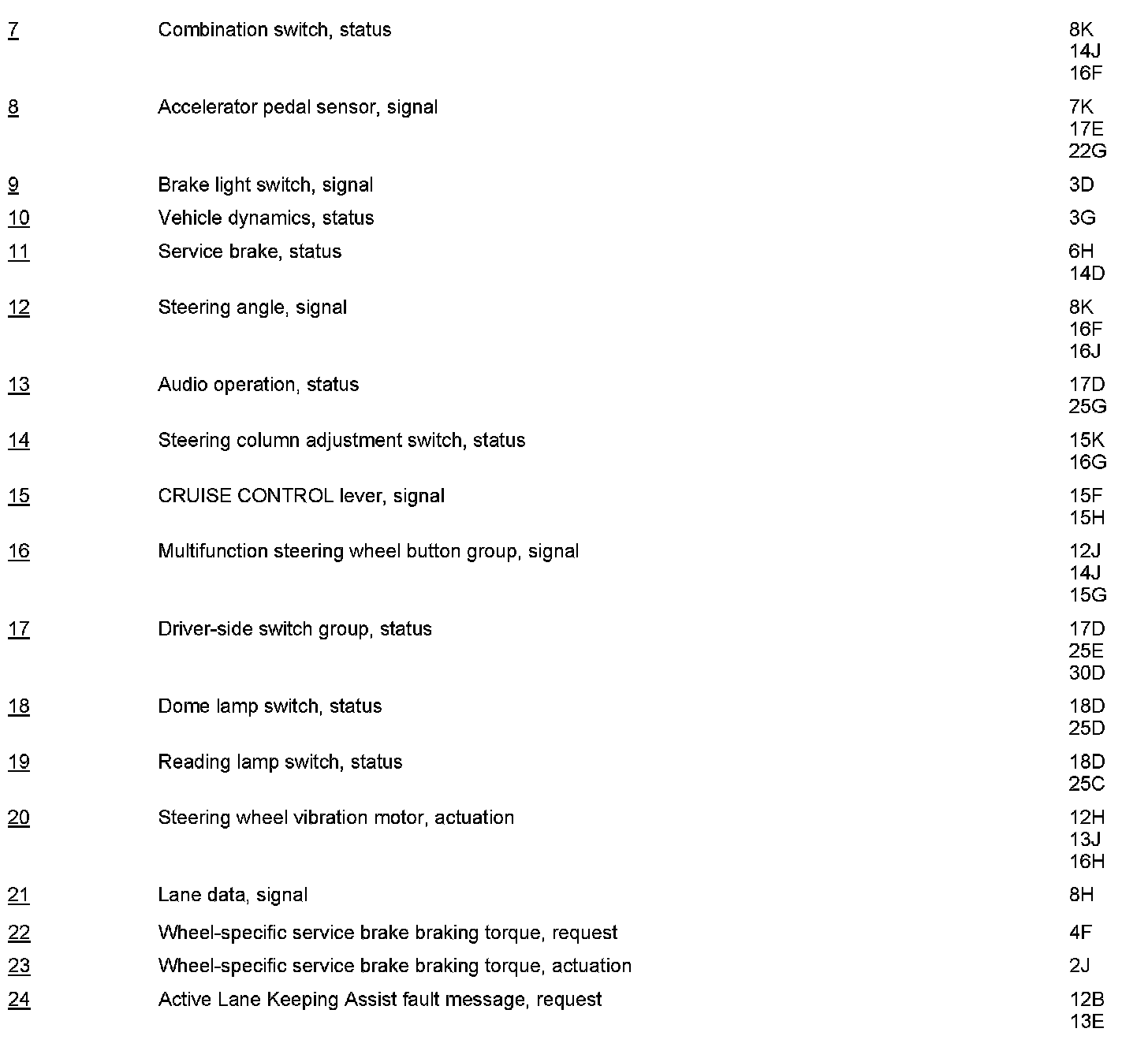

PE54.71-P-2053EAA Electrical Function Schematic For Active Lane Keeping Assist

PE54.71-P-2053EAA Electrical Function Schematic For Active Lane Keeping Assist

MODEL 207
- with CODE (238) Active Lane Keeping Assist

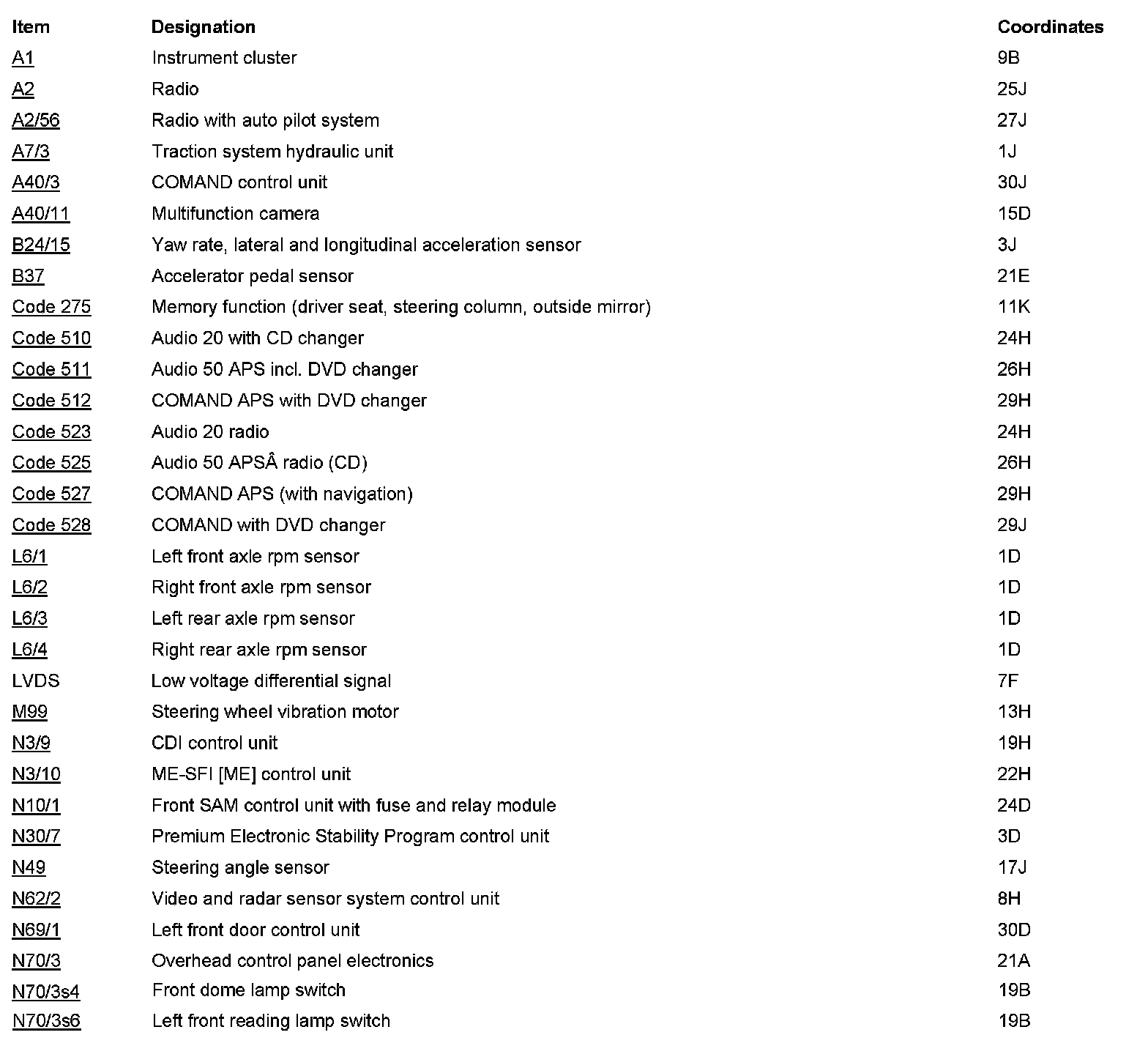

Component Locations: Component Location photographs can be found via their component names at the vehicle level. Component Locations
