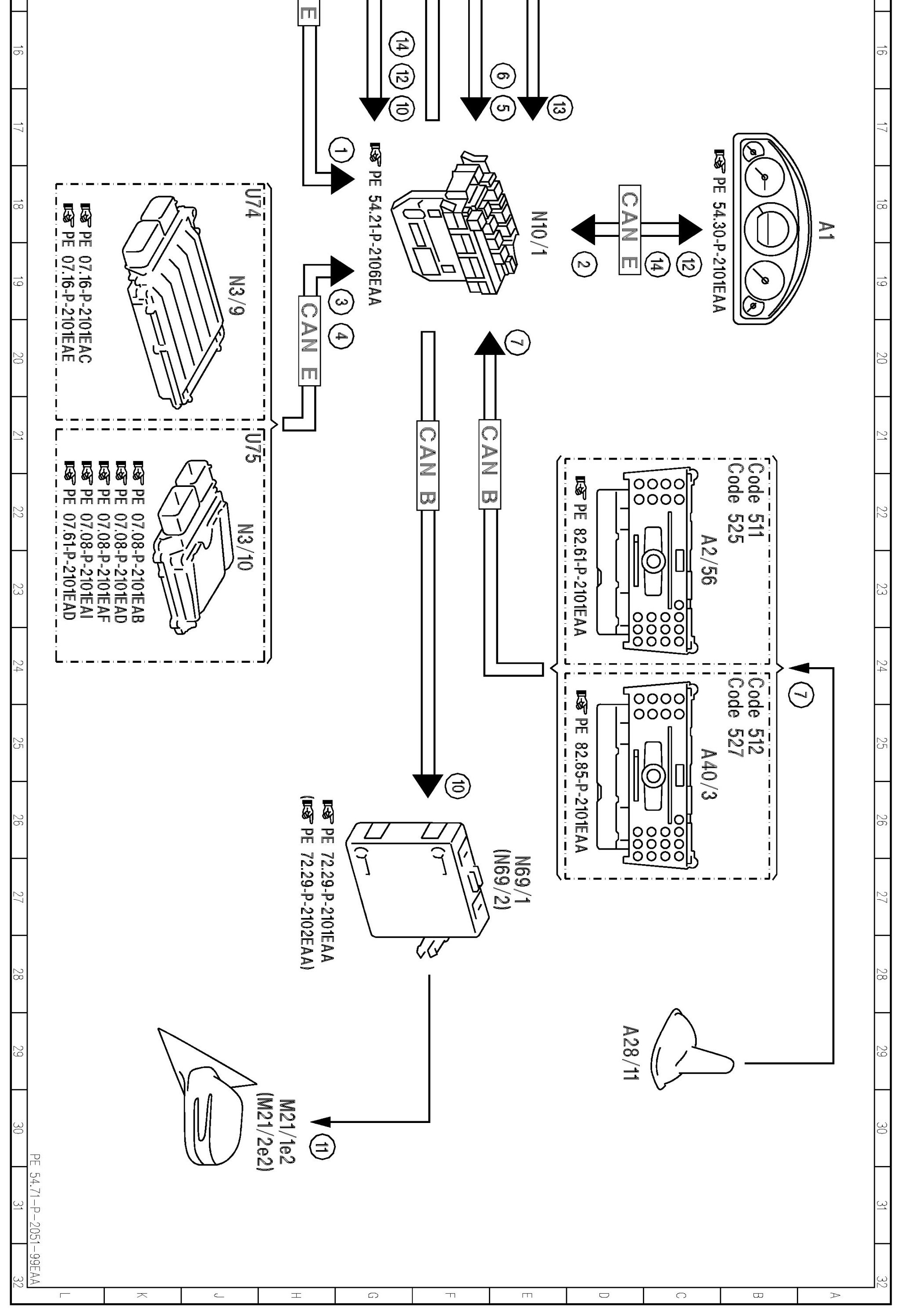

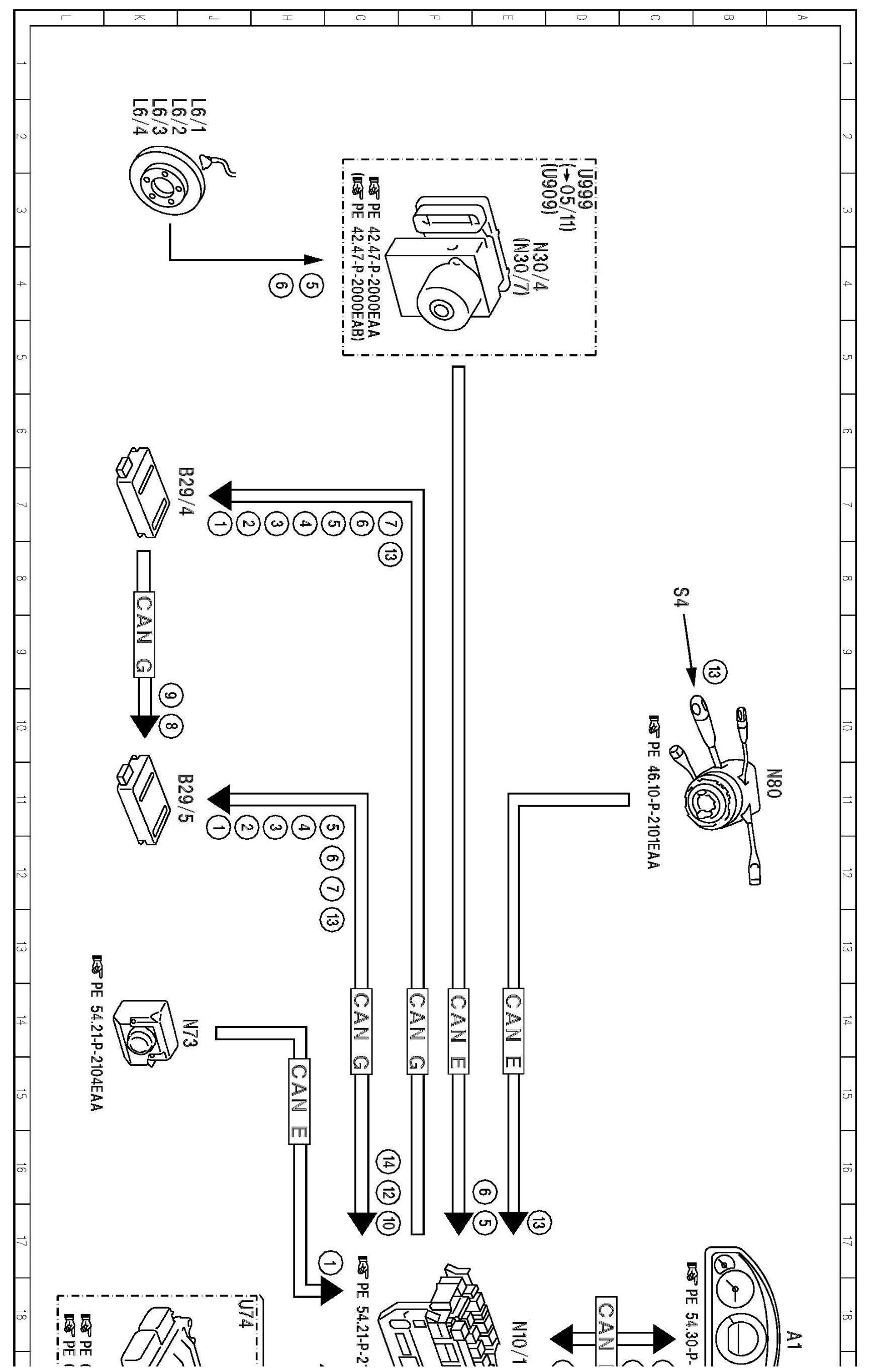

PE54.71-P-2051EAA Electrical Function Schematic, Blind Spot Assistant

PE54.71-P-2051EAA Electrical Function Schematic, Blind Spot Assistant

MODEL 207
- with CODE (234) Blind Spot Assist

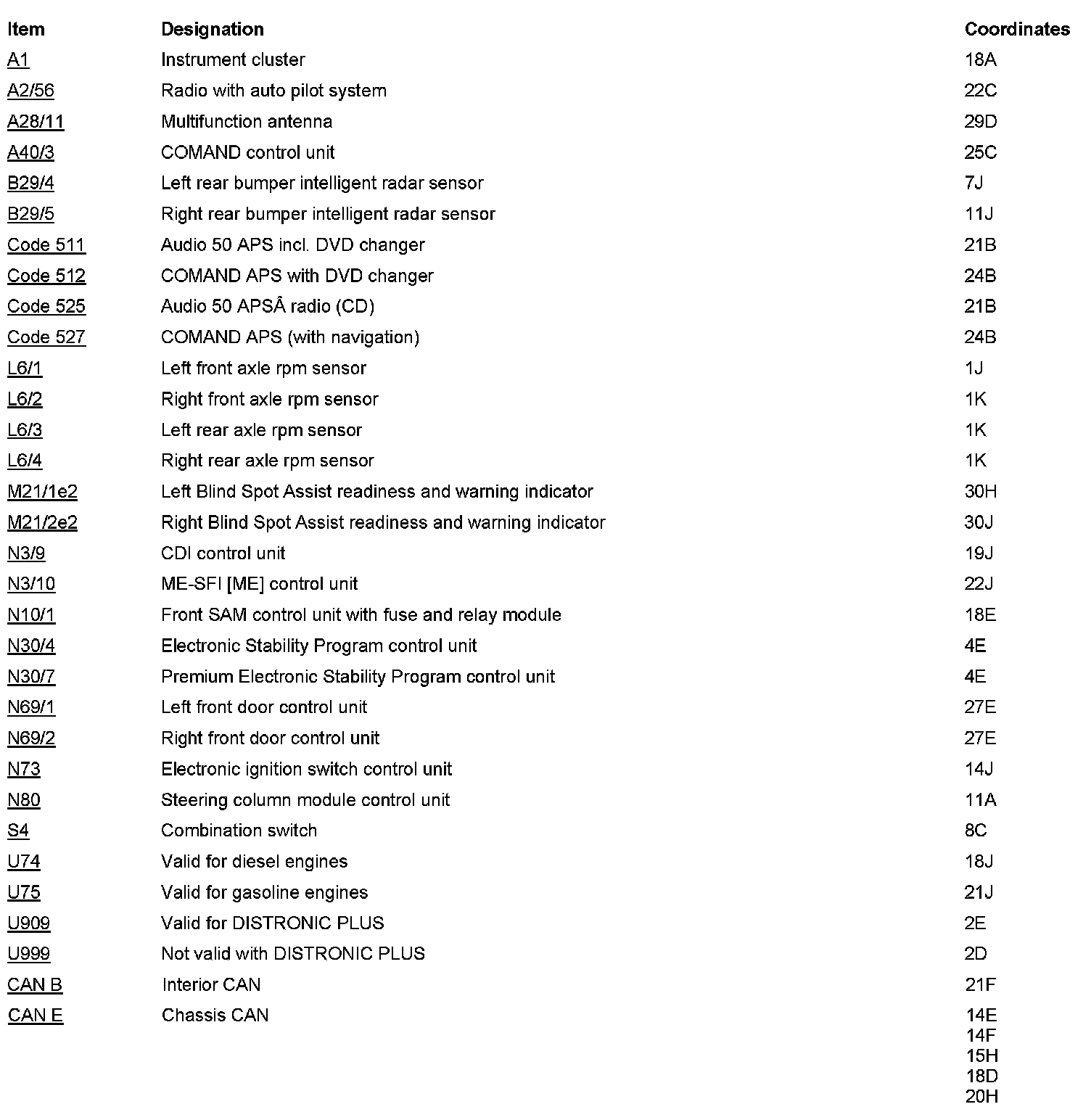

Component Locations: Component Location photographs can be found via their component names at the vehicle level. Component Locations
