PE54.71-P-2050EAA Electrical Function Schematic For Attention Assist

PE54.71-P-2050EAA Electrical Function Schematic For Attention Assist

MODEL 207.3 /4

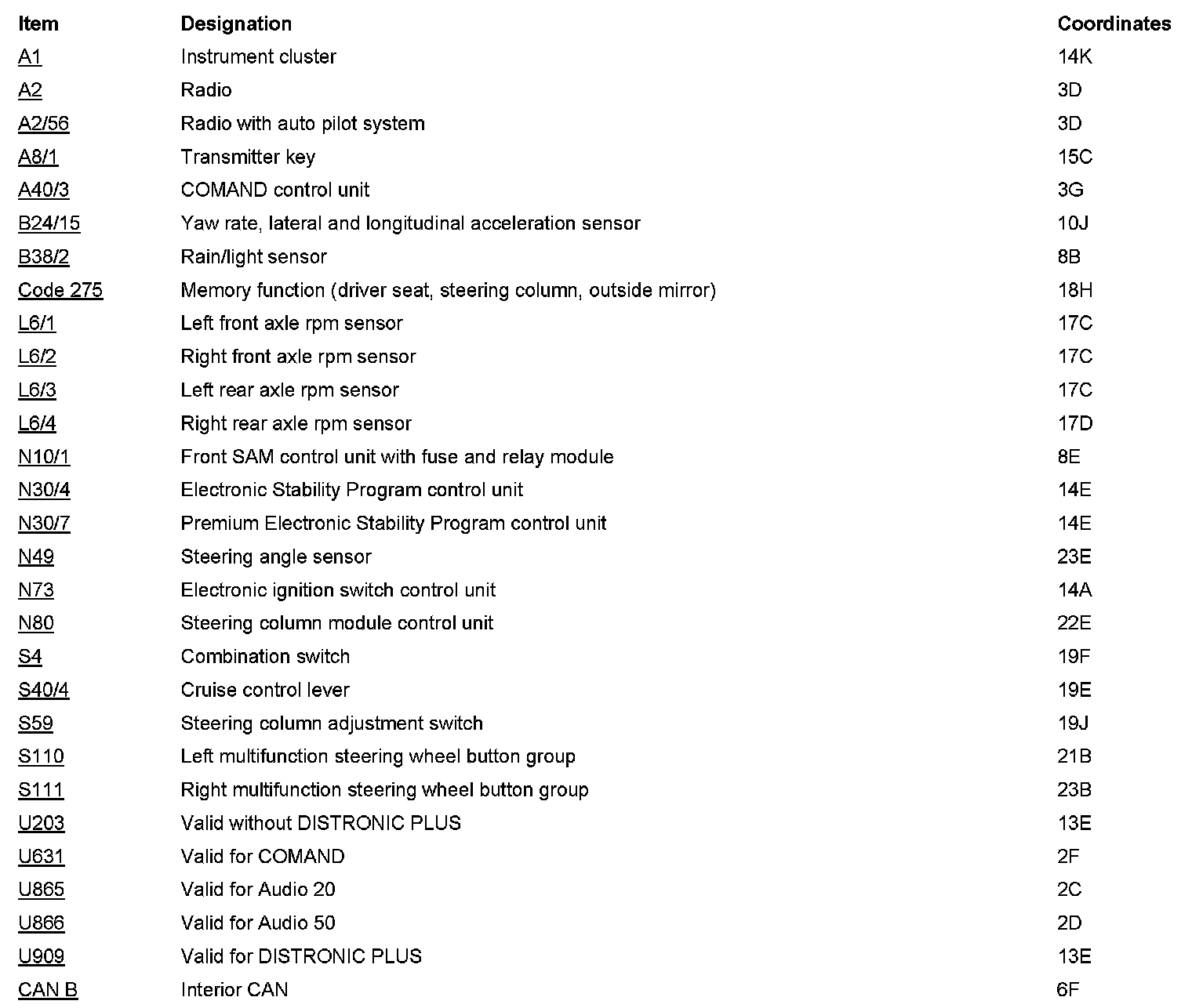

Component Locations: Component Location photographs can be found via their component names at the vehicle level. Component Locations
