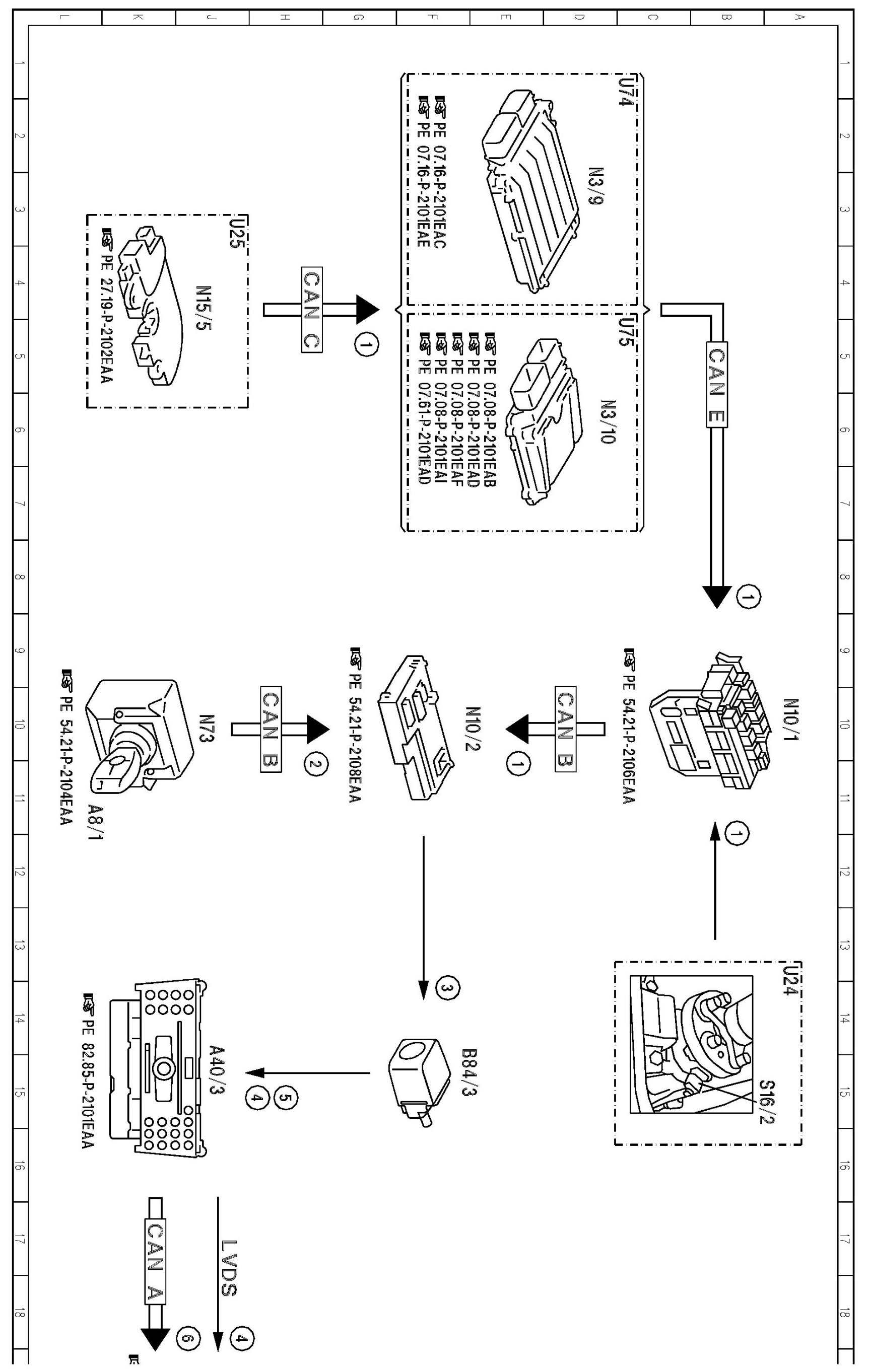

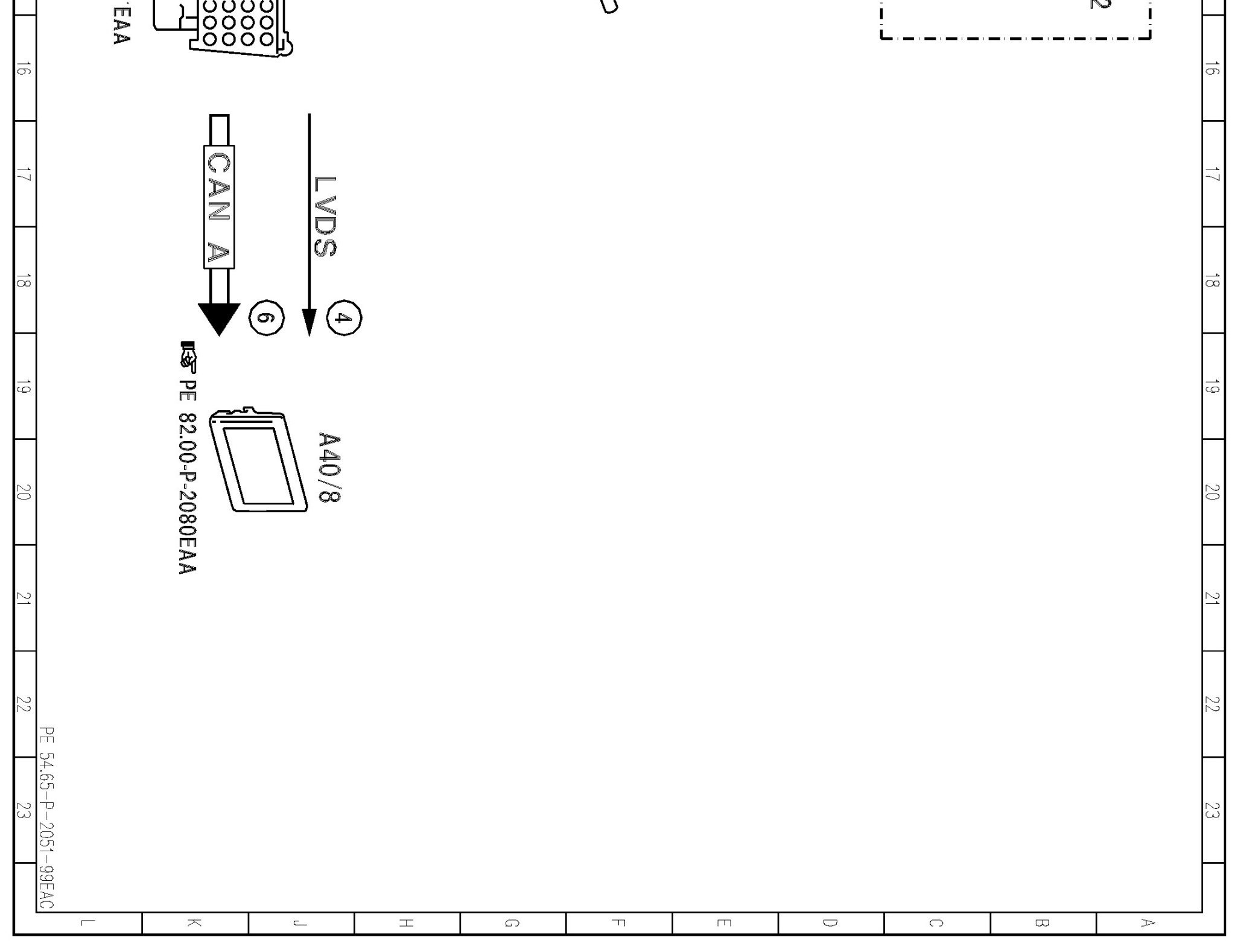

PE54.65-P-2051EAC Electrical Function Schematic, Reversing Camera

PE54.65-P-2051EAC Electrical Function Schematic, Reversing Camera

MODEL 207.3 /4
- with CODE (218) Backup camera
- as of model year 2011 /YoM 10

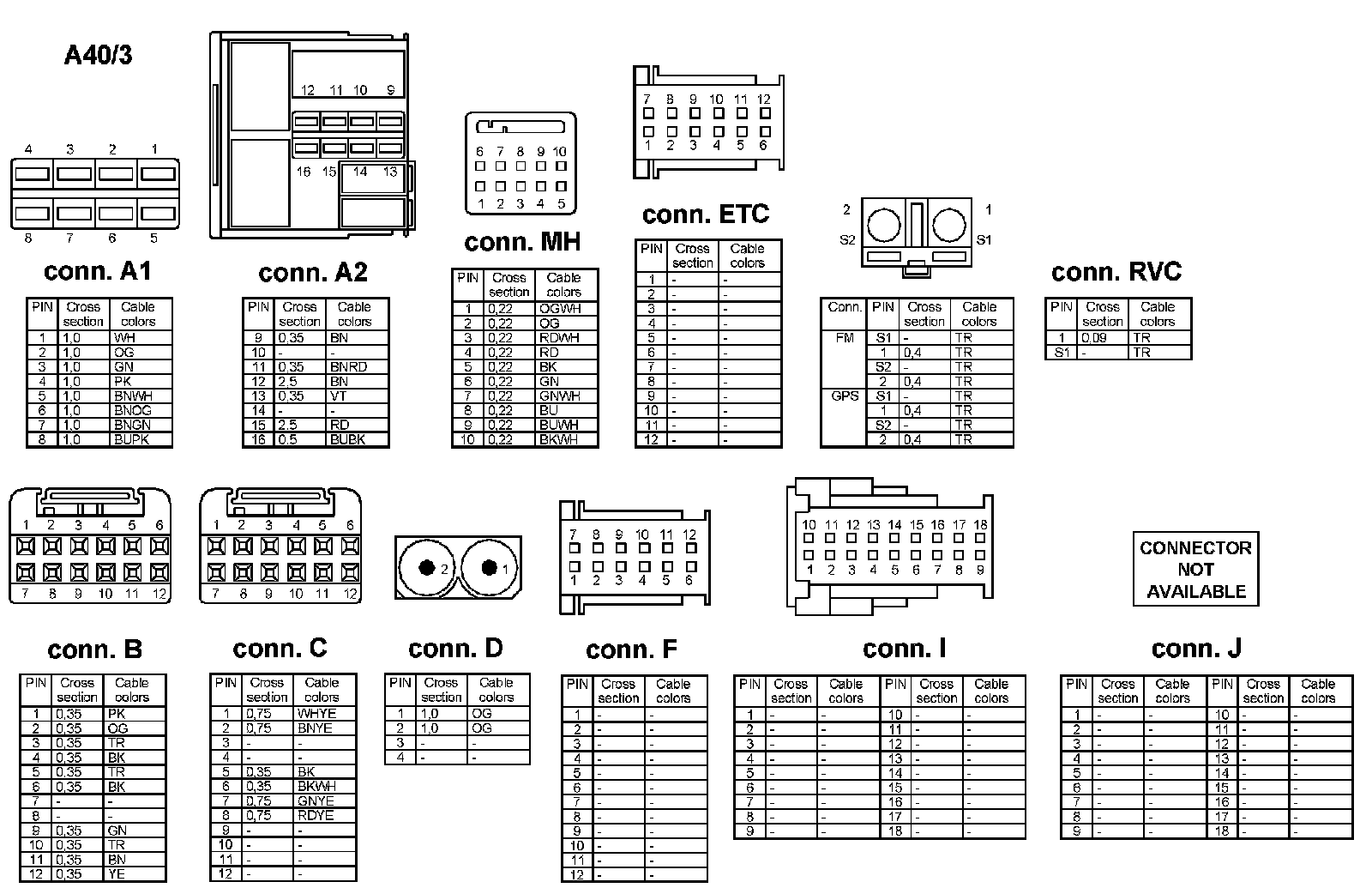

Component Locations: Component Location photographs can be found via their component names at the vehicle level. Component Locations
