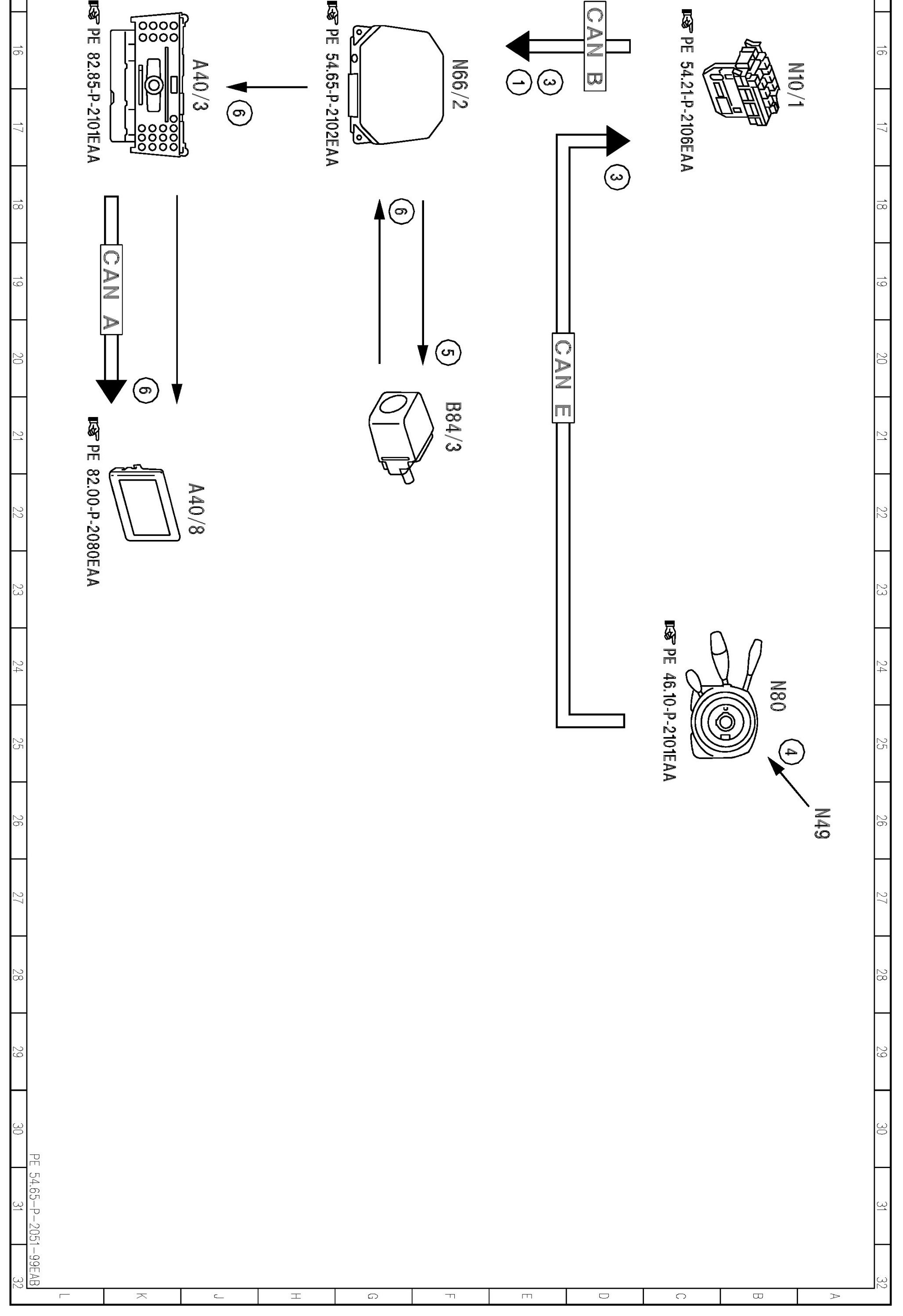

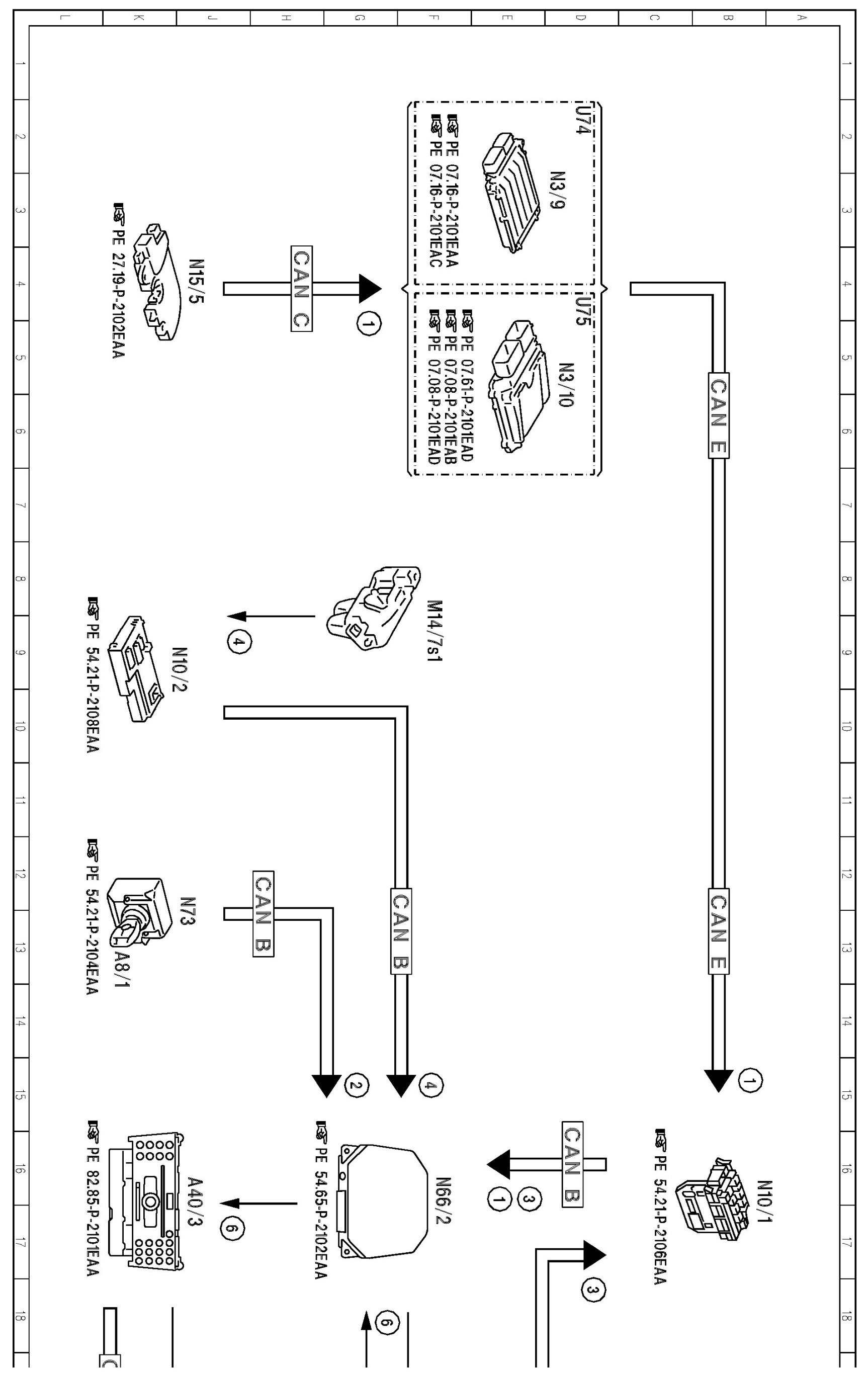

PE54.65-P-2051EAB Electrical Function Schematic, Reversing Camera

PE54.65-P-2051EAB Electrical Function Schematic, Reversing Camera

MODEL 207.3 /4
- with CODE (218) Backup camera
- with CODE (498) Japan version

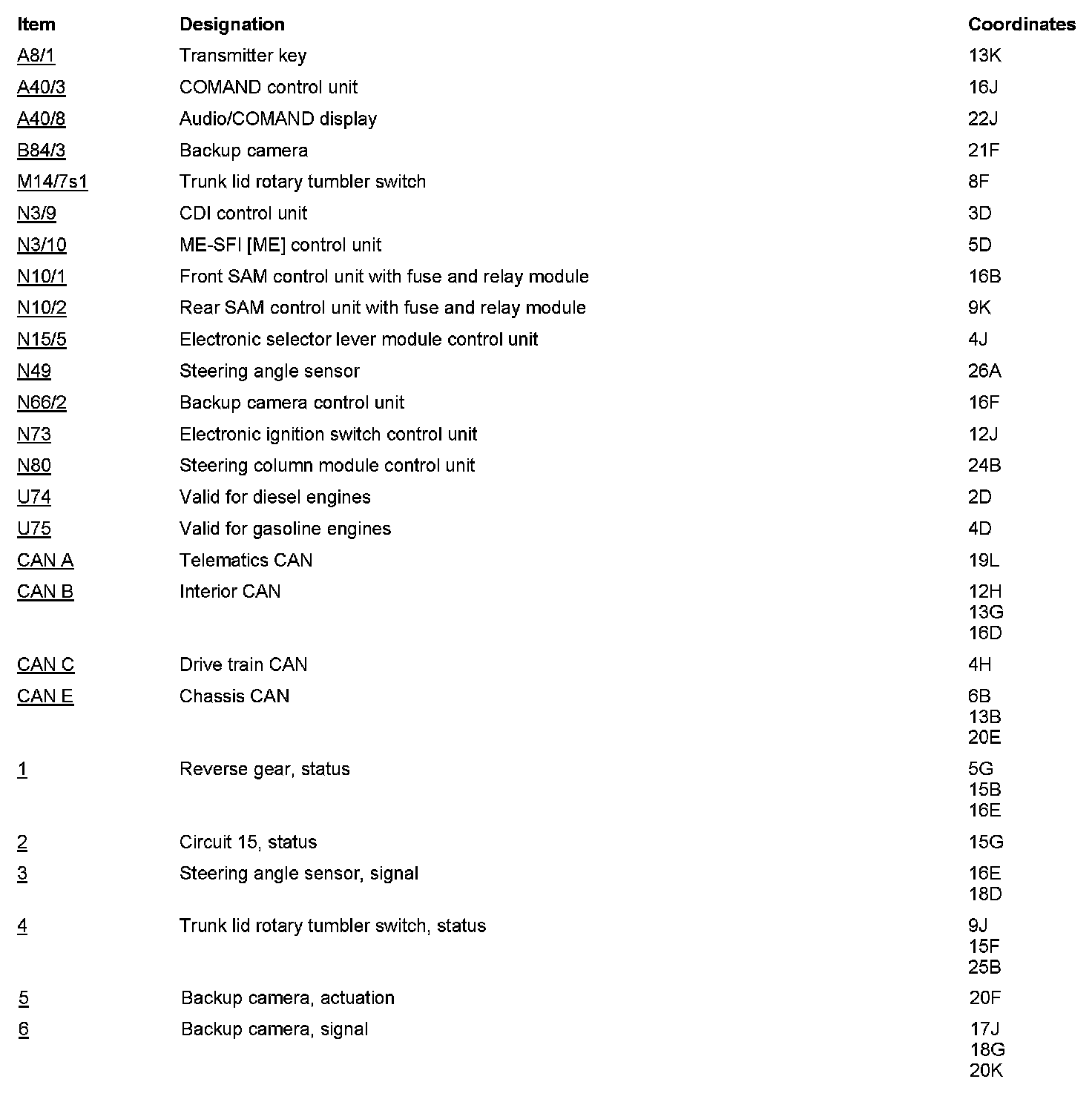

Component Locations: Component Location photographs can be found via their component names at the vehicle level. Component Locations
