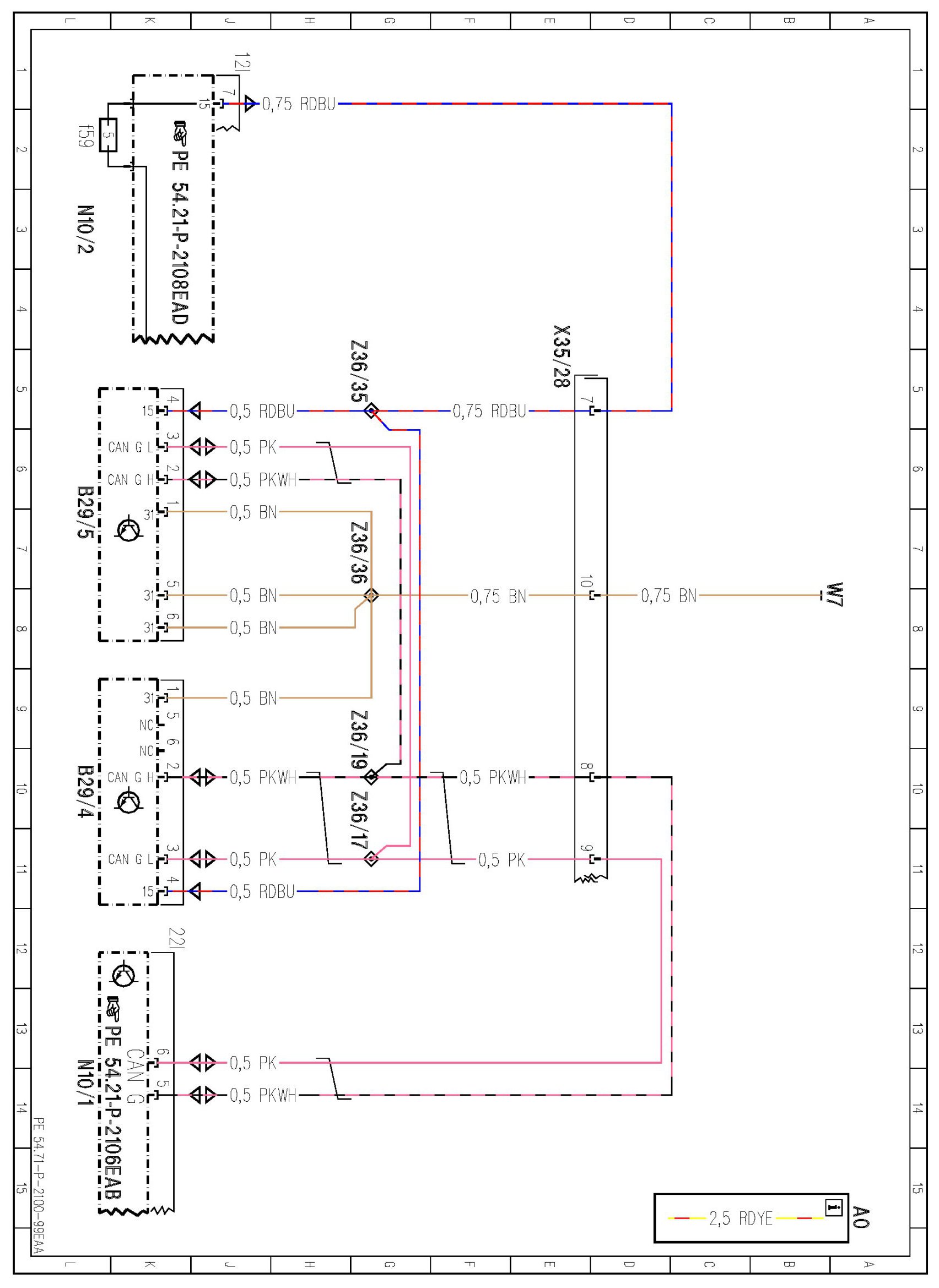

PE54.71-P-2100EAA Blind Spot Assist Wiring Diagram

PE54.71-P-2100EAA Blind Spot Assist Wiring Diagram

MODEL 207
- with CODE (234) Blind Spot Assist
- except CODE (498) Japan version

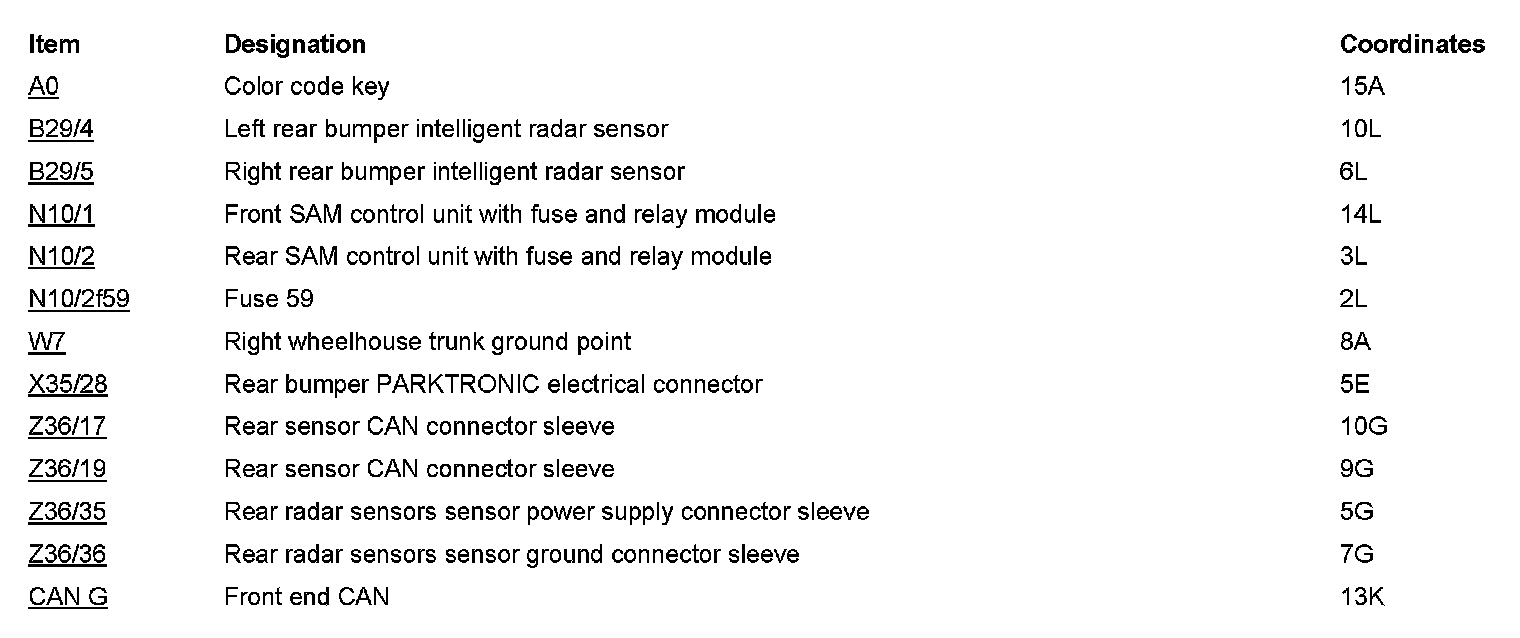

Component Locations: Component Location photographs can be found via their component names at the vehicle level. Component Locations
