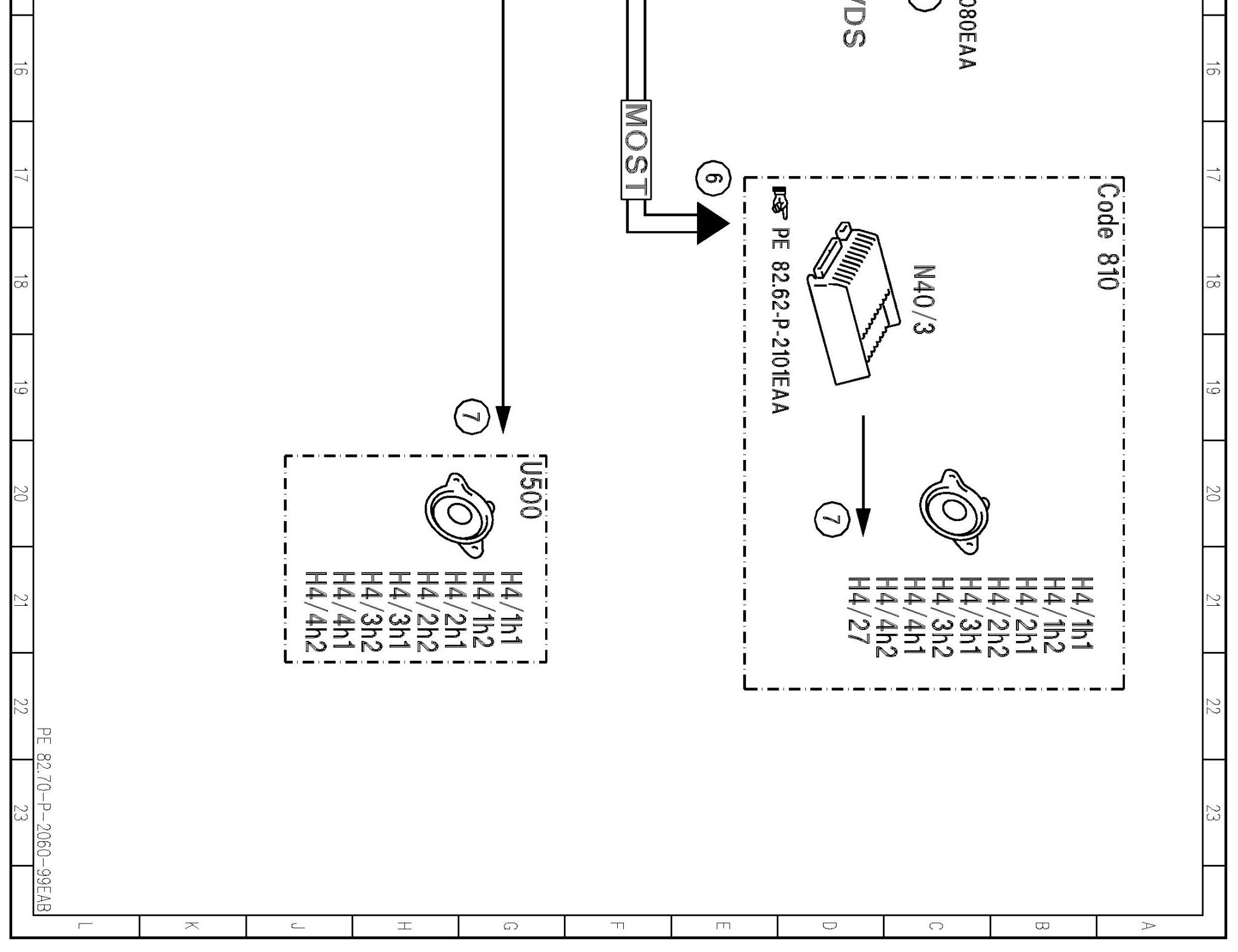

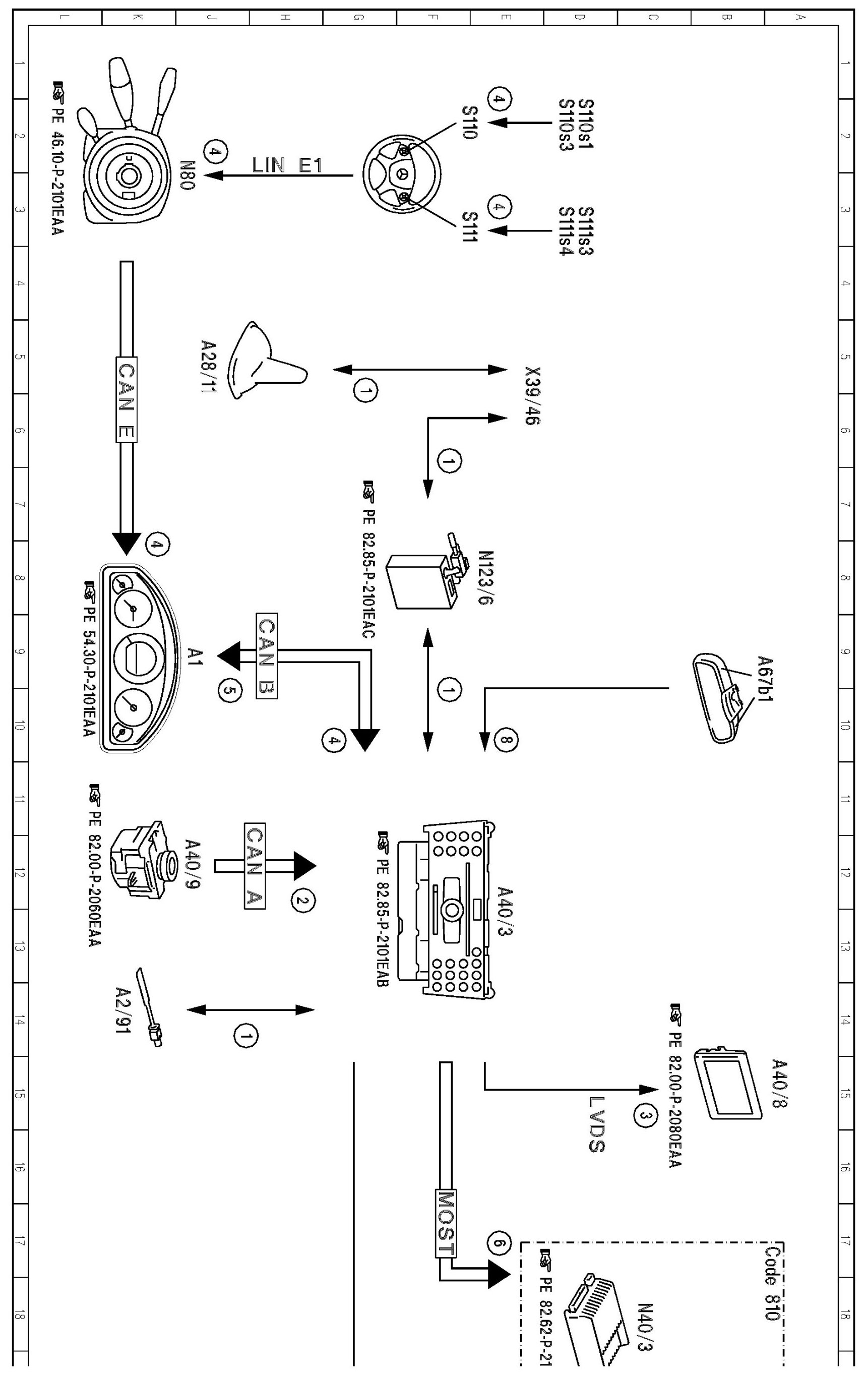

PE82.70-P-2060EAB Electrical Function Diagram For Mobile Phone Setting Up Call And Ending Call

PE82.70-P-2060EAB Electrical Function Diagram For Mobile Phone Setting Up Call And Ending Call

MODEL 207.3 /4
- with CODE (527) COMAND APS with single DVD drive (with navigation)


















































Component Locations: Component Location photographs can be found via their component names at the vehicle level. Component Locations
