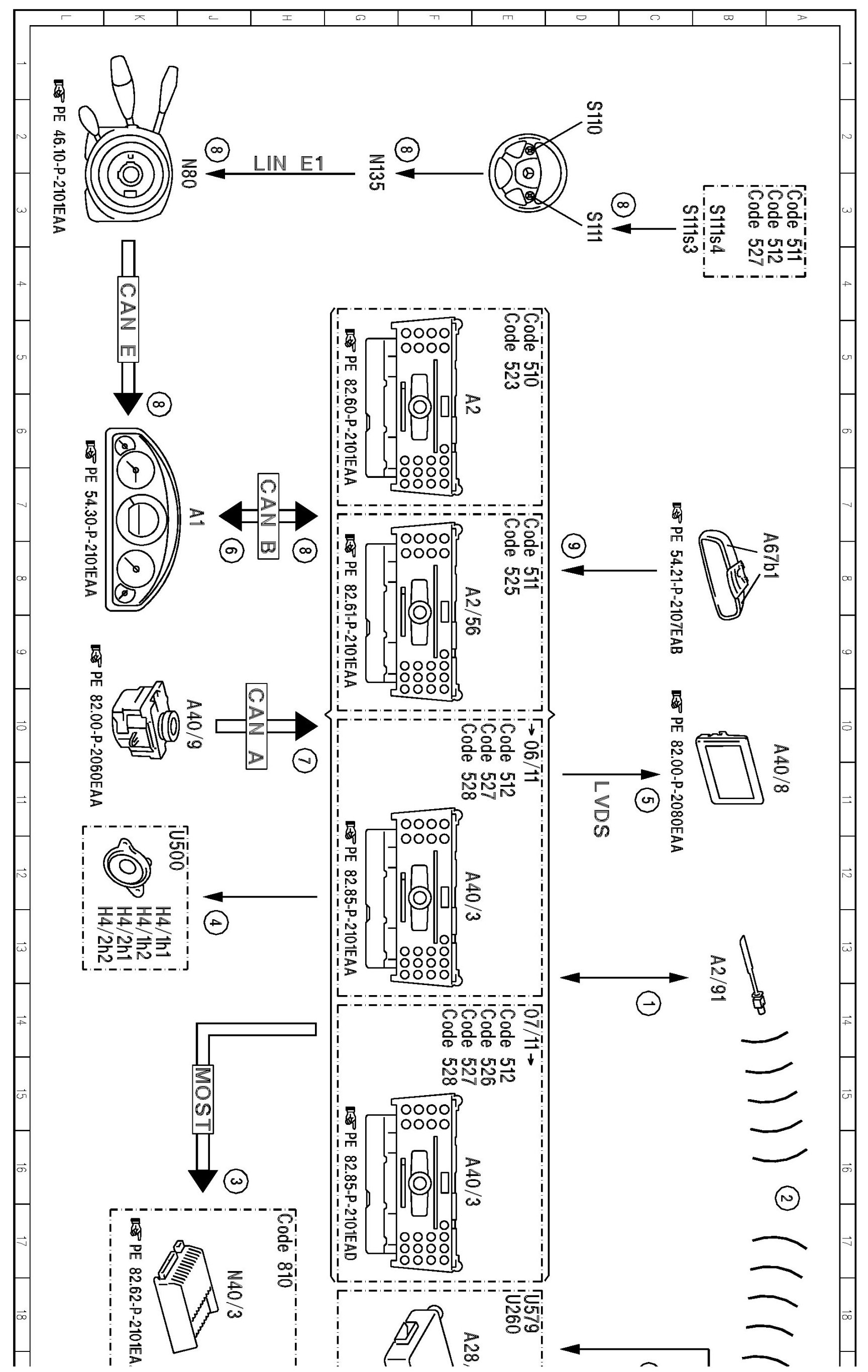

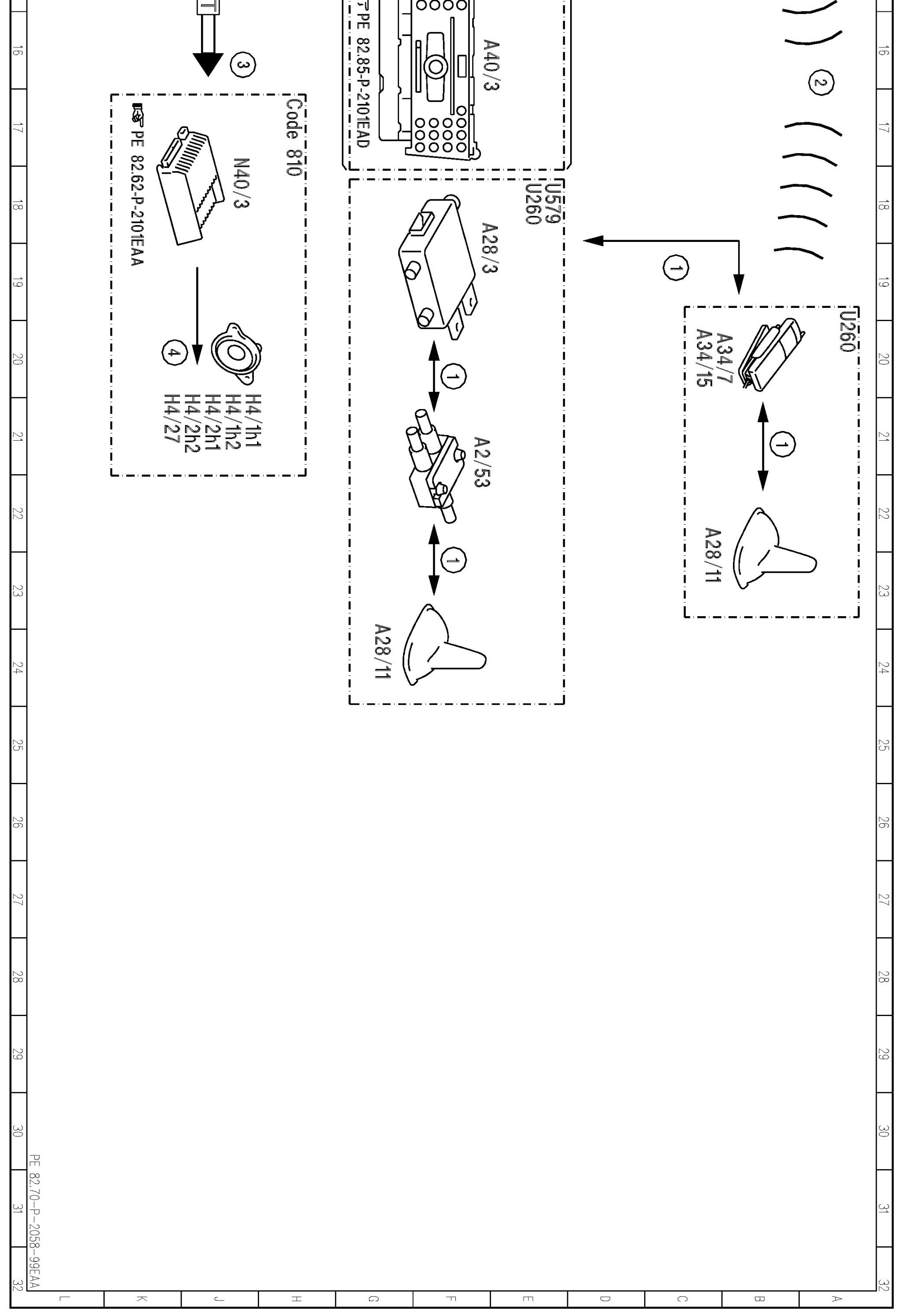

PE82.70-P-2058EAA Electrical Function Diagram For Mobile Phone Accepting Call And Rejecting Call

PE82.70-P-2058EAA Electrical Function Diagram For Mobile Phone Accepting Call And Rejecting Call

MODEL 207.3 /4
- except CODE (498) Japan version






















































Component Locations: Component Location photographs can be found via their component names at the vehicle level. Component Locations
