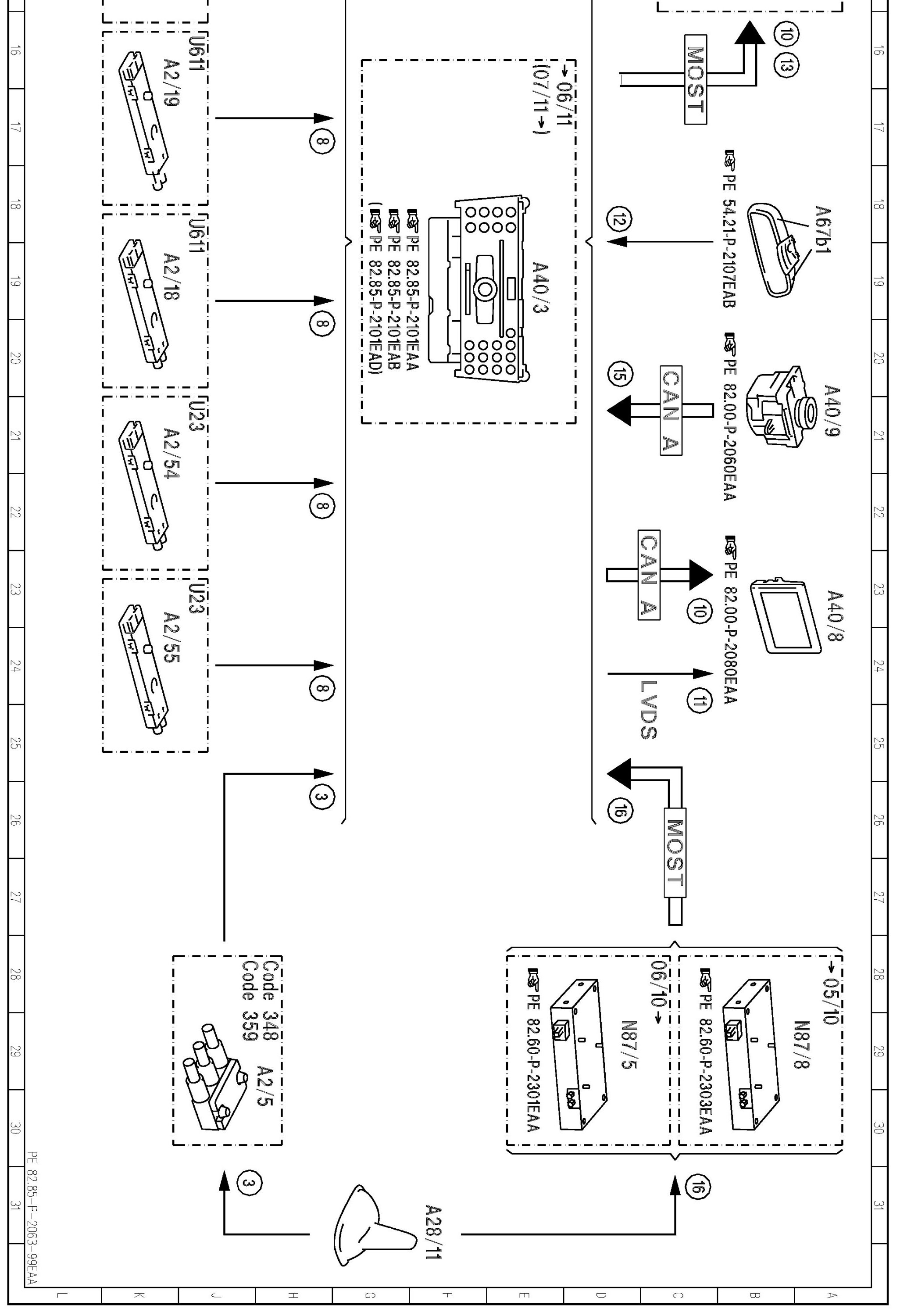

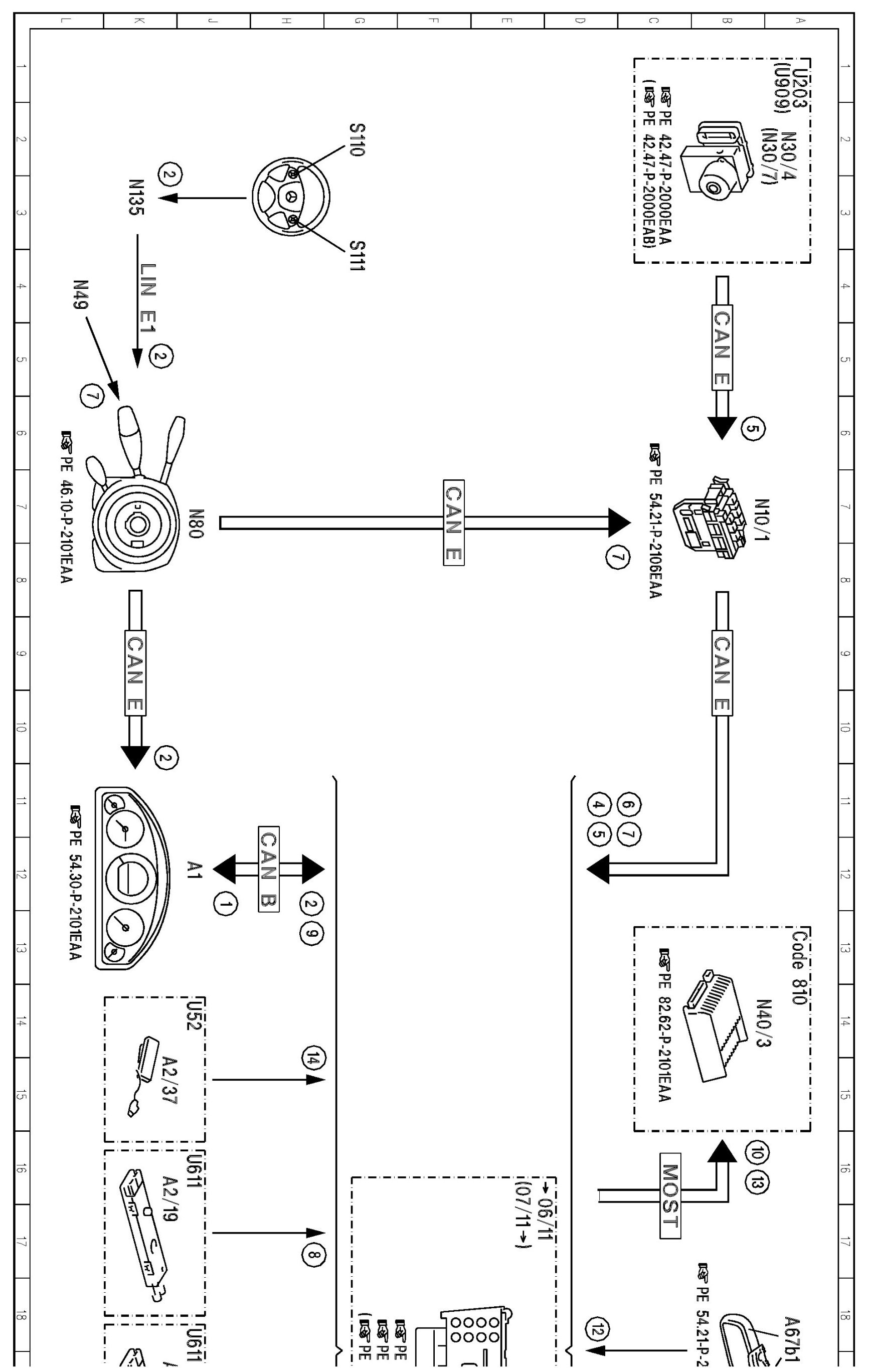

PE82.85-P-2063EAA Electrical Function Diagram For Navigation Mode (COMAND), Function

PE82.85-P-2063EAA Electrical Function Diagram For Navigation Mode (COMAND), Function

MODEL 207.3 /4
- with CODE (527) COMAND APS with single DVD drive (with navigation)


































































Component Locations: Component Location photographs can be found via their component names at the vehicle level. Component Locations
